WDR M062-VDW101-003 Operation Manual

Wdr allows every detail to be captured accurately even if one portion is bright while other portions are dark. (the difference of two portions could be more than 64 time)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
M062-VDW101-003
WDR
HIGH RESOLUTION

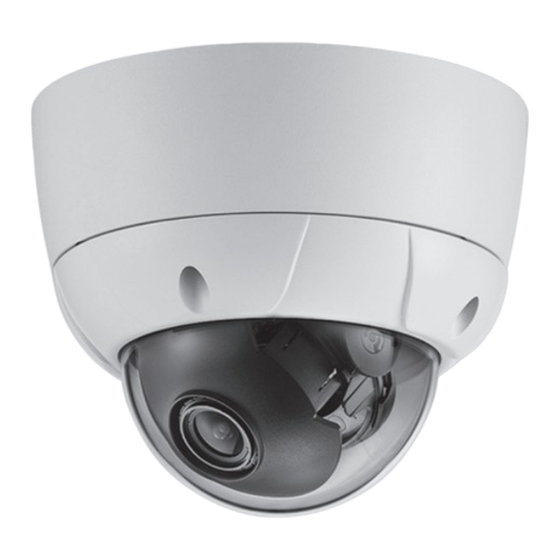

VANDAL DOME CAMERA
O PERATIO N M A NU A L
T hank y ou f or ch o o sin g o u r h ig h q u a lit y ca m e r a .
Bef ore att em pt in g to co n n e ct o r op e r a te , p le a se r e a d a n d f o llo w
the se inst ructio n s.

Advertisement

Table of Contents
loading

Related Manuals for WDR M062-VDW101-003

Summary of Contents for WDR M062-VDW101-003

  • Page 1 M062-VDW101-003 HIGH RESOLUTION VANDAL DOME CAMERA O PERATIO N M A NU A L T hank y ou f or ch o o sin g o u r h ig h q u a lit y ca m e r a .
  • Page 2 CONTE NTS 1. C a u t i on s 2. F e a t ur e s 3. E q u i pm e nt a nd A c c e s so r i e s 4. O v e r vi e w an d f u n c ti o n 5.
  • Page 3 1.Cau tions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. Thi s dev i c e ma y n o t ca u se h a rm fu l in t e r fe r e n ce . 2.
  • Page 4 1.Cau tions WEEE (Waste Electrical & Electronic Equipment) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 5 2.Featur es • Sony Vertical double-density interline CCD image sensor • 550TV Lines • WDR (Wide Dynamic Range), OSD Function • Digital slow shutter, Manual shutter • Privacy Zone • Motion Detection • IR LED : 30ea, Max 30M • Manual Pan & Tilt Control for easy installation - Horizontal 360˚, Pan 360˚, Tilt 140˚...
  • Page 6 2.Featur es • 3-Axis Gimbal Pan Rotation Tilt Rotation Horizontal Rotation CAUTION panning the bracket in excess of 3 rotations in one direction may cause damage to the cable. • Service Video connector T h e S e r v i c e V i d e o C o n n e c t o r a l s o p r o v i d e s t h e i n s t a l l e r w i t h a n easy way of co n fig u rin g t h e ca me r a .

  • Page 7: Equipment And Accessories

    3. Equipment and Accessories VANDAL DOME CAMERA SURFACE MOUNT VIDEO OUTPUT TEST CABLE OPERATION MANUAL SCREW(M4x10) - 4ea SCREW(5x30) - 4ea SCREW(M4x40.SUS) - 4ea L WRENCH - T20 MOUNT GUIDE...
  • Page 8 4.Over v i ew and function • Name (Led Type) OS D Jo y st i ck • CONTROL FUNCTION (OSD JOYSTICK) • Name (Standard) LEFT RIGHT DOWN OS D Jo y st i ck...
  • Page 9 5. I nstal la t ion Mount Guide Lens Focus Knob Lens Zoom Knob Separate LED Cover (Sunshield Cover) and adjust LENS ZOOM / FOCUS KNOB After setting the LENS, assemble the LED Cover (Sunshield Cover). LED Type Standard Type...
  • Page 10 5. I nstal la t ion 1. Installation of Flush Mount ① Installation of the camera with SURFACE CASE(using M4x40) ② Installation of the camera with SCREWS ③ Installation of the camera with JUNCTION BOX 2. Installation of Surface Mount PIPE ①...
  • Page 11 6.Con nec t ion • DUAL(DC12V/AC24V) BNC Female Video Video in DC12V / AC24V Regulated power supply • DC12V BNC Female Video Video in DC12V Regulated power supply When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.
  • Page 12 7.Dim ens i ons Unit : mm Surface Mount Type Type A Type B Flush Mount Type 70 ˚ 70 ˚ Standard Type LED Type When you fix the focus around 22.0mm in f9.0-22.0mm Varifocal lens, please set short distance focus approximately 3M and do not set long distance focus.
  • Page 13 8.Speci f ic at i ons Signal Format NTSC Image Device Sony Vertical double-density interline CCD image sensor Scanning System 2:1 Interlace H.Resolution 550TV Lines Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz Total Pixels 811(H) x 508(V) 795(H) x 596(V) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Electronic Shutter...

  • Page 14: Menu Description

    9.OS D M enu MENU DESCRIPTION • The best clear image can be obtained color camera with WDR(Wide Dynamic Range). • The camera switches lenses automatically depending on the illumination, which promotes the best possible color images during the day and black / white image at night.

  • Page 15: Table Of Contents

    WHITE BALANCE ... ATW >WB MODE ... ---- RED CONT ... ---- BLUE CONT ... ---- PUSH CONT INITIAL RETURN ... OFF >WDR MODE ... 08 WDR LEVEL ... OFF ... CENTER BLC ZONE ... 04 BLC LEVEL INITIAL RETURN...

  • Page 16: Cam Title

    9.OS D M enu DAY & NIGHT CAM TITLE 0123456789ABCDEFGHIJKLMN OPQRSTUVWXYZ!?*#$%()<>{} ... COLOR >D&N MODE CAM TITLE ... ---- LEVEL SPACE>> <<BACK ... ---- DWELL TIME INITIAL RETURN ... [┛] LOCATION RETURN IMAGE CAMM ADJ ... NORMAL >REVERSE ... 10 ...
  • Page 17 9.OS D M enu LENS MENU STRUCTURE EXPOSURE MENU STRUCTURE...
  • Page 18 9.OS D M enu WHITE BALANCE MENU STRUCTURE WDR MENU STRUCTURE...
  • Page 19 9.OS D M enu DAY & NIGHT MENU STRUCTURE IMAGE MENU STRUCTURE...
  • Page 20 9.OS D M enu 9 .OS D M e nu SPECIAL-CAM TITLE SPECIAL-LANGUAGE...
  • Page 21 9.OS D M enu SPECIAL-SYNC SPECIAL-COMM ADJ...
  • Page 22 9.OS D M enu SPECIAL-PRIVACY SPECIAL-MOTION DET...
  • Page 23 9.OS D M enu SPECIAL-DISPLAY...

  • Page 24: Lens Type

    9.OS D M enu OSD FUNCTION DESCRIPTION 1.LENS : Enable user to select the lens type according to equipped with camera. Set up using LEFT, RIGHT KEY at each menu. - LENS TYPE ①ELC : Enable user to set up for BOARD lens. ②DC : Enable user to set up for DC Iris lens.

  • Page 25: White Balance

    Enable user to reset the WHITE BALANCE menu setting. 4. WDR : Use the condition which Image doesn’t figure out with BLC such as place surrounded windows and lobby. Set the WDR using the LEFT, RIGHT KEY on the each menu. - WDR MODE ①...
  • Page 26 9.OS D M enu 5. DAY&NIGHT : Conversion of output image COLOR / BW depending on exterior environment Enable user to set the LEFT, RIGHT KEY in menu. - D&N MODE ①COLOR : Enable user to fix the output image in color. ②B/W : Enable user to fix the output image in B/W.
  • Page 27 - SHARPNESS : Enable user to control the image sharpness (0~15steps). - FREEZE : Enable user to freeze the image. - D-ZOOM(Digital Zoom) -> Max. 2.5x Digital Zoom * Zoom function is not available during WDR on. - INITIAL : Enable user to initialize the setting on IMAGE menu.
  • Page 28 9.OS D M enu 7. SPECIAL : Setting up the CAM TITLE, LANGUAGE, SYNC, COMM ADJ, PRIVACY, MOTION DET, DISPLAY Set up using LEFT and RIGHT key in each manual. - CAM TITLE : Enable user to choose any word in screen. (Maximum 10 letter is available) ①...
  • Page 29 9.OS D M enu - COMM ADJ : Enable user to set up CAMERA ID, BAUDRATE. ① CAM ID : Enable user to set up Camera ID (0~255). ② BAUDRATE : A communication speed to Communicate with external device. (2400, 4800, 9600, 19200). ③...
  • Page 30 9.OS D M enu - MOTION DET : Motion detection function. ① MOTION MODE : Enable user to set up ON/OFF ② ZONE : Enable user to set up detection zone. -> TOP, BOTTOM, CENTER, LEFT, RIGHT,WHOLE ③ LEVEL : Enable user to set up a sensitivity (0~5). ④...
  • Page 31 10.Co mmunic a tion Protocol Pelco “D” Protocol Commands • Most widely used Commands - TELE = UP KEY - WIDE = DOWN KEY - NEAR = LEFT KEY - FAR = RIGHT KEY - MENU = MENU KEY...
