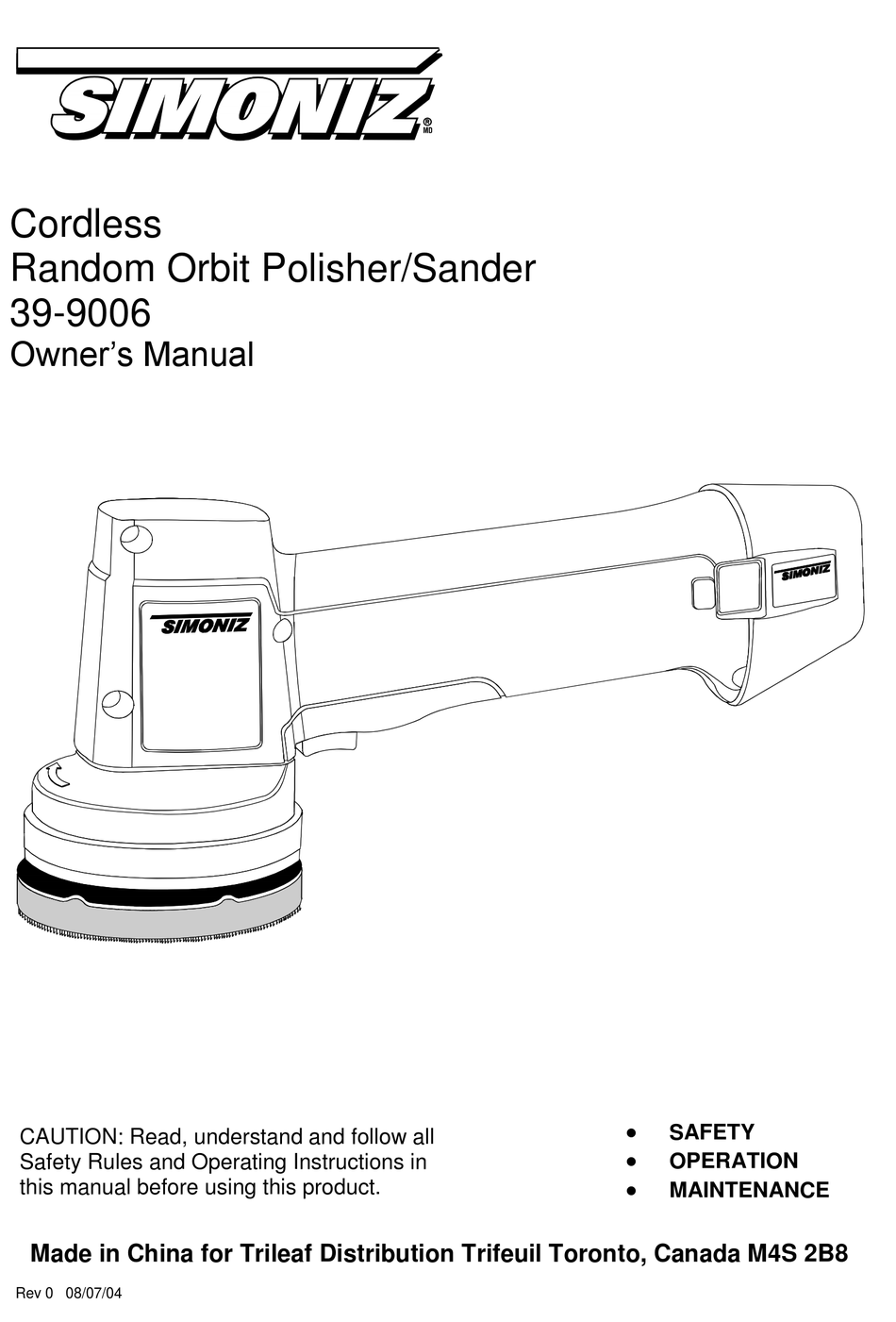

Cordless
Random Orbit Polisher/Sander
39-9006
Owner's Manual
CAUTION: Read, understand and follow all
Safety Rules and Operating Instructions in
this manual before using this product.
Made in China for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
Rev 0 08/07/04
SAFETY
OPERATION
MAINTENANCE
Advertisement
Related Manuals for Simoniz 39-9006
Summary of Contents for Simoniz 39-9006
- Page 1 Cordless Random Orbit Polisher/Sander 39-9006 Owner’s Manual SAFETY CAUTION: Read, understand and follow all OPERATION Safety Rules and Operating Instructions in this manual before using this product. MAINTENANCE Made in China for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
-
Page 2: Table Of Contents
WARRANTY 1-YEAR LIMITED WARRANTY This Simoniz product carries a one year warranty against defects in workmanship and materials. This product is not guaranteed against wear, breakage or misuse. If found defective within the stated warranty period, return product to place of purchase, with proof of purchase, and the product will be replaced free of charge. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNING: BE SURE to read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury ● WORK AREA SAFETY Always avoid body contact with grounded surfaces, such as pipes, ●... - Page 4 SAFETY INSTRUCTIONS ● ● Always make sure that your Do not overreach. ALWAYS keep extension cord is in good proper footing and balance at all condition. When using an times. Proper footing and balance extension cord be sure to use one enables better control of the tool in that is heavy enough to carry the unexpected situations.
- Page 5 SAFETY INSTRUCTIONS TOOL USE AND CARE – cont’d SERVICE SAFETY ● ● Always store idle tools out of the Tool service must be performed reach of children and other only by qualified repair personnel. untrained persons. Tools are Service or maintenance performed dangerous in the hands of untrained by unqualified personnel could result users.
- Page 6 BATTERY & CHARGER SAFETY ● ● Do not store or carry battery so Do not use the charger in wet or that metal objects can contact damp conditions. It is intended for exposed metal end. Do not place indoor use only. Do not use the battery in aprons, pockets, drawers, charger near sinks or tubs.
-
Page 7: Description
DESCRIPTION Your Simoniz Polisher/Sander is designed with Random Orbit technology. The tool will perform better when less pressure is applied. Applying excessive pressure will slow down the random motion and reduce the effectiveness of the tool. This Random Orbit Technology applies to all functions: polishing, buffing and sanding. -
Page 8: Operation
OPERATION REMOVING & INSTALLING BATTERY WARNING: Always make sure your fingers are away from the ON/OFF switch when removing or installing a battery. To remove the battery from the tool, squeeze the locking buttons (1) on Fig. 2 each side of the battery (see Fig. 1). CHARGING THE BATTERIES Slide the battery completely out of the tool. - Page 9 OPERATION CHARGING THE BATTERIES – cont’d BATTERY & CHARGER FACTS Insert the battery fully into the cavity The batteries supplied with the tool of the charging stand. are NOT fully charged when shipped. NOTES: Each battery must be charged for at a) Align the raised rib of the battery least 5 hours before being used in (5) with the matching slot (6) in the...
- Page 10 OPERATION ® Your Simoniz Polisher/Sander is Apply a bead of liquid polish to the designed with Random Orbit technology. foam pad (see Fig. 5). The tool will perform better when less NOTES: pressure is applied. Applying excessive a) Use only liquid polish. It spreads pressure will slow down the random more evenly on the working area.
- Page 11 OPERATION REMOVE POLISH Allow polish to dry to a haze. Remove the 4” foam pad and install the 6” buffing pad (see Fig. 7). NOTES: a) Make sure the foam pad is Fig. 8 centred on the mounting plate. b) You can also use the 4” foam pad to remove polish.
-
Page 12: Maintenance
OPERATION & MAINTENANCE SCRUBBING & CLEANING CLEANING THE SANDER/POLISHER The Polisher/Sander is also equipped Clean the exterior of the tool with a soft with a scrubbing brush. The brush is ideal damp cloth. NEVER use commercial for light cleaning applications such as tile solvents when cleaning the tool because and other non-porous surfaces. - Page 13 ® Simoniz is deeply concerned with the protection of our environment. We ask Once both mounting screws are you to join us in helping to protect it. After...
-
Page 14: Parts Explosion Drawing
PARTS EXPLOSION DRAWING... - Page 15 PARTS LIST Key # Part # Part Name Quantity CQL001 Switch button CQL002 Switch Assembly GB/T845-1985 Tapping screw CQL004 Enclosure (Left) CQL005 Battery cover CQL006 Fit wire CQL007 Battery pack CQL008 Conductor CQL009 Pole plate CQL010 Leading wire JD550 Motor CQL012 Motor gear CQL013...
