Simoniz 39-9027-4 Owner's Manual

8” random orbit buffer/polisher
Hide thumbs
Table of Contents

Advertisement

Quick Links

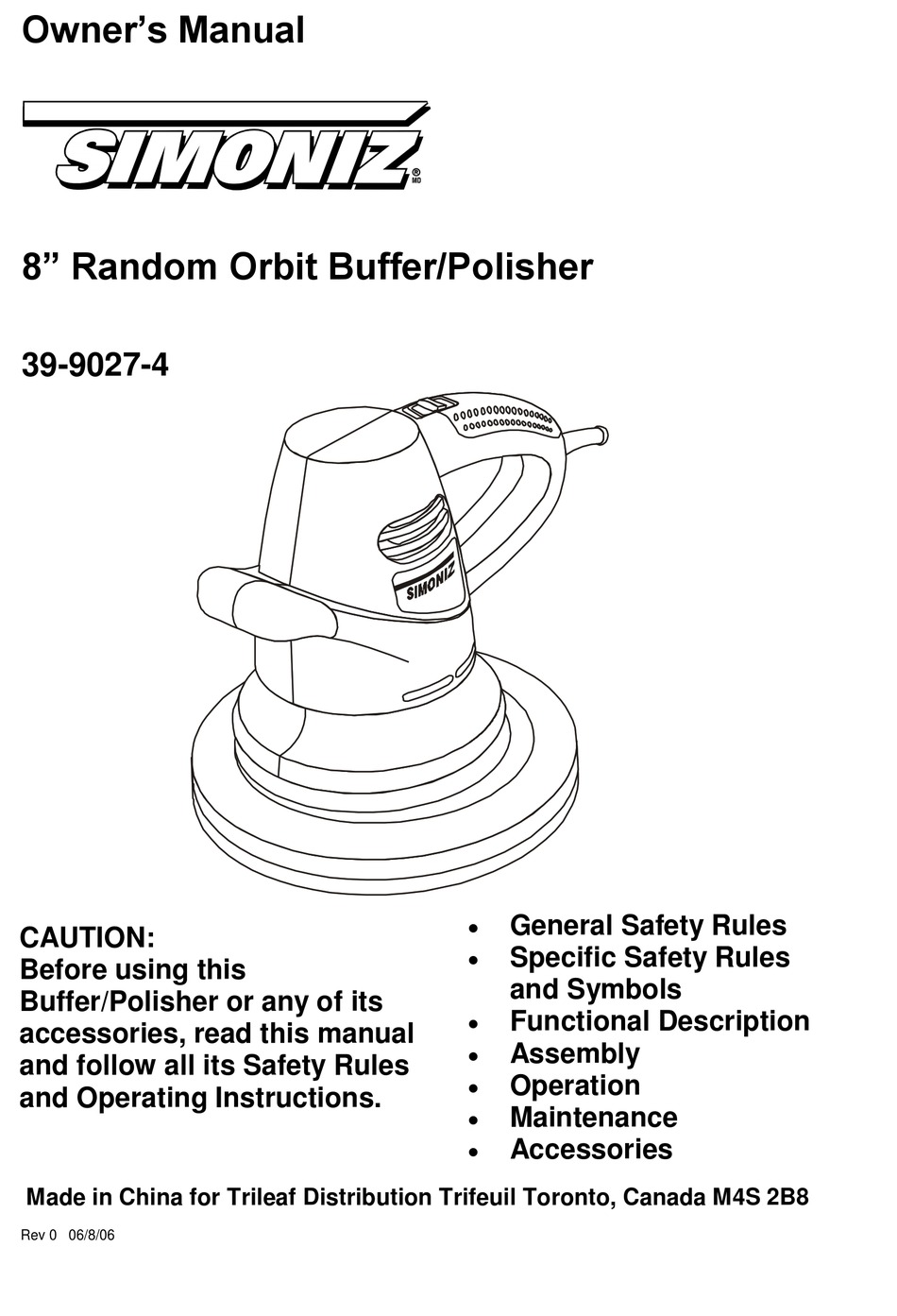

Owner's Manual
8" Random Orbit Buffer/Polisher
39-9027-4
CAUTION:
Before using this
Buffer/Polisher or any of its
accessories, read this manual
and follow all its Safety Rules
and Operating Instructions.
Made in China for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
Rev 0 06/8/06
General Safety Rules
Specific Safety Rules
and Symbols
Functional Description
Assembly
Operation
Maintenance
Accessories

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 39-9027-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Simoniz 39-9027-4

Summary of Contents for Simoniz 39-9027-4

  • Page 1 Owner’s Manual 8” Random Orbit Buffer/Polisher 39-9027-4  General Safety Rules CAUTION:  Specific Safety Rules Before using this and Symbols Buffer/Polisher or any of its  Functional Description accessories, read this manual  Assembly and follow all its Safety Rules ...

  • Page 2: Table Of Contents

    Symbols ……………………… WARRANTY 2-YEAR LIMITED WARRANTY This Simoniz product carries a two year warranty against defects in workmanship and materials. This product is not guaranteed against wear, breakage or misuse. If found defective within the stated warranty period, return product to place of purchase, with proof of purchase, and the product will be replaced free of charge.

  • Page 3: Product Specifications

    SPECIFICATIONS Rating: ………………………………….. 120 V, 60 Hz AC Amperes: ………………………………. 0.6 A Speed: ………………………………….. 4000 RPM (no load) Orbital action: ………………………….. 0.33” (8.5 mm) Power cord: ……………………………. 6’ (1.83 m) Weight: …………………………………. 3 lbs. 12 oz. (1.7 Kg) tool only POWER TOOL SAFETY ALWAYS WEAR EYE PROTECTION.

  • Page 4: Guidelines For Extension Cords

    POWER TOOL SAFETY ELECTRICAL SAFETY An undersized cord will cause a drop in line voltage resulting in loss of power and Double insulated tools are equipped overheating. The table below shows the with a polarized plug (one blade is wider correct size to use according to cord length than the other).
  • Page 5 POWER TOOL SAFETY PERSONAL SAFETY TOOL USE AND CARE Stay alert, watch what you are doing Use clamps or another practical method and use common sense when operating to secure and support the workpiece on a power tool. Do not use the tool while a stable platform.

  • Page 6: Specific Safety Rules

    POWER TOOL SAFETY SPECIFIC SAFETY RULES Check for misalignment or binding of Never allow fingers or clothing to moving parts, breakage of parts and any contact the buffing/polishing pads while other condition that may affect the tool is operating. tool’s operation. If damaged, have the tool serviced before using.

  • Page 7: Symbols

    SYMBOLS WARNING: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. volts direct current alternating or direct amperes current hertz...

  • Page 8: Accessories & Unpacking

    KNOW YOUR BUFFER/POLISHER Rear handle Front handle ON/OFF switch Pad assembly ACCESSORIES UNPACKING AVAILABLE ACCESSORIES WARNING: If any part is missing or damaged, do not plug the power cord WARNING: Use only accessories into the power source until the missing recommended for this buffer/polisher.

  • Page 9: Carton Contents

    CARTON CONTENTS BUFFER/POLISHER COMPONENTS DESCRIPTION Buffer/polisher Tote bag Wax applicator Terry cloth polishing pad Owner’s manual...

  • Page 10: Operation

    OPERATION ® Your Simoniz Buffer/Polisher is designed with Random Orbit technology. The tool will perform better when less pressure is applied. Applying excessive pressure will slow down the random motion and reduce the effectiveness of the tool. WARNING: Always remove the plug from the power source while Fig.
  • Page 11 OPERATION APPLYING LIQUID WAX TO BONNET – cont’d Fig. 4 APPLYING WAX TO SURFACE TO BE POLISHED NOTES: a) To avoid splashing waxes, ALWAYS start and stop the buffer/polisher on or against the surface to be polished. b) Apply wax in a thin, even coat. Too much wax does not add any more Fig.
  • Page 12 OPERATION APPLYING WAX TO SURFACE TO BE It is easiest to apply the wax to the POLISHED – cont’d entire surface before starting the removal phase, however, follow the Apply wax in a straight line with either specific recommendations of the wax a side-to-side or back-and-forth or polish being used.
  • Page 13 OPERATION ATTACHING THE POLISHING BONNET Use a clean terry cloth bonnet for final TO THE FOAM PAD – cont’d buffing and polishing, or use a foam polishing bonnet (sold separately) for the ultimate “showroom” shine. ALWAYS make sure that the elastic strip on the bottom of the IMPORTANT: DO NOT apply excessive bonnet is securely tucked on the...

  • Page 14: Maintenance

    MAINTENANCE REPLACE PAD ASSEMBLY Terry cloth bonnets can be machine washed in cold water, using a small ® amount of detergent. Then machine Insert a medium sized Phillips dried at medium temperature. square screwdriver through the access HOWEVER, we recommend hand hole (1) which is located in the washing and air drying for longer polishing pad holder (2) (see Fig.

  • Page 15: Parts & Service

    PARTS DIAGRAM – MODEL 39-9027-4...
  • Page 16 PARTS LIST – MODEL 39-9027-4 ® WARNING: When servicing, use only SIMONIZ replacement parts. Use of any other parts may create a HAZARD or cause damage to your Buffer/Polisher. Any attempt to repair or replace electrical parts on this Buffer/Polisher may create a hazard unless repair is performed by a qualified technician.
