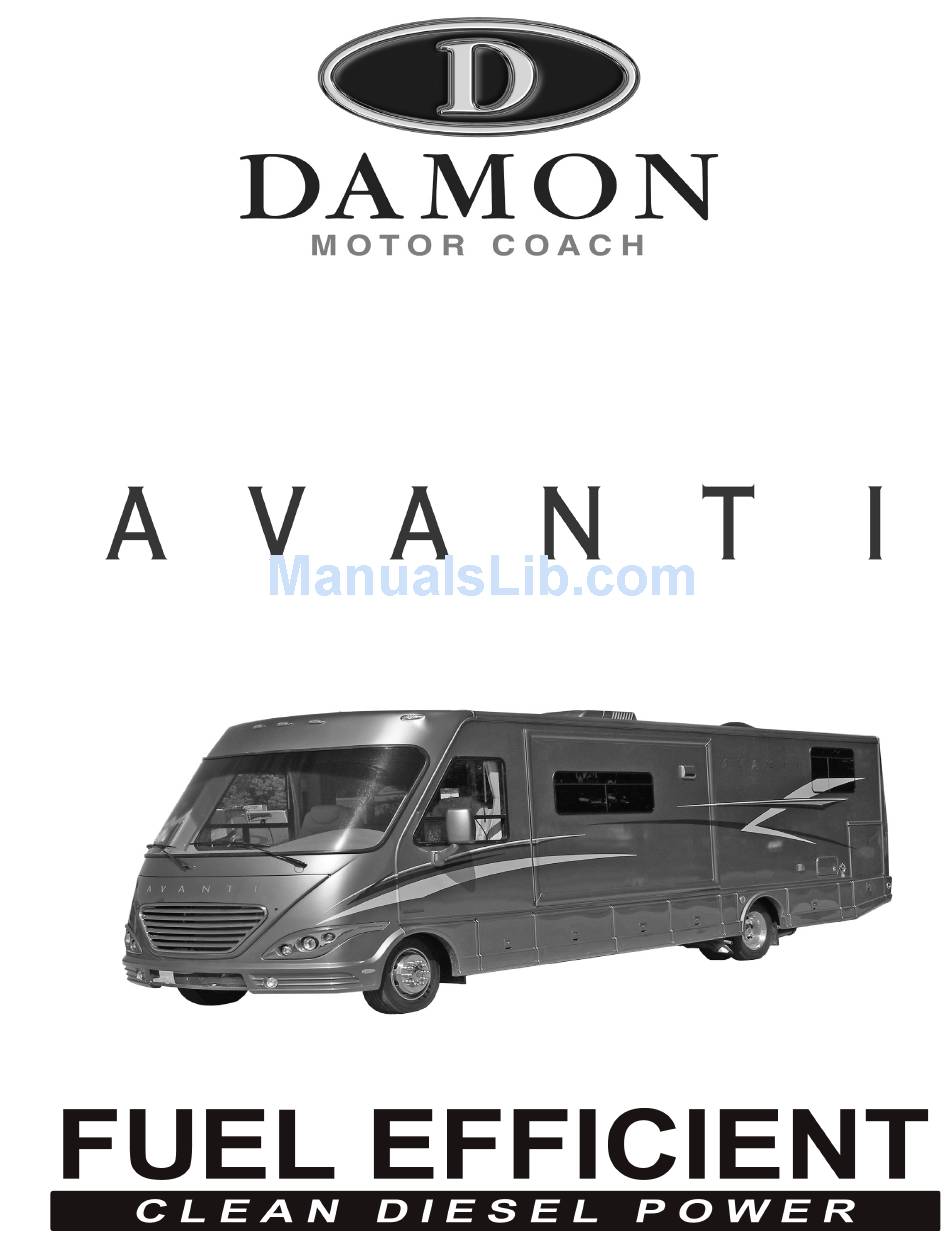

OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the avanti and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Damon avanti

Summary of Contents for Damon avanti

  • Page 1: Warranty - Chapter

    OWNERS MANUAL...
  • Page 2 Congratulations on your recent purchase of a Damon Motor Coach Recreational Vehicle. We sincerely thank you for choosing and putting your faith in Damon, and we would like you to know that your satisfaction is of great importance to us. Our major goal is to provide you with a quality recreational vehicle at a reasonable price.

  • Page 3: On The Road Safety - Chapter

    I received and read a copy of the Damon Motor Coach Limited Warranty and the Chassis Limited Warranty before I purchased the vehicle. I understand that it is to be used only for travel on improved roads. I also understand that the selling dealer is not an agent for Damon Motor Coach but is an independent company with no authority to make any representation or promise for Damon Motor Coach.
  • Page 4 FOLD HERE PLACE STAMP HERE DAMON MOTOR COACH CUSTOMER SERVICE DEPARTMENT PO BOX 2888 ELKHART, IN. 46515-2888 FOLD HERE TAPE - PLEASE DO NOT STAPLE...

  • Page 5: Table Of Contents

    Table of Contents INTRODUCTION City Water Hook-up Introduction Low Point Drains How to use this manual Sanitizing the Fresh Water System Reporting Safety Defects Heated Holding Tanks WARRANTY - CHAPTER 1 Dumping Holding Tanks Damon Limited Warranty Preventing Holding Tank Blockage Owner Responsibility Checklist Termination Compartment Components Major Equipment Suppliers TECHNICAL SYSTEM - CHAPTER 7 PLANNING AND PREPARATION - CHAPTER 2 Chassis Electrical License and Insurance Coach Electrical Inspect and Maintain Converter/Inverter Loading and Weight GFCI Controlling the Motorhome Battery Control Center (BCC) Pre-travel Checklist Generator Opening Checklist Monitor Panel Weights Roof Air Conditioner Federal Certification Label Propane System Federal Weight Label Propane Tank Capacity...

  • Page 6: Plumbing System - Chapter

    Table of Contents Awning Condensation 120 Volt Outlet Winterization Procedure Power Cord Water Heater Bypass Generator Compartment Winterization Checklist Furnace Door MAINTENANCE SCHEDULE Water Heater Access TRAVEL PREPARATION CHECKLIST Refrigerator Panel MAINTENANCE RECORD Automotive Fuse Block FUEL / OIL RECORD Exterior TV Hook-up NOTES Fantastic Vent TROUBLESHOOTING CARE AND MAINTENANCE - CHAPTER 10 Battery Control Center Batteries Electrical Power Waste Water System Furnace Fresh Water System Generator Electrical System Leveling Jacks Generator Power System Propane Gas Propane System Microwave ABS Plastic Parts Monitor Panel Alignment Outside Receptacle Awning Oven...

  • Page 7: Introduction

    Elkhart IN 46515-2888 You must include the dealer’s name, model and serial number of your motorhome. The Damon serial number is located on the bottom of the federal sticker, which is located in the driver’s compartment area. Thank you for choosing our product.

  • Page 8: How To Use This Manual

    Should a problem arise, your first step is to contact your selling Damon dealer who will be glad to handle your situation. This Owner’s Manual is not intended for use as a service manual, but rather as a guide to help you become familiar with your motorhome. This manual is not model specific, which means that it is used for a variety of different models that Damon manufactures. It is of a general nature, so the illustrations and descriptions may not be exactly as they are in your particular motorhome. If you are unclear or unfamiliar with any procedure that is described in this manual, see your Damon dealer for further clarification before proceeding. Damon Corporation uses the following notations to warn the user of possible safety concerns and to provide information that will prevent personal injury to the user and/or damage to the motorhome. A WARNING INDICATES A POTENTIALLY HAZARDOUS SITUATION THAT, IF NOT AVOIDED, MAY RESULT IN DEATH OR SERIOUS INJURY.

  • Page 9: Damon Limited Warranty

    Chapter 1 - Warranty WHAT THE PERIOD OF COVERAGE IS: This Limited Warranty provided by Damon Corporation® (“Warrantor”) covers those components, assemblies and systems of your new motorhome not excluded under the section “What is Not Covered”, when sold by an authorized dealer, for twelve (12) months from the first buyer’s retail purchase date or the first 12,000 miles of use, whichever occurs first. However, the skeleton frame structure, only, of the sidewalls (excluding slide outs), roof, and rear and front walls is covered for twenty-four (24) months from the first buyer’s retail purchase date or the first 24,000 miles of use, whichever occurs first. If you purchase or register your new motorhome in a business name or use your motorhome for any rental, commercial or business purposes whatsoever, the Limited Warranty provided by Warrantor covers your new motorhome when sold by an authorized dealer for ninety (90) days from the first buyer’s retail purchase date or the first 12,000 miles of use, whichever occurs first; and, the skeleton frame structure, only, of the sidewalls (excluding slide outs), roof, and rear and front walls is covered for twelve (12) months from the first buyer’s retail purchase date or the first 12,000 miles of use, whichever occurs first. A conclusive presumption that your motorhome has been used for commercial and/or business purposes arises if you have purchased or registered the motorhome in a business name or have filed a federal or state tax form claiming any business tax benefit related to your ownership of the motorhome. LIMITATION AND DISCLAIMER OF IMPLIED WARRANTIES:...

  • Page 10: Care And Maintenance - Chapter

    Chapter 1 - Warranty selling dealer during the inspection process performed by the Warrantor and the selling dealer. If, however, you discover any such defect or damage when you take delivery of the motorhome, you must notify your dealer or Warrantor within ten days of the date of purchase to have repairs performed to the defect at no cost to you as provided by this Limited Warranty. If two unsuccessful repair attempts have been made to correct any covered defect that you believe substantially impairs the value, use or safety of your motorhome, or repairs to any covered defect(s), which you believe substantially impairs the value, use or safety of your motorhome, have taken 20 or more days to complete, you must, to the extent permitted by law, notify Warrantor directly in writing of the failure to successfully repair the defect(s) so that Warrantor can become directly involved in exercising a final repair attempt for the purpose of performing a successful repair to the identified defect(s). HOW TO GET SERVICE: The “Acknowledgement of Receipt of Warranty/Product Information” form must be returned to Warrantor promptly upon purchase to assure proper part replacement and repair of your motorhome. Failure to return the “Acknowledgement of Receipt of Warranty/Product Information” form will not affect your rights under the Limited Warranty so long as you can furnish proof of purchase. For warranty service simply contact one of Warrantor’s authorized service centers for an appointment, then deliver your motorhome (at your expense) to the service center. If you need assistance in locating an authorized warranty service facility, contact Warrantor’s Customer Service Department (1-574- 264-2900). The mailing...
  • Page 11 Chapter 1 - Warranty TO RECOVER FROM WARRANTOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN THE MOTORHOME, INCLUDING BY WAY OF EXAMPLE FUEL AND TRANSPORTATION EXPENSES TO DELIVER THE PRODUCT TO THE SERVICING DEALER, HOTEL ROOMS, LOST WAGES AND MOISTURE DAMAGE SUCH AS MOLD AND MILDEW. THE EXCLUSION OF CONSEQUENTIAL AND INCIDENTAL DAMAGES SHALL BE DEEMED INDEPENDENT OF, AND SHALL SURVIVE, ANY FAILURE OF THE ESSENTIAL PURPOSE OF ANY LIMITED REMEDY. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above exclusions may not apply to you. LEGAL REMEDIES: THIS LIMITED WARRANTY DOES NOT “EXTEND TO FUTURE PERFORMANCE”. ANY ACTION TO ENFORCE THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTIES SHALL NOT BE COMMENCED MORE THAN 90 DAYS AFTER THE EXPIRATION OF THE WARRANTY COVERAGE PERIOD DESIGNATED ABOVE. IF YOU USE YOUR MOTOR HOME FOR COMMERCIAL OR BUSINESS PURPOSES, ANY ACTION TO ENFORCE THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTIES SHALL NOT BE COMMENCED MORE THAN ONE YEAR AFTER THE EXPIRATION OF THE WARRANTY COVERAGE PERIOD DESIGNATED ABOVE.
  • Page 12 Chapter 1 - Warranty...

  • Page 13: Owner Responsibility Checklist

    Damon reserves the right to make changes in Vehicles built and/or sold by it at any time without incurring any obligations to make the same or similar changes on Vehicles previously built and/or sold by Damon. OWNER As the proud owner of a Damon Motor Coach, you want to trust that your unit will continue to perform at its peak. To ensure this Damon has provided you this checklist RESPONSIBILITY of the responsibilities of the Damon owner. Please make sure that this list is carefully CHECKLIST observed and adhered to in order to maintain your Limited Warranty.
  • Page 14 Failure or neglect of proper sealant maintenance could result in leakage, and may reduce or void your warranty protection. SERVICE CALLS It is important that the owner realize that Damon’s Limited Warranty covers warrantable repairs that are performed by an authorized Damon dealer at their service center or facility only. If you are unable to bring your unit in for repairs, Damon is not responsible for the cost of the actual service call charged to come out to your unit. SLIDEOUT If your slide-out system becomes squeaky or makes any noises while operating, it is...

  • Page 15: Major Equipment Suppliers

    Chapter 1 - Warranty SUPPLIERS PROVIDING SEPARATE WARRANTIES Please read your recreational vehicle warranty carefully. It is very important to know what Damon Motor Coach warrants, and what is warranted by other suppliers’ warranties. Damon Motor Coach does not warrant some items within your vehicle. Below you will find a list of manufacturers who can help you with these components. Please contact them should a need arise. A SA Electronics / Backup Monitor & Camera / TVs/ Digital Converter / Dash Radio Atwood / Water Heater & Furnace & Entry Door 815-877-5700 Bob Gunn / Velvac / ADTH /Exterior Mirrors 574-262-2518 Bristol Laminating / Corian / Countertops 574-848-4461 Carrier Transport / Roof Air Conditioning 800-450-2211 Cass Hudson / Dinette Table Mechanism 800-423-1511 Coachstep / Electric Step 800-451-9245 D ometic / Refrigertator 574-294-2511 E vans / Dash Air Conditioning 616-361-2681 Fantastic Vent / Roof Vent with Rain Sensor 800-521-0298 Flair International / Furniture 574-295-5688 Flexsteel / Furniture 563-556-7730 Future Sales / Automotive Lights 574-262-3688...
  • Page 16 Chapter 1 - Warranty...

  • Page 17: Planning And Preparation - Chapter

    The vehicle licensing laws vary from state-to-state. Check with your state license bureau LICENSES or nearest branch office for the requirements of your state. Be sure to renew your license if it has expired or will expire during your trip. Your motorhome is considerably larger and heavier than your car, therefore certain precautions should be exercised. A CDL license may not be required to operate your motorhome, but Damon Motor Coach recommends you attend a CDL class to better understand the motorhomes driving and handling characteristics. Damon Motor Coach wants your driving experience to be pleasant and enjoyable. INSURANCE Talk to your insurance agent about the appropriate coverage for your motorhome. Always carry your policy card. Follow a consistent schedule of inspection and maintenance for your motorhome.

  • Page 18: Opening Checklist

    Chapter 2 - Planning and Preparation WHEEL LUGS Must be tightened to the specifications in the Chassis Manufacturer’s Owner’s Manual. WINDSHIELD Should be clean, wiper blades inspected, and windshield washer reservoir filled. LIGHTS Should be tested, including brake lights, warning flashers, clearance lights, tail lights, turn signals and headlights. Clean all lens covers. REARVIEW MIRROR Should be adjusted so the driver can see to the rear on both the right and left side of the unit. POWER CORD (120 Volt shoreline) must be unplugged from the external source and properly stored for transit, also making sure the cord hatch is secured. WATER FILL Hoses must be disconnected, properly drained and stored, and the caps and hatches secured. Fill the fresh water tank as required prior to storing hoses. SEWAGE Should be emptied from the holding tanks before traveling. Termination valves must be closed and locked. The sewer hose must be removed from the termination valve outlet and stored. Termination cap must be securely fastened to the termination outlet.
  • Page 19 Chapter 2 - Planning and Preparation • Open all doors and compartments. Check for animal or insect intrusion, water damage, or other deterioration. • Check charge level in batteries. Refill with distilled water and recharge if necessary. Reinstall batteries if necessary. Be sure cable ends and terminals are clean and free of corrosion. Turn the Battery Disconnect Switch off if applicable. • Check tire pressure. Inflate to the specified cold pressure. • Remove coverings from windows if necessary. • Open vents and windows for ventilation. • Drain, flush and sanitize the fresh water system. (See Chapter 6 - “Plumbing Systems”) Inspect drain lines for leaks. Replace if necessary. Do not try to repair, as this is usually ineffective. • Install a new water filter (if your unit is equipped with this). • Operate all faucets and fixtures in the fresh water system. Check for leaks at all joints and fittings. Repair if necessary. • Check 12 Volt circuit breakers and inspect all fuses.

  • Page 20: Weights

    Chapter 2 - Planning and Preparation • Check all the chassis fluid levels including engine oil, coolant, power steering fluid, brake fluid, transmission, rear axle oil and washer fluid. Top off if necessary. • Check all exterior lights; clearance, brake, turn, and reverse should be fully functional. Your motorhome should be ready for a new traveling season. Your dealer can check your preparation and correct any defects or make any necessary adjustments. These items are the absolute minimum requirements necessary for pre-travel. WEIGHTS A motorhome chassis (springs, wheels, tires, axles, and frame) is designed to carry a certain maximum load. This load includes everything; the weight of the empty motorhome itself, occupants, your belongings, fuel, fresh water, waste water and anything else that may be in or attached to the motorhome. FEDERAL The Federal Certification Label, found in the driver’s area, is installed in the vehicle as required by federal standards. It contains information that will be helpful in determining CERTIFICATION LABEL proper loading. The label will also list the date of manufacture, (GCWR), (GVWR), (GAWR)

  • Page 21: Capacity

    Chapter 2 - Planning and Preparation Neither the axle loads nor the vehicle loads must ever exceed their respective maximum weight ratings. CAPACITY A properly loaded vehicle is safer and easier to drive. Distribute your cargo evenly from side-to-side and front-to-back. Heavier items should be stowed on or near the floor and be as centrally located as possible. They should be secured so they cannot slide during a panic stop causing damage. Lighter items can be stored in overhead cabinets.

  • Page 22: Weight Distribution

    Vehicle/Trailer W eight: D o n ot t ow a v ehicle/trailer w eight m ore t han r ecommended b y the class rating of your hitch, or more than recommended by the chassis manufacturer, whichever is less. The motorhomes braking system is rated for operation at the total GVWR of the motorhome. For your safety, Damon Corporation recommends that a separate functional braking system be used on any towed trailer or vehicle, including those dolly towed or towbar towed. If you plan to tow a vehicle or trailer with your motorhome, the tongue weight must not exceed the maximum allowed hitch weight. The GVWR must not exceed the GCWR of...

  • Page 23: Towing And Gcwr

    Chapter 2 - Planning and Preparation is the total amount that you may safely tow behind your motorhome. This Combined Vehicle Weight cannot exceed your motorhome’s specific GCWR. Example: If you have a GVWR of 16,000 lbs., and your unit weighs 13,965 lbs.: GVWR 16,000 lbs. Subtract Unit weight 13,965 lbs. 2,035 lbs. Total of 2,035 lbs. available for cargo in the motorhome providing you DO NOT overload the individual GAWR’s. Example: If you have a GCWR of 20,000 lbs., and your unit is fully loaded to its maximum GVWR of 16,000 lbs.: GCWR 20,000 lbs. GVWR 16,000 lbs. 4,000 lbs. Total of 4,000 lbs. available to tow a vehicle or trailer behind the motorhome. This will be the MAXIMUM weight your unit is certified by the chassis manufacturer to safely pull. DO NOT exceed the ratings of the label on the hitch or the GCWR of the chassis.
  • Page 24 Chapter 2 - Planning and Preparation...

  • Page 25: Safety Belts

    Chapter 3 - On the Road Safety SAFETY BELTS Seat belts are an important safety feature of your vehicle. Each designated seat is designed to carry passengers while the vehicle is in motion. Each Designated Seating Position is equipped with either a type 1 (lap belt) or a type 2. (shoulder and lap belt) The number of seats equipped with seat belts is to provide a choice of seating locations. This does not necessarily mean that you may safely carry that many passengers. Refer to “Cargo Carrying Capacity” (page 21) in the loading section for proper loading techniques. To adjust your seat belt: • Pivot the buckle at a right angle to the belt and pull to the desired length. • Make sure the belt is not twisted, and press the tongue end into the buckle end. Be sure the two are latched together, and adjust the belt snugly around your abdomen. • To release, simply depress the button on the buckle and remove the tongue. Child restraint seats may be used with the lap belts provided. Check the restraint seat instructions for proper installation and adjusting. Child restraint seats are required to a certain age. Check with the states in which you will be traveling for the proper age requirements.

  • Page 26: Parking

    Chapter 3 - On the Road Safety on drive train components, especially the transmission. Under extreme heat conditions you may need to turn off the vehicle air conditioner to improve engine and transmission cooling. Allow for the extra height of your motorhome and avoid areas having low overhead clearance. Check for low hanging tree branches or other obstructions wherever you drive or park. Avoid low roof heights when pulling in for service. This may be particularly important if you drive with the overhead vents open or if the motorhome is equipped with a roof air conditioner, roof rack, or TV/radio antenna. Check the total height for your particular motorhome and make sure that you are aware of it when driving under bridges or underpasses.

  • Page 27: Air Pressure

    When replacing your tires always make sure the proper size and rating is used. Check the federal certificate located in the drivers area for your model’s specific size and rating. In a sudden stop or collision, loose equipment could strike someone. Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. Store and secure all of these items in a proper place. Damon does not provide jacks with our motorhomes.
  • Page 28 Chapter 3 - On the Road Safety...

  • Page 29: Safety Provisions - Chapter

    Chapter 4 - Safety Provisions Your motorhome has been supplied with various safety features and equipment for your convenience and for safe operation. As with all areas in life, the chance for accidents is possible, and the recreational life-style is no exception. Please take the time to familiarize yourself with the safety features of your motorhome now to prevent any question of how they are used if an emergency should arise. Please refer to the smoke detector manual in the Owner’s Information Kit for operating SMOKE DETECTOR instructions. Test smoke detector operation after vehicle has been in storage, before each trip, and at least once per week during use. Replace battery every six months. The motorhome should never be operated or occupied unless the smoke detector is present and functioning properly.

  • Page 30: Propane Safety

    Chapter 4 - Safety Provisions The motorhome should never be operated or occupied unless the CO Detector is present and functioning properly. Do not under any circumstances operate the vehicle or generator engine while sleeping. BATTERY INSTALLATION The carbon monoxide detector is installed without batteries. To install the batteries, press the tab at the top of the CO detector and slide the detector upwards. Open the battery compartment door by hinging the left lower side downward. This exposes the battery compartment. Install the batteries as indicated. The detector should beep indicating correct installation. Reverse the above procedure to reinstall the detector. Test the detector before you start every trip.

  • Page 31: Tire Safety

    Chapter 4 - Safety Provisions Do not operate the generator in an enclosed building or in a partly enclosed area such as a garage. It is also not recommended that you use the generator when there are other vehicles nearby. Review the safety precautions for fuel and exhaust fumes elsewhere in this manual. Do not operate the generator when the RV is parked in high grass or brush. Heat from the exhaust could cause a fire in dry conditions. Never operate your chassis or generator engine, or the engine of any vehicle, longer than necessary when the vehicle is parked. Do not simultaneously operate generator and a ventilator which could result in the entry of exhaust gas. When exhaust ventilators are used, we recommend that a window on the opposite side of the unit “upwind” of exhaust gases be opened to provide cross ventilation. When parked, orient the vehicle so that the wind will carry the exhaust away from the vehicle. Do not open nearby windows, ventilators, or doors into the passenger compartment, particularly those which can be “down wind”, even part of the time. Do not operate the generator when parked in close proximity to vegetation, snow, buildings, vehicles, or any other object that could deflect the exhaust under or into the vehicle. Do not touch the generator when running, or immediately after shutting off. Heat from the generator can cause burns. Allow the generator to cool before attempting maintenance or service. TIRE SAFETY Studies of tire safety show that maintaining proper tire pressure, observing tire and vehicle load limits (not carrying more weight in your motorhome than your tires or motorhome can safely handle), avoiding road hazards, and inspecting tires for cuts, slashes, and other irregularities are the most important thing you can do to avoid tire failure, such...

  • Page 32: Tire Pressure

    Chapter 4 - Safety Provisions • Vehicle capacity weight (VCW - the maximum occupant and cargo weight a vehicle is designed to carry) • Front and rear gross axle weight rating (GAWR - the maximum weight the axle system are designed to carry) Both placards and certification labels are permanently affixed to the motorhomes interior sidewall. Locate the placards and labels inside of a cabinet door, near to the driver’s area. UNDERSTANDING TIRE Tire inflation pressure is the level of air in the tires that provides it with load-carrying PRESSURE &...

  • Page 33: Tire Balance & Alignment

    Chapter 4 - Safety Provisions grooves. When they appear “even” with the outside of the tread, it is time to replace your tires. Another method for checking tread depth is to place a penny in the tread with Lincoln’s head upside down and facing you. If you can see the top of Lincoln’s head, you are ready for new tires. To avoid vibration or shaking of the vehicle when a tire rotates, the tire must be properly TIRE BALANCE & balanced. T his balance is achieved by positioning weights on the wheel to counterbalance WHEEL ALIGNMENT heavy spots on the wheel-and-tire assembly. A wheel alignment adjusts the angles of the wheels so that they are positioned correctly relative to the vehicle’s frame. T his adjustment maximizes the life of your tires. These adjustments require special equipment and should be performed by a qualified technician. TIRE ROTATION Before rotating your tires check the chassis owner’s manual for rotation recommendations for specific vehicles. If no rotation information is given, speak with a qualified service technician or the chassis manufacturer.
  • Page 34 Chapter 4 - Safety Provisions...

  • Page 35: Health And Well-Being - Chapter

    Chapter 5 - Health and Well-being CHEMICAL SENSITIVITY After you first purchase your new recreational vehicle and sometimes after it has been closed up for an extended period of time, you may notice a strong odor and chemical sensitivity. This is not a defect in your recreational vehicle. Like your home, there are many different products used in the construction of recreational vehicles, such as carpet, linoleum, plywood, insulation, upholstery, etc. Formaldehyde is also the by-product of combustion and numerous household products, such as some paints, coatings and cosmetics. However, recreational vehicles are much smaller then your home and therefore the exchange of air inside a recreational vehicle is significantly less than a home. These products, when new or when exposed to elevated temperatures and/or humidity, may “off-gas” different chemicals, including formaldehyde. This off gassing, in combination with the minimal air exchange, may cause you to experience irritation of the eyes, nose, throat and sometimes headache, nausea, and a variety of asthma-like symptoms. Elderly persons and young children, as well as anyone with a history of asthma, allergies, or lung problems, may be more susceptible to the effects of off-gassing. FORMALDEHYDE Most of the attention regarding chemical off-gassing surrounds formaldehyde.

  • Page 36: Mold

    Chapter 5 - Health and Well-being collide on wall surfaces, thus creating condensation. • Use a fan to keep air circulating inside the vehicle so condensation and mildew cannot form in dead air spaces. Allow air to circulate inside closets and cabinets (leave doors partially open). Please keep in mind that a closed cabinet full of stored goods prevents circulation and allows the exterior temperature to cause condensation. • The natural tendency would be to close the vehicle tightly during cold weather. This will actually compound the problem. Simply put, you need to remove some of the warm air, and allow some cool air to get inside the vehicle, so the furnace will not recycle humid interior air. • Use fluorescent ceiling lights and minimize prolonged use of the incandescent lights, which produce heat and contribute to condensation in the roof above the ceiling lights. WHAT ARE MOLDS? Molds are microscopic organisms that naturally occur in virtually every environment, indoors and out. Outdoors mold growth is important in the decomposition of plants.
  • Page 37 Chapter 5 - Health and Well-being and walls as moisture, or in cold weather as frost or ice. It may also condense out of sight within the walls or the ceiling where it will manifest itself as warped or stained panels. Appearance of these conditions may indicate a serious condensation problem. When you recognize the signs of excessive moisture and condensation in the motorhome, action should be taken to minimize their effects. For tips on controlling condensation see “Tips to Controlling Condensation” section. Your motorhome is not designed, nor intended, for permanent housing. Use of this product for long term or permanent occupancy may lead to premature deterioration of structure, interior finishes, fabrics, carpeting, and drapes. Damage or deterioration due to long-term occupancy may not be considered normal, and may under the terms of the warranty constitute misuse, abuse, or neglect, and may therefore void certain warranty protections.
  • Page 38 Chapter 5 - Health and Well-being...

  • Page 39: Water Pump And Filter

    Chapter 6 - Plumbing Systems FRESH WATER Your motorhome is self contained, able to carry fresh water in the potable storage tank and hold the waste water in dual holding tanks for dumping when convenient. Water SYSTEM connections are also available for a city water hose hookup to an external pressurized water source. The fresh water storage tank supplies potable water to all fixtures within your motorhome FILTER / WATER by means of a 12 Volt water pump. This pump is located close to the storage tank and is PUMP equipped with a check valve that ensures directional flow away from the tank. The pump has an on/off switch, which is located on the monitor panel. The pump will automatically build up pressure and maintain that pressure when turned on. The pump should be turned off when the fresh water tank is empty or when the motorhome will not be in use. Continued operation with a dry tank may damage the pump. Your pump has a filter on the inlet side. This filter should be cleaned after each tankful of water for the first few uses. To remove the cover press in firmly and twist counterclockwise about one eighth turn. Pull the screen out of the bowl and rinse clean. Reassemble in the reverse fashion. For more information check your water pump Owner’s Manual located in your Owner’s Filter Information Kit.

  • Page 40: Heated Holding Tanks

    Chapter 6 - Plumbing Systems 1. Drain the fresh water tank by opening the drain valve. All of the faucets should be in the closed or off position. 2. Prepare a solution of 1/4 cup household liquid chlorine bleach (5% sodium hypochlorite) to one gallon of water for every 15 gallons of tank capacity. Do not pour bleach straight into tank. Bleach must be diluted in water prior to filling. Example: Add four 2/3 gallons solution to a 70 gallon tank. Add five 1/3 gallons solution to a 80 gallon tank. Add six 1 gallon solution to a 90 gallon tank. Add six 2/3 gallons solution to a 100 gallon tank. This mixture puts a 50 PPM (parts per million) residual chlorine concentration in the motorhome’s water tank. This will act as quick-kill dosage for some harmful bacteria, viruses, and slime-forming organisms. Concentrations higher than 50 PPM may damage water lines and/or tank. 3. Close all faucets and drains, and fill the fresh water tank with the rinse solution through the potable water fill. 4. Turn on the pump switch and circulate the rinse solution throughout the entire system. 5. Once the rinse solution has been circulated through the entire system, fill the fresh water tank until it is full. 6. Close all faucets and drains and let the system sit for approximately three (3) hours. 7. Drain the entire system. 8. Flush the complete system with fresh water until chlorine odor disappears. 9. Finally, close all drains and fill the fresh water tank as you normally would. Make sure the water heater has water in it prior to igniting. Chlorine is poisonous. Recap bottle and clean any appliances used with soap and water.

  • Page 41: Preventing Holding Tank Blockage

    Chapter 6 - Plumbing Systems The holding tanks are enclosed sewer systems, and must be drained into an approved dump station. Tanks should be thoroughly drained and rinsed to prevent any accumulation on the interior of the tanks. Twist off the termination cap counterclockwise. Some liquid may be trapped between the valves. Connect the sewer hose by turning it clockwise, making sure that the connection end levers are locked over the termination end. Deposit the other end of the sewer hose into an approved dump station inlet. Open the black termination valve first and drain. Open the gray (smaller) tank valve to drain and flush out the hose. Rinse the tanks and hose thoroughly with fresh water before disconnecting. Close the termination valves. Rinse the sewer hose with the faucet provided in the termination compartment. Replace the sewer hose to the storage location. Replace the termination cap on the outlet, making sure that it is secured and locked. You may wish to add an approved deodorant chemical, approved for your sewer system, to aid in the breakdown of solid wastes as well as making your system more pleasant to use. Do not leave the termination valves in the open position or open them prior to having the sewer hose connected. Do not remove the termination cap with the termination valves in the open position. HOW TO PREVENT The most common holding tank problem is blocking the drain lines, which can be minimized by following a few simple suggestions: BLOCKAGE OF DRAIN...

  • Page 42: Termination Compartment Components

    Chapter 6 - Plumbing Systems TERMINATION The termination compartment has many operations. Listed below are the fixture call outs and functions: COMPARTMENT COMPONENTS Gloves. City Water Connection. Connect to direct water source. Sewer holding tank flush attachment. Attach the city pressure hose and allow the water to flow for three minutes. Be sure to open the termination valves and have the sewer hose attached and draining into an approved waste disposal system. Swan Valve. With the city water hose attached and the handle in the 12 o’clock position, valve will provide pressurized water for the motorhome. With the handle in the 9 o’clock position, the valve will pressure fill the fresh water tank. Be sure to check the monitor panel for tank filling progress, and turn off that valve when tank is full.

  • Page 43: Chassis Electrical

    Chapter 7 - Technical Systems The basic utility systems in your unit can be classified under two general titles, Electrical, and Propane. This section outlines these systems, describing their function, operation, and simple maintenance. This section is not intended as a service guide. Should a problem arise, we recommend that you contact your Damon dealer. The electrical system in your motorhome is designed and built in accordance with the latest codes, standards, and regulations effective at the time of construction. It consists of two types of systems, alternating current (AC) 120 Volt service and direct current (DC) 12 Volt service. Because of the many model variations and options, it is not possible to provide wiring diagrams in this manual. We recommend that any electrical work be done by a Damon dealer or a qualified RV electrician. The chassis electrical system is separate from the coach electrical system, except for the CHASSIS ELECTRICAL emergency start which may provide power from the auxiliary batteries to the chassis battery. The chassis system gets its power from the automotive battery, providing power to all of the dash controls and their functions. If any chassis electrical system should fail, first check the fuses at the circuit panel under the interior dash on the drivers’ side. These are automotive type fuses, which are available at many service stations. The dash fuses will be located either under the dash on the drivers’ side, or in the Battery Control Center (BCC) in the compartment behind the drivers’ front tire. Replace fuses or bulbs only with those of equivalent size and type as marked on the fuse or bulb.

  • Page 44: Gfci

    Chapter 7 - Technical Systems The inverter converts 12 Volt power from your house batteries to 120 Volt power for your motorhome. The inverter will power the entertainment circuits, which include, the TV and DVD player. Be aware that batteries are a limited power source and will quickly discharge under high loads. ALTERNATING The AC electrical system provides grounded electrical power to your 120 Volt electrical appliances through the external shoreline or your power generator. The shoreline is a one- CURRENT SYSTEM piece molded cord that provides a weatherproof cable assembly. Included in this cord is a grounding pin. If any adapter or extension cord is used, ensure the wire is sufficiently sized for the amperage of the motorhome. Be sure the grounding pin is maintained. Electrical output devices, extension cords and adapters must be grounded and suitable for the electrical requirements of your motorhome. Failure to provide sufficient electrical power can cause low voltage and/or damage to your appliances and motorhome. AC receptacles are located throughout your unit for your convenience. Certain circuits are dedicated to individual appliances (i.e. air conditioners, microwave/ convection oven) because of load requirements. GFCI Your motorhome is provided with a Ground Fault Circuit Interrupter (GFCI) receptacle located in the bathroom which also provides protection to all outside receptacles. The GFCI is designed to limit the time of exposure to an electrical shock caused by current leakage to the ground.

  • Page 45: Generator

    If there is an extremely low mineral content in the water, or if there is buildup or coating on the sensor probes on the interior of the tank(s), the readings on the monitor panel may be incorrect. Avoid pouring grease, oils, or similar substances down your drain or the toilet. If this should occur, the holding tanks may need to be washed out with soap and water. Inaccurate monitor panel readings could occur. ROOF AIR CONDITIONER Your Damon Motor Coach is equipped with a roof mount air conditioner. The air conditioner can be operated on either generator power or by an external power source. Using this for heat will reduce your furnace propane consumption. Use the Remote to select your appliance and set the temperature. There is a timer available for setting the heat or A/C operating times. You may notice some delays while changing from heat to A/ C and back. This prevents damage to the compressor. When changing the batteries in the remote, be sure to press the Reset button with a pen or pencil. See your Air Conditioner...

  • Page 46: Propane System

    Propane has a distinctive odor. If you are unaware of the nature of an odor contact a Damon dealer. If you smell propane: • Extinguish any open flames, pilot lights, and all smoking materials. • Do not touch any electrical switches.

  • Page 47: Propane Regulator

    Chapter 7 - Technical Systems PROPANE REGULATOR The tank has a gauge installed to show the level of propane in the tank. The tank level can be remotely read from the monitor panel. The monitor panel is usually located in the hallway. The propane tank has a regulator installed adjacent to the main shut-off valve. The regulator controls the pressure to the appliances as required for proper operation. This regulator has been preset by the regulator manufacturer and should not be adjusted unless necessary, and then only by a qualified propane service technician. The regulator has a vent to permit it to breath, allowing the diaphragm to move up and down, and also allowing a release for excess pressure which may build up. This vent must be facing downward and should be checked periodically to make sure that it is clean and free from obstructions. Clogging from corrosion, dirt, insects and other debris is the most...

  • Page 48: Home Theater Troubleshooting Tips

    Chapter 7 - Technical Systems To access the DVD menu from the dash radio when a DVD is inserted: 1.) Press the MENU button on the remote control to recall the main DVD menu. Use the joystick on the main control to select a title from the menu or touch the title on screen. 2.) Press ENTER button to confirm your selection and begin playback. TROUBLESHOOTING COMMON TROUBLESHOOTING TIPS. For a complete listing, check the products owners manual. TIPS Unit will not power on: Fuse may be blown. Install a new fuse with the correct rating. Component has preformed an illegal operation. Press the RESET button located in the bottom right corner of the front panel. Extreme hot or cold temperatures are present. Allow the interior of the motorhome to cool down or warm up before using the player. Remote does not function: Battery may be depleted. Replace battery with new.

  • Page 49: Automotive Dash

    Chapter 8 - Interior Systems AUTOMOTIVE DASH Driving a motorhome is similar to driving a car. You have an ignition switch, gearshift controls, turn signals, and dash components. As you sit in the driver’s seat the center of the cluster includes tachometer, speedometer, fuel gauge, oil gauge, temperature gauge, and amp meter. Switches may have symbols to describe their function. See pages 51 and 52 for more detailed information on the function of each switch. Switch locations may be different from model to model. The dash radio can be played without turning the ignition key “on” provided that the battery disconnect is in the “use” position. The cruise controls are on the turn signal lever. You can set, resume, and disengage the cruise control from this location. GEAR SELECTOR The gear selector is located on the left side of the steering wheel. Some models have an overdrive switch on the end. Press the button to engage/disengage to overdrive function. Pull the lever toward you to place into the desired gear. Be sure the service brake is applied when making this selection. See the Chassis Owner’s Manual for more information.

  • Page 50: Steering Wheel

    Chapter 8 - Interior Systems STEERING WHEEL The steering wheel can be moved to allow additional room for entering and exiting the driver’s seat, as well as for selected driving positions. Operate the tilt mechanism by lifting the smaller lever on the left side of the steering column just below the directional signal lever. Move the steering wheel to the desired position and release the lever to secure. Never attempt to adjust the steering wheel while the vehicle is in motion. Loss of vehicle control could result. BACK UP MONITOR The monitor for the back up camera is located in the dash. It will turn on when the gear selector is placed in reverse, or when you engage its power button. This is integrated into the dash radio. It will allow you to see behind your vehicle as you back up or park. The camera is located on the rear cap of the coach. MEDIA LINK Located near your back up monitor is the media link center. Use this “quick” connect for external auxiliary devices such as an IPOD and digital camera. Select AUX1 on the radio via SRC button. For complete instructions and available connections, see the products owners manual.

  • Page 51: Digital Converter Box

    Make sure the bed ladder is secured by the safety snaps before driving. To use the bed first pull out the beds’ mechanism pins located on the left and right side on the mechanism. Unlatch the safety straps. While standing in the center of the bed frame, pull towards you and down on the bed frame, until bed has reached the lowest position. To raise the bed to the “ up” position, stand in the center of the bed, lift up on the bed frame until bed reaches “ up” position. Insert the locking pins on either side of the bed on the mechanism and securely latch the safety straps. The bed mechanism will stop when having made contact with the internal bumpers. The bed will stay in the “down” position until manually lifted up. Damon recommends to strip the bed of all bedding and pillows before returning the bed to the “up” position. The maximum weight rating for the bed is 450 lbs. DOORS & DRAWERS Interior doors and drawers have travel latches to keep them closed while you are in transit. To open drawers lift slightly to clear the catch, then pull open. When storing articles: • Always keep tools and equipment stored in areas where they will not shift while traveling. •...

  • Page 52: Extending The Slideroom

    Chapter 8 - Interior Systems EXTENDING SLIDE 1. Before operating the system, verify your coach batteries are fully charged. ROOM 2. Before extending slide room, verify the following: • Turn chassis ignition off. This system will not function with your key on. Level your motorhome by utilizing the hydraulic leveling jacks. • Before extending the slide room, remove the travel locks from the slide room by rotating and removing, and move the driver’s seat to the furthest forward position, and place the seat back in the vertical position. • Verify that there are no objects (trees, electrical box, people, etc.) in the way of the slide room before extending it. 3. After the above steps have been verified, locate the switch for the slide room in the hallway, or bedroom of the motorhome. Turn the key to the ON position. As you press the switch to the OUT position, the room will begin to travel outward. (As a safety feature, if you let up on the switch, the room will stop moving). 4. As this slide room is designed to roll across the carpet, it may be necessary to vacuum the floor after each extension of the room.

  • Page 53: Bedroom Door Latch

    Chapter 8 - Interior Systems BEDROOM DOOR & Your bedroom door slides conveniently out of the way beside the wall. Damon provides a stainless steel pin located at the top of the door, to secure the door while the motorhome LATCH is in motion. Pull out this pin to allow the bedroom door to close. A/C & FURNACE For your comfort we have 13,500 BTU Carrier air conditioner with heat pumps. There is a remote control for the air conditioners for your convenience. This remote also controls THERMOSTAT the furnace. Simply point to the A/C, press heat on the remote and set your degree of comfort level. WATER HEATER SWITCH You have two options when running the water heater; you can run the water heater on propane or electric. Choose the best option to suit your needs. The hot water heater start switch is located on the wall in the monitor panel area. The light illuminates when the switch is turned on. The light goes off when the burner is on and the water is heating. If the light comes back on, the burner is not yet lit. It may take several tries to light the water heater burner. When the element is turned on the red light will glow. Be sure the tank is full of water before using. KITCHEN CABINETS For your convenience, there is plenty of storage above and around the range area for canned goods, kitchen utensils, etc. Please ensure that the doors are closed and latched...

  • Page 54: Faucet

    Chapter 8 - Interior Systems KITCHEN FAUCET The faucet in your motor coach is a single lever faucet with sprayer. To use the sprayer, pull out on the head of the faucet. Press the button on top to release the water. To reinsert the hose, gently guide it back to the original position. If you are not hooked up to a pressurized water system at the city water fill, you must turn the water pump switch on. You can find the water pump switch on the monitor panel .The water pump is a demand pump, so it will only operate when a faucet is opened to release the pressure. BATH VENT There is a power roof vent in the bathroom ceiling for use during shower and hot water use. By opening the vent and turning the fan on, hot moist air will escape, reducing condensation in the motorhome. It is extremely important that you use the fans and vent every time you use the shower or tub to eliminate excess condensation.

  • Page 55: Main Entrance

    MAIN ENTRANCE When locking and unlocking the main door, there is a dead bolt and a latch bolt which are keyed separately. Unlock both, pull the latch open, and pull out on the door handle. The main entry door is a two piece door. You can use the screen door separately from the main door by unlatching it. Slide the screen handle cover closed to keep insects out of your motorhome. If the door needs adjustment, see a Damon dealer for service. ASSIST HANDLE Adjacent to each entry door is an entry assist handle for convenience and safety in entering and exiting your unit. The electric step is automatic. When the ignition switch is activated, the step will ELECTRIC STEP automatically retract. When the door is opened, the step will extend automatically even...

  • Page 56: Volt Outlet

    The generator compartment is located in a storage compartment on the side of the motorhome. You can start/stop the generator from the generator switch on the COMPARTMENT monitor panel. Refer to the Generator Owner’s Manual for operating and maintenance information. FURNACE DOOR Damon furnaces have electronic ignition, and there is no need to access this panel except for service. As with all appliances, service is best left for your dealer. To remove the panel to check for insect nests, you will need a Square or a Phillips head screwdriver. For further information, reference the furnace manufacturer’s manual provided with your vehicle. WATER HEATER DOOR You can gain access to the water heater control panel to check for insect nests by turning the tab at the top and allowing the door to hinge down. Due to the electronic ignition, it is no longer necessary to access this compartment for lighting the pilot. It has an...
  • Page 57 Chapter 10 - Care and Maintenance GENERAL INFORMATION Periodic maintenance and cleaning of your recreational vehicle is necessary to retain the dependability, safety, and appearance that will provide you with many miles of trouble free operation, as well as protecting your investment. Make sure you read and follow all the maintenance tips and schedules that appear not only in this manual, which for your convenience we have provided for you; (reference pages 73 - 75), but also in the manuals provided by the chassis manufacturer and various component manufacturers. Keep good records of maintenance functions performed, and make sure you perform all owner obligations as may be required to keep your warranty in force. It is also important to note that operating conditions will affect service timetables. Driving in extreme conditions such as heavy dust, continuous short trips, or start and stop heavy traffic means that service durations will be shortened. Discuss service timetables with both your dealer and chassis service representative. Preventative maintenance will pay for itself many times over by catching or preventing problems before they occur. Many repair costs are greatly increased due to the fact that a small problem can begin to affect...

  • Page 58: Batteries

    For example, 12 Volt power is needed for the furnace, refrigerator, water heater, and some air conditioner functions. The generator is another area in which simple preventive maintenance can head off problems before they happen. Read the manual supplied with the generator in the Owner’s Information Kit for the care and maintenance required on a regular basis. If you experience electrical problems with your recreational vehicle, make sure to have it checked by an authorized Damon dealer or a qualified RV technician. GENERATOR POWER Generator power plant service, recommended by the generator manufacturer, should be performed at an authorized service center. Routine or emergency service, such as adding SYSTEM oil, changing filters, or replacing spark plugs, could be accomplished at an auto service center, but must be done in accordance with the service instructions specified by the generator manufacturer. Refer to the Generator Owner’s Manual for further information.

  • Page 59: Abs Plastic Parts

    Chapter 10 - Care and Maintenance ABS PLASTIC PARTS Some components of the recreational vehicle are constructed of strong, lightweight ABS plastic. Sometimes, it may be necessary to remove stains, or generally clean. A mild solution of soap and water will clean many stains, and should be used initially. Tougher stains may require stronger cleaners, but be sure to read the label to determine if the product is recommended for use on plastics. Avoid abrasive cleansers (even the liquid and cream types), alcohol based products, and solvents such as acetone and MEK. Gasoline and kerosene should not be used because of the damaging effect they have on the plastic surface, as well as the fire hazard they present. Often the damage caused by solvents, alcohol, and oil based products may not be immediately noticeable, but the plastic is made weaker, and thus more prone to stress cracking.

  • Page 60: Doors & Door Locks

    Chapter 10 - Care and Maintenance Proper engine servicing and record of servicing may be mandatory to ensure chassis warranty protection. Follow the manufacturer’s instructions on periodic maintenance checks. DOORS & DOOR LOCKS Moving parts of the entrance door and lock should be adjusted and lubricated at least once a year or as needed depending on use. Screws and fasteners should be checked and tightened periodically. Check weather-stripping seals to assure proper fit and seal. Refer to the Owner’s Manual from the door manufacturer for more in-depth instructions for care and maintenance of the entrance door. EXTERIOR LIGHTS Make sure to check the operation of all exterior lights often. Check headlights, clearance, turn signal, brake, and backup lights to make sure they are working correctly. Remember to check any towed vehicle or trailer lights also. Replace burned out bulbs as soon as possible. FIBERGLASS The care of fiberglass siding is essentially the same as any automotive finish. Take care to avoid spraying water directly into any vents when washing the motorhome.

  • Page 61: Graphics

    Proper maintenance of seals is necessary to keep moisture from entering and causing severe damage such as rot, mold, or mildew. If you encounter drying, cracked, or weathered seals, make sure to reseal as necessary. Remove the old worn seals first before reapplying the new seals. Check with your dealer for the type of caulking required for thermoplastic polyolefin (TPO) roofs and the correct methods of resealing. Silicones and synthetic sealers cannot be used on the rubber roofs. Special sealers are also required for the skylights. Your Damon dealer may perform the periodic roof seals for you if desired. It is especially important to check the seals before and after periods of extended storage or non-use. Fall and spring inspections are recommended. Check the membrane for possible damage and check all accessories and fasteners. The roof may be cut or punctured by sharp objects so care must be taken when parking and driving. If damage does occur, the roof may be patched. Check with your dealer for additional information. Parking in areas...

  • Page 62: Roof Vents

    Chapter 10 - Care and Maintenance and scrub the entire roof. Rinse thoroughly with clean water to avoid residue buildup on the roof or sidewall of the unit. • For more difficult stains contact your Damon dealer for the correct heavy duty cleansers. Do not use general-purpose cleaners containing petroleum solvents, harsh abrasives, or citric based cleaners. If your roof should somehow be punctured, cover the puncture to seal out moisture, and have it repaired as soon as possible (check with your dealer). The membranes used on the roof may have an extended warranty that is covered by the membrane manufacturer. This is for manufacturing defects only and does not include leaks or punctures due to improper sealing, normal wear and tear, or owner damage. See membrane manufacturer’s warranty for details.

  • Page 63: Tires

    Chapter 10 - Care and Maintenance Whenever possible, wipe down the exterior walls before retracting the room to prevent water from draining onto the carpet. The rollers under the slide room are not sealed rollers, therefore, some residue may appear on your carpet. This is a normal function, so be aware and take proper precautions. Vacuum the carpet after each extension of the slide out room. Verify that your house batteries are fully charged before operating the room. TIRES In areas where the hot sun constantly beats down on the motorhome, shading the tires by covering can reduce tire sidewall cracks from forming. Tire covers can be purchased at any motorhome supply store. Check your Chassis Owner’s Manual for the tire rotation requirements. Due to the weight of the motorhome you should have a qualified service center rotate the tires if recommended by your chassis manufacturer. TV ANTENNA To lubricate the elevating gear, apply a liberal amount of silicone spray lubricant to the elevating gear with the lift in the down position. Run the lift up and down a few times to distribute the lubricant over the gears. If rotating the antenna becomes difficult, lubricating the bearing surface between the rotating gear housing and the base plate can restore operation. Any spray type silicone lubricant may be used. Elevate the antenna and remove the set screw from the rotating gear housing. Spray lubricant into the hole and around the edges of the gear housing. Rotate the gear housing until the lubricant coats the bearing surfaces and the antenna rotates freely. Replace set screw.

  • Page 64: Hydraulic Fluid

    Chapter 10 - Care and Maintenance HYDRAULIC FLUID Check fluid levels. If levels are low, take to your dealer to have the motorhome serviced by a qualified RV technician. The following instructions are guidelines for the care and maintenance of your motorhome. Please refer back to the products Owner’s Manual for more information on the care and maintenance of that product. APPLIANCES Be sure to remove all food and ice from the refrigerator at the end of each trip. Prop the doors open slightly to keep the interior dry and free of mold, mildew, and odors. Make sure to read all literature provided with each of the appliances and follow the maintenance instructions included. Pay particular attention to any cautions or warnings included. BATH FIXTURES Clean your tub/shower, sinks, and toilets as you would at home. A nonabrasive cleaner is recommended. When cleaning mirrors or shower doors, a vinegar and water solution works very well to remove hard water spots and stains. BATHTUB SEAL Inspect every 90 days and reseal as necessary. Use a clear silicone sealant.

  • Page 65: Mini Blinds & Roman Shades

    Chapter 10 - Care and Maintenance MINI BLINDS & ROMAN Keep your blinds looking new by wiping with a soft cloth. Vacuum shades regularly. Use a mild detergent to spot clean if necessary. Close the blinds and shades all the way to SHADES properly clean inside and out. SINKS Clean with hot soapy water or a good liquid cleaner. Avoid using abrasive cleaners. Never use steel wool on stainless steel, since the steel particles left in the sink can rust and become unsightly. Also, when cleaning stainless steel with a mild cleanser, rub gently with the grain, and rinse well. Rinse after each use and wipe dry.

  • Page 66: Cabinets

    Chapter 10 - Care and Maintenance WINDOWS Any glass will develop water spots if glass is not cleaned properly. This spotting effect is magnified when glass has a reflective finish. Use a squeegee immediately after washing to reduce water spotting. To remove stubborn water stains from reflective glass, there are several aftermarket specialty glass cleaners. The inside window track must be kept free of debris to keep the drain holes clear. WOOD CABINETRY These products should be cared for as you would any fine piece of wood furniture. Apply a furniture polish when you clean to maintain the natural beauty and luster of wood. This will keep your cabinets looking new and keep wood from drying out. Murphy’s Oil Soap is a good choice for wood cabinets.

  • Page 67: Winter Use And Storage - Chapter

    Chapter 11 - Winter Use and Storage TIPS FOR WINTER USE Many people choose to use their motorhomes throughout the entire year. Extensive usage is not recommended in severe cold weather. However, winter traveling can be safe for you and your motorhome if you follow the precautions outlined in this chapter. For those who choose to use their motorhomes only during the warmer months, winter storage is necessary. This section will guide you through the proper steps to winterize your motorhome, which is critical to maintain maximum durability over the life of your vehicle.
  • Page 68 Chapter 11 - Winter Use and Storage unit around for a few miles will allow the cleanser to circulate within the tanks and drains. Drain and flush once more with fresh water. • After all the tanks have been drained, make sure that any water remaining in the lines is either blown out, or replaced with a nontoxic RV antifreeze solution which will prevent any water that remains from freezing. To blow out the water lines, proceed as follows: • Open all faucets including the toilet flushing device and the shower head sprayer. Open any other water lines that are closed. You will need access to an air compressor along with an adapter that will connect the air to your unit. These adapters can be purchased at an RV supply store. Do not exceed 55 psi when hooked up to the water lines to avoid damage. If your vehicle is equipped with a water filter, remove and drain it before proceeding. Replace it with a diverter tube, which will come with the unit. This will create a bypass in the water line so that the antifreeze will not go into the filter assembly. Water Heater Drain Plug •...

  • Page 69: Water Heater Bypass

    Chapter 11 - Winter Use and Storage Draining the tanks and water lines in your motorhome is half the battle of winterization. Complete the Storage and Winterization Checklist (page 70) to ensure protection of your motorhome. An authorized Damon service dealer can help you in the winterization process for your convenience. A water heater bypass valve system is located inside your motorhome usually behind WATER HEATER the water heater. When the system is closed, water is shut off to the water heater. This BYPASS will eliminate circulating an additional six to ten gallons of antifreeze through the water heater system when winterizing the system. Be sure to remove the drain plug from the...

  • Page 70: Winterization Checklist

    Chapter 11 - Winter Use and Storage WINTERIZATION Chassis – Run engine for 30 minutes once a month if possible. Prepare as outlined in the Chassis Owner’s Manual. CHECKLIST Generator – Prepare as outlined in the Generator Owner’s Manual. Plumbing Lines – Drain and protect by filling with approved RV antifreeze. (See pages 67 - 69) Water Heater – Drain. (Pages 67 - 69) Toilet – Drain. Hold pedal down and pour RV antifreeze into bowl. Fresh Water Tank – Drain, pour RV antifreeze solution and run through the fresh water system, or use the dry method. (pages 67 - 69) Water Filter – Remove and discard the filter. Install diverter tube in place of filter assembly. Body – Clean and wax. Oil locks and hinges. Seal roof trim as needed. Tires – Block up motorhome with wooden blocks or manufactured jack-stands on a hard level surface to relieve the constant pressure on one area of the tires. Partially deflate the tires. Cover to protect against sunlight with burlap, plywood or specially designed tire covers which are available at RV dealerships. Countertops and Cabinets – Wash with mild soap and water.
  • Page 71 Chapter 11 - Winter Use and Storage the proper electrolyte level and that they are fully charged. A discharged battery will freeze and may crack the case, causing severe damage to the battery and surrounding area. In storage, a battery will lose charge gradually over a 30 to 45 day period, even when disconnected by the use of the Battery Disconnect Switch. We recommend that the batteries be checked for charge at least monthly. You may wish to remove the batteries from the motorhome and store them in a heated area. However, even when warm, the battery charge level must still be maintained. A warm battery accepts charge much more...
  • Page 72 Chapter 11 - Winter Use and Storage...

  • Page 73: Maintenance Schedule

    Maintenance Schedule PROCEDURE TO BE PREFORMED: Maintenance schedules are minimum requirements. Heavy use, unusual temperatures or humidity, or other extreme conditions may require more frequent maintenance. ITEM Roof & Components Inspect & reseal roof & exterior attachment areas. Clean roof. Lubricate roof vent mechanism w/ light oil. Clean as needed. Fiberglass Exterior Wash w/ warm water & mild detergent. Wax w/ liquid or nonabrasive wax. Windows & Doors Check vinyl seals when washing exterior. Check seals for damage & repair as needed. Lubricate door hinges & step components w/spray grease. Adjust & lube w/ graphite or light oil. Lubricate door locks & strike pockets, exterior components. Seals & Adhesives Inspect and reseal if necessary. Propane System Check for leaks and damage. Check line pressure; should be checked by technician. Water System Check hoses, fittings & connections for leaks. Check drainage system for leaks. Sanitize & flush system. Winterize system if necessary. Electrical System Check GFCI circuits. Perform maintenance procedures per generator manual. Check & service batteries. Add distilled water to batteries if necessary. Safety Equipment Test propane, smoke, CO detectors.

  • Page 74: Travel Preparation Checklist

    Travel Preparation Checklist CLOTHING SLEEPING GEAR MISCELLANEOUS Dresses Blankets Alarm Clock Gloves Pillows, Pillow Cases Batteries Hat or Cap Sheets Bucket Jackets, Coats Sleeping Bags Clothes Hangers Jeans, Dress Pants Clothes Line, Clothes Pins Pajamas Electronics Chargers Shirts, Blouses PERSONAL COMFORT Fresh Water Hose Shoes, Sandals Anti-Bacterial Wet Wipes...

  • Page 75: Maintenance Record

    Maintenance Schedule Date Service Preformed Mileage Date Service Preformed Mileage...
  • Page 76 Maintenance Schedule Date Service Preformed Mileage Date Service Preformed Mileage...

  • Page 77: Fuel / Oil Record

    Fuel / Oil Record Date Mileage Fuel Date Mileage Fuel (Gallon) (Quarts) (Gallon) (Quarts)
  • Page 78 Fuel / Oil Record Date Mileage Fuel Date Mileage Fuel (Gallon) (Quarts) (Gallon) (Quarts)

  • Page 79: Notes

    Notes...
  • Page 80 Notes...

  • Page 81: Troubleshooting

    BATTERY CONTROL Checking the fuses. • The Battery Control Center is built in two layers, the printed circuit board and the CENTER relays. The box has been designed so that nearly all troubleshooting can be done without the removal of the printed circuit board. Have a Damon dealer remove the circuit board if necessary. • Check fuses visually or with an electrical tester. • Check for power on both sides of the fuse.

  • Page 82: Generator

    • Generator may be low on oil. Check the oil level. Nothing happens when the generator start button is pushed. • Check that the battery disconnect switch is in the USE position. • Check 12 Volt fuse on generator. • Reset circuit breaker if necessary. • Contact a Damon dealer or qualified RV technician if problem is not resolved. Generator starts, but lacks electrical power. • Breaker switches may be off or tripped at generator. Reset breaker if necessary. • Breaker may be off or tripped inside power center. Reset main breaker If necessary. Generator makes clicking sound when trying to start. • Battery condition may be low. Recharge if necessary. •...

  • Page 83: Propane Gas

    Working with propane can be dangerous. ollow these instructions: • Extinguish any open flames, pilot lights and all smoking material. • Do not touch electrical switches. • Shut off gas supply at the tank valve or gas supply connection. • Open doors and other non-powered venting openings. • Leave the area until odors clear. • Have the gas system checked immediately and leakage source corrected by a Damon dealer or qualified service center before using again. Will not operate. MICROWAVE • Door open or timer OFF. Close door and turn timer ON. • No power to oven. Check power supply and circuit breaker. MONITOR PANEL No lights on panel when switch is pressed. • Check battery voltage and condition. •...

  • Page 84: Outside Receptacle

    • Check breaker on generator. • GFCI receptacle switch may be off or tripped. Reset GFCI at receptacle in bathroom or kitchen. • Check the breaker in the power center or panel box. • Contact a Damon dealer or a qualified RV technician if problem is not resolved. Oven slow to heat up. OVEN Poor baking. Poor ignition of burners. Pilots won’t stay lit. Popping sound from top burners. Carbon on pilot shield. Burner flame too low or too high.

  • Page 85: Roof Air Conditioner

    • Have a qualified RV technician check the fuses in the black electrical box on the rear of the refrigerator. Extinguish all flames. Never use a match or flame to check for leaks. Heavy frost build up on evaporator fins. • Defrost the freezer and refrigerator. • Have the refrigerator checked by your Damon dealer or a qualified RV technician. Will not operate. ROOF AIR CONDITIONER • Make sure unit is turned on. • Check circuit breakers in coach. • Have a Damon dealer check to see if there is proper voltage from shoreline or generator.

  • Page 86: Slideouts

    • This is normal. There are many pounds of weight pressing these rollers down on the carpet and rollers will compress the nap of the carpet down. Raking the nap or vacuuming will solve the problem. Termination valve leaks. TERMINATION VALVE • Debris keeps valve from seating. Clear debris from and around valve O-ring set. • Bad gasket. Have a Damon dealer or a qualified RV technician replace gasket with new. TV ANTENNA Poor TV reception. • Power jack is not turned on. Turn power jack switch to ON. • Bad connections at TV or wall plate. Make sure the connections are good at both TV and wall plate. • Antenna not pointed in direction of sending station. Point antenna in proper...

  • Page 87: Waste Tank

    Troubleshooting • Cut or torn cable. Have a Damon dealer or a qualified RV technician replace bad cable where needed at TV and antenna. Elevation handle turns, but antenna does not raise or lower. • Handle may be loose. Tighten screws. • Gears may be stripped. Have a Damon dealer or a qualified RV technician replace the gears. Antenna will not rotate. • The rotate handle is engaged to the ceiling plate. Pull down on handle to disengage from the ceiling plate. • Possible obstruction (tree branch, etc.). Remove obstruction. • Friction adjustment. Adjust center lock nut. • Design of antenna limits rotation to 350°. Adjust as necessary. Waste tank (black) will not drain. WASTE TANK •...

  • Page 88: Water Pump

    Pump will not shut off. Runs when faucet is closed. • Turn off pump or city water supply. • Check for damp areas around plumbing appliances. • Check plumbing for leaks and inspect for leaky valves on toilet. • Have the pump checked by your Damon dealer or a qualified RV technician. WATER SYSTEM Wet areas near water connections, pump runs while the faucets are closed, and no other fresh water fixtures are being used. • There is a possible leak. • Close all low point water drains and tank drains.
  • Page 89 Electrical Diagrams...

  • Page 90: Electrical Diagrams

    Electrical Diagrams...
  • Page 91 Electrical Diagrams...
  • Page 92 Electrical Diagrams...
  • Page 93 Electrical Diagrams...
  • Page 94 Electrical Diagrams...
  • Page 95 Electrical Diagrams...
  • Page 96 Electrical Diagrams...
  • Page 97 Electrical Diagrams...
  • Page 98 Electrical Diagrams...
  • Page 99 Electrical Diagrams...
  • Page 100 Electrical Diagrams...

  • Page 101: Index
