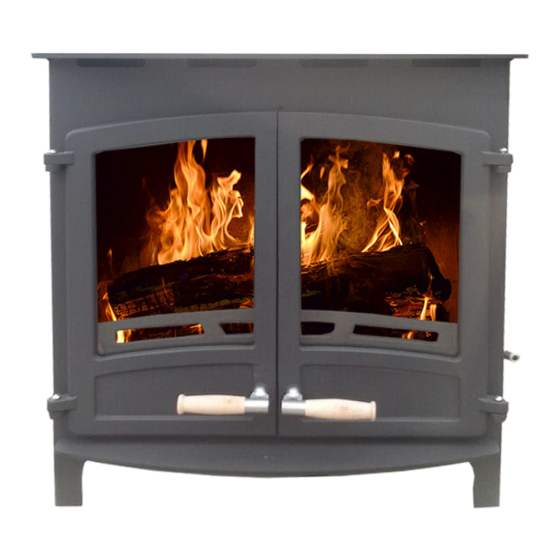

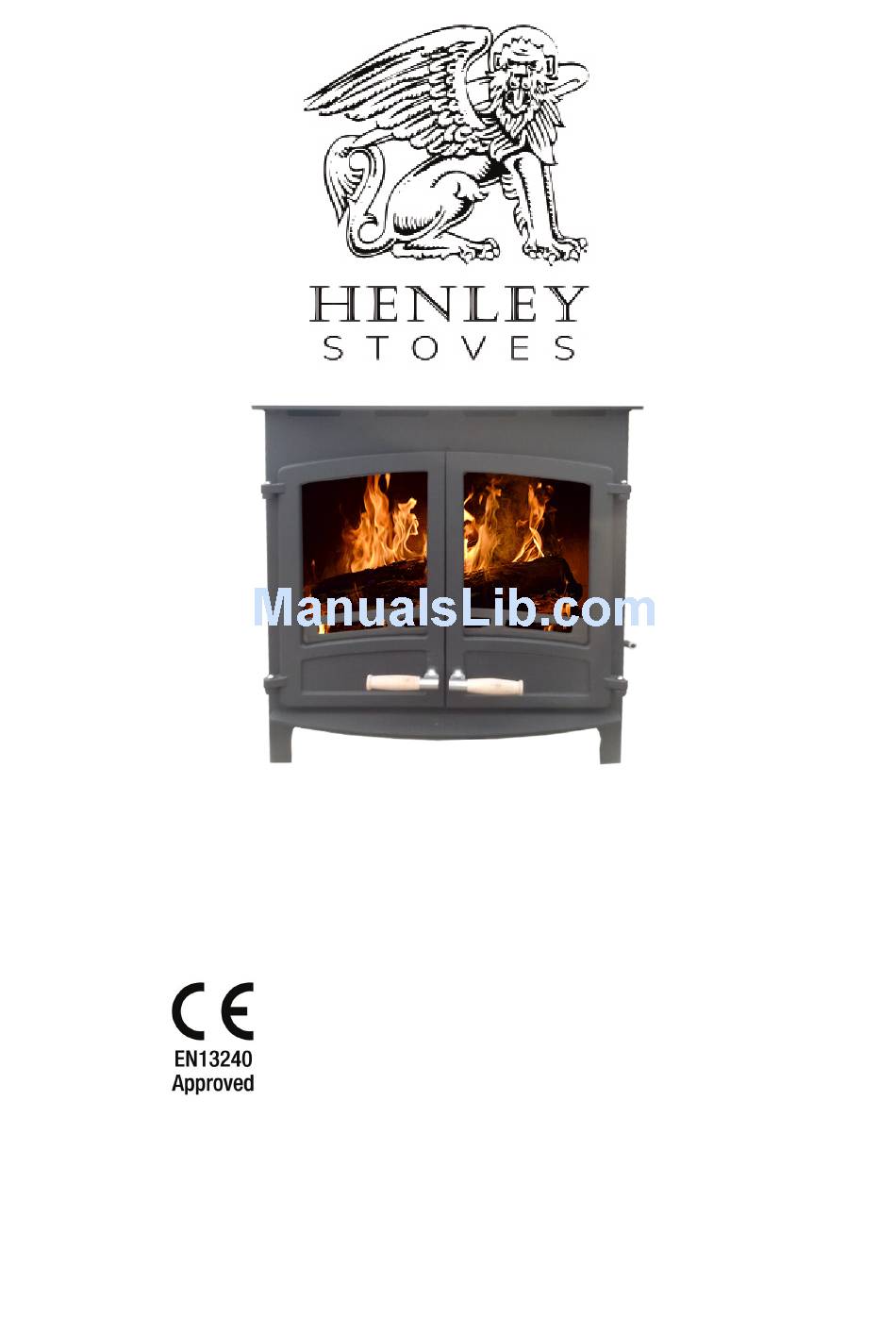

Henley Hampton 21kW / 30kW
Boiler / Room Heater Stove Installation and Operating Instructions
Please hand these instructions to the stove user when the
installation is complete.
Leave the stove ready for operation and instruct the user in
the correct use of the appliance and operation of controls.
Important: – This product must be installed by a suitably qualified installer.
PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY!
For safety reasons it is essential that your stove is correctly installed and operated. Henley Stoves cannot
accept responsibility for any fault or consequential problems arising through incorrect installation or operation.
Henley Stoves, Curraheen, Tralee, Co. Kerry | www.henleystoves.com
1 | www.henleystoves.com
Advertisement
Table of Contents
Summary of Contents for Henley Hampton 21kW
- Page 1 Important: – This product must be installed by a suitably qualified installer. PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY! For safety reasons it is essential that your stove is correctly installed and operated. Henley Stoves cannot accept responsibility for any fault or consequential problems arising through incorrect installation or operation.
-
Page 2: Table Of Contents
Do not use aerosol sprays or any other flammable materials near the appliance under fire. Fire cement is caustic, hand and eye protection should always be worn, prolonged contact with the skin should be avoided. Henley Stoves will not be responsible for any consequential or incidental loss or injury how- ever caused. -
Page 3: Technical Specification
Technical Specification Diagram shows a Hampton 30kw. Corresponding sizes for both Hampton 21kw and 30kw can be found below: Size A Size C Model Size A Size B Size C Size D Hampton 21kw Hampton 30kw All sizes in MM ***All sizes are correct at time of publish but are subject to change without prior notice. -
Page 4: Stove Commissioning Checklist
Stove Commissioning Checklist Please complete the form below as it will be of great assistance in the unlikely event that there is a problem with the stove or a warranty claim needs to be made. Please contact the installer or dealer if there is a problem. Dealer appliance was purchased from ............................ -
Page 5: Installation Instructions
Installation Instructions 1. Before installation and/or use of this appliance please read these instructions carefully to ensure that all requirements are fully understood. The appliance must be fitted by a registered installer*, or approved by your local building control officer. 2. -
Page 6: Flue Outlet Positions
Installation Instructions Installation Instructions • If it is necessary to fit a register plate it must conform to the Building Regulations. • If it is necessary to fit a register plate it must conform to the Building Regulations. • The minimum height of the flue or chimney must be 4.5m from the hearth to the top of the flue, with no horizontal sections and a •... -
Page 7: Connecting A Chimney To A Flue
Installation Instructions Each installation is unique to the property so it is not possible to give details to suit every setting. The installation must comply with Building Regulations and be made using best practice construction methods. Many fireplace openings have a supporting lintel. Do not remove without supporting the remaining structure of the building. -
Page 8: User Instructions
1.5x the flue diameter to non-combustible surfaces. Air Controls Henley Stoves appliances have air systems providing cleaner burning, and greater efficiency and control, please see the diagram to view where the various air controls are located on your Henley Stove. -
Page 9: Door Handle
User Instructions Door handle Please ensure you use a protective glove when opening the the door on this applicance as it may become hot while in use. DO NOT USE YOUR BARE HAND TO OPEN DOOR WHILE THE STOVE IS IN USE Properly installed, operated and maintained, this appliance will not emit fumes into the room. -
Page 10: Shutting Down
User Instructions Shutting Down The stove will normally shut down by itself as the fuel is consumed. In order to shut down the stove for other reasons, close the primary air controls (if open), then close the secondary air control. If the controls are left in this position, the fire will eventually burn out. If you want to revive the fire open the secondary air controls fully. -
Page 11: Removing The Fuel Retainer
Maintenance Removing the fuel retainer • Lift fuel retainer clear of the supporting brackets. • Rotate to clear the sides of the door opening. Do not use appliance without the fuel retainer in position. Replacing the glass in your stove door In the event of the door glass being broken it can easily be replaced us- ing the following procedure: •... -
Page 12: Stove Finish (Paint)
In the event you require a service engineer to inspect the appliance, a standard charge of €120 is payable prior to any inspection. In the event the engineer find a defect in the stove which warranted the service call, Henley Stoves will reimburse you the €120. -
Page 13: Frequently Asked Questions
We suggest installing a chimney cowl or anti-downdraught cowl if you are experiencing issues with draught in your chimney. Please note issues with flue draught is out of the control of Henley Stoves and does not warrant a service call. -
Page 14: Parts
Parts Over time you may require replacement parts for your Henley Stove. Replacement parts are available through your local stockist. Please use the below diagram to establish the part you require for your stove. Please ensure you quote the model name and also the serial number of the stove when orderig your spare parts. -
Page 15: Warranty Registration Form
In the event the engineer finds a defect in the stove which warranted the service call, Henley Stoves will reimburse you the €120. Please note issues such as replac- ing fire rope, replacing the door handle, paint peeling, bricks cracking, etc, does not warrant a service call and can be easily done using the instructions in the manual. -
Page 16: Defra
Henley Stoves, Curraheen, Tralee, Co. Kerry, Ireland Tel: 066 7119788 | Fax: 066 7124200 | Email: info@henleystoves.com | www.henleystoves.com 16 | www.henleystoves.com...
