- Page 1 OWNERS MANUAL How to maintain and operate your Miracle Water MW-40 Water Softener Part No. 450216...
-
Page 2: Warranty, Safety Guides
This warranty gives you specific legal rights and you may have other rights which vary from province to province. This water softener is manufactured by Miracle Water, 5240 Bradco Blvd., Mississauga, ON L4W 1G7; customer information telephone no. 1-800- 356-7851. -
Page 3: Table Of Contents
WATER AND WATER CONDITIONING ..................... 12 - 13 HOW THE WATER SOFTENER WORKS ..................13 - 14 GENERAL WATER SOFTENER MAINTENANCE ................15 - 16 MW-40 DEMAND TIMER FEATURES, SETTINGS, AND SERVICE ..........17 - 24 TIMER DISPLAYS ..........................17 OPTIONAL RECHARGE CONTROLS ..................17 - 18 PROGRAM MEMORY ...........................18... -
Page 4: Specifications, Dimensions
..........AUTOMATIC WATER SOFTENER SPECIFICATIONS / DIMENSIONS MODEL MW-40 RATED CAPACITY See Rating Decal, Located On The Softener See Rating Decal, Located On The Softener RATED EFFICIENCY AMOUNT OF HIGH CAPACITY RESIN (lbs / cu ft) 55.1 / 1.06 RESIN TANK NOMINAL SIZE (in., dia x height) -
Page 5: Before Starting Installation
..........AUTOMATIC WATER SOFTENER BEFORE STARTING INSTALLATION ! WHERE TO INSTALL THE SOFTENER..................! Place the softener as close as possible to the ! Put the softener in a place water damage is least pressure tank (well system) or water meter (city likely to occur if a leak develops. -
Page 6: Typical Installation Illustration
..........AUTOMATIC WATER SOFTENER TYPICAL SOLDERED COPPER or CPVC... -
Page 7: Installation Steps
..........AUTOMATIC WATER SOFTENER INSTALLATION STEPS 1. INSTALL BYPASS VALVE and/or COPPER TUBES NOTE: Before installing the copper tubes or bypass valve, be sure the turbine and support are firmly in place, in the valve outlet. Blow into the valve port and observe the turbine for free rotation. - Page 8 ..........AUTOMATIC WATER SOFTENER INSTALLATION STEPS, continued " If making a soldered copper installation, do all sweat 6. CONNECT AND RUN THE VALVE DRAIN soldering before connecting pipes to the softener HOSE: fittings. Torch heat will damage plastic parts. " Take a length of 5/8” inside diameter hose and attach "...
-
Page 9: Installation Steps
2. 3-VALVE BYPASS: Fully close the bypass valve and open the outlet valve. SLOWLY, open PROGRAM THE MW-40 DEMAND the inlet valve, pausing several times to allow the softener to pressurize slowly. TIMER, page 10. - Page 10 ..........AUTOMATIC WATER SOFTENER PROGRAMMING THE MW-40 DEMAND TIMER MW-40 MW-40 " TIMER SETTINGS REQUIRED...upon installation, and after an extended power outage (see Program Memory, page 19). NOTES: # WHEN THE TRANSFORMER IS PLUGGED INTO THE ELECTRICAL OUTLET (STEP 10, ABOVE), 12:00AM (flashing), and PRESENT TIME show in the upper display area.
-
Page 11: Programming The Mw-40 Demand Timer
..........AUTOMATIC WATER SOFTENER MW-40 PROGRAMMING THE DEMAND TIMER ! SET WATER HARDNESS NUMBER..................NOTE: If 25 (factory default) and HARDNESS do not show in the display, press the SET button until they do. 1. Press the SET, UP or DOWN button to set your 2. -
Page 12: Water And Water Conditioning
..........AUTOMATIC WATER SOFTENER WATER AND WATER CONDITIONING WATER ................................... Man’s very existence depends on water. It is one of Municipal water supplies come from surface the basic commodities of life. Water is best as nature reservoirs, such as lakes and rivers, or from provides it, is a common misconception. -
Page 13: How The Water Softener Works
..........AUTOMATIC WATER SOFTENER Iron in water causes stains on clothing and plumbing Water testing below 6.9 pH is acidic. The lower the pH fixtures. It negatively affects the taste of food, drinking reading, the greater the acidity. A neutralizer filter or a water, and other beverages. - Page 14 ..........AUTOMATIC WATER SOFTENER...
-
Page 15: General Water Softener Maintenance
..........AUTOMATIC WATER SOFTENER GENERAL WATER SOFTENER MAINTENANCE CHECKING THE SALT STORAGE LEVEL, AND REFILLING (also see page 9) ......Brine (salt dissolved in water) is needed for each and Use clean water softener salt only, at least 99.5% every regeneration. The water for making brine is pure. - Page 16 ..........AUTOMATIC WATER SOFTENER GENERAL WATER SOFTENER MAINTENANCE, continued CLEANING THE NOZZLE AND VENTURI ASSEMBLY..............A clean nozzle and venturi is needed for the softener to work right. This small unit makes the suction to move brine from the salt storage area to the resin tank during regeneration.
-
Page 17: Mw-40 Demand Timer Features, Settings, And Service
..........AUTOMATIC WATER SOFTENER MW-40 DEMAND TIMER FEATURES, SETTINGS, AND SERVICE NOTE: SEE PAGES 10 and 11 TO SET THE TIMER TO THE CORRECT TIME OF DAY, AND WATER HARDNESS NUMBER. NORMAL OPERATION, TIMER DISPLAY..................During normal operation, RECHARGE TONIGHT flashes until... -
Page 18: Program Memory
VACATION NOTE ........................... The MW-40 water softener regenerates only while water is used and softening capacity must be restored. For this reason, the softener will not regenerate when you are away from home for extended periods. feature: PROGRAM MEMORY ....................... - Page 19 ..........AUTOMATIC WATER SOFTENER MW-40 DEMAND TIMER FEATURES, SETTINGS, AND SERVICE, continued REGENERATION (START) TIME: 2:00AM 1. Beginning from the present regeneration start time, the softener begins regenerations time display, press and hold in at that time, ending no later than 4:00AM. This is a good...
-
Page 20: Model Code, 12 Or 24 Hour Clock, Gallons Or Liters Measure
..........AUTOMATIC WATER SOFTENER MW-40 DEMAND TIMER FEATURES, SETTINGS, AND SERVICE, continued setting: MODEL CODE, 12 OR 24 HOUR CLOCK, AND GALLONS OR LITERS MEASURE ..NOTE: The model code is factory set at assembly and testing. The hour clock and water measure have factory set default values. -
Page 21: Automatic Electronic Diagnostics
/ service: ELECTRONIC SYSTEM PROFILE ..............The Miracle Water demand timer ESP feature provides the homeowner or servicer with the latest in softener performance and electronic diagnostic technology. ESP is the transmission of electronic data from the softener timer, through a telephone, to a remote personal computer equipped to receive the data. -
Page 22: How To Send And Esp Transmission
..........AUTOMATIC WATER SOFTENER MW-40 DEMAND TIMER FEATURE, SETTINGS, AND SERVICE, continued HOW TO SEND AN ESP TRANSMISSION..................NOTE: Please read the following steps carefully before you call the toll free number. It is important to use the procedures correctly, to transmit a good, decodable message. -
Page 23: Service Checkout Procedures
..........AUTOMATIC WATER SOFTENER MW-40 DEMAND TIMER FEATURE, SETTINGS, AND SERVICE, continued service: TIMER / SOFTENER, SERVICE CHECKOUT PROCEDURE .......... there salt in the storage tank? (3) Is the plumbing If you are not getting soft water, and an error code is bypass valve(s) directing water for soft water service... -
Page 24: Manual Advance Regeneration Check
..........AUTOMATIC WATER SOFTENER MW-40 DEMAND TIMER FEATURE, SETTINGS, AND SERVICE, continued (B) This display segment ( ), in the following 2. Press the DATA button again. table, indicates an open POSITION switch. The other This diagnostic display, shows the indicates a closed switch. Use the RECHARGE button... -
Page 25: Water Flow Through Valve
AUTOMATIC WATER SOFTENER ................WATER FLOW THROUGH VALVE... -
Page 26: Repair Parts
AUTOMATIC WATER SOFTENER ................REPAIR PARTS... - Page 27 O-ring Seal, 2-3/4 in. x 3 in. 7003847 O-ring 7077870 Top Distributor 7148875 Screw 7105047 Repl. Bottom Distributor 7161831 Repl. Brine Tank, MW-40 0501741 Resin, 26-1/2 lbs (1/2 cu ft) 1103200 Hose Adaptor 0502272 Resin, 53 lbs (1 cu ft) 9003500 Grommet 7161849...
- Page 28 AUTOMATIC WATER SOFTENER ................REPAIR PARTS...
- Page 29 AUTOMATIC WATER SOFTENER ................REPAIR PARTS PART DESCRIPTION OF PART PART NUMBER DESCRIPTION OF PART NUMBER 7131755 Screw, #6–20 x 7/8 (2 req.) 7171145 Valve Body 7133008 Motor (incl. 2 ea. of Key No. 50) 7170319 O-ring, ¼ x 3/8 (2 req.) 7218816 Motor Plate 7253808...
- Page 30 AUTOMATIC WATER SOFTENER ................NOTES...
-
Page 31: Parts Return Tags
SERIAL NUMBER __________________________ ____________________________ __________________________ ____________________________ DATE PURCHASED DATE PART FAILED DATE PURCHASED DATE PART FAILED MIRACLE WATER MIRACLE WATER 5240 BRADCO BLVD 5240 BRADCO BLVD MISSISSAUGA, ON L4W 1G7 MISSISSAUGA, ON L4W 1G7 PARTS RETURN TAG PARTS RETURN TAG ______________________________________ ______________________________________ CUSTOMER’S NAME...
Need help?
Do you have a question about the MW-40 and is the answer not in the manual?
Questions and answers
When pressing recharge button , absolutely nothing happens.
If the recharge button on the Miracle Water MW-40 does not respond, ensure the faceplate display shows a steady (not flashing) time. If it does not, the unit may not be ready for manual operation. Also, check for possible issues like a dirty or improperly seated nozzle and venturi, or restricted drain, as these can affect regeneration functions.
This answer is automatically generated

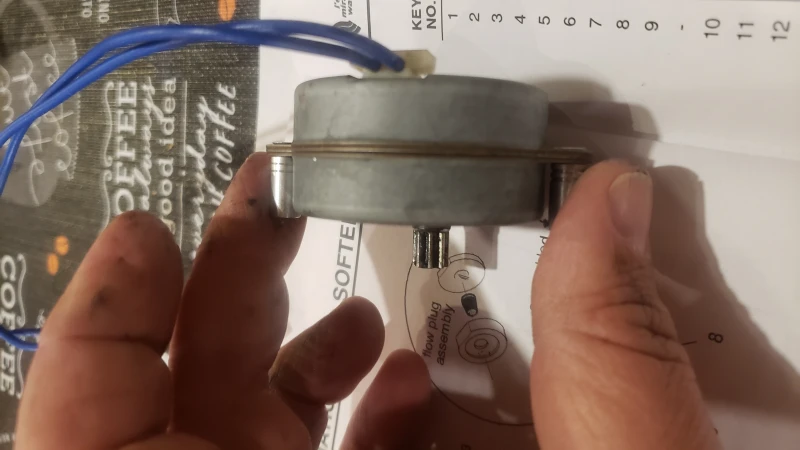

I'm looking for a replacement motor for the miracle MW 40 WATER SOFTENER, PART NUMBER 7133008,HOPE YOU CAN HELP
You can obtain a replacement motor (part number 7133008) for the Miracle Water MW-40 water softener by returning the defective part, freight prepaid, directly to the factory at Miracle Water, 5240 Bradco Blvd., Mississauga, ON L4W 1G7. Include a full description of the problem, your name, full address, date purchased, model and serial numbers, and selling contractor’s name and address. If the part is found defective under warranty, it will be repaired or replaced at no cost to you, excluding freight and local labor charges.
This answer is automatically generated
