BRIDGEABLE POWER AMPLIFIER
AMPLIFICADOR DE POTENCIA EN
PUENTE
Owner's Manual
GM-X562
Manual del Propietario
PIONEER CORPORATION
4-1, MEGURO 1-CHOME, MEGURO-KU, TOKYO 153-8654, JAPAN
PIONEER ELECTRONICS (USA) INC.
P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.
TEL: (800) 421-1404
PIONEER EUROPE NV
Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium
TEL: (0) 3/570.05.11
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
178-184 Boundary Road, Braeside, Victoria 3195, Australia
TEL: (03) 9586-6300
PIONEER ELECTRONICS OF CANADA, INC.
300 Allstate Parkway, Markham, Ontario L3R OP2, Canada
Published by Pioneer Corporation.
TEL: (905) 479-4411
Copyright © 2001 by Pioneer Corporation.
PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.
All rights reserved.
San Lorenzo 1009 3er. Piso Desp. 302
Publicado por Pioneer Corporation.
Col. Del Valle Mexico, D.F. C.P. 03100
Copyright © 2001 Pioneer Corporation.
TEL: 5-688-52-90
Todos los derechos reservados.
Printed in U.S.A.
Impreso en los EE.UU.
<KYMFX/01H00000>
<HRD0192-A> ES
Before Using This Product
Thank you for purchasing this PIONEER
WARNING
product. Before attempting operation, be
sure to read this manual.
• Always use the special red battery and ground
wire [RD-223], which is sold separately. Connect
In case of trouble
the battery wire directly to the car battery positive
terminal (+) and the ground wire to the car body.
• Do not touch the amplifier with wet hands.
When the unit does not operate properly,
Otherwise you may get an electric shock. Also, do
contact your dealer or the nearest autho-
not touch the amplifier when it is wet.
rized PIONEER Service Station.
• For traffic safety and to maintain safe driving
conditions, keep the volume low enough so that
you can still hear normal traffic sound.
• Check the connections of the power supply and
speakers if the fuse of the separately sold battery
wire or the amplifier fuse blows. Detect the cause
and solve the problem, then replace the fuse with
another one of the same size and rating.
• To prevent malfunction of the amplifier and
speakers, the protective circuit will cut the power
supply to the amplifier (sound will stop) when an
abnormal condition occurs. In such a case, switch
the power to the system OFF and check the
connection of the power supply and speakers.
Detect the cause and solve the problem.
• Contact the dealer if you cannot detect the cause.
• To prevent an electric shock or short-circuit
during connection and installation, be sure to
disconnect the negative (–) terminal of the battery
beforehand.
• Confirm that no parts are behind the panel when
drilling a hole for installation of the amplifier. Be
sure to protect all cables and important equipment
such as fuel lines, brake lines and the electrical
wiring from damage.

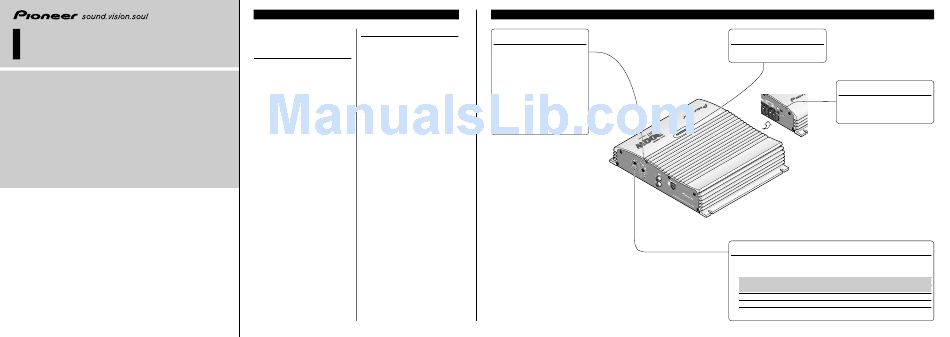

Setting the Unit
Gain Control
If the sound level is too low, even when
the volume of the car stereo used along
with this power amplifier is turned up,
turn gain control on the front of the
power amplifier clockwise. If the sound
distorts when the volume is turned up,
turn the gain control counter-clockwise.
• When using with an RCA equipped car
stereo (standard output of 500 mV), set to
the NORMAL position. When using with
an RCA equipped Pioneer car stereo with
max. output of 4 V or more, adjust level to
match the car stereo output level.
• If you hear too much noise when using the
speaker input terminals, turn the gain
control counter-clockwise.
Power Indicator
The power indicator lights when the
power is switched on.
BFC (Beat Frequency Control) Switch
If you hear a beat while listening to an
AM broadcast with your car stereo,
change the BFC switch using a small
standard tip screwdriver.
LPF (Low-Pass Filter) Select Switch
Set the LPF select switch as follows according to the type of speaker that is connected to the
speaker output connector and the car stereo system:
LPF Select
Audio frequency range
Speaker
Remarks
Switch
to be output
Type
LPF (left)
Very Low Frequency range
Subwoofer
Connect a subwoofer.
OFF (right)
Full range
Full range
