Summary of Contents for Korg Pa60

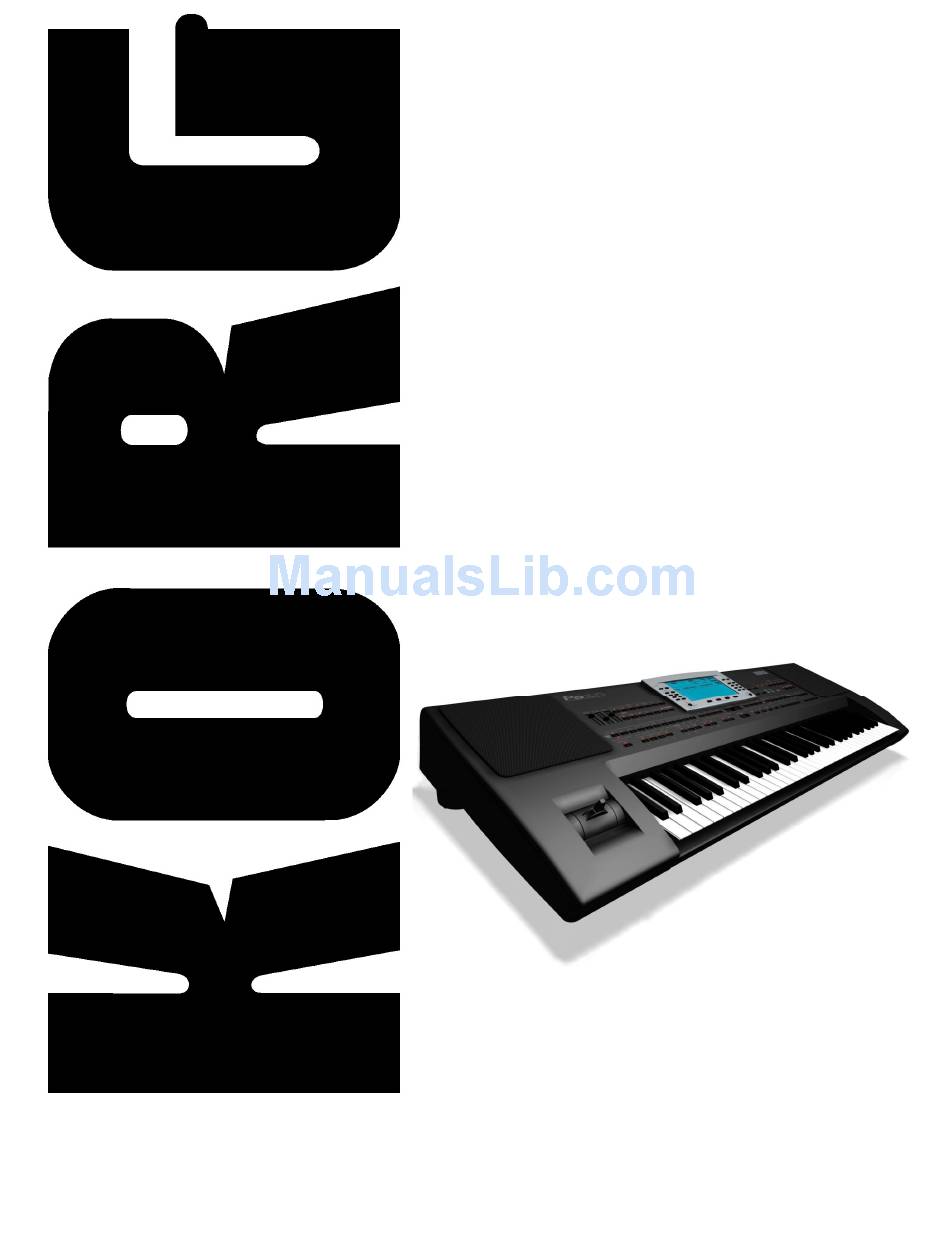

- Page 1 Pa60 Professional Arranger Service Manual...
- Page 2 Specifications Keyboard 61 notes with Velocity OPOS – Objective Portable Operating System: multitasking system, load while playing System feature. Upgradable Operating System. SSD Solid State Disk HI Synthesis (Hyper Integrated Synthesis System) – 62 Voices, 62 Oscillators – Filters Tone generator with Resonance Waveform Memory 32 Mbyte PCM ROM (Stereo Piano Sound)
- Page 16 PANEL BOARD KIP-2014 COMPONENT SIDE...
- Page 18 PANEL CONTROLLER PANEL CONTROLLER KIP-2027 BOTTOM SIDE KIP-2027 TOP SIDE...
- Page 22 POWER AMPLIFIER KIP-2030 COMPONENT SIDE...
- Page 26 MAIN BOARD KIP-2025 TOP SIDE...
- Page 27 MAIN BOARD KIP-2025 BOTTOM SIDE...
- Page 29 MAIN FILTER KIP-2038 COMPONENT SIDE ENCODER KIP-2034 COMPONENT SIDE...
- Page 32 Pa60 PART LIST PART LIST ELECTRIC COMPONENTS CODE PART-TYPE DESCRIPTION GRA0002014 PCB ASSEMBLY KIP-2014 PANEL BOARD GRA1002027 PCB ASSEMBLY KIP-2027 PANEL CONTROLLER GRA0002054 PCB ASSEMBLY KIP-2054 OUTPUT BOARD GRA0002055 PCB ASSEMBLY KIP-2055 DIGITAL AMPLIFIER GRA0002034 PCB ASSEMBLY KIP-2034 ROTARY ENCODER...
- Page 33 U32-33 CIN0003016 I.C. MX23C6410MC-10 BKOL CIN0003017 I.C. MX23C6410MC-10 BKOH CIN0003018 I.C. MX23C6410MC-10 BK1L CIN0003019 I.C. MX23C6410MC-10 BK1H CIN0003020 I.C. MBCG46183-205(MCM99)KORG IT CIN0003021 I.C. OTP MX27L512MC-12 CIN0003022 NAND FLASH TC58V64AFT CIN0003023 I.C. DRAM KM48C512DT-L6(4MX8) CIN0003025 IC. SDRAM 64M GM72V661641CT-7J CIN0004005 RES. GEN.3,3V ETC811SUC QUA0006003 CER.
- Page 34 PART LIST HEADPHONE BOARD KIP-2031 CODE PART-TYPE REFERENCE BOB0005002 EMI FERRITE BLM21B102SPT L1-2 CIN0001009 DUAL HEADPH. OP.M5216P TRS0001008 NPL BIPOLAR TRASISTOR 2SD2144S Q1-2 PART LIST ROTARY ENCODER KIP-2034 CODE PART-TYPE REFERENCE INT0001006 INCREMENTAL ENCODER PART LIST MAIN FILTER KIP-2038 CODE PART-TYPE REFERENCE BOB0005001...
- Page 35 PART LIST PLASTIC COMPONENTS CODE PART-TYPE REFERENCE PLA0001037 BASS REFLEX TUBE PLA0001046 SMALL CABLE HOLDER LD1 UD3 MB PLA0001047 BIG CABLE HOLDER PLA0001052 MAIN BLACK SWITCH PLA0001062 FCV-100 PAN TY CABLE TIE LD1 UD1 PLA0001036 PLT1-M PAN TY CABLE TIE PLA0001080 POTENTIOMETER KNOB PLA0001081...
- Page 36 FEL0001055 AD-30M (177.2X182X4) FILTER FEL0001056 12mm DOUBLE SIDE ADHESIVE TAPE 1,32 m FEL0001058 68X25X5 ADHESIVE RUBBER UD3 MB FEL0002037 PA60 SERIAL NUMBER FEL0001077 FDD-MAINBOARD SHIELD FDD0002005 DISPLAY GROUP 901- RI.CO FDD0001014 BLACK JOYSTICK FDD0001001 FLOPPY D.D. LOW NOISE FV = FULL VIEW D = Pa80 DISASSEMBLY LD1 = LOWER CASE DISASSEMBLY 1 LD1 = LOWER CASE DISASSEMBLY 2...
- Page 37 KORG ITALY S. , 85 agiata I-60027 O simo taly eb servers korg korg korg © 2002 KORG I taly ights eserved PART NUMBER: MAN0002008 2002 rinted in taly june...
