Kolver RAF38NS Operator's Handbook page 2

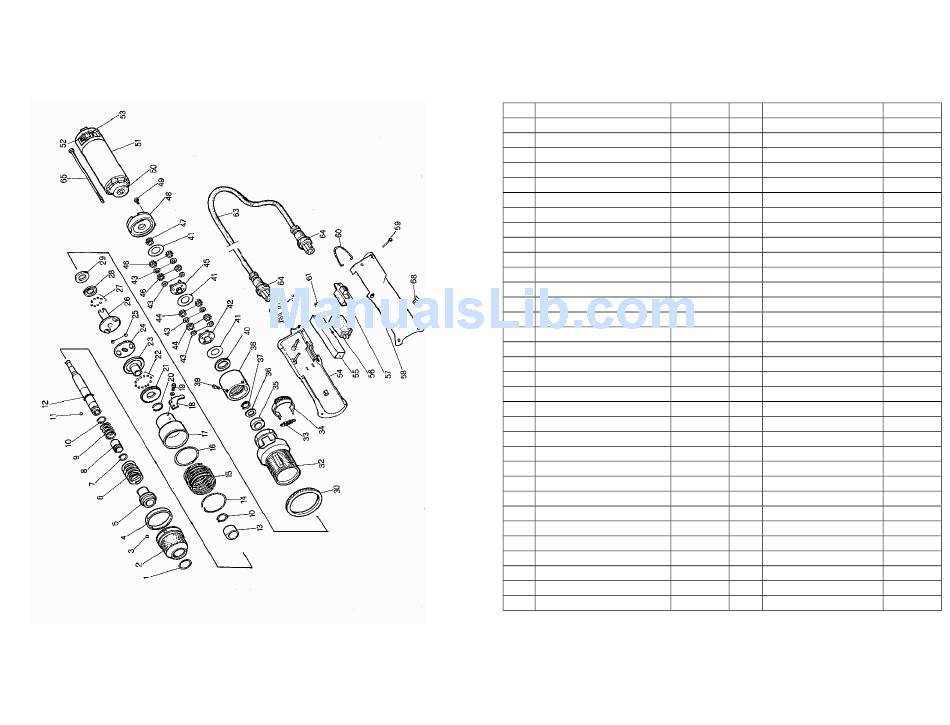

SPARE PARTS LIST RAF38NS
REF DESCRIPTION CODE
1 Stop Ring 200001
2 Torque Nut 201002
3 Steel Ball 200003
4 Circlip 200004
5 Bushing 200005
6 Torque Spring 220406
Circlip 200007
7
Bit Ring 200008
8
Bit Spring 200009
9
Circlip 200010
10
11 Ball 200011
12 Spindle 221012
13 Needle Bearing 200013
14 Circlip 221014
15 Spring 221015
16 Ring 221016
17 Buffer Cone 221017
18 Hook Piece 201018
19 Screw 201019
20 Ring 220020
Bearing 220021
21
Balls 220022
22
Bearing Seat 220023
23
24 Bearing Balls Seat 220024
25 Ball 220025
26 Fixed Clutch 220026
27 Balls 220027
28 Bearing 220028
29 Oil Protector 220029
30 Locking Nut 201030
32 Clutch Housing 221032
33 Spring 200033
34 Clutch Switch 200034
REF DESCRIPTION CODE
35 Bearing 220035
36 Spacer 220036
37 Circlip 220037
38 Inner Gear 220038
39 Screw 200039
40 Circlip 220040
Washer 220041
41
Reduction Plate 220442
42
Washer (8) 220043
43
Planet Gear (4) 220444
44
45 Reduction Plate 220445
46 Planet Gear (4) 220446
47 Main Gear 220447
48 Motor Joint 220048
49 Screw 220049
50 Motor Head 220050
51 Motor 220051
52 Carbon Brush Spring 220052
53 Carbon Brush 220053
54 Grey Housing Right 220454
Start Lever 221455
55
Start Switch 201056
56
Reverse Switch 200057
57
58 Grey Housing Left 220458
59 Housing Screw (4) 220059
60 Hook 200060
61 Spring 221061
63 Cable 201063
64 5 Pin Plug 201064
65 Motor Locking Screw 220065
66 5 Pin Connector 201066
68 Screw (2) 210068
