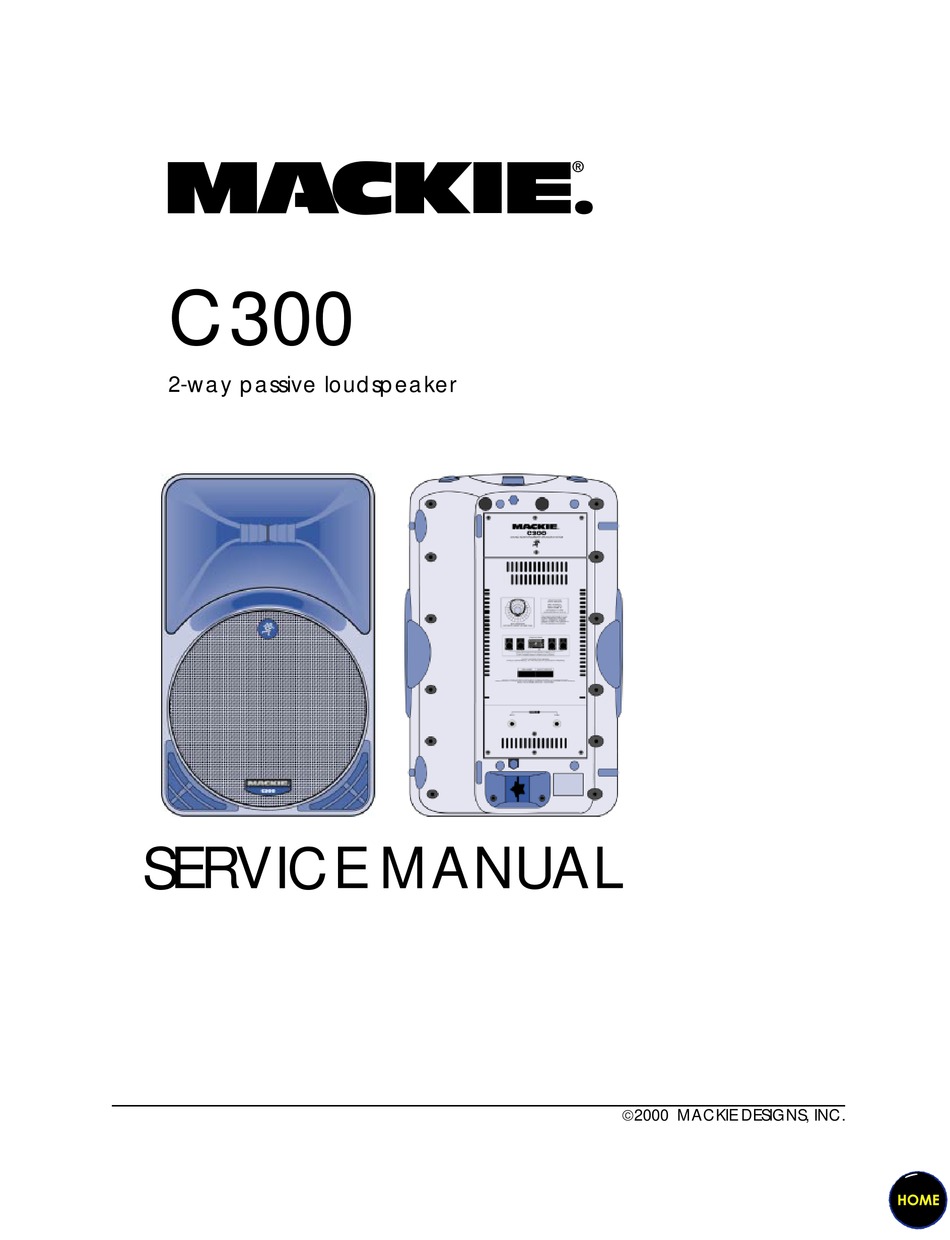

- Page 1 C300 2-way passive loudspeaker SERVICE MANUAL 2000 MACKIE DESIGNS, INC.
- Page 2 Mackoid will return your call asap. DISCLAIMER The information contained in this manual is proprietary to Mackie Designs, Inc. The entire manual is protected under copyright and may not be reproduced by any means without...
- Page 3 Overview The Cabinet The cabinet material is very strong and The C300 has a Speakon® input, and is rigid enough to prevent unwanted the C300i has a 1/4 inch phone jack. vibrations and standing waves in the Apart from this difference, all details in cabinet.
-
Page 4: Specifications
Low-Frequency Crossover Type reserve the right to change these specifications at 24 dB/octave, time offset any time without notice. corrected “Mackie” and the “Running Man” figure are High-Frequency Crossover Type trademarks or registered trademarks of Mackie De- 24 dB/octave signs Inc. - Page 5 C300/MACKIE12P FILTER. ELECTRIC DIAGRAM SE034414 AT THE FILTER 4XMUR 410 1 -IN EXTERNAL POWER SUPPLY FOR 2K2/0.25W JACK AND SPEAK-ON CONNECTORS 1K/0.5W 220/0.25W IRFP 140 1 -IN 1N4148 560/0.25W 1000uF/16V C300/MACKIE12P SE034530 ELECTRIC DIAGRAM FOR PROTECTION AND INPUT ASSEMBLY C300...
- Page 6 SCREW SC+M5X10 INOXZNN U7689 51190310 SCREW CEI M6 X16 ZNN U5931 51190336 SCREW CEI M6 X35 ZNN U5931 50762 51240407 SCREW C+ B 3,9X9,5ZNN U6954 51310523 SCREW+SL 4X20 ZNN 6175 51992002 SCREW+AB POLI 3,5X16 ZNN RECONE KIT WOOFER C300 PART#: 11440005...
- Page 7 PART NO. DESCRIPTION 51992003 SCREW1/2C.B.+GS3 4,2X20 ZNN 51992004 SCREW 1/2C.B.+GS3 4,2X30 ZNN 51992007 SCREW C+GS3 4,8X50 ZNN 51992008 SCREW C+GS3 4,2X20 ZNN 51992010 SCREW 1/2C.B.+GS3 4,8X50 ZNN 51992012 SCREW 1/2C.B.+GS3 4,8X60 ZNN 52100101 WASHER 15X28 ZNC U6592 52100121 WASHER 6,4X12,5ZNNU6592 0174 52100133 WASHER 15X28 ZNN U6592 52301004...
- Page 8 PART NO. DESCRIPTION NOTES 23020520 PCB INPUTS-PROTECTION ASSY 335016 33100140 REAR PANEL 35016 NOTE: The C300 PCB INPUT BOARD (23020520) uses the SPEAKON connector, not the 1/4” stereo jacks like the C300i. The SPEAKON connector is part number: 83415001 C3C15-001F004-CONNECTOR...
