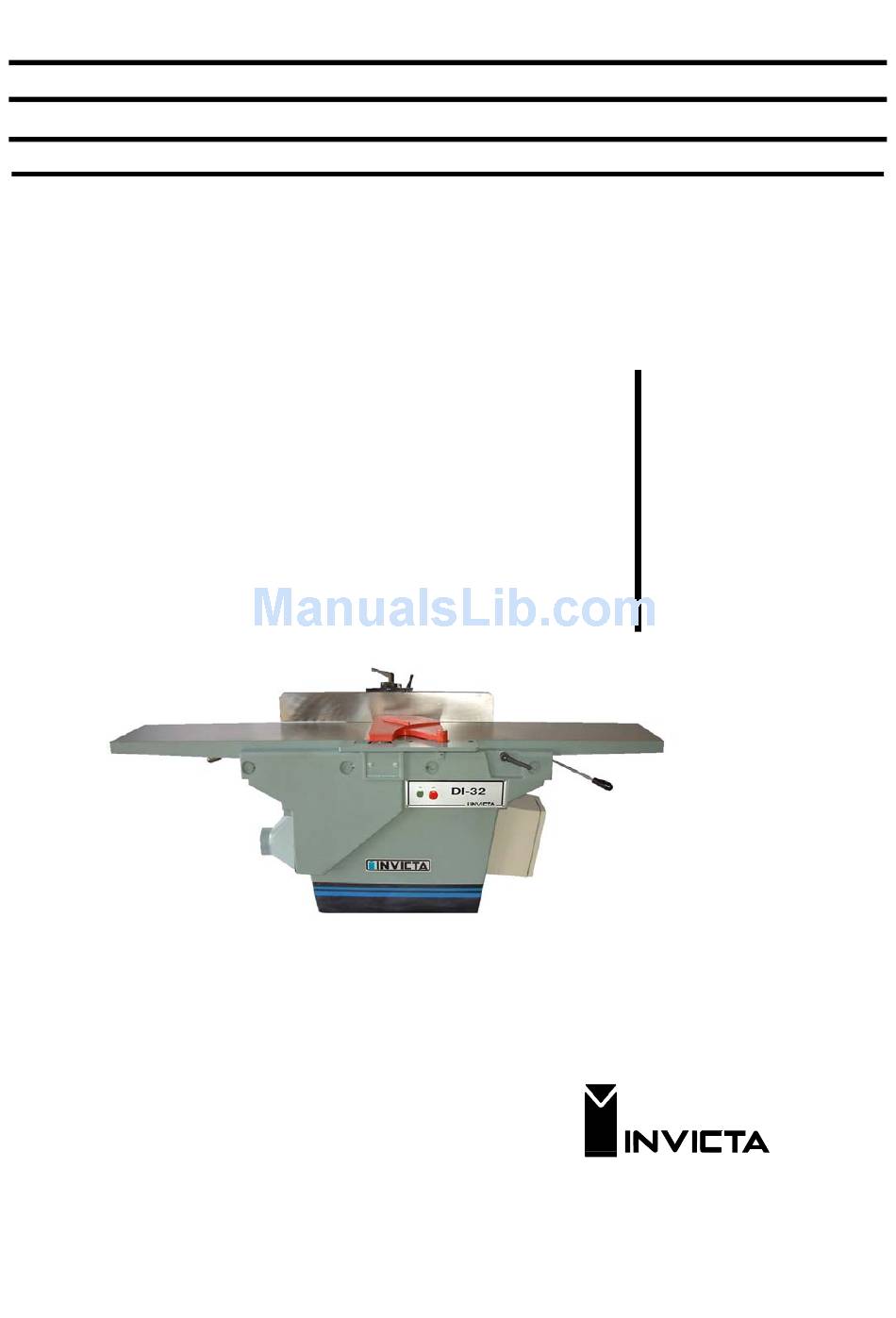

- Page 1 OPERATORS MANUAL JOINTER Model DI-32 INVICTA INVICTA USA English Version (877) 308-6423 – East Revision Nº 1 (800) 499-4682 - West...
-
Page 2: General Instructions
2. If you are not thoroughly familiar and comfortable with the adjustment and operation of the machine, ask for instruction from your supervisor or a fully qualified person. You may also contact Invicta USA. 3. Before the initial operation of the machine, remove all packaging, shipping grease and fully assemble the machine. -
Page 3: Loading And Unloading
(figure 03.) If not, procceed with the instructions below: For three-phase machines: invert two wires of the power source CUTTERHEAD ROTATION DIRECTION without changing the internal connections of the machine. See the electrical diagrams for three-phase on page 06 if further information is needed or contact Invicta USA. -
Page 4: Technical Specifications
JOINTER Mod. DI-32 Technical Specifications In-feed Table…………………………………………………………………………..……………………………………..42” Out-feed Table…………………………………………………………………….……………………..…………………..42” Max Width Capacity………………………………………………………………………………………….…………...12 5/8” Cutterhead Speed………………………………………………………………………………………………..…..4375 RPM Maximum Cutting Depth………………………………………………………………………………………..……………3/4” Fence Tilting..............................0º to 45º Motor Power………………………………………………………..3 HP (230v/1ph), 5 HP (230v/3ph) or 5 HP (460v/3ph) Net Weight………………………………………………………………………………………………………………..838 Lbs Accessories Normal Accessories Optional Accessories 1. -
Page 5: Maintenance
JOINTER Mod. DI-32 Adjustment Instructions Fence Adjustment The fence can be adjusted in two different ways: 1. For the angular adjustment loosen the lock “C” and tilt the fence to desired position. Re-Lock handle “C”. 2. Adjust the cross movement of the fence in relation to the tables by loosening lock “B”... - Page 6 JOINTER Mod. DI-32 Table Alignment This procedure is performed in the factory. If further alignment is required due to damage, proceed as follows: Loosen screw “H” and turn the adjustment bushing “I” with a screwdriver until obtaining the desired alignment between table and cutterhead body.
-
Page 7: Electric Diagram
JOINTER Mod. DI-32 Electric Diagram THWEE-PHASE MOTORIZATION WITH OVERLOAD PROTECTIONS-5CV 230/460V THREE-PHASE MOTORIZATION WITH OVERLOAD PROTECTION 5CV 230/460V... - Page 8 JOINTER Mod. DI-32 Electric Diagram MONO-PHASE MOTORIZATION WITH OVERLOAD PROTECTIONS-2CV 230/460V...
-
Page 9: Electrical Box
JOINTER Mod. DI-32 ELECTRICAL BOX... - Page 10 JOINTER Mod. DI-32 Electric Diagram 230/460V IMPORTANT SELECT THE VOLTAGE (230/460V) OF YOUR INTERNAL ELECTRIC NETWORK. THE VOLTAGE SELECTION KEY IS LOCATED ON THE ELECTRICAL BOX. FOR YOU SAFETY THE VOLTAGE SELECTION KEY IS ON NEUTRAL POSITION.
- Page 11 JOINTER Mod. DI-32 Replacement Parts...
- Page 12 JOINTER Mod. DI-32 Replacement Parts...
-
Page 13: Replacement Parts
JOINTER Mod. DI-32 REPLACEMENT PARTS FIG. Nº CODE QTY. NAME FIG. Nº CODE QTY. NAME 01..27-00-0007-0 02…... Knob *35…... 81DJ-KK20-0 01…... Support bushing for guard 02..07-00-0062-0 04…... Spring 36……... 27-00-0018-0 02…... Adjustable handle 03..8NVL-K280-0 04…... Lower table shaft 37……... - Page 14 JOINTER Mod. DI-32 FIG. Nº CODE QTY. NAME 69…….. 8NVZ-KK21-0 01….. Rear vented cover 70…….. 8NPM-K211-0 01.…. Driven pulley (cutterhead) 71…….. 8NAR-KK11-0 01.…. Flat washer Ø10mm 72…….. 06-04-0097-0 01.…. Hex head cap screw M10x25 73…….. 06-18-0026-0 01.…. Bearing retainer clip 74……..
-
Page 15: Parts And Service
Parts and Service InfoWest@invicta-usa.com InfoEast@invicta-usa.com www.invicta-usa.com...
