For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
Safety • Assembly • Operation • Adjustment • Maintenance • Troubleshooting • Parts Lists • Warranty
OPERATOR'S MANUAL
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
PRINTED IN U.S.A.

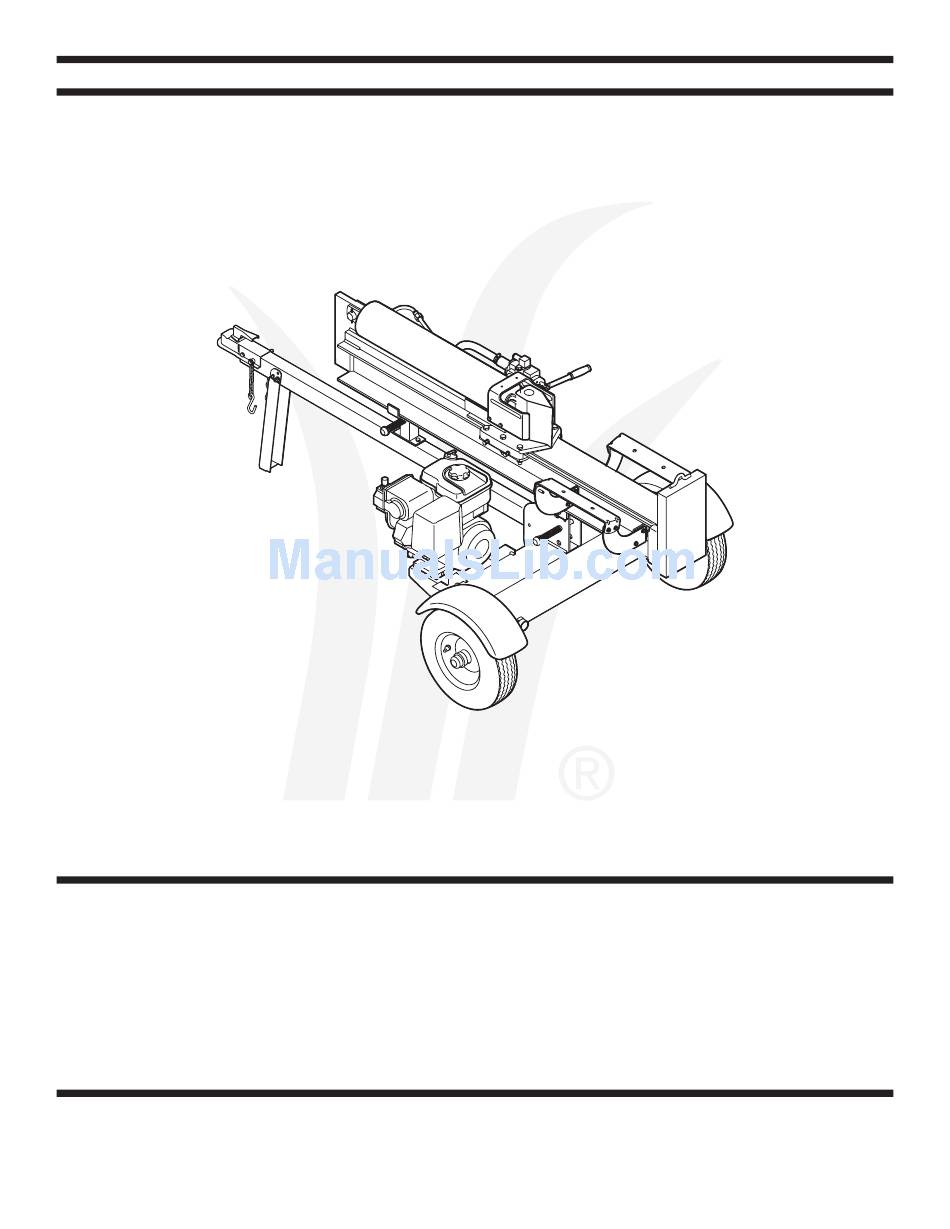

Log Splitter — Model Series 580
IMPORTANT
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
www.mymowerparts.com
www.mymowerparts.com
FORM NO. 770-10031J
07/10/2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 580 Series and is the answer not in the manual?

Questions and answers

Related Manuals for MTD 580 Series

Summary of Contents for MTD 580 Series

  • Page 1 (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019. MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 PRINTED IN U.S.A. FORM NO. 770-10031J 07/10/2006 www.mymowerparts.com...

  • Page 2: Table Of Contents

    You can locate the model plate by standing behind the unit and looking down at the hydraulic tank. This information will be necessary to use the web site or obtain assistance from your MTD dealer. Customer Support Please do NOT return the unit to the retailer from which it was purchased, without first contacting Customer Support.

  • Page 3: Safety Labels

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Safety Labels Found On Your Log Splitter Safety Labels WARNING DO NOT remove safety (or any) labels from log splitter for any reason. www.mymowerparts.com www.mymowerparts.com...

  • Page 4: Safe Operation Practices

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo- nents contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm. DANGER: This machine was built to be operated according to the rules for safe operation in this Safe manual.

  • Page 5: Maintenance And Storage

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 15. This machine should not be towed on any street, f. Never overfill the fuel tank. Fill tank to no more highway or public road without checking the existing than 1/2 inch below bottom of filler neck to provide federal, state, or local vehicle requirements.

  • Page 6: Setting Up Your Log Splitter

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 WARNING: Use extreme caution unpacking this machine. Some components are very heavy and will require additional people or mechanical handling equipment. Setting Up IMPORTANT: Your log splitter may be shipped with motor oil in the engine.
  • Page 7 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Attaching The Hitch Assembly 1. Remove the hardware assembled on the hitch as- sembly and place the hitch on the end of the tongue. 2. Insert hex bolt through flat washer, end of safety chain, and then rear hitch hole.
  • Page 8 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Attaching The Tongue 1. Remove the two hex bolts and lock nuts on the front of the reservoir tank. 2. Place the tongue in position and secure with hardware just removed.
  • Page 9 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Pressure Hose The pressure hose is attached to the control valve. Pressure Hose 1. Route the hose between the beam and the tongue. 2. Secure the pressure hose to the adapter on the top of the pump.
  • Page 10 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 3. The log splitter may have been shipped with hydraulic fluid in the reservoir tank. If not, fill the reservoir tank with hydraulic fluid included with this unit (if equipped) or approved fluids which include Dexron®...
  • Page 11 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 8. Use control handle to engage the wedge to the farthest extended position. Then retract the wedge. 9. Refill tank as specified on the dipstick. ADD OIL BEFORE 10.

  • Page 12: Operating Your Log Splitter

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Know Your Log Splitter Operating Cylinder Your Log Control Handle Splitter Dislodger Wedge Beam Assembly Tongue IMPORTANT Your log splitter may Log Cradle be shipped with motor Vertical oil in the engine.
  • Page 13 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Control Handle The control handle has three positions. See Figure 4-2. • FORWARD: Move control handle FORWARD or DOWN to move wedge to split wood. NOTE: Control handle will return to neutral position as soon as handle is released.(Forward Position only) To return Operating...

  • Page 14: Log Dislodger

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Control Handle 1. Move control handle FORWARD or DOWN to split wood. 2. Release the control handle to stop the wedge move- ment. 3. Move control handle BACK or UP to return the wedge. Operating Log Dislodger The log dislodger is designed to remove any partially...
  • Page 15 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 6. Use a flexible “spider” type coupling between engine and pump drive shafts. 7. Keep hoses clear and unblocked. 8. Bleed air out of hoses before operating. 9. Flush and clean hydraulic system before restarting after servicing.

  • Page 16: Maintaining Your Log Splitter

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Gib Adjustment Periodically remove and replace the “gibs” (spacers) between the wedge assembly and the back plate. NOTE: The gibs may be rotated and/or turned over for even wear. Adjustment Maintaining Bolt...
  • Page 17 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Hydraulic Fluid and Inlet Filter • Check the hydraulic fluid level in the log splitter reservoir tank before each use. Maintain fluid level within the range specified on the dipstick at all times. •...
  • Page 18 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 6. Install pump coupling half and key on pump shaft. Rotate coupling half until set screw faces down. Do not tighten set screw. 7. Install nylon “spider” onto engine coupling half. 8.

  • Page 19: Storing Your Log Splitter

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Storing Your Log Splitter 4. Start the engine and let it run until the fuel lines and carburetor are empty. Prepare your log splitter for storage at the end of the season or if the log splitter will not be used for 30 days or 5.

  • Page 20: Troubleshooting

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Problem Cause Remedy 1. Connect wire to spark plug. Engine fails to start 1. Spark plug wire disconnected. 2. Fill tank with clean, fresh gasoline. 2. Fuel tank empty or stale fuel. 3.
  • Page 21 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Problem Cause Remedy Slow cylinder shaft 1. Gear sections damaged. 1.See authorized service dealer. speed while extending 2. Excessive pump inlet vacuum. 2. Make certain pump inlet hoses are clear and unblocked-use short, and retracting.
  • Page 22 For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Model Series 580 31 81 To secure ground wire www.mymowerparts.com www.mymowerparts.com...

  • Page 23: Parts List

    For Parts Call 606-678-9623 or 606-561-4983 For Parts Call 606-678-9623 or 606-561-4983 Ref. Part No. Description Ref. Part No. Description 781-04180 Log Tray Bracket 736-0371 Flat Washer, .343 x .880 x .062 710-0376 Hex Screw, 5/16-18 x 1.00 625-0062† Tail Light Assembly 781-04179 Log Tray Bracket 681-04041A...
  • Page 24 For Parts Call 606-678-9623 or 606-561-4983 MANUFACTURER’S LIMITED WARRANTY FOR The limited warranty set forth below is given by MTD LLC with respect e. MTD does not extend any warranty for products sold or exported to new merchandise purchased and used in the United States, its outside of the United States, its possessions and territories, except possessions and territories.
