Summary of Contents for Hyco ZEN ZEN3LLT

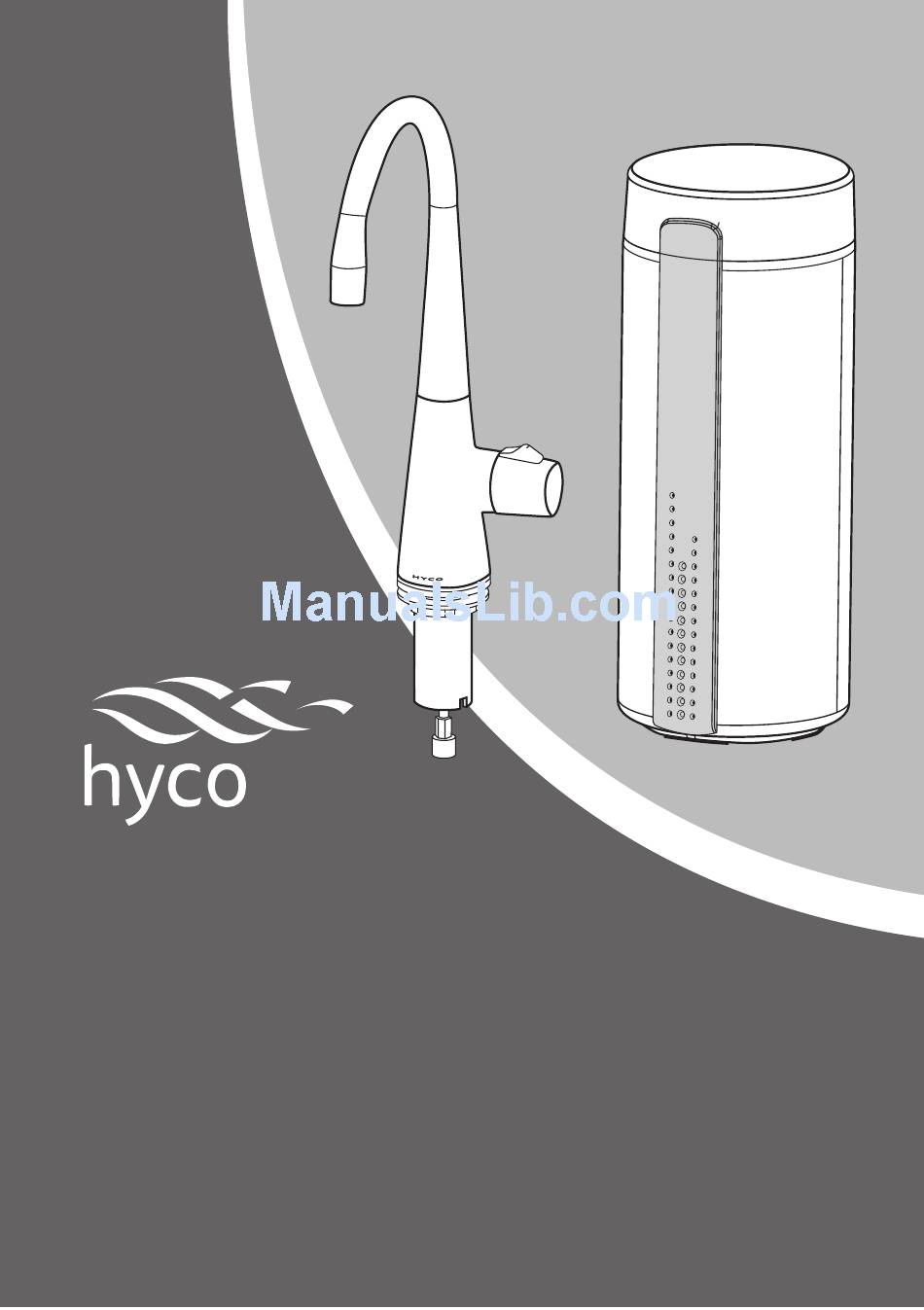

- Page 1 Boiling Water Tap ZEN3LLT, ZEN3LHT, ZEN3LLTP and ZEN3LHTP Instruction Manual Version 5.0 Dec 2014...
- Page 2 MODELS ZEN3LLT, ZEN3LHT, ZEN3LLTP, ZEN3LHTP 1. INTRODUCTION Thank you for purchasing a Hyco Zen Boiling Water Tap.The Zen is a stylish, modern, time and space saving addition to any kitchen replacing the need for a traditional kettle, counter top or wall mounted boiling water unit.
-
Page 3: Important Safety Points
2. IMPORTANT SAFETY POINTS ALWAYS SWITCH OFF THE MAINS BEFORE COMMENCING INSTALLATION. ONLY CONNECT THE HEATER TO A SINGLE PHASE SUPPLY WITH A MAINS VOLTAGE AS SPECIFIED ON THE RATING LABEL. THE SUPPLY CORD CANNOT BE REPLACED BY THE USER. IF THE CORD IS DAMAGED THE APPLIANCE SHOULD BE RETURNED TO THE MANUFACTURER OR AN AUTHORISED SERVICE AGENT FOR REPLACEMENT. - Page 4 WATER MAY DRIP FROM THE PRESSURE RELIEF VALVE,THIS MUST BE LEFT OPEN TO ATMOSPHERE. THIS APPLIANCE CAN BE USED BY CHILDREN AGED 12 AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING THE USE OF THIS APPLIANCE IN A SAFE WAY.
- Page 5 3. INSTALLATION OVERVEW Figure 1 below shows the correct installation for models ZEN3LLT, ZEN3LHT, ZEN3LLTP, ZEN3LHTP. ONLY USE THE SUPPLIED FITTING, DO NOT ATTEMPT TO MODIFY THE PRODUCT IN ANY WAY OR SERIOUS INJURY MAY RESULT. COMPLETE THE PLUMBING INSTALLATION BEFORE CONNECTING TO ELECTRICITY SUPPLY.
-
Page 6: Plumbing Connections
4. PLUMBING CONNECTIONS Step 1 - Tank Positioning Allow 20mm space around the tank to walls for cooling air circulation. Position the tank vertically beneath the tap in a position such that the flexible hoses can comfortably reach the tap and water supply. ENSURE THE FLEXIBLE HOSES DO NOT TWIST OR KINK. -
Page 7: Electrical Connection
Step 3 - Connect Tap to Tank Fit the outlet flexible hose to the connection protruding from the base of the tap using the supplied washer (white). Be careful not to strip or loosen the ends of the copper pipe in the base of the tap. Connect the other ends of the flexible hoses to the back of the heater using the pro- vided washers. - Page 8 6.OPERATING THE WATER HEATER AND TAP THIS APPLIANCE CAN BE USED BY CHILDREN AGED 12 AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING THE USE OF THIS APPLIANCE IN A SAFE WAY.
-
Page 9: Maintenance
7. DRAINING THE UNIT MUST BE DRAINED IF IT MAY BE EXPOSED TO FREEZING TEMPERATURES. To drain: • Disconnect from the electricity supply by unplugging the heater • Open the tap until the water runs cold • Isolate the water supply •... -
Page 10: Specifications
9. SPECIFICATIONS Model ZEN3LLT, ZEN3LHT, ZEN3LLTP, ZEN3LHTP Power 1550W Voltage 230V 50Hz ac Dimensions (h x w x d) tank 459mm x 220mm x 181mm Max supply pressure 1MPa (before pressure reducing valve) Max supply pressure 0.3MPa (after pressure reducing valve) Min supply pressure 0.1MPa Maximum tank pressure... - Page 11 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation, frost damage, and the consequences of limescale deposits are excluded.
- Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court, Express Way Castleford,WF10 5NR Sales: 01924 225 200...
