FD-10 PIN Pad
Quick Set-Up Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for First Data FD-10

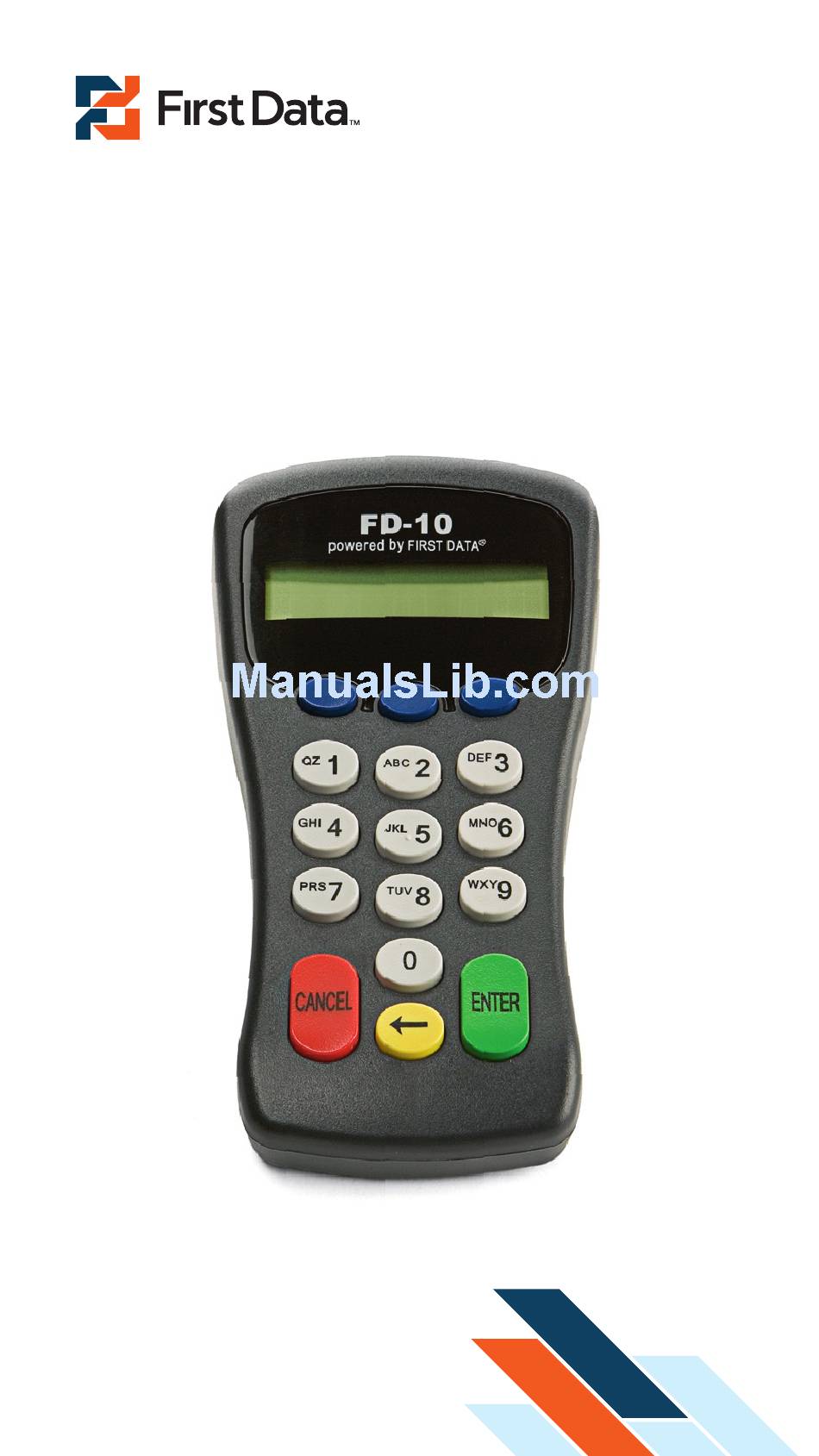

  • Page 1 FD-10 PIN Pad Quick Set-Up Guide...
  • Page 2 First Data™ FD-10 PIN Pad. Before starting On the top of the FD-10 PIN Pad is a 4-pin jack (similar to a phone jack) for power and communication with a PC or terminal. For PC connection, a cable with an RJ11 (similar to a phone connector) on one end and a DB-9 female connector on the other end is required.
  • Page 3 Note: Do not try to service, repair or adjust the PIN Pad device in any other way; doing so will void your warranty. Returning the FD-10 PIN Pad If you need to return your PIN Pad device for service or replacement, contact your service provider or sales representative for instructions.
  • Page 4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © 2011 First Data Corporation. All Rights Reserved. FD-SUG-FD10-0111...
