DUO-FAST DF150-CS Operating Manual And Schematic

Cap stapler
Hide thumbs
Table of Contents

Advertisement

Quick Links

IMPORTANT!
DO NOT DESTROY
It is the customer's responsibility to have all
operators and service personnel read and
understand this manual.
© 2010, Illinois Tool Works,Inc.
511206-1
11/10

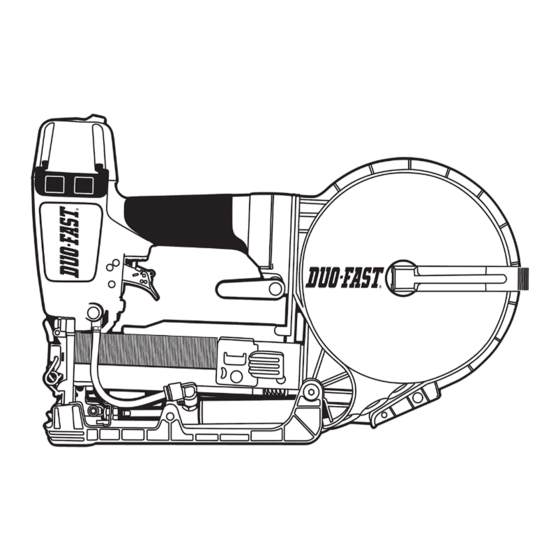

MODEL DF150-CS
Cap Stapler
OPERATING MANUAL AND
SCHEMATIC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF150-CS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DUO-FAST DF150-CS

Summary of Contents for DUO-FAST DF150-CS

  • Page 1 MODEL DF150-CS Cap Stapler IMPORTANT! OPERATING MANUAL AND DO NOT DESTROY SCHEMATIC It is the customer’s responsibility to have all operators and service personnel read and understand this manual. © 2010, Illinois Tool Works,Inc. 511206-1 11/10...

  • Page 2: Table Of Contents

    INTRODUCTION Duo-Fast DF150-CS cap stapler is a quality-built tool designed for use in residential ® building applications. This tool will deliver efficient, dependable performance when used according to the manufacturer’s guidelines. Please study this manual including the safety instructions to fully understand the operation of this tool.

  • Page 3: Tool And Fastener Specifications

    TOOL AND FASTENER SPECIFICATIONS TOOL SPECIFICATIONS MODEL NO. DF150-CS (Part# 511200) HEIGHT 10 1/2” WIDTH 4” LENGTH 15 1/2" WEIGHT 4 lbs. 8oz. OPERATING PRESSURE 70 to 110 psi (4.8-7.6 bar) FASTENER SPECIFICATIONS STAPLE RANGE 3/4”-1 1/2” (19-38mm) STAPLE SIZE 18 Gauge, 3/8”...

  • Page 4: Safety Instructions

    Never operate a dirty or malfunctioning tool. drive through or away from the workpiece. USE ONLY DUO-FAST RECOMMENDED PARTS AND DO NOT DISABLE OR REMOVE THE WORK FASTENERS CONTACTING ELEMENT Use only parts and fasteners specifically designed and...

  • Page 5: Tool Installation And Operation

    • Pneumatic fittings are tight and do not leak. and ensure that automatic draining systems are operating correctly. Your tool comes ready for immediate use Duo-Fast ® • Air lines are cleared to prevent freezing, and can be installed by following these steps: especially in winter.

  • Page 6: Tool Operation

    TOOL OPERATION Loading of Staples Loading of Caps 1. Pull the staple pusher back into the 1. Lift up the canister lever. (Remove the locked position. Load a strip of staples onto empty spool.) Remove the tape from the the rail. end of the cap strip.
  • Page 7 TOOL OPERATION - continued Sequential Operation Triggering Selection The sequential trigger position prevents succesive or "bounce" The tool is equipped with a trigger that can be switched driving. from sequential operation to bounce drive operation. Depress the work contacting element and hold it against the ■...
  • Page 8 TOOL OPERATION - continued Staple Only Select Switch Clearing a Jam The tool is equipped with a switch so it Should a jam occur, disconnect the air will only drive staples. supply and remove any remaining To use this feature, position the switch so staples from the tool.

  • Page 9: Features And Benefits

    DF150-CS FEATURES & BENEFITS Adjustable Depth of Drive Quick Clear Nose Provides precise control Easy access to clear jams. of staple depth without adjusting the compressor. Directable Exhaust Cap Can be rotated to direct exhaust away from operator Switchable Trigger Switches from sequential to bounce drive.

  • Page 10: Exploded View And Spare Parts List

    PARTS LEGEND DF150-CS 511200 502639 502576 Nyloc screw M4 502640 Safety Guide Plate 502577 Washer 12*5*1 502641 Safety Adjustment Wheel 502578 Exhaust Cover 502642 Container Pin 502579 O-Ring 8*2.5 502643 Spring 502580 Cover, Grip 502644 Container 502581 Cap Guard 502645...
  • Page 11 150-CS 511200...

  • Page 12: Maintenance

    Ensure that the magazine is properly attached. Ensure that the required safety information on the tool ❑ is legible. Use only Duo-Fast approved fasteners in the tool, and ❑ ® Once the tool is warmed up, readjust the regulator to the ❑...

  • Page 13: Maintenance

    Use Chemplex grease, Part Lubricate "O" rings that are Assure long life and proper No. 403734. replaced. operation of tool. Use only Duo-Fast replacement Keep tool operating efficiently Order any repacement parts ® parts. and maintain Duo-Fast tool needed from Duo-Fast Dealer.

  • Page 14: Troubleshooting

    Clean as needed to remove Tools skips during operation - no fasteners are debris. driven from time to time. Make sure correct fasteners are being used. Duo-Fast Use fasteners that meet specifications ® only. Increase air flow to tool -- use larger air lines.

  • Page 15: Warranty

    90-DAY LIMITED WARRANTY Duo-Fast's sole liability hereunder will be to replace any part or accessory which proves to be defective within the specific A 90-day warranty will apply to all parts, except time period.

  • Page 16: Accessories

    Lubricating Oil 16 oz. Part No. 403720 Lubricating Oil with Antifreeze 8 oz. Part No. 219090 Chemplex 710 Lubricant 1lb. Part No. 403734 Tool Cleaner Ideal cleaner for all Duo-Fast tools. Part No. 219348 ® Safety Glasses Clear Part No. 401382 Part No.
