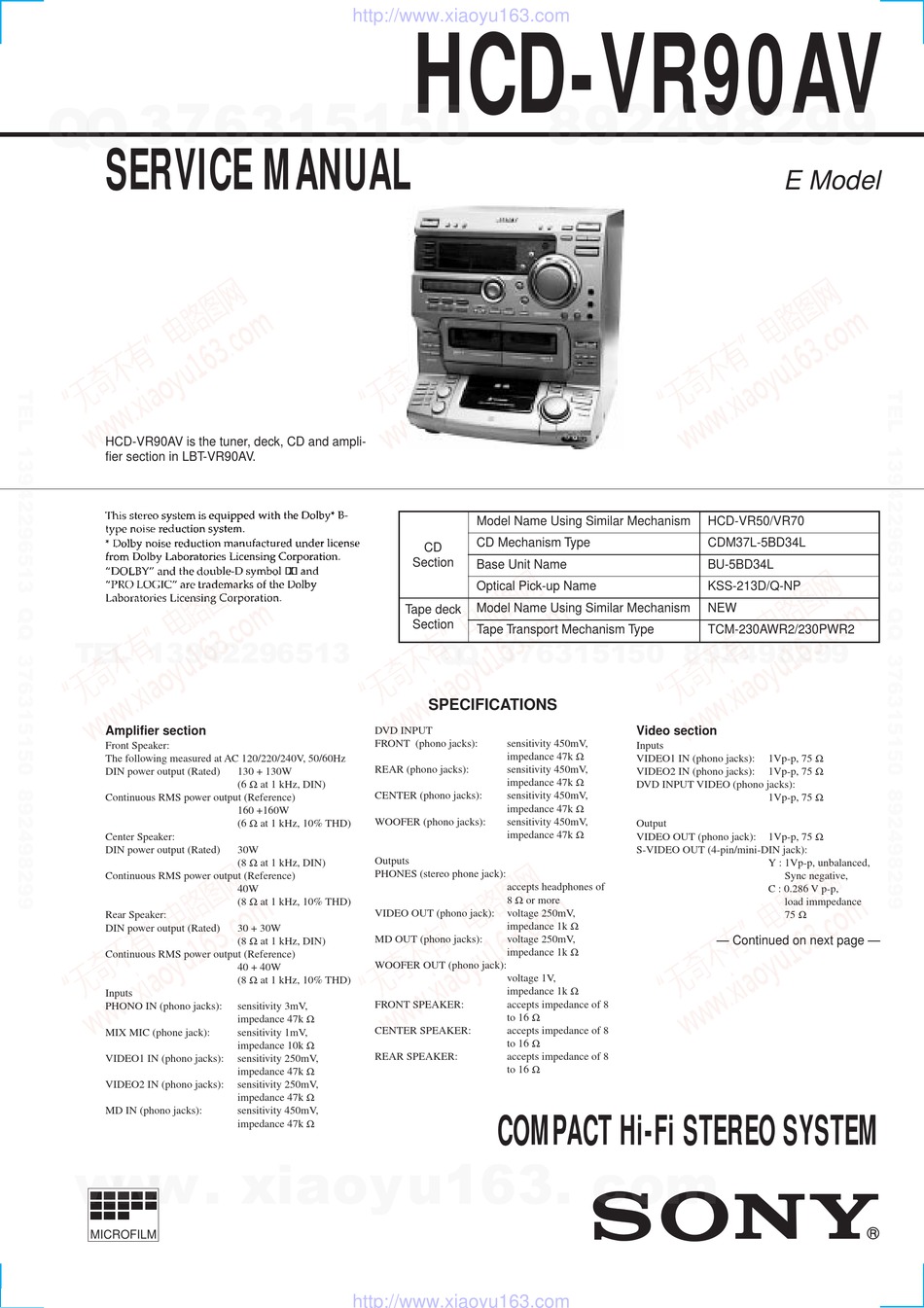

http://www.xiaoyu163.com HCD-VR90AV 3 7 63 1515 0 SERVICE MANUAL E Model HCD-VR90AV is the tuner, deck, CD and ampli- fier section in LBT-VR90AV. Model Name Using Similar Mechanism HCD-VR50/VR70 CD Mechanism Type CDM37L-5BD34L Section Base Unit Name BU-5BD34L Optical Pick-up Name KSS-213D/Q-NP Model Name Using Similar Mechanism Tape deck...
Page 2
Frequency response (DOLBY NR OFF) Power requirements 40 – 13,000Hz (±3dB), Thai model : 220 V AC, 50/60 Hz using a Sony TYPE I Other models : 120 V, 220V, or 230 – 240 V AC, 50/60 Hz cassette Adjustable with voltage selector 40 –...
Page 3
COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
http://www.xiaoyu163.com 3 7 63 1515 0 2-3. SUB PANEL 7 Three screws (BVTP 2.6x8) 6 Two screws (BVTP 2.6x8) 4 Two screws (BTP 2.6x6) 1 Two screws (BVTP 2.6x8) 3 Open the CD lid assembly 2 Front input board 9 Two screws (BVTP 2.6x8) 0 Bracket (CD-R2) 5 Screw (BVTP 3x8) 8 Sub panel block...
http://www.xiaoyu163.com 3 7 63 1515 0 2-8. DISC TABLE Note: When the disc table is installed, adjust the positions of roller cam and mark ” as shown in the figure, then set to the groove of disc table. Stop screw Screw (BVTP3X8) Screw (BVTP3X8) Bracket (BU)
http://www.xiaoyu163.com SECTION 3 SERVICE MODE 3 7 63 1515 0 About CD-TEXT display This unit is provided with a simple CD-TEXT display function. The CD-TEXT contents of 20 tracks are displayed on the fluorescent display tube. Since the function is simple, some special characters may not be displayed, or may be displayed as other characters. MC Cold Reset •...
Page 12
http://www.xiaoyu163.com 3 7 63 1515 0 AMS Test Mode • This mode is used for checking the AMS operations of the tape deck. 7-819-039-12 Alignment tape, AMS-110A Procedure: Press the 1/u button to turn the set ON. Set the tape (AMS-110A). Press the three buttons t/CLOCK SET , ENTER , and DISC 3 button simultaneously.
Page 13
http://www.xiaoyu163.com 3 7 63 1515 0 SELF-DIAGNOSIS This model has the self-diagnosis function for the VIDEO and AUDIO decoder sections. Immediately after the power on, the self-diagnosis function searches each operation of IC’s around the mechanism control microcomputer (IC701). The results can be checked by D502 of the VIDEO board. [VIDEO BOARD] (SIDE A) •...
Page 14
http://www.xiaoyu163.com 3 7 63 1515 0 [VIDEO CD COLOR-BARS MODE] On this mode, the data of the color-bars signal as a picture signal and the 1kHz sine wave signal as a sound signal are output by the mechanism control microcomputer (IC502) for video CD signal check. When measurement of the voltage and waveform on the VIDEO board, perform it in this mode.
http://www.xiaoyu163.com SECTION 4 SECTION 5 MECHANICAL ADJUSTMENTS ELECTRICAL ADJUSTMENTS 3 7 63 1515 0 Precaution DECK SECTION 0 dB=0.775V Clean the following parts with a denatured alcohol-moistened swab: Demagnetize the record/playback head with a head record/playback heads pinch rollers demagnetizer. erase head rubber belts Do not use a magnetized screwdriver for the adjustments.
Page 16
http://www.xiaoyu163.com 3 7 63 1515 0 Mode: Playback Tape Speed Adjustment (Deck A) test tape Note: Set the test mode using the following method and begin tape P-4-A100 speed adjustment. (10kHz, –10dB) oscilloscope In the test mode, the speed will switch to double speed or normal speed each time the HI-SPEED DUB button is pressed.
Page 17
http://www.xiaoyu163.com 3 7 63 1515 0 Record Bias Adjustment (Deck B) Record Level Adjustment (Deck B) Procedure: Procedure: INTRODUCTION INTRODUCTION When set to the test mode performed in Tape Speed Adjustment, When set to the test mode performed in Tape Speed Adjustment, when the tape is rewound after recording, the “REC memory mode”...
Page 18
http://www.xiaoyu163.com 3 7 63 1515 0 Note: Clear RF signal waveform means that the shape “◊” can be CD SECTION clearly distinguished at the center of the waveform. Note: RF signal waveform CD Block is basically constructed to operate without adjustment.
http://www.xiaoyu163.com HCD-VR90AV 3 7 6 3 1 5 1 5 0 6-2. BLOCK DIAGRAMS BD SECTION OPTICAL PICK-UP BLOCK (KSS-213D/Q-NP) DIGITAL SERVO DIGITAL SIGNAL PRCESSOR IC781 DETECTOR RF AMP IC101 CD DIGITAL IC103 D OUT DIGITAL DOUT ERROR OPTICAL CORRECTOR RF AC PCM-D RF EQ...
http://www.xiaoyu163.com HCD-VR90AV 3 7 6 3 1 5 1 5 0 DECK SECTION S1008 S1004 A CrO B CrO CN301 R CH RV311 MAIN(1/2) PLAYBACK SECTION IC611 A 120/70 B NORM/CROM/METAL LEVEL (Page 23) DECK A A IN PB OUT B IN TC PB L HP101...
http://www.xiaoyu163.com HCD-VR90AV 3 7 6 3 1 5 1 5 0 MAIN (1/2) SECTION AV SWITCH IC191 VIDEO SECTION VCD VIDEO (Page 21) J804 J702 VIDEO 2 VIDEO VD OUT SOUND PROCESSOR 1 J702 IC101 J701 DVD VIDEO REC B2 MD OUT J702 DECK...
http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 Waveforms THIS NOTE IS COMMON FOR PRINTED WIRING VIDEO SECTION BD SECTION BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams. 4Vp-p 1.3Vp-p 5.8Vp-p...
http://www.xiaoyu163.com HCD-VR90AV 3 7 6 3 1 5 1 5 0 6-15. SCHEMATIC DIAGRAM DECK SECTION 1 3 9 4 2 2 9 6 5 1 3 (Page 38) w w w u 1 6 3 The components identified by mark ! or dotted line with mark ! are critical for safety.
http://www.xiaoyu163.com HCD-VR90AV 3 7 6 3 1 5 1 5 0 6-20. SCHEMATIC DIAGRAM SURROUND SECTION 1 3 9 4 2 2 9 6 5 1 3 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.
http://www.xiaoyu163.com 3 7 63 1515 0 6-39. IC PIN FUNCTIONS • IC501 MAIN CONTROL (M30622MA-A09FP) (MAIN board) Pin No. Pin Name Function POWER Power amp ON/OFF signal output POWER Power ON/OFF signal output F-RELAY Front speaker relay control output REAR-RELAY Rear speaker relay control output CD-POWER CD power on signal output...
Page 62
http://www.xiaoyu163.com 3 7 63 1515 0 Pin No. Pin Name Function TUNED Tuned detection for tuner ST-CE Tuner chip enable output ST-DOUT Tuner data output ST-DIN Tuner data input ST-CLK Tuner clock output SENS BD Condition signal input HOLD MODE signal output CD latch signal output (Not used) XRST CD reset signal output...
Page 63
http://www.xiaoyu163.com 3 7 63 1515 0 • IC502 MPEG DECODER, MECHANISM CONTROL (M30620MC-A05FP) (VIDEO BOARD) Pin No. Pin Name Function SENSE Internal state (SENSE) monitor input (IC101) SENSE CLK Serial data reading clock output (IC101) DSP DATA Serial data output (IC101) DSP LATCH Latch output (IC101) DSP CLK...
Page 64
http://www.xiaoyu163.com 3 7 63 1515 0 Pin Name Function Pin No. BUS XWRL Not used LO. BOOST Not used AUDIO MUTE Audio mute output “L” : mute LOAD OUT Not used LOAD IN Not used INSW Not used OUTSW Not used MODEL 1 L : System input (Fixed at “L”) MODEL 2...
Page 65
http://www.xiaoyu163.com 3 7 63 1515 0 • IC505 CD DECODER, SYSTEM CONTROL (CL680T-D1) (VIDEO BOARD) Pin Name Function Pin No. – Not used – Ground CD-BCK CD Decode bit clock CD-DATA CD Decode data CD-LRCK CD Decode Left or Right channel selection clock CD-C2PO CD Decode C2 error data –...
Page 66
http://www.xiaoyu163.com 3 7 63 1515 0 Pin Name Function Pin No. Address data from CL680 to Microcode ROM/DRAM – Ground Address data from CL680 to Microcode ROM/DRAM VDD3 – +3.3V Power supply Address data from CL680 to Microcode ROM/DRAM Address data from CL680 to Microcode ROM/DRAM Address data from CL680 to Microcode ROM/DRAM –...
Page 67
http://www.xiaoyu163.com 3 7 63 1515 0 Pin Name Function Pin No. PGIO0 Not used PGIO8 Not used PGIO2/VSYNC/ Vertical synchronized signal of video signal CSYNC AVDD PLL – +3.3V Power supply – Not used – Not used – Not used AGND PLL –...
Page 68
http://www.xiaoyu163.com 3 7 63 1515 0 • IC601 DISPLAY CONTROL (TMP88CS76F-6005) (FL board) Pin No. Pin Name Function SIRCS Remote commander signal input JOG A Rotary encoder (S702) pulse input LED SCK LED clock signal output LED LATCH LED latch signal output LED DAT LED serial data output LED POWER...
http://www.xiaoyu163.com SECTION 7 EXPLODED VIEWS 3 7 63 1515 0 NOTE: • -XX, -X mean standardized parts, so they may • Hardware (# mark) list and accessories and The components identified by mark ! or have some differences from the original one. packing materials are given in the last of this dotted line with mark ! are critical for safety.
http://www.xiaoyu163.com 3 7 63 1515 0 7-2. FRONT PANEL SECTION 1 not supplied FL601 not supplied Supplied with RV850 L 13942296513 not supplied Supplied with J803 Supplied with J801 not supplied not supplied Ref. No. Part No. Description Remarks Ref. No. Part No.
http://www.xiaoyu163.com 3 7 63 1515 0 7-5. TC MECHANISM SECTION 1 (TCM230AWR2/230PWR2) *NOTE: Two types of parts which are not interchangeable are available for the Head deck (A) ASSY and Head deck (B) ASSY. When replacing the parts, refer to the following figure, and use the appropriate part.
Page 74
http://www.xiaoyu163.com 3 7 63 1515 0 7-6. TC MECHANISM SECTION 2 (TCM230AWR2/230PWR2) *NOTE: Two types of parts which are not interchangeable are available for the mechanical block assembly. When replacing the parts, refer to the following figure, and use the appropriate part. Parts with “P”...
http://www.xiaoyu163.com SECTION 8 AUDIO ELECTRICAL PARTS LIST 3 7 63 1515 0 NOTE: • Due to standardization, replacements in the • RESISTORS • SEMICONDUCTORS parts list may be different from the parts All resistors are in ohms. In each case, u: µ, for example: specified in the diagrams or the components METAL: metal-film resistor uA...: µA...
