SAFETY PRECAUTION
CAUTION:
The lightening flash with
arrowhead symbol, within
an equilateral triangle, is
intended to alert the user
to "dangerous voltage"
and to prevent from a risk
of electric shock.
WARNING: The apparatus shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases, shall not be placed on the
apparatus.
WARNING: Do not put the candle or lamp stand on the cabinet; otherwise, there
is the danger of fire.
WARNING: The unit should be connected to a power supply only of the type
descry bed in the operating instructions or as marked on the unit. If you are not
sure of the type of power supply (for example: 120 or 230V) to your home,
consult your local dealer or local power company.
WARNING: Do not open the cabinet or touch any parts in the inner mechanism.
Consult your local dealer for technical service if the opening is required.
WARNING: The mains plug is used as the disconnect device, the disconnect
device shall remain readily operable.
WARNING: The battery of remote control should not be exposed excessive
heat such as sunshine, fire or the like.
WARNING: Maintenance man must use the appointed screw in the rear plate.
Note: Do not open the cabinet to avoid the unit direct exposure to radiation.
Unit Cleaning: After the unit power is turned off, you can clean the cabinet,
panel and remote control with a soft cloth lightly moistened with a mild detergent
solution.
Warning:
To reduce the risk of
electric shock, don't open
the cabinet. Refer
servicing to qualified
personnel only.
The exclamation point
within an equilateral
triangle is intended to
alert the user to important
operating and
maintenance (servicing).
Advertisement
Table of Contents
Related Manuals for starsat SR-X6300USB
Summary of Contents for starsat SR-X6300USB
-
Page 1: Safety Precaution
SAFETY PRECAUTION CAUTION: The lightening flash with Warning: The exclamation point arrowhead symbol, within To reduce the risk of within an equilateral an equilateral triangle, is electric shock, don't open triangle is intended to intended to alert the user the cabinet. Refer alert the user to important to "dangerous voltage"... - Page 2 Attachments: Never add any attachments and/or equipment without the manufacturer consent; as such additions may result in the risk of fire, electric shock or other personal injury. Locating: Slots and openings in the cabinet are provided for ventilation to protect it from overheating. Do not block these openings or allow them to be blocked by placing the STB on a bed, sofa or other similar surface, nor should it be placed over a radiator or heat register.
-
Page 3: Table Of Contents
Contents Contents 1. Remote Control & Panel Description..........3 1.1 Front Panel Description ...................3 1.2 Rear Panel Description..................4 1.3 Remote Control Description ................5 2. Basic Operations ................... 6 2.1 Switch on STB ....................6 2.2 Standby Mode....................6 2.3 Mute .......................7 2.4 Audio ......................7 2.5 TV/STB......................7 2.6 TV/Radio......................7 2.7 SLEEP......................7... - Page 4 Contents 3.3 TP Scan......................18 3.4 Satellite List ....................20 3.5 TP List ......................21 3.6 Satellite Guide....................23 3.7 Unicable Configuration ..................23 4. Channel....................24 4.1 TV Channel List.....................24 4.1.1 Favorite..........................24 4.1.2 Move ..........................25 4.1.3 Sort ..........................25 4.1.4 TV Channel List Edit .....................26 4.1.5 Find ..........................28 4.2 Radio Channel List ..................28 4.3 Channel Setup ....................28...
-
Page 5: Remote Control & Panel Description
Remote Control & Panel Description 1. Remote Control & Panel Description 1.1 Front Panel Description 1. POWER: Is used to switch between the working mode and the standby mode. 2. Display (4-Digit/7-Segment): Displays the received channel number while operating and time while in standby mode. 3. -
Page 6: Rear Panel Description
Remote Control & Panel Description 1.2 Rear Panel Description 1. IF IN: Satellite input. 2. IF OUT: Satellite output for cascading to other devices Note: The operation of another receiver at the same time is only possible with limited channel selection. 3. -
Page 7: Remote Control Description
Remote Control & Panel Description 1.3 Remote Control Description... -
Page 8: Basic Operations
Basic Operations 2. Basic Operations 2.1 Switch on STB Switch the [Device’s Main Power] switch on. When the STB is first used it will display “Quick Setup” window. you will set Language, First Audio, Second Audio, LNB Power, Antenna Setup and Multi Search. -
Page 9: Mute
Basic Operations 2.3 Mute Press the [Mute] button to mute the sound. On the screen an icon will be displayed to indicate the muted sound. Press the [Mute] button again to restore the sound. 2.4 Audio In TV mode, press the [Audio] button to open the Audio Mode window. -
Page 10: Txt
Basic Operations 2.9 TXT Press [TXT] button in TV mode to open the teletext page. This service is depending on the support of the channel provider. If the channel does not support teletext information, it will show “No Teletext Data” on the screen. 2.10 MULTI In TV mode, press [MULTI] to enter the “MULTI”... -
Page 11: Channel Number
Basic Operations 2.13 Channel Number In TV mode you can enter the channel number directly with your remote control unit and confirm the number with the OK button to change to the desired channel. 2.14 PGUP / PGDN In TV mode, press [PGUP / PGDN] to switch directly between satellites. 2.15 SAT In TV mode, press [SAT] button to open satellite list and select there,... -
Page 12: Fav
Basic Operations You can move the highlighted channel with [CH▲/▼] preview highlighted program in the preview window. with [Vol◄/►] and display the event’s detailed description. Press the [INFO] button in the EPG menu display detailed information of the actual event in the selected channel. -
Page 13: Menu
Basic Operations 2.19 CH▲/▼ In TV/Radio mode press [CH▲/▼] to change channel. 2.20 V◄/► In TV/Radio mode, press [Vol◄/►] to adjust volume. 2.21 OK In TV mode press [OK] button to open the Channel List window. Press the [Red] exchange screen. Press [Green] button to sort the channels by free and scrambled channels. -
Page 14: Pause
Basic Operations 2.24 PAUSE In playing mode, press [PAUSE], the picture will be paused, but the sound of the channel will still continues. Press [PAUSE] again, the screen’s picture will skip over to the current playing picture, and the sound of the channel will corresponding playing. 2.25 ZOOM The [Zoom] key allows you to magnify a certain area on the images and the current screen will show... -
Page 15: Usb
Basic Operations 2.28 USB In TV mode, press [USB] button to access directly to the “Media Management” menu. 2.29 MP3 In TV mode, press [MP3] button to access directly to the “Media List-MP3” menu. 2.30 JPEG In TV mode, press [JPEG] button to access directly to the “Media List-JPEG” menu. -
Page 16: A-B
Basic Operations 2.33 A-B In recorded mode, during your watching, press [A-B] button to set up a starting point A, then set another point B by press [A-B] button again after a while, then it will start to playback from A to B and repeat the programs between this two points if no any interruption. -
Page 17: I◄◄/►►I
Basic Operations ● 2.37 ● In TV mode, press [ ] button you will be asked to “Do you want to record?” menu. 2.38 ◄◄/►► When you play a recorded channel, press [◄◄] button to back the program fast and Press [►►] to fast forward the program. Selection: 2x, 4x, 8x speed . -
Page 18: Installation
Menu Operations 3. Installation Press [Menu] in the TV/radio mode to enter the main menu. 1. Press [CH▲/▼] to select the channel item. 2. Press [OK] to enter the selected item. After selecting the installation menu you can see the window like beside. In “Installation”... - Page 19 Menu Operations 22K: Use [Vol◄/►] to switch “ON” and “Off”. The 22KHz signal is used in KU universal LNBs to change between low band and high band. Notice: After choosing LNB type “Universal” you cannot modify 22K. DiSEqC1.0: Use [Vol◄/►] to switch the options or press [OK] to open the DiSEqC1.0 option list to select directly with [CH▲/▼], press [OK] to confirm it.
-
Page 20: Multi Search
Menu Operations 3.2 Multi Search When you enter the “Multi Search” menu a window like the one beside will open. In the “Satellite” item press [Vol◄/►] to select the satellite which you want to scan or press [OK] to open the “satellite list”... - Page 21 Menu Operations TP Index: Use [Vol◄/►] to select the desired transponder or press [OK] to open the TP list to select directly with [CH▲/▼], press [OK] again to display the TP number where the channel can be found. Press [Red / Green / Yellow] key on the RCU for the related functions.
-
Page 22: Satellite List
Menu Operations 22K: Use [Vol◄/►] to switch “ON” and “Off”. The 22KHz signal is used in KU universal LNBs to change between low band and high band. Notice: After choosing LNB type “Universal” you cannot modify 22K. DiSEqC1.0: Use [Vol◄/►] to switch the options or press [OK] to open the DiSEqC1.0 option list to select directly with [CH▲/▼], press [OK] to confirm it. -
Page 23: Tp List
Menu Operations Press [Red] button to enter edit satellite menu. You can edit the satellite’s name and its longitude. Press [Green] button to open the “Add satellite” window. After pressing [Yellow] button you will be asked “Are you sure to delete?”. Select “OK”... - Page 24 Menu Operations Press [Red] button to open the “Edit TP” menu. Here you can edit the transponder’s data. Press [Green] button to open the “Add TP” menu. Here you can add a new TP and setup its parameters. Press [Yellow] button will open a dialog box asking you to confirm the deletion of the current TP.
-
Page 25: Satellite Guide
Menu Operations 3.6 Satellite Guide When you enter “Satellite Guide” menu, you will see the screen like beside: Here you can enter your local longitude and latitude and the satellite’s longitude. The receiver calculates the antenna’s orientation and elevation to point your antenna to the selected satellite. -
Page 26: Channel
Menu Operations 4. Channel In the channel menu: Press [CH▲/▼] to select the wanted menu item among TV Channel List, Radio Channel List, Channel setup, Favorite group list name and Delete All. Press [OK] to enter the selected item. 4.1 TV Channel List If you enter the channel list menu a window like the one below will open. -
Page 27: Move
Menu Operations 4. Press [MENU] button you will be asked “Are you sure to save?”. Select “Yes” to save the marked favorite group. Select “No” to cancel the operation. 5. To return to the TV channel list. The channels of favorite groups are indicated with a favorite icon behind the name. -
Page 28: Tv Channel List Edit
Menu Operations ♦ Name (A-Z): Sorting in Alphabetical order, ignoring “$” symbol. ♦ Name (Z-A): Sorting in Alphabetical order, ignoring “$” symbol. 4.1.4 TV Channel List Edit After pressing the [Yellow] button a window for entering the password will open. The default password is “0000”. - Page 29 Menu Operations 4.1.4.4 Edit Pressing the [Blue] button in the TV channel list edit menu will open another window where you can choose between edit the actual channel and create a new channel. ♦ Edit Press [Red] button to edit the channel. Ø...
-
Page 30: Find
Menu Operations After modification select “Save” and press [OK] to save the new channel and leave the edit mode. Select “Exit” and press [OK] to exit the edit mode without saving the new channel. 4.1.5 Find Press [Blue] button to open the “Find” window like showed beside. -
Page 31: Favorite Group List Name
Menu Operations ♦ On the “Mode” item you can select either “TV channel” or “Radio channel”. ♦ On “Startup Channel” item you can open the channel list by pressing [OK]. Then you can select the channel of you choice. Press [OK] again to confirm. Channel Play type: Use [CH▲/▼] to select, press [OK] to enter “Channel Play Type”... -
Page 32: Delete All
Menu Operations 4.5 Delete All To delete all channels: Enter the password. The default password is “0000”. After entering the password correct a safety question will show up where you have to confirm first Select “OK” to delete all channels or “Cancel”... -
Page 33: System Setup
Menu Operations 5. System Setup When you open the “System Setup” menu a window like the one beside will be opened. In “System Setup” menu: Press [CH▲/▼] to select menu items among Language, TV System, Time & Timer setting, OSD Setting, Parental Lock and Power setting. -
Page 34: Tv System
Menu Operations French, Spanish, Italian, Portuguese, Turkish, Polish, Russian, Danish, Greek, Hungarian, Arabic, Farsi and Dutch. Subtitle Language: In “OSD Setting” menu, use [Vol◄/►] to select “On” or “Off”. If the current channel has subtitle information, it will be displayed if this function is “On”. -
Page 35: Time & Timer Setting
Menu Operations RF Channel is use for switching the screen aspect ratio mode. Now we provide below options: 21-69. You can press [VOL◄/►] key to select each mode circularly. Press [Menu/Exit] to return to the previous menu. 5.3 Time & Timer Setting When you enter “Time &... - Page 36 Menu Operations Ø Duration: Here you can set the time you want to see or play this channel. When the time is reached, whenever the system is in standby mode or playing a channel, the system will automatically switch to the channel you select and play the channel within the duration time you set.
-
Page 37: Osd Setting
Menu Operations ♦ The “GMT Offset” item is only available when “GMT Usage” is set to “On”. Press [Vol◄/►] to set the “GMT Offset” value. With every time you press the button the time offset will be increased / decreased by half an hour. -
Page 38: Parental Lock
Menu Operations OSD Transparency: With this parameter you can set the transparency of the menus. Press [Vol◄/►] select the value between 10%, 20%, 30%, 40% and “Off”(means no transparency function). Load OSD Setting Default: If you want to reset your OSD settings to the default settings then select this item and press [OK]. -
Page 39: Power Setting
Menu Operations NOTE: The default password is 0000. Basically the operation of “New Chan(channel) Password” is same as “New Menu Password”. Press [Exit] to leave the “Parental Lock” menu. 5.6 Power setting When you select this option, you will see a screen like beside: Automatic Standby: press [OK] to open the “Automatic Standby”... -
Page 40: Tools
Menu Operations 6. Tools When you enter to “Tools” menu, you will see a screen like beside: In “Tools” menu: Press [CH▲/▼] to select the wanted item among Information, Quick Setup, Game, Factory Default, Software Upgrade, SatcoDX Auto Programming Smart and CAS. Press [OK] to enter the selected item. -
Page 41: Factory Default
Menu Operations 6.3 Factory Default When you press [OK] on the “Factory Default” item: A dialogue box will occur where you need to enter the password. After you input the correct password a warning message will be displayed like the one beside. If you select “Yes”... -
Page 42: Stb-Stb Upgrade
Menu Operations In the “Software” item press [Vol◄/►] to select the file which you want to scan or press [OK] to open the “USB list” to select directly with [CH▲/▼], and press [OK] to finish the selection. Start: Press [OK] to start upgrade. Once the file has been loaded, it requires the conformity to end the upgrading process, writing into the receiver “Are you sure to burn flash ?”. -
Page 43: Backup To Usb
Menu Operations 6.4.3 Backup To USB This function allows you Dump Software and Ch.List & Setting fo the receiver to external hard drives. press [Vol◄/►] to change the backup mode. backup mode include: Dump Software and Ch.List & Setting. Mark “Start” on the master reeciver and press [OK] to start Backup. -
Page 44: Satcodx Auto Programming
Menu Operations 6.5 SatcoDX Auto Programming This function is using the tables of the SatcoDX websites to update your channel and satellite lists. You need a special application which is available on the CD-ROM of the Tele-Satellite magazine. Install this software on your PC first. -
Page 45: Media Management
Menu Operations 7. Media Management When you enter to “Media Management” menu, you will see a screen like beside: In “Media Management” menu: 1. Press [CH▲/▼] to select the Media List, Media Control Disk Information. 2. Press [OK] to enter the selected item. 7.1 Media List Press [CH▲/▼] to select the wanted item partition. -
Page 46: All
Menu Operations 7.1.1 All [Edit] Press [Red] button to open the “Edit” window like showed beside. The color buttons offer further functions to manage. Rename ♦ Press [Red] button to open the “Rename” window like showed beside. Press [CH▲/▼] / [Vol◄/►] to select the leading character of the channel name and press [OK] to confirm it. - Page 47 Menu Operations b) Press [MENU] button you will be asked “Are you sure to save?”. Select “OK” to delete all “mp3 / image / video”. Select “Cancel” to cancel the operation. Move ♦ Press [Yellow] button to show a moving icon behind the “mp3 / image / video / folder”...
- Page 48 Menu Operations ♦ Add All a) Press [Green] button to show a add icon behind all “mp3 / image / video” name. b) Press [MENU] button you will be asked “Are you sure to save?”. Select “OK” to add all “mp3 / image / video”. Select “Cancel” to cancel the operation.
-
Page 49: Music
Menu Operations 7.1.2 Music Basically the operation of “mp3” is same as “all”. 7.1.3 Picture Basically the operation of “Picture” is same as “all”, except that in the Yellow buttons offer further functions to manage. In image menu press [Yellow] button will open another window. -
Page 50: Picture List
Menu Operations 7.1.6 Picture List Basically the operation of “Picture List” is same as “Music List”, except that in the Yellow (Setup) buttons offer further functions to manage. Press [Yellow] button to open the “Setup” window. Select the item you want to adjust with [CH▲/▼] and change the value with [VOL◄/►] Size: Full and Real. - Page 51 Menu Operations [Lock] In channel Record menu, press [Green] button to place a lock icon behind the name of the highlighted Record. Marked Records will be locked and displayed only after password has been entered if you confirm to save the changes when you leave this menu.
-
Page 52: Media Control
Menu Operations 7.2 Media Control Record Type: Press [Vol◄/►] to switch between Original TS and MPEG. Reserved TMS Size: Press [Vol◄/►] to switch between “0 MB / 200 MB and 500 MB”. Select “MENU / EXIT”, press [MENU / EXIT] to reset to make tms size valid now. -
Page 53: Technical Specification
Technical Specification 8. Technical Specification VIDEO Decoding MPEG-2 & MEPG-1 compatible Bit rate Max 15Mbps Output PAL/NTSC Aspect ratio 4:3, 16:9, Auto Active pixel 720x480 @ 30fps; 720x576 @ 25fps Output connector RCA, TV SCART AUDIO Decoding MPEG-2/MPEG-1 layer I & II Mode Mono, Dual, Stereo, Joint stereo Bit rate... - Page 54 Technical Specification RF MODULATOR Input IEC 169-24 Male x 1 Output IEC 169-24 Female x 1 Band TV Standard PAL BG/I/DK, NTSC M Output Channel 21~69(PAL), 14~83(NTSC) MISCELLANEOUS Supply voltage 100~240VAC~50~60Hz Power consumption Max. 25 watts Operation temperature +5° to +40° Storage temperature -20°...
Need help?
Do you have a question about the SR-X6300USB and is the answer not in the manual?
Questions and answers

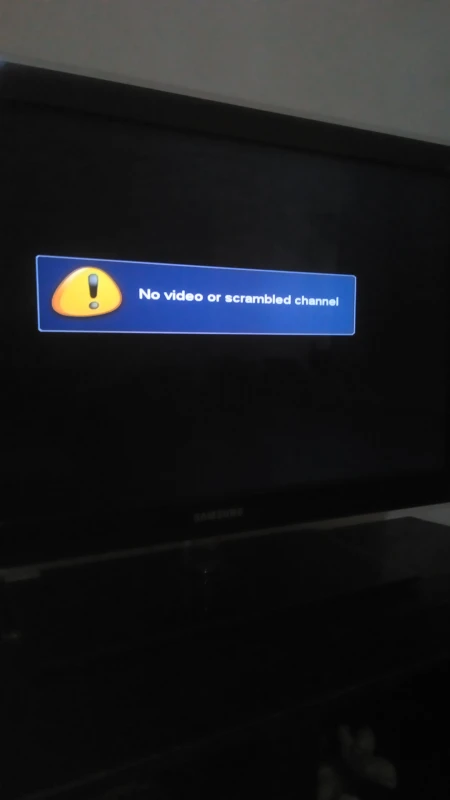

**** feeling to pay my starsat because it is not showing scrumbled number
