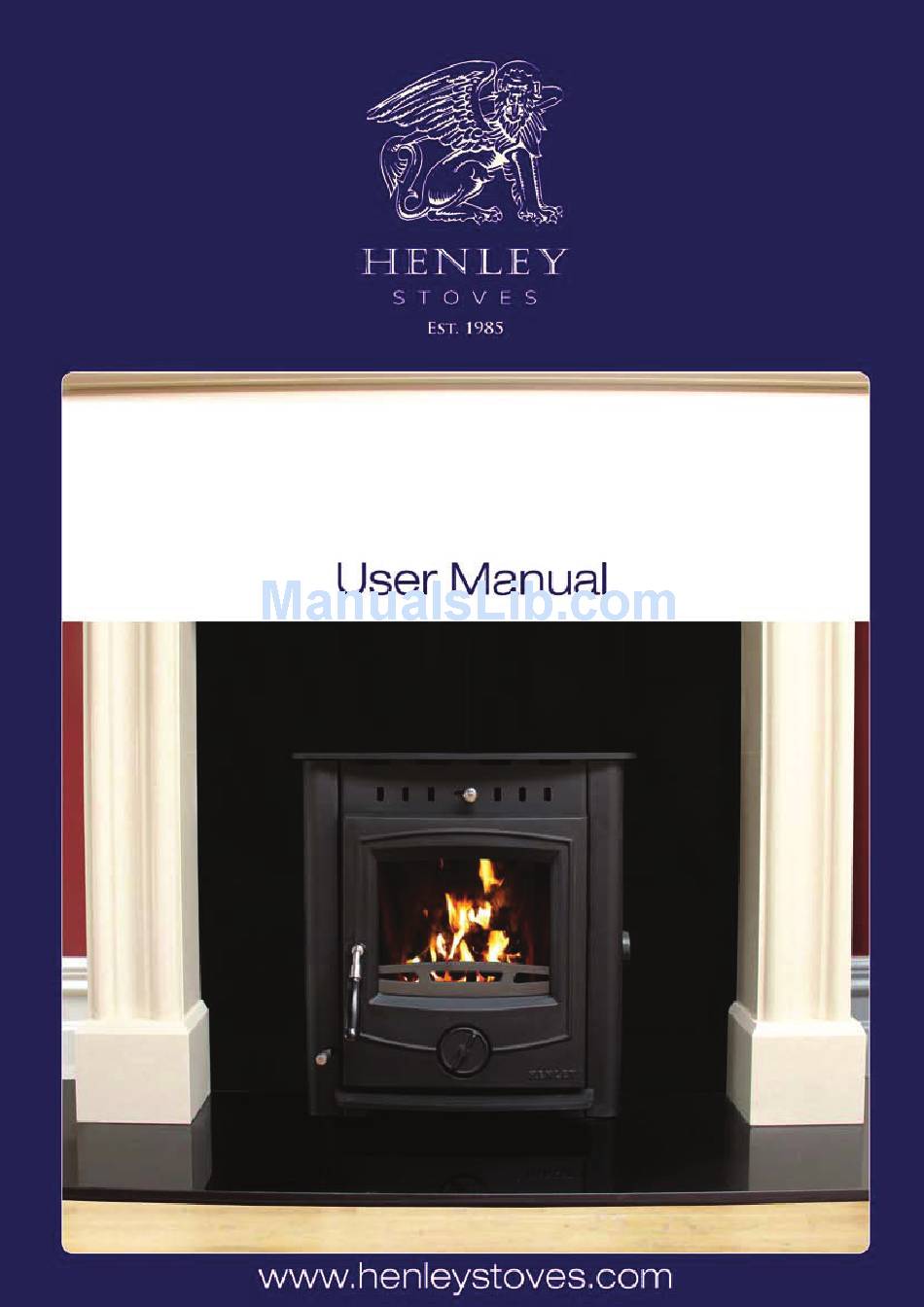

- Page 1 Achill 17.1kW Version 1.0 June 2013...
-
Page 2: Technical Specification
User manual User manual TECHNICAL SPECIFICATION Results of independent testing to EN 13240 COMPONENTS Weight, 110 KG Wood logs Nominal heat output, kW 17.1kW 16.4kW Nominal heat output to space, kW 11.9kW 4.5kW Nominal heat output to space, kW 11.9kW 5.1kW 74.2% ASH PAN... - Page 3 Congratulations on your purchase of a Henley Stove. With the proper care and attention your Henley stove will give you a lifetime of heat, comfort and pleasure. This manual contains instructions on how to install and maintain your Henley Stove. For both your comfort and safety please take the time to read through it carefully. www.henleystoves.com...
- Page 4 User manual Welding process: CO2 shielded arc welding Permissible maximum operating water temperature in °C: 85°C Permissible maximum operating pressure in bar: 0.3MPa The type test pressure in bar: Water invasion barometric type The water capacity of any boiler and instructions for fitting a drain-cock in the lowest part of the system (where applicable): Achill Boiler:12.1L Advice on a means of dissipating excess heat from the boiler, such as using a radiator: Radiators...
- Page 5 HOW TO START A FIRE The Henley Achill 16.4kW has 2 air vents which allow air into the stove to help ingite the fire in your stove and also has a Thermostat. The Thermostat, also known as a Thermostatically Controlled Damper Valve, regulates the temperature of the stove by controlling the primary air intake.
- Page 6 User manual User manual OPERATING INSTRUCTIONS Warning When properly installed and operated this appliance will not emit fumes into the dwelling. Occasional fumes from de-ashing and re-fueling may occur. Persistent fume emission is dangerous and must not be tolerated. If fume emission does persist: •...
- Page 7 User manual User manual Not recommended as fuel: • “Green wood. Green or damp wood reduces stove efficiency and makes the window, the internal walls and the flue dirty (soot, tar, etc.). • “Used timbers. Burning treated wood (railway sleepers, telegraph poles, off cuts of plywood or chip board, pallets, etc.) quickly clogs the flue ways (soot, tar, etc.), pollutes the environment (pollution and smell, etc.) and cause the fire to burn too quickly and overheat.
-
Page 8: Maintenance
The glass will resist temperature up to 750°C. Do not replace broken-glass with substitute materials. Consult your local Henley Stove Supplier for information on replacing glass. Chimney Cleaning The chimney and the connecting flue pipe must be swept a least once a year. - Page 9 User manual FAQ’s I’m finding it very hard to light a fire in my stove? Why is this? In some houses there may not be sufficient ventilation in the room for the fire to light effectively. You may need an additional air vent in the room to use the stove efficiently. There is smoke coming out of the stove when I light it, why is this? To ensure maximum efficiency and to prevent the stove from smoking, the pipe at the back to the stove must be max 150mm before the 45 degree bend in the pipe, otherwise the smoke will not be able...
- Page 10 User manual Parts If you require any other parts which are not mentioned below, contact your local Henley Stockist. Replacement Grate Replacement Baffle Plate Replacement Fire Bricks Replacement Door Glass Replacement Door Handle Replacement Ash Pan Please note the images above are for illurtration purposes only and may not look like the part in your stove.
