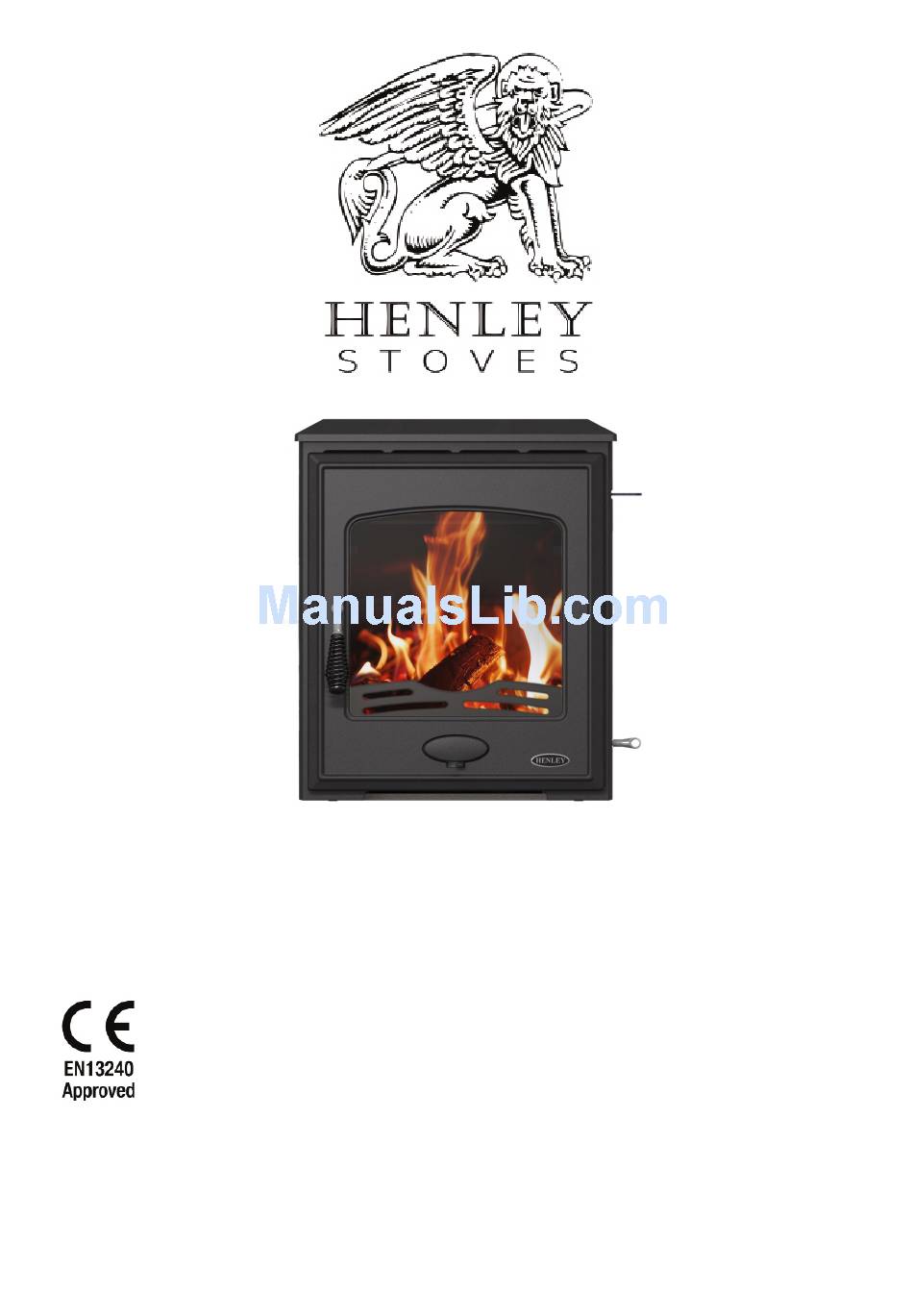

Henley Arklow 5kW / 7kW
Insert Stove Installation and Operating Instructions
Please hand these instructions to the stove user when the installation is
complete. Leave the stove ready for operation and instruct the user in the
correct use of the appliance and operation of controls.
Important: – This product must be installed by a suitably qualified installer.
PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY!
For safety reasons it is essential that your stove is correctly installed and operated. Henley Stoves can-
not accept responsibility for any fault or consequential problems arising through incorrect installation
or operation.
Henley Stoves, Curraheen, Tralee, Co. Kerry | www.henleystoves.com
Advertisement
Table of Contents
Related Manuals for Henley Arklow
Summary of Contents for Henley Arklow
- Page 1 Important: – This product must be installed by a suitably qualified installer. PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY! For safety reasons it is essential that your stove is correctly installed and operated. Henley Stoves can- not accept responsibility for any fault or consequential problems arising through incorrect installation or operation.
-
Page 2: Table Of Contents
Do not use aerosol sprays or any other flammable materials near the appliance under fire. Fire cement is caustic, hand and eye protection should always be worn, prolonged contact with the skin should be avoided. Henley Stoves will not be responsible for any consequential or incidental loss or injury however caused. -
Page 3: Technical Specification
Size C Size D Size F Model Size A Size B Size C Size D Size E Size F Arklow 5kW Arklow 7kW All sizes in MM Arklow 5kW Arklow 7kW Weight 70kg Weight 77kg Nominal heat output, kW 5kW... -
Page 4: Stove Commissioning Checklist
Stove Commissioning Checklist Please complete the form below as it will be of great assistance in the unlikely event that there is a problem with the stove or a war- ranty claim needs to be made. Please contact the installer or dealer if there is a problem. Dealer appliance was purchased from ............................ -
Page 5: Installation Instructions
Installation Instructions 1. Before installation and/or use of this appliance please read these instructions carefully to ensure that all requirements are fully understood. The appliance must be fitted by a registered installer*, or approved by your local building control officer. 2. -
Page 6: Flue Outlet Positions
Installation Instructions • If it is necessary to fit a register plate it must conform to the Building Regulations. • The minimum height of the flue or chimney must be 4.5m from the hearth to the top of the flue, with no horizontal sections and a maximum of 4 bends. -
Page 7: Connecting A Chimney To A Flue
Installation Instructions Each installation is unique to the property so it is not possible to give details to suit every setting. The installation must comply with Building Regulations and be made using best practice construction methods. Many fireplace openings have a supporting lintel. Do not remove without supporting the remaining structure of the building. -
Page 8: User Instructions
Henley Stoves appliances have air systems provid- ing cleaner burning, and greater efficiency and control, please see the diagram to view where the various air controls are located on your Henley Stove. Stove Door 1) Primary Air - Turning this wheel anti-clockwise opens the primary air and allows air into the stove. -
Page 9: Door Handle
User Instructions Door handle Please ensure you use a protective glove when opening the the door on this applicance as it may become hot DO NOT USE YOUR BARE HAND TO OPEN DOOR WHILE THE STOVE IS IN USE Properly installed, operated and maintained, this appliance will not emit fumes into the room. Occasional fumes from de-ashing refuelling may occur. -
Page 10: Shutting Down
User Instructions Shutting Down The stove will normally shut down by itself as the fuel is consumed. In order to shut down the stove for other reasons, close the pri- mary air controls (if open), then close the secondary air control. If the controls are left in this position, the fire will eventually burn out. -
Page 11: Removing The Fuel Retainer
Maintenance Removing the fuel retainer • Lift fuel retainer clear of the supporting brackets. • Rotate to clear the sides of the door opening. Do not use appliance without the fuel retainer in position. Replacing the glass in your stove door In the event of the door glass being broken it can easily be replaced using the following procedure: •... -
Page 12: Stove Finish (Paint)
Building Regulations to be valid. In the event you require a service engineer to inspect the appliance, a standard charge of €120 is payable prior to any inspection. In the event the engineer find a defect in the stove which warranted the service call, Henley Stoves will reimburse you the €120. -
Page 13: Frequently Asked Questions
Frequently Asked Questions Why are my air inlets puffing smoke? Combustion gases can build up in the firebox and ignite as small explosions, causing smoke to puff out of the air inlets and other openings. This occurs if the air controls are shut soon after adding new fuel to a very hot fire. Stop by opening the air controls to increase combustion air and burning rate. -
Page 14: Parts
Parts Over time you may require replacement parts for your Henley Stove. Replacement parts are available through your local stockist. Please use the below diagram to establish the part you require for your stove. Please ensure you quote the model name and also the serial number of the stove when orderig your spare parts. -
Page 15: Warranty Registration Form
In the event the engineer finds a defect in the stove which warranted the service call, Henley Stoves will reimburse you the €120. Please note issues such as replac- ing fire rope, replacing the door handle, paint peeling, bricks cracking, etc, does not warrant a service call and can be easily done using the instructions in the manual. -
Page 16: Defra
