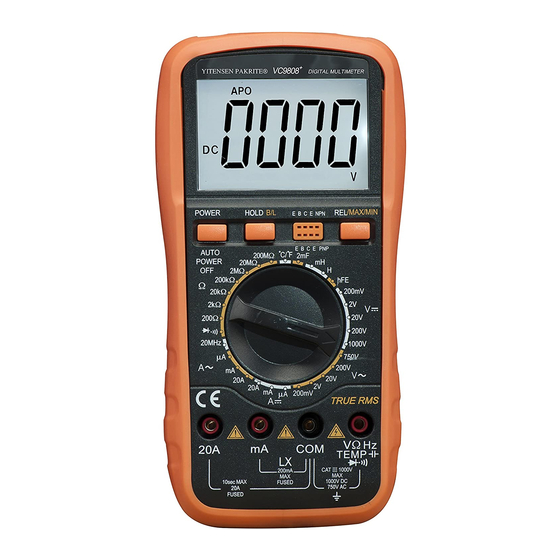

Victor VC9808+ Operation Manual

DIGITAL MULTIMETER VC9808+
OPERATION MANUAL
1. GENERAL
The instrument is a stable and good performance digital multi-meter driven by
battery. It uses the LCD with 26mm-high figure to make the reading clear. Unit
symbol displaying, and the function of backlight and overload protection make
operation is convenient.
The instrument has the function of measuring DCV, ACV, DCA, ACA, resistance,
capacitance, inductance, temperature and frequency, and diode, triode and
continuity test. The instrument takes dual-integral A/D converter as key point,
is an excellent tool.
2. SAFETY NOTES
This series meter meets the standard of IEC1010. Please read below notes
carefully before operation.
1．Do not input a limited voltage which RMS is over DC 1000V or AC 750V when
measuring voltage.
2．Voltage less than 36V is a safety voltage. When measuring voltage higher
than DC 36V, AC 25V, check the connection and insulation of test leads to avoid
electric shock.
3．Be sure to keep the test leads off the testing points when converting function
and range
4．Select correct function and range to avoid fault operation.
5．When measuring current, do not input current over 20A.
6．Safety symbols
" " exists high voltage， " "GND， "
" " must refer to manual， " "low battery indication.
3. SPECIFICATION
1) GENERAL
1-1．Displaying : LCD displaying
1-2．Max. indication: 1999（3 1/2）, auto polarity indication
1-3．Measuring method: dual slope A/D transfer
1-4．Sampling rate: approx. 3 times/sec
1-5．Over range indication: MSD displays "OL" or "-OL"
1-6．Low battery indication: " " symbol displays
1-7．Operation: 0～40℃，relative humidity <80%
1-8．Storage: -10～50℃，relative humidity <80%
1-9．Power：one 9V battery (6F22 or equivalent）
1-10．Size: 185×93×35 mm
1-11．Weight: approx.290g (including a 9V battery)
1-12. Accessories: Operation Manual, holster, gift box, test leads, a pair of
TP01 thermocouple, 9V battery.
2) TECHNICAL DATA
2-1．Accuracy: ±（a% × reading + dgts） at 23 ± 5℃, relative humidity<75% .
One year guarantee since production date.
2-2. TECHNICAL DATA
2-2-1. DC Voltage
Range Accuracy
200mV
2V
±(0.5%+3)
20V
200V
1000V
Input resistance：10MΩ for all ranges
Overload protection：Range 200mV: DC 250V or AC peak value
2-2-2. AC Voltage
Range
200mV
2V
20V
200V
750V
Input resistance：It is 1MΩ at range 200mV or 2V, and be 10MΩ at others；
Overload protection: DC 250V or AC peak value at range 200mV
Frequency response：Range less than 200V: 40~400Hz
Displaying: RMS of sine wave (mean value response)
2-2-3. DCA
Range
2mA
20mA
200mA
20A
Max. measuring voltage drop: 200mV；
Max. input current: 20A (within 10 seconds)
Overload protection: 0.2A / 250V fast-blown fuse, range 20A infused.
2-2-4. ACA
Range
" dual insulation，
2mA
20mA
200mA
20A
Max. measuring voltage drop: 200mV
Max. input current: 20A (within 10 second）
Overload protection： 0.2A / 250V quick-action fused, Range 20A infused.
Frequency response：40~200Hz
Displaying: RMS of sine wave (mean value response)
2-2-5. Resistance（Ω）
Range
200Ω
2kΩ
20kΩ
200kΩ
2MΩ
20MΩ
2000MΩ
Open voltage：less than 3V
Overload protection：DC 250V or AC peak value
NOTE:
A：At range 200 Ω, short-circuit the test leads to measure the wire resistance,
Resolution
then, subtracts it from the real measurement.
0.1mV
B：At range 2000 MΩ, when the test leads short circuit, LCD displays 10MΩ,
1mV
It's normal and doesn't affect the accuracy. Please deduct the value from
10mV
the real measurement. For example: the tested resistance is 1000 MΩ, the
100mV
reading should be 1010 MΩ, and the correct value is reduce 10 from the LCD
±(1.0%+5) 1V
Other ranges: DC 1000V or AC peak value
Accuracy Resolution
0.1mV
1mV
±(0.8%+5)
10mV
100mV
±(1.2%+5) 1V
DC 1000V or AC peak value at others
Range 750V: 40~100Hz
Accuracy Resolution
1uA
±(0.8%+3)
10uA
±(1.2%+4) 100uA
±(2.0%+5) 10mA
Accuracy Resolution
±(1.0%+5) 1uA
10uA
±(2.0%+5)
100uA
±(3.0%+10) 10mA
Accuracy Resolution
± (0.8%+5) 0.1Ω
1Ω
10Ω
± (0.8%+3)
100Ω
1kΩ
± (1.0%+15) 10kΩ
± [ 5% ( reading –10 )+
1MΩ
20 ]
reading value, that is 1010-10=1000MΩ;
C：The reading be displayed slowly when the measurement is more than 1 MΩ.
Please wait it to be stable.
2-2-6. Capacitance
Range Accuracy
20nF
200nF
±(2.5%+20)
2uF
20uF
2000uF ±(5.0%+5)
Test frequency: 100Hz
Overload protection：DC 36V or AC peak value
2-2-7. Inductance (L)
Range Accuracy
2mH
20mH
200mH ±( 2.5%+20)
2H
20H
Test frequency：100Hz
Overload protection：DC 36V or AC peak value
2-2-8. Temperature
Range Accuracy
±(0.8%+4) < 400℃
(-40 ~ 1000)℃
±(1.5%+15) ≥ 400℃
K-type thermocouple ( banana shape plug )
2-2-9. Frequency
Range Accuracy
2kHz
20kHz
200kHz ±(0.5%+4)
2000kHz
10MHz
Input sensitivity：1V RMS
Overload protection：DC 250V or AC peak value (within 10 seconds)。
2-2-10. Diode and continuity testing
Range Reading
Forward voltage drop of diode
Buzzer makes a long sound while
resistance is less than 30Ω±10Ω
Overload protection：DC 250V or AC peak value
CAUTION：DO NOT INPUT VOLTAGE AT THIS RANGE!
2-2-11. Transistor hFE DATA TEST
Range Displaying range
Basic current is approx.
hFE NPN or PNP 0 ~ 1000
10uA ， Vce is about 3V
4. OPERATION
4-1．Panel description
1. LCD: display the measuring value and unit.
2-1. POWER switch: turn on/off the power.
Resolution
10pF
100pF
1nF
10nF
1uF
Resolution
1uH
10uH
100uH
1mH
10mH
Resolution
1℃
Resolution
1Hz
10Hz
100Hz
1kHz
10kHz
Condition
Forward DCA is approx.
1mA, the backward
voltage is approx 3V
Open voltage is approx.
3V
Test condition
