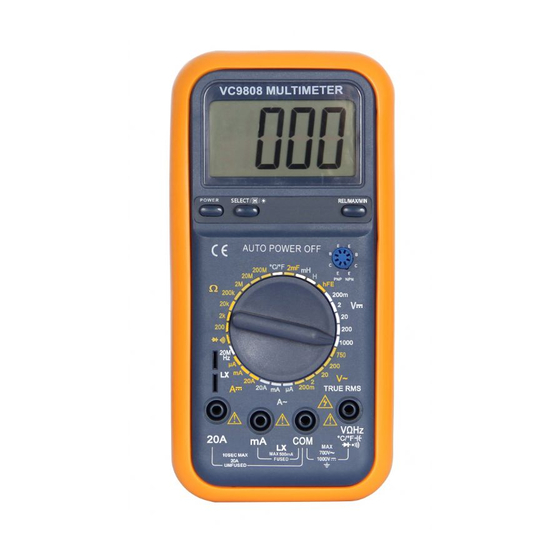

Victor VC9808 Operation Manual

DIGITAL MULTIMETER OPERATION MANUAL
1. GENERAL
The instrument is a stable and good performance digital multi-meter driven by
battery. It uses the LCD with 26mm-high figure to make the reading clear. Unit
symbol displaying, and the function of backlight and overload protection make
operation is convenient.
The instrument has the function of measuring DCV, ACV, DCA, ACA, resistance,
capacitance, inductance, temperature and frequency, and diode, triode and
continuity test. The instrument takes dual-integral A/D converter as key point, is an
excellent tool.

2. SAFETY NOTES

This series meter, meets the standard of IEC1010. Please read below notes
carefully before operation.
1. Do not input a limited voltage which RMS is over DC 1000V or AC 700V when
measuring voltage.
2. Voltage less than 36V is a safety voltage. When measuring voltage higher than
DC 36V, AC 25V, check the connection and insulation of test leads to avoid electric
shock.
3. Be sure to keep the test leads off the testing points when converting function and
range.
4. Select correct function and range to avoid fault operation.
5. When measuring current, do not input current over 20A.
6. Safety symbols
" " exists high voltage, " " GND, "
" " low battery.
3. SPECIFICATION
1). GENERAL
1-1. Displaying: LCD displaying.
1-2. Max. indication: 1999 (3 1/2), auto polarity indication.
1-3. Measuring method: dual slope A/D transfer.
1-4. Sampling rate: approx, 3 times/sec.
1-5. Over range indication: MSD displays "1"/"OL" or "-1"/"OL".
1-6. Low battery indication. " " symbol displays.
1-7. Operation: (0~40)°C, relative humidity <80%.
1-8. Power: one 9V battery (NEDA 1604/6F22 or equivalent).
1-9. Size: 190×88.5×27.5mm.
1-10. Weight: approx. 320g (including a battery).
2). TECHNICAL DATA
2-1. Accuracy: ±(a% × reading + dgts) at (23 ± 5)°C, relative humidity<75%.
One year guarantee since production date.
2-2. Function:
DCV Resistance Ω
ACV Diode continuity testing
DCA h
Triode FE
ACA Capacitance C
2-3. TECHNICAL DATA
2-3-1. DC Voltage
Range
200mV
2V
20V
200V
1000 V
Input resistance: 10MΩ for all ranges.
Overload protection: Range 200mV: DC 250V or AC peak value.
Other ranges: DC 1000V or AC peak value.
2-3-2. ACV Voltage
Range
200mV
2V
20V
200V
700V
Input resistance: It is 1MΩ at range 200mV or 2V, and be 10MΩ at others.
Overload protection: DC 250V or AC peak value at range 200mV.
DC 1000 V or AC peak value at others.
Frequency response: Range less than 200V: (40~400)Hz.
Range 700V: (40~100)Hz.
Displaying: RMS of sine wave (mean value response).
2-3-3. DCA
Range
2mA
" dual Insulation, " " must refer to manual,
Temperature °C
Frequency f
Inductance L
Auto power-off
Accuracy Resolution
0.1mV
1mV
±(0.5%+3)
10mV
100mV
±(1.0%+5) 1V
Accuracy Resolution
±(1.2%+3) 0.1mV
1mV
±(0.8%+5) 10mV
100mV
±(1.2%+5) 1V
Accuracy Resolution
±(0.8%+3) 1uA
20mA
200mA
20A
Max. measuring voltage drop: 200mV.
Max. input current: 20A (within 10 seconds).
Overload protection: 0.2A/ 250V fast-blown fuse, range 20A infused.
2-3-4. ACA
Range
2mA
20mA
200mA
20A ±(3.0%+10)
Max. measuring voltage drop: 200mV.
Max. input current: 20A (within 10 seconds).
Overload protection: 0.2A/250V fused, range 20A infused.
Frequency response: (40~200)Hz.
Displaying: RMS of sine wave (mean value response).
2-3-5. RESISTANCE (Ω)
Range
200Ω
2kΩ
20kΩ
200kΩ
2MΩ
20MΩ ±(1.0%+l5)
2000MΩ ±[5%(reading-10)+20]
Open voltage: less than 3V.
Overload protection: DC 250V or AC peak value.
NOTE: A: At range 200Ω, short-circuit the test leads to measure the wire resistance, then,
subtracts it from the real measurement.
B: At range 200MΩ, when the test leads short circuit, LCD displays 1.0MΩ. In the same way,
the reading is 10MΩ while the test leads short at range 2000MΩ. It's normal and doesn't
affect the accuracy Please deduct the value from the real measurement.
C: The reading be displayed slowly when the measurement is more than 1MΩ.
Please wait it to be stable.
2-3-6. Capacitance
Range
20nF
200nF
±(2.5%+20)
2uF
20uF
200uF ±(5.0%+5)
Test frequency: 100Hz.
Overload protection: DC 36V or AC peak value.
2-3-7. Inductance (L)
Range
2mH
20mH
200mH ±(2.5%+20)
2H
20H
Test frequency: 100Hz.
Overload protection: DC 36V or AC peak value.
2-3-8. Temperature
Range
±(0.8%+4) < 400°C
(-40~1000)°C
±(1.5%+15) ≥ 400°C
K-type thermocouple (banana-shape plug).
2-3-9. Frequency
Range
2kHz
20kHz
±(0.5%+4)
200kHz
2000kHz
10MHz
Input sensitivity: 1V RMS.
Overload protection: DC 250V or AC peak value (within 10 seconds).
±(0.8%+3) 10uA
±(1.2%+4) 100uA
±(2.0%+5) 10mA
Accuracy Resolution
1uA
±(1.0%+5)
10uA
±(2.0%+5) 100uA
10mA
Accuracy Resolution
±(0.8%+5) 0.1Ω
1Ω
10Ω
±(0.8%+3)
100Ω
1kΩ
10kΩ
1MΩ
Accuracy Resolution
10pF
100pF
1nF
10nF
100nF
Accuracy Resolution
1uH
10uH
100uH
1mH
10mH
Accuracy Resolution
1°C
Accuracy Resolution
1Hz
10Hz
100Hz
1kHz
10kHz
