Eneo NLS-1401 Instruction Manual

H.264 network transmitter
Hide thumbs Also See for NLS-1401:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
New

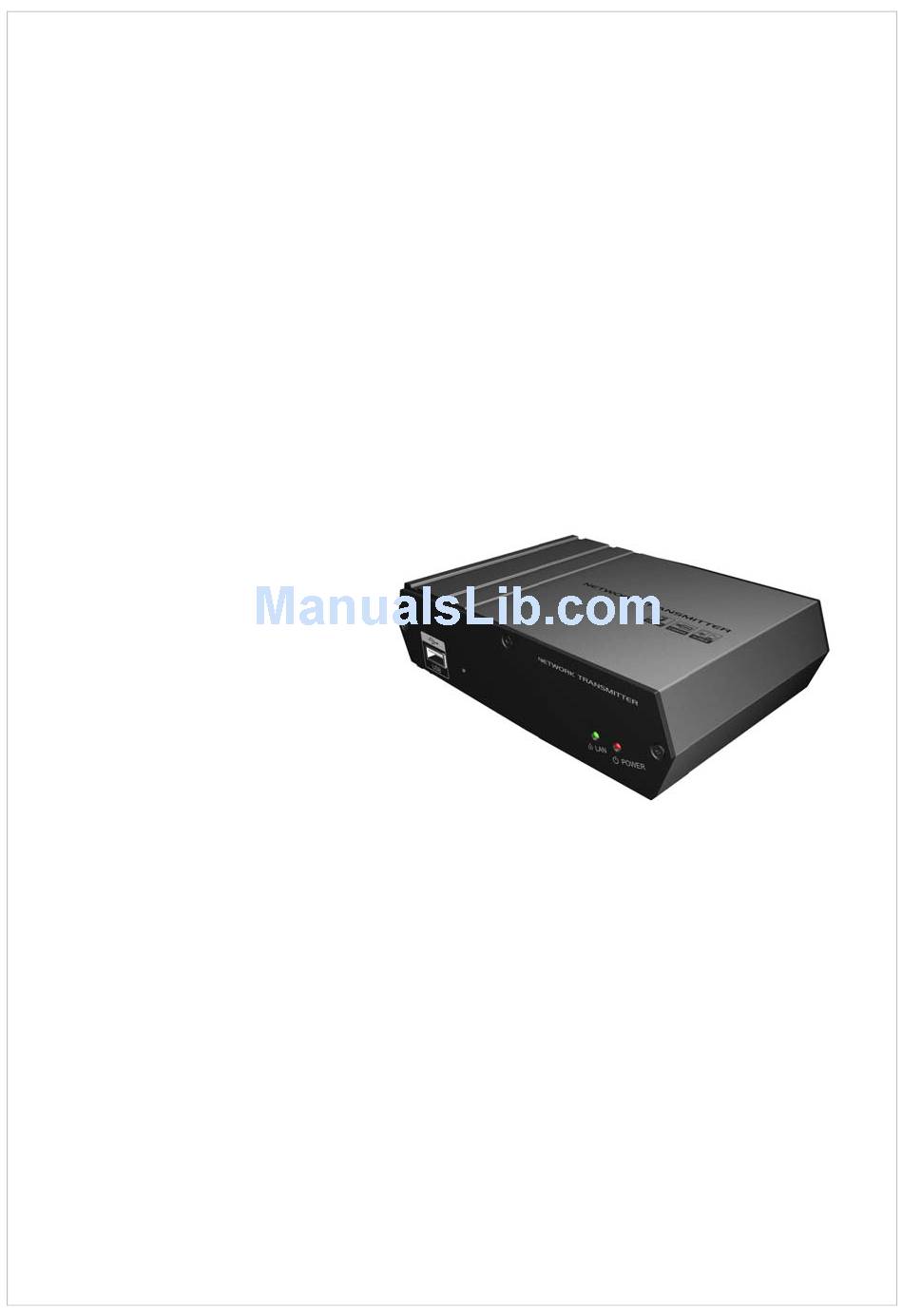

H.264 Network Transmitter
Instruction Guide
English Version 1.0
Model : NLS-1401

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NLS-1401 and is the answer not in the manual?

Questions and answers

Related Manuals for Eneo NLS-1401

Summary of Contents for Eneo NLS-1401

  • Page 1 H.264 Network Transmitter Instruction Guide English Version 1.0 Model : NLS-1401...

  • Page 3: Product Description

    By using its dedicated program, many users are able to have an access to the NLS-1401 at once or a single user can monitor various NLS-1401s at the same time. It also enables users to play, store and retrieve a monitoring image by using a PC.
  • Page 4 2. The NT-Manager16 Client Software User’s Manual 3. The NT-Manager16 Installation software Mounting The NLS-1401 is supplied with a mounting kit for wall mounting. The mounting bracket can be positioned for mounting the Network Transmitter on a vertical surface. Overview •...

  • Page 5: Installation

    PC, while a direct cable is used for connection to a hub / switch. IP Assignment When the NLS-1401 is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device use the “Smart Manager”...

  • Page 6: Operation

    3.1 Access from a browser 1. Start a browser (Internet Explorer). 2. Enter the IP address or host name of the NLS-1401 in the Location/ Address field of your browser. 3. You can see a starting page. Click Live View or Setup to enter web page.

  • Page 7: Access From The Internet

    4. The encoder’s Live View page appears in your browser. 3.2. Access from the internet Access from the internet Once connected, the NLS-1401 is accessible on your local network (LAN). To access the NLS-1401 from the Internet you must configure your broadband router to allow incoming data traffic to the video encoder.
  • Page 8 3.4 Live View Page The live view page comes in eight screen modes like 704x480(576), 704x240(288), 352x240(288), 176x120(144), 640x480, 320x240, 160x120. Users are allowed to select the most suitable one out of those modes. Please, adjust the mode in accordance with your specifications monitoring purposes.
  • Page 9 The Live View page in the NLS-1401 provides access to H.264, MPEG-4 and Motion JPEG video streams, and to the list of available video streams. Other applications and clients can also access these video streams/images directly, without going via the Live View page.

  • Page 10: Resetting To The Factory Default Settings

    Default Settings” on the User’s Manual. 3.6 Resetting to the factory default settings To reset the NLS-1401 to the original factory settings, go to the Setup>System >Maintenance web page (described in “3.5.7.5 Maintenance” of the User’s Manual) or use the control button on the NLS-1401, as described below: Follow the instructions below to reset the Network Transmitter to the factory default settings using the Reset Button.
  • Page 12 Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel. +49 (0) 60 74 / 888-0 · Fax +49 (0) 60 74 / 888-100 Technical changes reserved.
