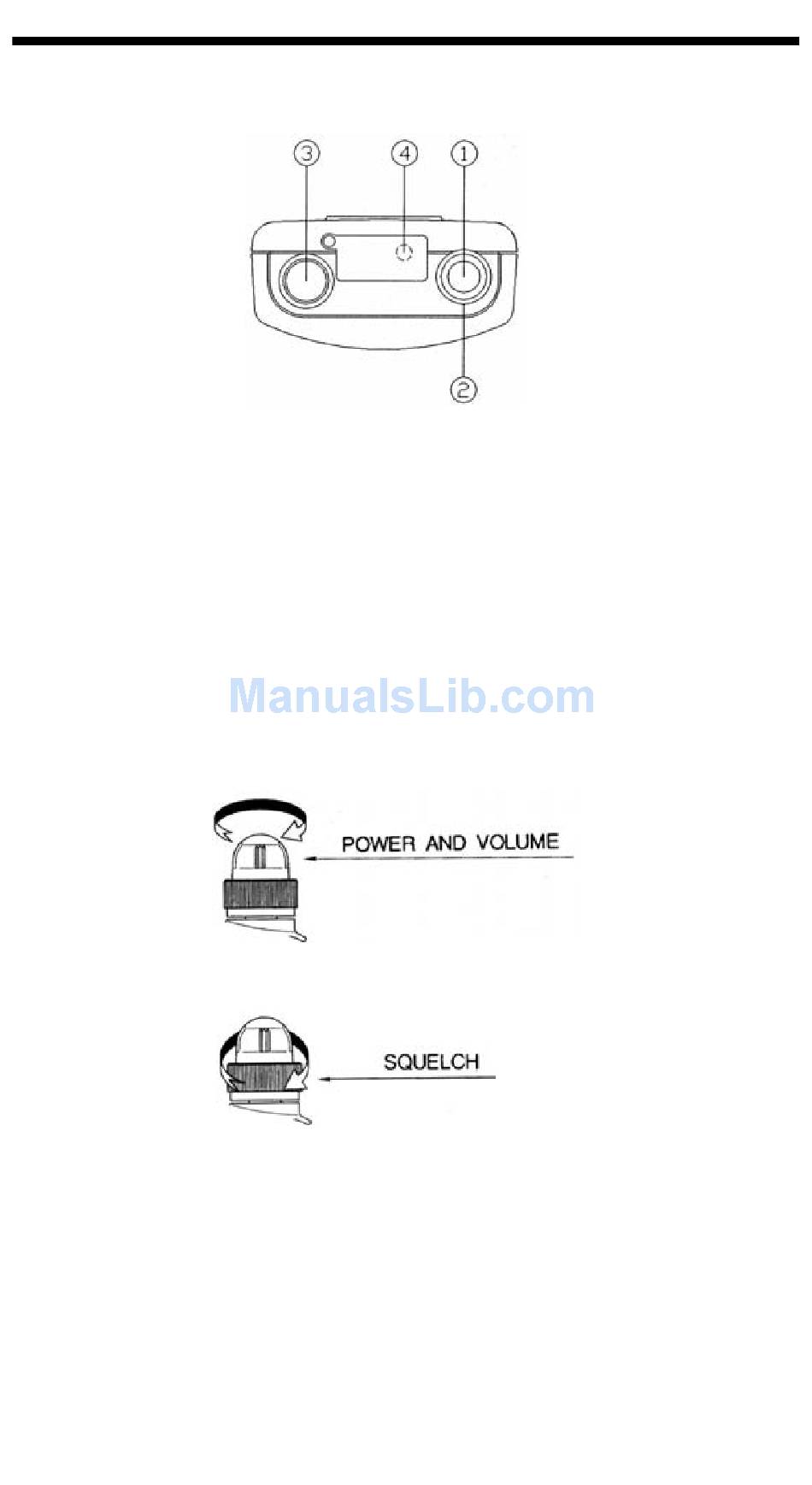

● Top Panel Features
1. Power On/Off, Volume
Turn the Volume switch clockwise to turn power on and set desired
volume. Turn the Volume button anti-clockwise to turn the power off.
2. Squelch
This control is to cut off or eliminate receiver background noise in the
absence of an incoming signal. For maximum receiver sensitivity, it is
suggested that the control be adjusted only to the point where the
receiver background or ambient background noise is eliminated. The
incoming signals that are then received will be stronger than the
background noise.
<Power and Volume>
<Squelch>
3. Antenna
This antenna provides good receiver performance given its overall size.
4. Earphone Jack
Lets the user listen to the conversation in privacy.
Dust Cover : When Earphone is not being used, this prevents dirt and
moisture from getting inside the radio.
Please disregard the primed "MIC" on the dust cover.
