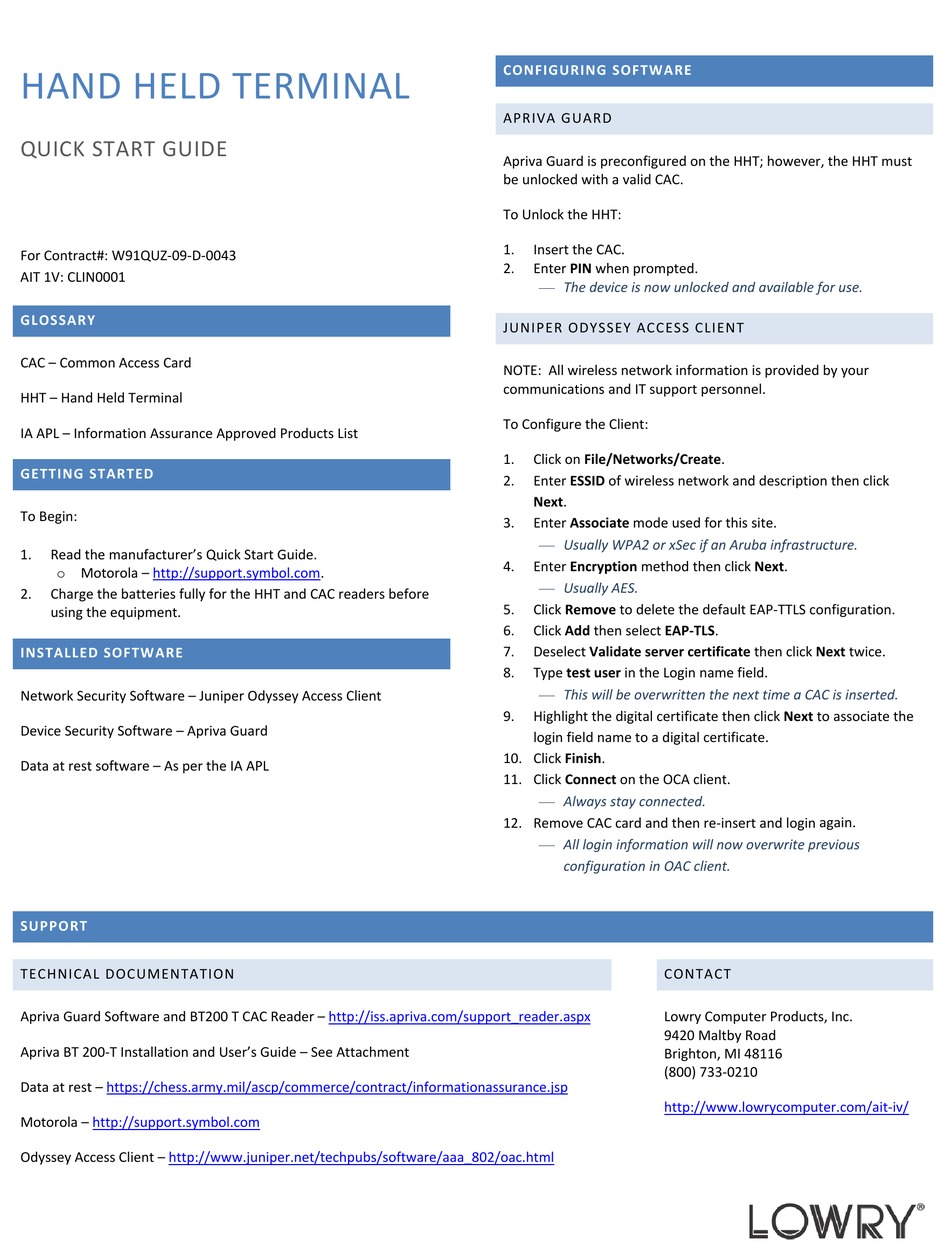

HAND HELD TERMINAL
QUICK START GUIDE
For Contract#: W91QUZ‐09‐D‐0043
AIT 1V: CLIN0001
GLOSSARY
CAC – Common Access Card
HHT – Hand Held Terminal
IA APL – Information Assurance Approved Products List
GETTING STARTED
To Begin:
1.
Read the manufacturer's Quick Start Guide.
o Motorola – http://support.symbol.com.
2.
Charge the batteries fully for the HHT and CAC readers before
using the equipment.
INSTALLED SOFTWARE
Network Security Software – Juniper Odyssey Access Client
Device Security Software – Apriva Guard
Data at rest software – As per the IA APL
SUPPORT
TECHNICAL DOCUMENTATION
Apriva Guard Software and BT200 T CAC Reader – http://iss.apriva.com/support_reader.aspx
Apriva BT 200‐T Installation and User's Guide – See Attachment
Data at rest – https://chess.army.mil/ascp/commerce/contract/informationassurance.jsp
Motorola – http://support.symbol.com
Odyssey Access Client – http://www.juniper.net/techpubs/software/aaa_802/oac.html

CONFIGURING SOFTWARE
APRIVA GUARD
Apriva Guard is preconfigured on the HHT; however, the HHT must
be unlocked with a valid CAC.
To Unlock the HHT:
1.
Insert the CAC.
2.
Enter PIN when prompted.
 The device is now unlocked and available for use.
JUNIPER ODYSSEY ACCESS CLIENT
NOTE:  All wireless network information is provided by your
communications and IT support personnel.
To Configure the Client:
1.
Click on File/Networks/Create.
2.
Enter ESSID of wireless network and description then click
Next.
3.
Enter Associate mode used for this site.
 Usually WPA2 or xSec if an Aruba infrastructure.
4.
Enter Encryption method then click Next.
 Usually AES.
5.
Click Remove to delete the default EAP‐TTLS configuration.
6.
Click Add then select EAP‐TLS.
7.
Deselect Validate server certificate then click Next twice.
8.
Type test user in the Login name field.
 This will be overwritten the next time a CAC is inserted.
9.
Highlight the digital certificate then click Next to associate the
login field name to a digital certificate.
10. Click Finish.
11. Click Connect on the OCA client.
 Always stay connected.
12. Remove CAC card and then re‐insert and login again.
 All login information will now overwrite previous
configuration in OAC client.
CONTACT
Lowry Computer Products, Inc.
9420 Maltby Road
Brighton, MI 48116
(800) 733‐0210
http://www.lowrycomputer.com/ait‐iv/
