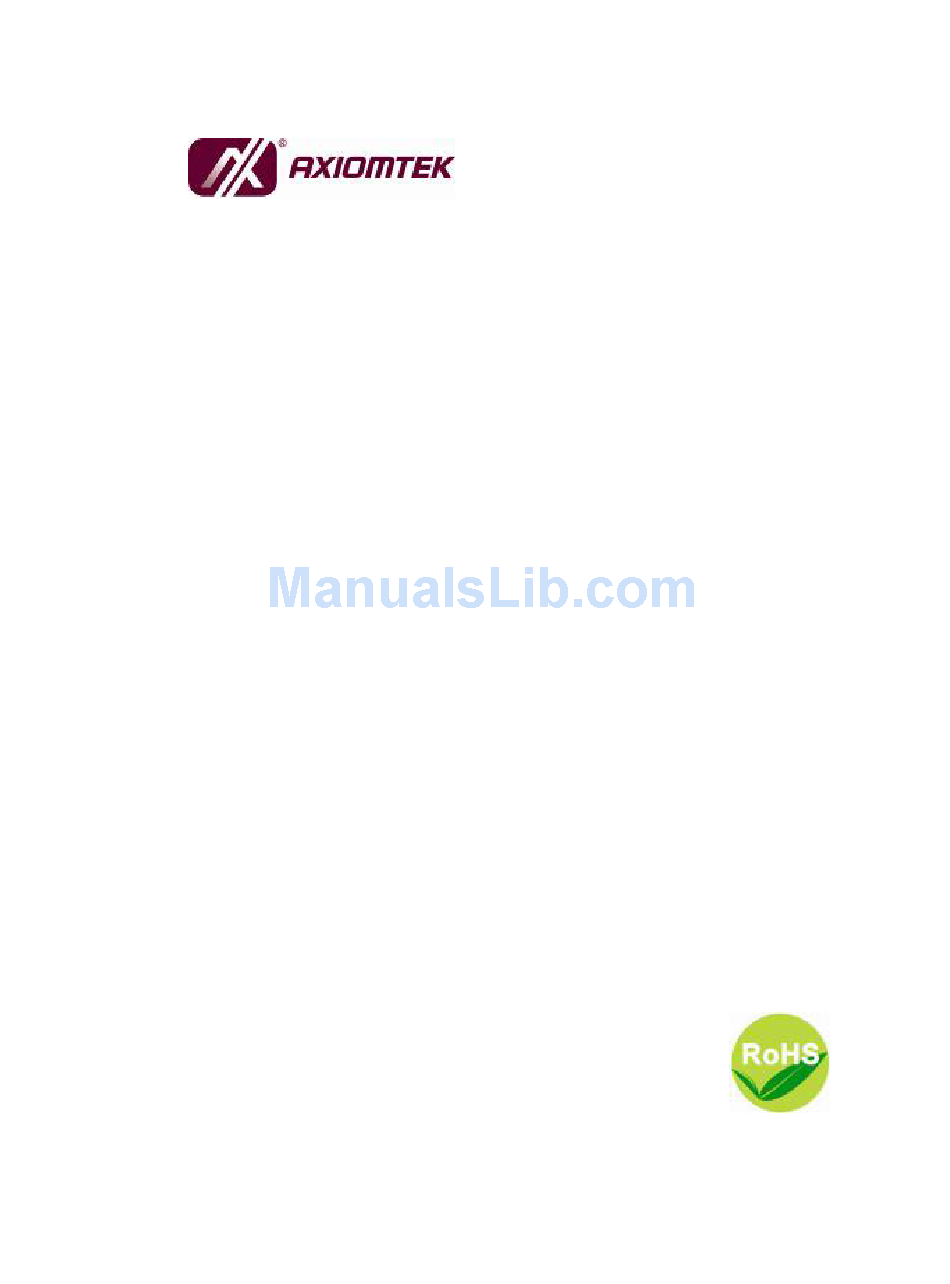

  • Page 1 NA-330 SMB Network Appliance User’s Manual...

  • Page 2: Disclaimers

    AXIOMTEK does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document. AXIOMTEK does not make any commitment to update the information in this manual.

  • Page 3: Safety Approvals

    Safety Approvals  CE Marking  FCC Class A  FCC Compliance This equipment has been tested and complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 4: Safety Precautions

    Most electronic components are sensitive to static electrical charge. 2. Disconnect the power cords from the NA-330 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the NA-330 Series is properly grounded.

  • Page 5: Table Of Contents

    Table of Contents   Disclaimers ..................ii   Safety Approvals................iii   Safety Precautions................ iv CHAPTER 1..................1  INTRODUCTION ................1      General Description ............1     Features................ 2     Specifications..............3     1.3.1 System ..................3     1.3.2 Mechanical / Environmental............5  ...
  • Page 6     2.4.9 TACT SW1 Function Jumper (JP23) ........23     Connectors..............24     2.5.1 CPU FAN Connector (FAN1)..........25     2.5.2 System FAN Connector (FAN2, FAN3) ........25     2.5.3 Mini Card Connector for USB interface Only (CN8) .....26  ...

  • Page 7: Chapter 1

    Dimensions   I/O Outlets General Description The NA-330 Series is a 1U rack mount network security hardware platform for VPN, firewall and other network security applications, ® which consists of NA-330 with support of Intel ATOM D425/D525 1.8GHz 512K/1M L2 Cache. This platform supports the 1U rack mount form factor, and the system supports DDR3 800 memory with single channel up to maximum 4 GB for two SODIMM slot.

  • Page 8: Features

    NA-330 Series Network Appliance User’s Manual Features Low power and high performance for network security field ® applications. NA-330 series supports Intel ATOM D425/D525 1.8Hz , 512K/1M L2 Cache.  Supports Ten 10/100/1000Mbps or Eight 10/100/1000Mbps plus 2 SFP type fiber ports ...

  • Page 9: Specifications

    NA-330 Series Network Appliance User’s Manual Specifications 1.3.1 System  System CPU ®  Intel ATOM D425/D525 1.8GHz, 512K/1M L2 Cache processor onboard  BIOS  AMI 8Mbit PnP Flash BIOS with function of BIOS redirected to COM port ...
  • Page 10 NA-330 Series Network Appliance User’s Manual  Linux Redhat 2.6 Kernel Introduction...

  • Page 11: Mechanical / Environmental

    NA-330 Series Network Appliance User’s Manual 1.3.2 Mechanical / Environmental  Form Factor  1U rack mount   Power, HDD, Link/Act with transfer rate  LAN by pass LED and promgramable LED.  Operation Temperature  0°C ~ 45°C (32°F ~ 113°F) ...

  • Page 12: Dimensions And Outlines

    NA-330 Series Network Appliance User’s Manual Dimensions and Outlines NA-330 10RJ Introduction...
  • Page 13 NA-330 Series Network Appliance User’s Manual NA-330 8RJ+2SFP Introduction...

  • Page 14: I/O Outlets

    NA-330 Series Network Appliance User’s Manual 1.5 I/O Outlets Locate the front panel I/O outlets on the NA-330 Series server to connect serial and Ethernet interface devices. 1.5.1 Front Panel Console Power/HDD Copper Reset Switch ports LAN bypass NA330 10RJ...
  • Page 15 NA-330 Series Network Appliance User’s Manual Console Copper Power/HDD Fiber ports, ports SFP type Reset Switch LAN bypass NA330 8RJ+2SFP Console port – RS-232 Console port is for the command  of line interface and of diagnostic support by P.O.S.T (Power on Self Test).
  • Page 16 NA-330 Series Network Appliance User’s Manual It will be lighting when the server is powered on to perform diagnostic tests and check a proper operation.  HDD LED The LED flashes when transmitting or receiving any signals. Introduction...

  • Page 17: Rear Panel

    NA-330 Series Network Appliance User’s Manual 1.5.2 Rear Panel System Fans AC Switch/Inlet Introduction...
  • Page 18 NA-330 Series Network Appliance User’s Manual MEMO Introduction...

  • Page 19: Chapter 2

    NA-330 Series Network Appliance User’s Manual CHAPTER 2 HARDWARE DESCRIPTION The NA-330 Series are convenient for your various hardware configurations. The chapter 2 will help you get familiar with the hardware. Checklist The package bundled with your NA-330 Series should contain the following items: ...

  • Page 20: Memory Module (Sodimm)

    NA-330 Series Network Appliance User’s Manual Memory Module (SODIMM) The main board supports two DDR3 800 SODIMM socket. Maximum memory capacity is up to 4GB None-ECC unbuffer memory. The following steps show you how to install the memory modules: Push down each side of the SODIMM socket.

  • Page 21: Board Layout

    NA-330 Series Network Appliance User’s Manual Board Layout Component Side Hardware Description...

  • Page 22: Jumper Settings

    Jumper Settings This section provides the information about jumpers and connectors of NA-330 Series. Proper jumper settings configure the main board in this appliance to meet your application purpose. We are herewith listing a summary table of all jumpers and default settings for onboard devices, respectively.

  • Page 23: Pin7 Of Sata3 Connector Selection Jumper (Jp2)

    NA-330 Series Network Appliance User’s Manual LAN5 & LAN6 Bypass Group2 GPO High Level (By Pass Short/Open LAN Bypass Group 2 Disable)(Default) JP13/JP14 Open/Short LAN5 & LAN6 Bypass Group 2 GPO Low Level (By Pass Enable) Power Button Short:1-2 JP23...

  • Page 24: Compactflash Tm Voltage Selection Jumper (Jp4)

    NA-330 Series Network Appliance User’s Manual 2.4.3 CompactFlash Voltage Selection Jumper (JP4) Description Function Jumper Setting Compact Flash 3.3V (Default) Voltage Selection 2.4.4 Auto Power On Jumper (JP8) You may need to this jumper to select auto power on function.

  • Page 25: Lan Bypass Group1 (Lan3 &Lan4) Selection Jumper (Jp16)

    NA-330 Series Network Appliance User’s Manual 2.4.5 LAN Bypass Group1 (LAN3 &LAN4) Selection Jumper (JP16) Use this jumper to select the LAN Bypass Function. Description Function Jumper Setting LAN By-Pass Group Always Disabled JP16 1 Function Always By-Pass JP16 Trigger By JP18/...
  • Page 26 NA-330 Series Network Appliance User’s Manual Low Level GPIO JP17 (Please refer to the “Note” Information.) JP18 High Level GPIO(Default) JP17 (Please refer to the “Note” Information.) JP18 NOTE If the jumper setting is “Low Level GPIO”, LAN Bypass function will still be started even when power supply is normally input.

  • Page 27: Lan Bypass Group 2(Lan5 &Lan6) Selection Jumper (Jp15)

    NA-330 Series Network Appliance User’s Manual 2.4.7 LAN Bypass Group 2(LAN5 &LAN6) Selection Jumper (JP15) Use this jumper to select the LAN Bypass Function. Description Function Jumper Setting LAN By-Pass Group Always Disabled JP15 2 Function Always By-Pass JP15 Trigger By...

  • Page 28: Lan Bypass Trigger Group 2(Lan5 & Lan6) (Jp13,Jp14)

    NA-330 Series Network Appliance User’s Manual 2.4.8 LAN Bypass Trigger Group 2(LAN5 & LAN6) (JP13,JP14) Description Function Jumper Setting LAN Bypass Not install JP13 trigger Group2 Selection JP14 High Level GPIO(Default) JP13 (Please refer to the “Note” Information.) JP14 Low Level GPIO JP13 (Please refer to the “Note”...

  • Page 29: Tact Sw1 Function Jumper (Jp23)

    NA-330 Series Network Appliance User’s Manual 2.4.9 TACT SW1 Function Jumper (JP23) Description Function Jumper Setting TACT SW1 Function PWRBTN HW Reset (Default) Reserved Function Definition Purpose/Application PWRBTN Power It can power on and off a device. Button HW Reset...

  • Page 30: Connectors

    NA-330 Series Network Appliance User’s Manual Connectors Connectors connect the board with other parts of the system. Loose or improper connection might cause problems. Make sure all connectors are properly and firmly connected. Here is a summary table shows you all connectors on the main board.

  • Page 31: Cpu Fan Connector (Fan1)

    NA-330 Series Network Appliance User’s Manual SATA1 SATA1 Connector Function Description SATA2 SATA2 SATA3 SATA 3 CF Connector USB1 USB 1,2 DUAL TYPE CONNECTOR USB2 USB 3,4 (Box Header 2x5) USB3 USB 5,6 (Box Header 2x5) LAN1_RJ45 LAN RJ-45 connector...

  • Page 32: Mini Card Connector For Usb Interface Only (Cn8)

    NA-330 Series Network Appliance User’s Manual 2.5.3 Mini Card Connector for USB interface Only (CN8) Signal Signal PCIE_WAKE- +3.3V +1.5 V PCIE_CLK- PCIE_CLK+ PCIE_RESET- +3.3V_SBY +1.5V SMB_CLK SMB_DATA USB_D- USB_D+ +1.5V +3.3V Hardware Description...

  • Page 33: Front Panel Bezel Connector (Cn1)

    NA-330 Series Network Appliance User’s Manual 2.5.4 Front Panel Bezel Connector (CN1) 1. Power LED： This 3-pin connector (Pin 1, 3, 5) connects a LED indicator to the system power switch on the case. Pin 1 is assigned as +, and Pin 3, Pin 5 as -. The Power LED lights up when the system is powered ON.

  • Page 34: Serial Port1 (For Console) Connector (Com1)

    NA-330 Series Network Appliance User’s Manual 5. HDD Activity LED： This connection is linked to hard drive activity LED on the control panel. LED flashes when HDD is being accessed. The 2-pin connector (Pin 13, 14) connects the hard disk drive to the front panel HDD LED, Pin 13 assigned as -, and Pin 14 as +.

  • Page 35: Serial Port 1(Cn11) /Serial Port2 (Com2) Connector

    NA-330 Series Network Appliance User’s Manual 2.5.6 Serial Port 1(CN11) /Serial Port2 (COM2) Connector Signal Data Carrier Detect (DCD) Data Set Ready(DSR) Receive Date(RXD) Request to Send(RTS) Transmit Data(TXD) Clear to Send(CTS) Data Terminal Ready Ring Indicator(RI) 2.5.7 SATA Power Connector (CN4)

  • Page 36: Ps2 Keyboard/Mouse Connector (Cn5)

    NA-330 Series Network Appliance User’s Manual 2.5.8 PS2 Keyboard/Mouse Connector (CN5) The board supports a keyboard and Mouse interface. Connector CN5 is for PS/2 keyboard Connection VIA “Y” Cable. Signal Signal K/B Data K/B CLK M/S Data M/S CLK 2.5.9 Serial ATA Connector: SATA1, SATA2, SATA3 The SATA1&SATA2 connector are for high-speed SATA interface port...
  • Page 37 NA-330 Series Network Appliance User’s Manual The SATA3 connector is for high-speed SATA interface and it can be connected to hard disk device.By the way pin 7 also could be VCC for SATA DOM use. Signal Signal GND or VCC(by JP8)

  • Page 38: Compact Flash™ Socket：cf1

    NA-330 Series Network Appliance User’s Manual 2.5.10 Compact Flash™ Socket：CF1 Signal Signal Data 3 Data 4 Data 5 Data 6 Data 7 CS0# Address 10 ATASEL Address 9 Address 8 Address 7 Address 6 Address 5 Address 4 Address 3...

  • Page 39: Usb Port1~Port2 Connector (Usb1)

    NA-330 Series Network Appliance User’s Manual 2.5.11 USB Port1~Port2 Connector (USB1) Signal USB_POWER USB_PN0 USB_PP0 USB_POWER USB_PN1 USB_PP1 2.5.12 VGA Connector (CN2) Signal Signal DETECT GREEN BLUE DDC DATA Horizontal Sync Vertical Sync DDC CLK Hardware Description...

  • Page 40: Power Input +12V Connector (Atx1)

    NA-330 Series Network Appliance User’s Manual 2.5.13 Power Input +12V Connector (ATX1) To connect with the 12V power supply . Signal +12V +12V 2.5.14 USB Port3~Port6 Connector (USB2, USB3) The Universal Serial Bus (USB) connector on the board is for the installation of peripherals supporting the USB interface.

  • Page 41: Chapter 3

    NA-330 Series Network Appliance User’s Manual CHAPTER 3 AMI BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. 3.1 Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del>...

  • Page 42: Main Menu

    NA-330 Series Network Appliance User’s Manual The <F1> key allows you to display the General Help screen. The <F10> key allows you to save any changes you have made and exit Setup. Press the <F10> key to save your changes.
  • Page 43 NA-330 Series Network Appliance User’s Manual  System Time/Date Use this option to change the system time and date. Highlight System Time or System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow>...

  • Page 44: Advanced Menu

    NA-330 Series Network Appliance User’s Manual Advanced Menu The Advanced menu allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ...
  • Page 45 NA-330 Series Network Appliance User’s Manual  IDE Configuration You can use this screen to select options for the IDE Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen. For items marked with “”, please press <Enter>...
  • Page 46 NA-330 Series Network Appliance User’s Manual  ATA/IDE Configuration Use this item to specify the integrated IDE controller. There are three options for your selection: Disable, Compatible and Enhanced.  Legacy IDE Channels When the ATA/IDE Configuration is set to Compatible, this item will be displayed.
  • Page 47 NA-330 Series Network Appliance User’s Manual  Serial Port1 Address This option specifies the base I/O port address and Default setting is 3F8. Here are the options for your selection, Disabled.  Serial Port2 Address This option specifies the base I/O port address and Default setting is 2F8.
  • Page 48 NA-330 Series Network Appliance User’s Manual  System Temperature Show you the current system temperature.  CPU Temperature These read-only fields show the functions of the hardware thermal sensor by CPU thermal diode that monitors the chip blocks to ensure a stable system.
  • Page 49 NA-330 Series Network Appliance User’s Manual AMI BIOS Setup Utility...
  • Page 50 NA-330 Series Network Appliance User’s Manual  General ACPI Configuration Scroll to this item and press <Enter> to view the General ACPI Configuration sub menu, which contains General ACPI (Advanced Configuration and Power Management Interface) options for your configuration. AMI BIOS Setup Utility...
  • Page 51 NA-330 Series Network Appliance User’s Manual  Remote Access  Serial port number This item specifies the base I/O port address and Interrupt Request address of serial port 1. The Optimal setting is 3F8/IRQ4.  Serial Port Mode This item allows you to setup the data transfer rate for the console port.
  • Page 52 NA-330 Series Network Appliance User’s Manual remote location. The default setting is Always.  Therminal Type This item allows you to select the target therminal type. Configuration options: ANSI, VT100 and VT-UTF8. VT-UTF8 Combo Key Support  Use this item to “Enabled” or “Disabled” VT-UTF8 combination key supports for ANSI / VT100 therminals.

  • Page 53: Boot Menu

    NA-330 Series Network Appliance User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. You can select any of the items in the left frame of the screen to go to the sub menus: For items marked with “”, please press <Enter>...
  • Page 54 NA-330 Series Network Appliance User’s Manual  Quick Boot Enabling this item lets the BIOS skip some power on self tests (POST). The default setting is Enabled.  Boot Num-Lock Use this item to select the power-on state for the NumLock.

  • Page 55: Security Menu

    NA-330 Series Network Appliance User’s Manual 3.6 Security Menu The Security menu allows users to change the security settings for the system.  Supervisor Password This item indicates whether a supervisor password has been set. If the password has been installed, Installed displays.

  • Page 56: Exit Menu

    NA-330 Series Network Appliance User’s Manual Exit Menu The Exit menu allows users to load your system configuration with optimal or failsafe default values. Save Changes and Exit  When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect.
  • Page 57 NA-330 Series Network Appliance User’s Manual  Discard Changes Use this item to abandon all changes.  Load Optimal Defaults It automatically sets all Setup options to a complete set of default settings when you select this option. The Optimal settings are designed for maximum system performance, but may not work best for all computer applications.

  • Page 58: Appendix A Enabling Lan Bypass Feature

    NA-330 Series Network Appliance User’s Manual APPENDIX A ENABLING LAN BYPASS FEATURE What is the LAN by-pass meant for NA-330 Series? It doesn’t have any down time in network connections for two other network segments (LAN3/LAN4 and LAN5/LAN6) when any fetal errors occur to this device.

  • Page 59: Appendix Bwarning

    NA-330 Series Network Appliance User’s Manual APPENDIX B WARNING  This is a class B Product. In a domestic Environment this Product may cause radio interference in which case the user may be required to take adequate measures.  It will be danger if battery is incorrectly replaced. Replacing...
  • Page 60 NA-330 Series Network Appliance User’s Manual A drop or fall could cause injury.” “The equipment shall be installed according to specification as nameplate. Make sure the voltage of the power source when connect the equipment to the power outlet. The current of load and output power of loads shall be not over the specification.”“This equipment must be connected...
