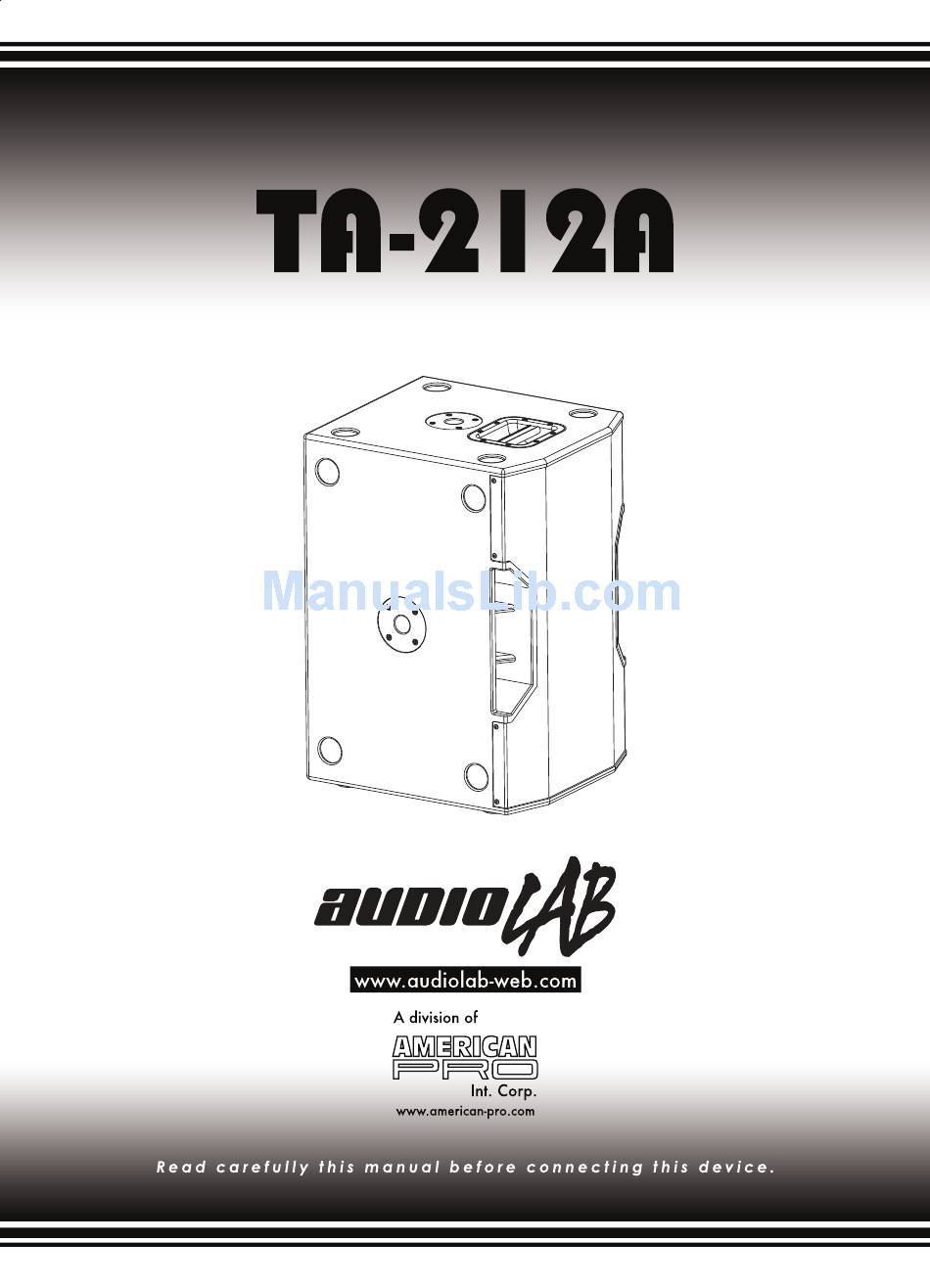

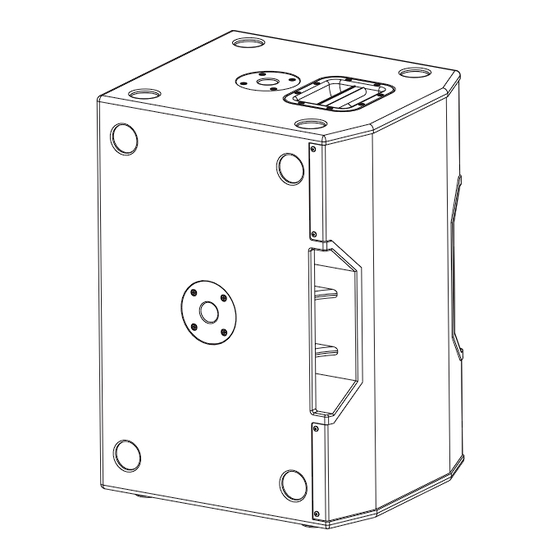

- Page 1 USER MANUAL Dual 12” Active Subwoofer...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin g an ate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Amplifier Module INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response and Impedance Curve 2D Dimension Product information is subject to change without prior notification. Please visit www.audiolab-web.com for latest updates. -
Page 4: Introduction
TA-212A i s g o o d f o r c a r n i v a l a n d p e r m a n e n t i n s t a l l a t i... -
Page 5: Amplifier Module
AMPLIFIER MODULE Amplifier Module MODE SYSTEM T10a T12a T15a CLIP LINE IN A LINE OUT A 0 dB 9 dB VOLUME LINE IN B LINE OUT B WA R NING - P L E A S E F OL L OW T HE INS T R UC T IONS S UP P L IE D S/N: WIT H T HE L OUDS P E A K E R . -
Page 6: Installation
INSTALLATION Mounting Accessories(Optional) Installation Reference 1. Speaker stand 1. Stack A 2. Mobile Caster Caster: φ100 *34mm 4 pcs Screws: M8 *30 Hexagon 16 pcs Spring washers: φ8 (Black) 16 pcs 2. Stack B Flat washers: φ8 (Black) 16 pcs PE bag: 4 pcs Carton: 1 pc Warning:... -
Page 7: Technical Specification
TECHNICAL SPECIFICATION Specification Frequency response(-3dB): 31.5Hz-150kHz Max.SPL: 135dB Transducer: 12" Woofer × Rated impedance: 4 Ohms XLR for input, XLR for output Connector: Input: Channel one (Mic/Line) balanced input Input impedance(line): ≥20Kohm Input level: 470mV±10%(60Hz/ Rated output power /T12a Mode) Input overloading level: Maximum input level 8 V peak pin 1: ground;... -
Page 8: 2D Dimension
TECHNICAL SPECIFICATION 2D Dimension Top view 460mm (18.1in) Side view Front view Back view Bottom view... - Page 9 Notes:...
