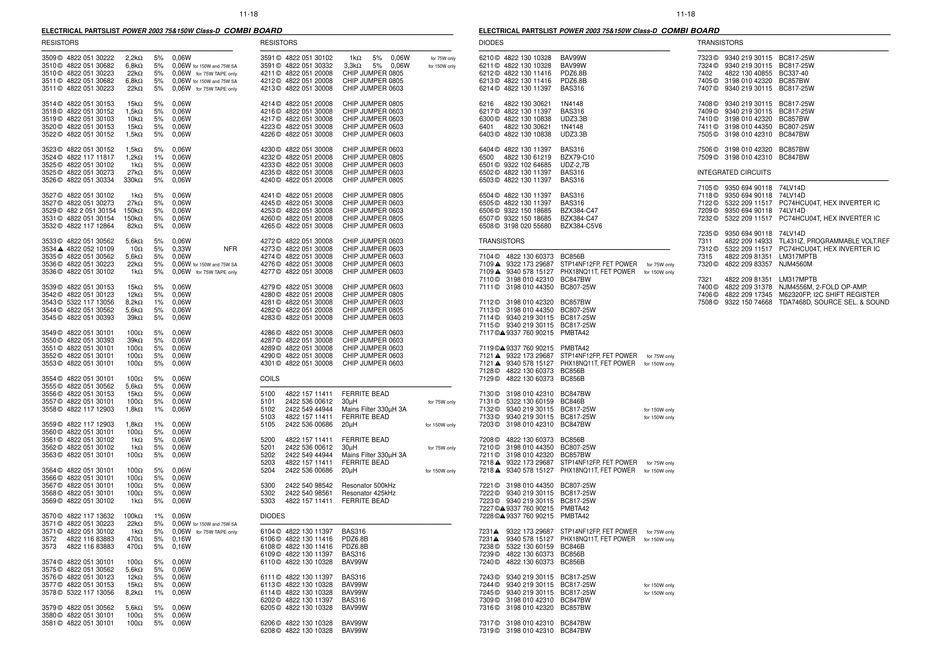

ELECTRICAL PARTSLIST POWER 2003 75&150W Class-D
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3509 © 4822 051 30222
2,2kΩ
5%
0,06W
3510 © 4822 051 30682
6,8kΩ
5%
0,06W
for 150W and 75W SA
3510 © 4822 051 30223
22kΩ
5%
0,06W
for 75W TAPE only
3511 © 4822 051 30682
6,8kΩ
5%
0,06W
for 150W and 75W SA
3511 © 4822 051 30223
22kΩ
5%
0,06W
for 75W TAPE only
3514 © 4822 051 30153
15kΩ
5%
0,06W
3518 © 4822 051 30152
1,5kΩ
5%
0,06W
3519 © 4822 051 30103
10kΩ
5%
0,06W
3520 © 4822 051 30153
15kΩ
5%
0,06W
3522 © 4822 051 30152
1,5kΩ
5%
0,06W
3523 © 4822 051 30152
1,5kΩ
5%
0,06W
3524 © 4822 117 11817
1,2kΩ
1%
0,06W
3525 © 4822 051 30102
1kΩ
5%
0,06W
3525 © 4822 051 30273
27kΩ
5%
0,06W
3526 © 4822 051 30334
330kΩ
5%
0,06W
3527 © 4822 051 30102
1kΩ
5%
0,06W
3527 © 4822 051 30273
27kΩ
5%
0,06W
3529 © 482 2 051 30154
150kΩ
5%
0,06W
3531 © 4822 051 30154
150kΩ
5%
0,06W
3532 © 4822 117 12864
82kΩ
5%
0,06W
3533 © 4822 051 30562
5,6kΩ
5%
0,06W
3534 ! 4822 052 10109
10Ω
5%
0,33W
3535 © 4822 051 30562
5,6kΩ
5%
0,06W
3536 © 4822 051 30223
22kΩ
5%
0,06W
for 150W and 75W SA
3536 © 4822 051 30102
1kΩ
5%
0,06W
for 75W TAPE only
3539 © 4822 051 30153
15kΩ
5%
0,06W
3542 © 4822 051 30123
12kΩ
5%
0,06W
3543 © 5322 117 13056
8,2kΩ
1%
0,06W
3544 © 4822 051 30562
5,6kΩ
5%
0,06W
3545 © 4822 051 30393
39kΩ
5%
0,06W
3549 © 4822 051 30101
100Ω
5%
0,06W
3550 © 4822 051 30393
39kΩ
5%
0,06W
3551 © 4822 051 30101
100Ω
5%
0,06W
3552 © 4822 051 30101
100Ω
5%
0,06W
3553 © 4822 051 30101
100Ω
5%
0,06W
3554 © 4822 051 30101
100Ω
5%
0,06W
3555 © 4822 051 30562
5,6kΩ
5%
0,06W
3556 © 4822 051 30153
15kΩ
5%
0,06W
3557 © 4822 051 30101
100Ω
5%
0,06W
3558 © 4822 117 12903
1,8kΩ
1%
0,06W
3559 © 4822 117 12903
1,8kΩ
1%
0,06W
3560 © 4822 051 30101
100Ω
5%
0,06W
3561 © 4822 051 30102
1kΩ
5%
0,06W
3562 © 4822 051 30102
1kΩ
5%
0,06W
3563 © 4822 051 30101
100Ω
5%
0,06W
3564 © 4822 051 30101
100Ω
5%
0,06W
3566 © 4822 051 30101
100Ω
5%
0,06W
3567 © 4822 051 30101
100Ω
5%
0,06W
3568 © 4822 051 30101
100Ω
5%
0,06W
3569 © 4822 051 30102
1kΩ
5%
0,06W
3570 © 4822 117 13632
100kΩ
1%
0,06W
3571 © 4822 051 30223
22kΩ
5%
0,06W
for 150W and 75W SA
3571 © 4822 051 30102
1kΩ
5%
0,06W
for 75W TAPE only
3572
4822 116 83883
470Ω
5%
0,16W
3573
4822 116 83883
470Ω
5%
0,16W
3574 © 4822 051 30101
100Ω
5%
0,06W
3575 © 4822 051 30562
5,6kΩ
5%
0,06W
3576 © 4822 051 30123
12kΩ
5%
0,06W
3577 © 4822 051 30153
15kΩ
5%
0,06W
3578 © 5322 117 13056
8,2kΩ
1%
0,06W
3579 © 4822 051 30562
5,6kΩ
5%
0,06W
3580 © 4822 051 30101
100Ω
5%
0,06W
3581 © 4822 051 30101
100Ω
5%
0,06W
11-18
COMBI BOARD
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3591 © 4822 051 30102
1kΩ
5%
0,06W
3591 © 4822 051 30332
3,3kΩ
5%
0,06W
4211 © 4822 051 20008
CHIP JUMPER 0805
4212 © 4822 051 20008
CHIP JUMPER 0805
4213 © 4822 051 30008
CHIP JUMPER 0603
4214 © 4822 051 20008
CHIP JUMPER 0805
4216 © 4822 051 30008
CHIP JUMPER 0603
4217 © 4822 051 30008
CHIP JUMPER 0603
4223 © 4822 051 30008
CHIP JUMPER 0603
4226 © 4822 051 30008
CHIP JUMPER 0603
4230 © 4822 051 30008
CHIP JUMPER 0603
4232 © 4822 051 20008
CHIP JUMPER 0805
4233 © 4822 051 30008
CHIP JUMPER 0603
4235 © 4822 051 30008
CHIP JUMPER 0603
4240 © 4822 051 20008
CHIP JUMPER 0805
4241 © 4822 051 20008
CHIP JUMPER 0805
4245 © 4822 051 30008
CHIP JUMPER 0603
4253 © 4822 051 30008
CHIP JUMPER 0603
4260 © 4822 051 20008
CHIP JUMPER 0805
4265 © 4822 051 30008
CHIP JUMPER 0603
4272 © 4822 051 30008
CHIP JUMPER 0603
NFR
4273 © 4822 051 30008
CHIP JUMPER 0603
4274 © 4822 051 30008
CHIP JUMPER 0603
4276 © 4822 051 30008
CHIP JUMPER 0603
4277 © 4822 051 30008
CHIP JUMPER 0603
4279 © 4822 051 30008
CHIP JUMPER 0603
4280 © 4822 051 20008
CHIP JUMPER 0805
4281 © 4822 051 30008
CHIP JUMPER 0603
4282 © 4822 051 20008
CHIP JUMPER 0805
4283 © 4822 051 30008
CHIP JUMPER 0603
4286 © 4822 051 30008
CHIP JUMPER 0603
4287 © 4822 051 30008
CHIP JUMPER 0603
4289 © 4822 051 30008
CHIP JUMPER 0603
4290 © 4822 051 30008
CHIP JUMPER 0603
4301 © 4822 051 30008
CHIP JUMPER 0603
COILS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
5100
4822 157 11411
FERRITE BEAD
5101
2422 536 00612
30µH
5102
2422 549 44944
Mains Filter 330µH 3A
5103
4822 157 11411
FERRITE BEAD
5105
2422 536 00686
20µH
5200
4822 157 11411
FERRITE BEAD
5201
2422 536 00612
30µH
5202
2422 549 44944
Mains Filter 330µH 3A
5203
4822 157 11411
FERRITE BEAD
5204
2422 536 00686
20µH
5300
2422 540 98542
Resonator 500kHz
5302
2422 540 98561
Resonator 425kHz
5303
4822 157 11411
FERRITE BEAD
DIODES
–––––––––––––––––––––––––––––––––––––––––––––––––––––
6104 © 4822 130 11397
BAS316
6106 © 4822 130 11416
PDZ6.8B
6108 © 4822 130 11416
PDZ6.8B
6109 © 4822 130 11397
BAS316
6110 © 4822 130 10328
BAV99W
6111 © 4822 130 11397
BAS316
6113 © 4822 130 10328
BAV99W
6114 © 4822 130 10328
BAV99W
6202 © 4822 130 11397
BAS316
6205 © 4822 130 10328
BAV99W
6206 © 4822 130 10328
BAV99W
6208 © 4822 130 10328
BAV99W
ELECTRICAL PARTSLIST POWER 2003 75&150W Class-D
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
DIODES
–––––––––––––––––––––––––––––––––––––––––––––––––––––
6210 © 4822 130 10328
BAV99W
for 75W only
6211 © 4822 130 10328
BAV99W
for 150W only
6212 © 4822 130 11416
PDZ6.8B
6213 © 4822 130 11416
PDZ6.8B
6214 © 4822 130 11397
BAS316
6216
4822 130 30621
1N4148
6217 © 4822 130 11397
BAS316
6300 © 4822 130 10838
UDZ3.3B
6401
4822 130 30621
1N4148
6403 © 4822 130 10838
UDZ3.3B
6404 © 4822 130 11397
BAS316
6500
4822 130 61219
BZX79-C10
6501 © 9322 102 64685
UDZ-2,7B
6502 © 4822 130 11397
BAS316
6503 © 4822 130 11397
BAS316
6504 © 4822 130 11397
BAS316
6505 © 4822 130 11397
BAS316
6506 © 9322 150 18685
BZX384-C47
6507 © 9322 150 18685
BZX384-C47
6508 © 3198 020 55680
BZX384-C5V6
TRANSISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7104 © 4822 130 60373 BC856B
7109 ! 9322 173 29687 STP14NF12FP, FET POWER
7109 ! 9340 578 15127 PHX18NQ11T, FET POWER
7110 © 3198 010 42310 BC847BW
7111 © 3198 010 44350 BC807-25W
7112 © 3198 010 42320 BC857BW
7113 © 3198 010 44350 BC807-25W
7114 © 9340 219 30115 BC817-25W
7115 © 9340 219 30115 BC817-25W
7117 ©! 9337 760 90215 PMBTA42
7119 ©! 9337 760 90215 PMBTA42
7121 ! 9322 173 29687 STP14NF12FP, FET POWER
7121 ! 9340 578 15127 PHX18NQ11T, FET POWER
7128 © 4822 130 60373 BC856B
7129 © 4822 130 60373 BC856B
7130 © 3198 010 42310 BC847BW
7131 © 5322 130 60159 BC846B
for 75W only
7132 © 9340 219 30115 BC817-25W
7133 © 9340 219 30115 BC817-25W
7203 © 3198 010 42310 BC847BW
for 150W only
7208 © 4822 130 60373 BC856B
7210 © 3198 010 44350 BC807-25W
for 75W only
7211 © 3198 010 42320 BC857BW
7218 ! 9322 173 29687 STP14NF12FP, FET POWER
7218 ! 9340 578 15127 PHX18NQ11T, FET POWER
for 150W only
7221 © 3198 010 44350 BC807-25W
7222 © 9340 219 30115 BC817-25W
7223 © 9340 219 30115 BC817-25W
7227 ©! 9337 760 90215 PMBTA42
7228 ©! 9337 760 90215 PMBTA42
7231!
9322 173 29687 STP14NF12FP, FET POWER
7231!
9340 578 15127 PHX18NQ11T, FET POWER
7238 © 5322 130 60159 BC846B
7239 © 4822 130 60373 BC856B
7240 © 4822 130 60373 BC856B
7243 © 9340 219 30115 BC817-25W
7244 © 9340 219 30115 BC817-25W
7245 © 9340 219 30115 BC817-25W
7309 © 3198 010 42310 BC847BW
7316 © 3198 010 42320 BC857BW
7317 © 3198 010 42310 BC847BW
7319 © 3198 010 42310 BC847BW
11-18
COMBI BOARD
TRANSISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7323 © 9340 219 30115 BC817-25W
7324 © 9340 219 30115 BC817-25W
7402
4822 130 40855 BC337-40
7405 © 3198 010 42320 BC857BW
7407 © 9340 219 30115 BC817-25W
7408 © 9340 219 30115 BC817-25W
7409 © 9340 219 30115 BC817-25W
7410 © 3198 010 42320 BC857BW
7411 © 3198 010 44350 BC807-25W
7505 © 3198 010 42310 BC847BW
7506 © 3198 010 42320 BC857BW
7509 © 3198 010 42310 BC847BW
INTEGRATED CIRCUITS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7105 © 9350 694 90118 74LV14D
7118 © 9350 694 90118 74LV14D
7122 © 5322 209 11517 PC74HCU04T, HEX INVERTER IC
7209 © 9350 694 90118 74LV14D
7232 © 5322 209 11517 PC74HCU04T, HEX INVERTER IC
7235 © 9350 694 90118 74LV14D
7311
4822 209 14933 TL431IZ, PROGRAMMABLE VOLT.REF
7312 © 5322 209 11517 PC74HCU04T, HEX INVERTER IC
7315
4822 209 81351 LM317MPTB
7320 © 4822 209 83357 NJM4560M
for 75W only
for 150W only
7321
4822 209 81351 LM317MPTB
7400 © 4822 209 31378 NJM4556M, 2-FOLD OP-AMP.
7406 © 4822 209 17345 M62320FP, I2C SHIFT REGISTER
7508 © 9322 150 74668 TDA7468D, SOURCE SEL. & SOUND
for 75W only
for 150W only
for 150W only
for 150W only
for 75W only
for 150W only
for 75W only
for 150W only
for 150W only
for 150W only
