Summary of Contents for Philips MCM9/33

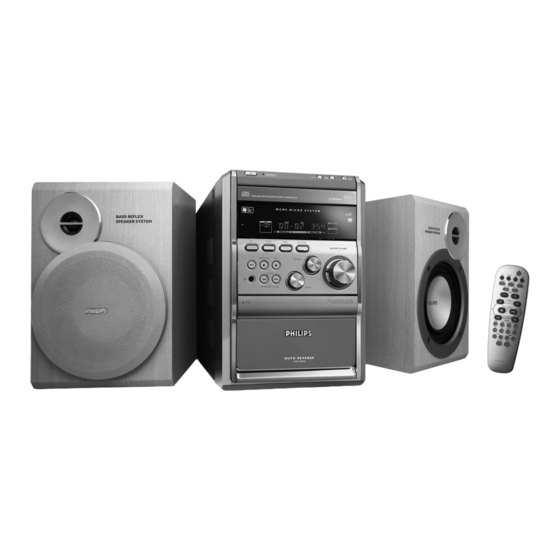

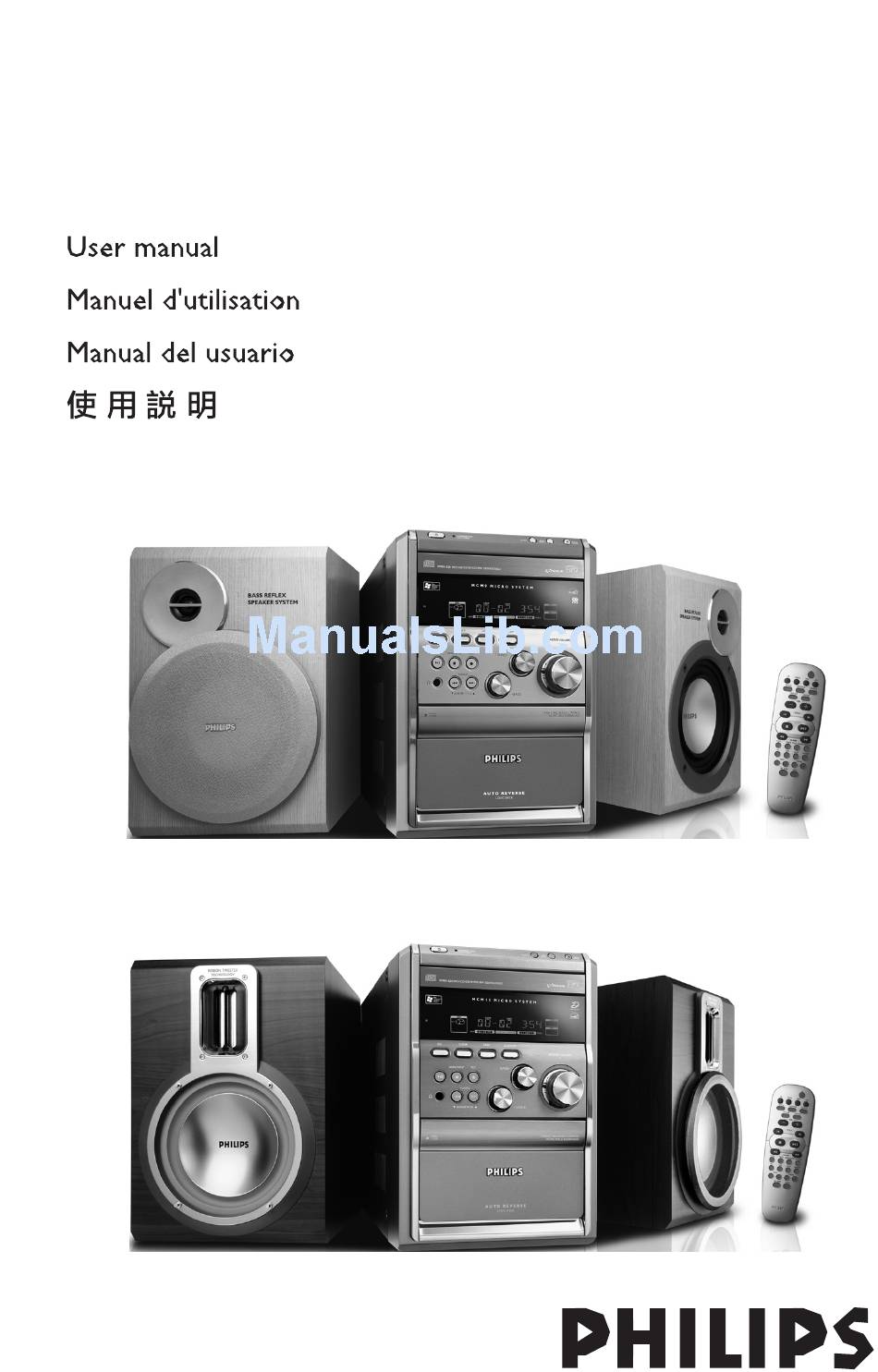

- Page 1 MCM9 Micro Hi-Fi System MCM11 MCM9 MCM11...
- Page 2 LEA CUIDADOSAMENTE ESTE INSTRUCTIVO ANTES DE USAR SU APARATO. AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
- Page 3 Energy Star As an ENERGY STAR Partner, Philips has determined that this product meets the ENERGY STAR guidelines for energy efficiency. English ------------------------------------------------ 4 Français -------------------------------------------- 23 Español --------------------------------------------- 43 -------------------------------------------------------- 63 Index...
-
Page 4: Table Of Contents
Contents General Information Supplied accessories ... 5 Environmental information ... 5 Care and safety information ... 5 Functional Overview Main unit and remote control ... 6–7 Control buttons available on the remote only ... 7 Connections Step 1: Connecting FM/MW antennas ... 8 Step 2: Connecting the speakers ... -
Page 5: General Information
Refer to the type plate on the rear or bottom of the system for identification and supply ratings. Supplied accessories – Remote control and two AA batteries. – MW loop antenna – FM wire antenna – AC power cord – Mains plug adaptor (for version /21 only) Environmental information All unnecessary packaging has been omitted. -
Page 6: Functional Overview
Functional Overview STANDBY-ON ECO POWER MP3 - CD / CD - R / CD - RW COMPATIBLE M I C R O TUNER TAPE AUX/CDR PLAY/PAUSE DEMO STOP TREBLE• TUNING ALBUM / TITLE OPEN/ CLOSE A U T O R E V E R S E LOGIC DECK Main unit and remote control STANDBY ON B... -
Page 7: Control Buttons Available On The Remote Only
TUNING S T (4ALBUM/TITLE3) – CD: *searches backward/ forward or selects a track. – MP3/WMA: *selects an album or selects a title (track). – TUNER: tunes the radio frequency up/down. – TAPE: rewind or fast forward. – CLOCK: sets the hours or minutes. –... -
Page 8: Connections
Connections WARNING! – Please note that the voltage selector located at the rear of this system is preset at 220V from the factory. For countries that operate at 110V-127V, please adjust to 110V-127V before you switch on the system. – Use only the supplied speakers. The combination of the main unit and speakers provide the best sound. -
Page 9: Step 2: Connecting The Speakers
Step 2: Connecting the speakers Connect the speaker wires to the SPEAKERS terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+" and black (unmarked) wire to "-". Fully insert the stripped portion of the speaker wire into the terminal as shown. -
Page 10: Basic Operations
Basic Operations Switching on/off Switching to an active mode Press CD, TUNER, TAPE or AUX/CDR. Switching to Eco Power standby mode Press B. ECO POWER button lights up. The display screen will go blank. Switching to standby mode (view clock) Press and hold B. -
Page 11: Dimming System's Display Screen
Dimming system’s display screen You can select the desired brightness for the display panel. In any active mode, press DIM repeatedly to select DIM 1, DIM 2, DIM 3 or DIM OFF display. shows on the display screen, except DIM OFF mode. Volume control Adjust MASTER VOLUME (or press VOL +/- on remote) to increase or... -
Page 12: Disc Operations
Disc Operations IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the changer mechanism. – Do not load more than one disc onto the tray. -
Page 13: Playing An Mp3/Wma Disc
Playing an MP3/WMA disc DISPLAY STANDBY-ON RDS/ OPEN/ CLOCK NEWS CLOSE ECO POWER MP3-CD / CD-R / CD-RW COMPATIBLE M I C R O S Y S T E M MP3-CD / CD-R / CD-RW COMPATIBLE TUNER TAPE AUX /CDR MASTER VOLUME PLAY/PAUSE DEMO STOP... -
Page 14: Programming The Disc Tracks
Disc Operations Programming the disc tracks Programming tracks is possible when playback is stopped. Up to 99 tracks can be stored in the memory in any order. STANDBY-ON RDS/ OPEN/ CLOCK ECO POWER NEWS CLOSE MP3-CD / CD-R / CD-RW COMPATIBLE M I C R O S Y S T E M MP3-CD / CD-R / CD-RW COMPATIBLE... -
Page 15: Tuner Operations
IMPORTANT! Make sure the FM and MW antennas are connected. Tuning to radio stations Press TUNER to enter tuner mode. To select another waveband (FM or MW), press TUNER again. Press and hold à or á ( the main set) until the frequency indication starts to change, then release. -
Page 16: Automatic Presetting
Tuner Operations Automatic presetting You can start the automatic presetting from a selected preset number. In tuner mode, press í or ë to select a preset on the main set) number. Press and hold PROGRAM until "AUTO" appears. If a radio station is stored in one of the presets, the same radio station will not store under another preset number. -
Page 17: Tape Operations/Recording
IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – C-120 tape is extremely thin and is easily deformed or damaged. It is not recommended for use in this system. -
Page 18: Preparation For Recording
Tape Operations/Recording IMPORTANT! Recording is permissible if copyright or other rights of third parties are not infringed upon. Preparation for recording Press TAPE. Load a recordable tape into the tape deck. í ë Press on the remote to select the recording tape side. -
Page 19: Timer Operations
Timer setting The system can switch on to CD, TUNER or TAPE mode automatically at a preset time, serving as an alarm to wake you up. IMPORTANT! – Before setting the timer, ensure that the clock is set correctly. – if recording is in progress, the timer function will not be activated. -
Page 20: Temporarily Deactivating The Wake Up Timer
Timer Operations Temporarily deactivating the wake up timer You are only able to activate the Snooze function within 30 seconds after the timer wake up from standby mode. Temporarily deactivating the wake up timer After timer wake up, press SNOOZE on the remote. -
Page 21: Specifications
AMPLIFIER Output power - MCM9 1800 W PMPO 2 x 50 W RMS - MCM11 2500 W PMPO 2 x 75 W RMS ≥ 75 dBA (IEC) Signal-to-noise ratio Frequency response 50 – 20000 Hz, –3 dB Input sensitivity AUX/ CDR In 500 mV / 1V Output ≥... -
Page 22: Troubleshooting
If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. Problem Radio reception is poor.
