C3 - C5 - C8
FOR DOMESTIC AND
PROFESSIONAL USE
EN
Instructions for use and maintenance
FAC S.r.l.
MACCHINE AFFETTATRICI
INDUSTRIALI E FAMILIARI
Via Morazzone, 137 - 21044 CAVARIA (VA)
Tel. +39 0331 212252 - Fax +39 0331 216443
www.slicers.it
info@slicers.it
MADE IN ITALY
Advertisement
Table of Contents
Related Manuals for Fac C3
Summary of Contents for Fac C3
- Page 1 Fabbrica Affettatrici Cavaria CUTTER C3 - C5 - C8 FOR DOMESTIC AND PROFESSIONAL USE Instructions for use and maintenance FAC S.r.l. MACCHINE AFFETTATRICI INDUSTRIALI E FAMILIARI Via Morazzone, 137 - 21044 CAVARIA (VA) Tel. +39 0331 212252 - Fax +39 0331 216443 www.slicers.it...
- Page 3 CUTTER C3 - C5 - C8 FOR DOMESTIC AND PROFESSIONAL USE Instructions for use and maintenance MADE IN ITALY...
-
Page 5: Table Of Contents
INDEX • GENERAL WARNINGS ....................Pag. 6 • GENERAL INFORMATION ..................Pag. 12 • MANUFACTURER’S WARRANTY AND LIABILITY ............ Pag. 12 • TECHNICAL SPECIFICATIONS ................. Pag. 13 • MAIN COMPONENTS ....................Pag. 14 • CE CONFORMITY MARKING AND LABELS .............. Pag. 16 •... -
Page 6: General Warnings
GENERAL WARNINGS Meaning of warning signs found in booklet DANGER: Indicates an imminently hazardous situation which, if not avoided, could result in serious injury or even death. The use of this term is limited to the most extreme situations. ATTENTION: Indicates a potentially hazardous situation ☞... - Page 7 GENERAL WARNINGS • Check before each use the mechanical integrity of the device. The sheath and plug the power cord should not be cracked or broken. In the event of the conditions described above, immediately remove the plug from the wall outlet and bring your product to an authorized service center for the necessary checks.
- Page 8 GENERAL WARNINGS adapters and extensions complying with current safety standards, taking care not to exceed the limit of capacity, in current value shown on simple adapters and extensions, and the maximum power shown on multiple adapters. • The use of any electrical appliance requires the observance of some basic rules.
- Page 9 GENERAL WARNINGS Electrical safety of this appliance is assured only when it is correctly connected to an efficient grounding system as specified by current electrical safety standards. • You should check this fundamental safety requirement and, if in doubt, require an accurate control of the system by professionally qualified personnel.
- Page 10 GENERAL WARNINGS ☞ During operation, the outlet must be easily accessible in case it is necessary to disconnect the appliance. Do not place the appliance below a socket. ☞ The blades are sharp; handle with care. Do not use the appliance if the blades are damaged. •...
- Page 11 GENERAL WARNINGS This appliance is intended to be used only for the purpose for ☞ which it was specifically designed, i.e. to cut into small pieces foodstuffs such as meat, fish, legumes, cheese, unshelled nuts, etc. with reference to Directives 2002/96/EC; 93/68/EC; 2006/42/EC;...
-
Page 12: General Information
GENERAL INFORMATION - This publication contains all the - The purpose of this document, necessary information for installation, hereinafter referred to as “manual”, is use and maintenance of the food-grade to allow the user, especially end users cutter (also called “appliance”). to take all action and prepare all the human and material resources needed for safe and sustainable use of the... -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS A mm B mm C mm D mm E mm F Lt. HP Motor 0,50 Power supply 115-220-240V~ 50/60Hz Weight Kg 24,6 24,9 GUIDE TO THE TREATMENT OF WASTE EQUIPMENT This product complied with Directive 2012/19/UE. The crossed out wheeled bin symbol on equipment indicates that it must be treated separately from household waste at the end of its working life and therefore taken to a recycling facility for electrical and electronic equipment or handed over to the reseller when purchasing new equipment of the same type. -
Page 14: Main Components

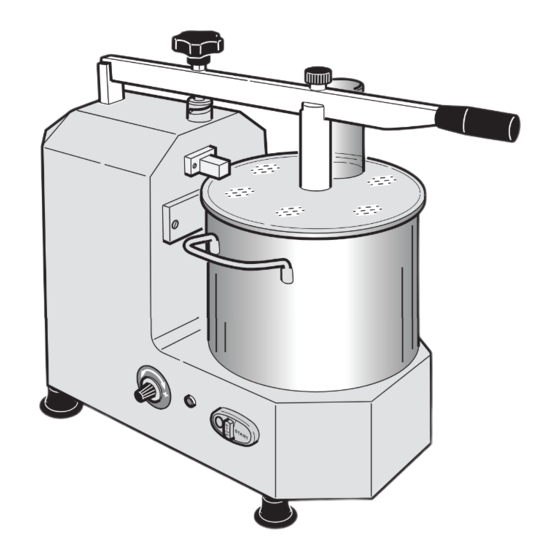

MAIN COMPONENTS “C3” “C5” “C8”... - Page 15 10. Microswitch for pot detection. 11. Microswitch for correct pot positioning. 12. Magnetic microswitch for cover in position. 13. Start button “I” (model “C3”). 14. “STOP” button “0” (model “C3”). 15. Appliance power light. 16. Continuous starting button “START“ (models “C5” and “C8”).
-
Page 16: Ce Conformity Marking And Labels
CE CONFORMITY MARKING AND LABELS The appliance described in this manual is manufactured in compliance with the current EC Directives and subsequent amendments. All its component parts are adapted to the requirements of the EC Directives and the CE marking demonstrates its compliance. The identification plate bearing the manufacturer’s name, the technical data and the CE marking is located on the cutter base. - Page 17 “C3” “C5” “C8” ATTENZIONE OSSERVARE ATTENTAMENTE LE ISTRUZIONI PER L’INSTALLAZIONE, USO, PULIZIA E MANUTENZIONE FORNITE DAL COSTRUTTORE. WARNING STRICTLY FOLLOW THE INSTRUCTIONS FROM THE TYPE CUTTER XX MANUFACTURER FOR INSTALLATION, USE, CLEANING AND MAINTENANCE. /2013 ATTENTION IPX1 230V ˜ 50HZ.
-
Page 18: Mechanical And Electrical Safety Devices
Microswitch (11) which does not allow starting the appliance if the pot is not properly positioned on the appliance body (the pin (P) on the pot must be in place in its seat). • Appliance power light (15). “C5” “C8” “C3”... -
Page 19: Appliance Description
Do not under any circumstances tamper with, remove or bypass the safety devices installed on the appliance. APPLIANCE DESCRIPTION • The appliance consists of a base that supports a pot containing two rotating blades screwed onto a spindle. • The food is chopped up or reduced to pulp depending on the operating time of the two blades. -
Page 20: Using The Appliance
USING THE APPLIANCE • Position the appliance on a well levelled, smooth, dry and stable surface suitable to support its weight. • Install the appliance in the immediate vicinity of a CE-marked power outlet derived from a system conform to the regulations in force. ☞... - Page 21 “C3” • Start the appliance by pressing the dedicated button: - Model “C3”: “I” button (13). - Models “C5” - “C8”: “START” button (16). The power light (15) comes on. • Only for models “C5” and “C8” with speed changer: “C5”...
- Page 22 Prolonged operation of the appliance will reduce the processed foods to pulp. • When the processed food has reached the desired consistency, stop the blade by pressing the dedicated button (“0” for model “C3”; “STOP” for models “C5” and “C8”). The power light (15) goes off. •...
-
Page 23: Cleaning
• Open the cover (6) by raising the lever (3). • Remove the blade. The blades are very sharp so handle them with care! Risk of cutting yourself! • Remove the pot from the appliance body. CLEANING Before cleaning, always pull the plug from the power outlet. -
Page 24: Maintenance
• Only for model “C3” (ref. Figure 1 on page 28): - Loosen the nut (13) and the screw (10) and adjust the belt tensioner (12). - When done, tighten the nut (13) and the screw (10). -
Page 25: Storing The Appliance
Before operating, pull the plug from the power outlet. ☞ Do not overtension the belt. Motor rotation may be forced and the belt may be damaged. STORING THE APPLIANCE • Before storing the appliance: Clean it as described earlier on. Properly position the pot (5) on the appliance body (1). -
Page 26: Troubleshooting
TROUBLESHOOTING • The aim of the information provided below is to help you identify and correct any faults and malfunctions that may occur during use of the appliance. ☞ Some faults can be resolved by the user, others require specific technical skills and must be carried out exclusively by qualified persons with recognised experience in the specific sector of operation... -
Page 27: Spare Parts
Fig. 1 CUTTER C3 Ed. 09/2013 Fig.5 Spare parts... - Page 28 Fig. 1 CUTTER C3 Ed. 09/2013 Fig.5...
- Page 29 Fig. 2 CUTTER Ed. 09/2013 Fig.5...
- Page 30 Fig. 3 CUTTER Ed. 09/2013 Fig.5...
- Page 31 Fig. 4 CUTTER - Optional Ed. 09/2013...
- Page 32 Fig. 5 CUTTER - lame blades Ed. 09/2013 MULTI-PURPOSE BLADES Version C3 Version C5 Version C8 Versione C8 Versione C3 Versione C5 OPTIONAL BLADES For mincing For mixing Per impastare Per tritare...
-
Page 33: Declaration Of Conformity
Produttore: Dichiarazione di conformitá Declaration of conformity Déclaration de conformité Konformitätserklärung Declaración de conformidad Declaração de conformidade CE USO PROFESSIONALE CE PROFESSIONAL USE IT Il sottoscritto, legale rappresentante della Ditta costruttrice, dichiara che il prodotto * sotto elencato è conforme, per quanto ad esso applicabile, alle seguenti direttive CE**: ** 2002/96/CE;... - Page 34 11/2013...
