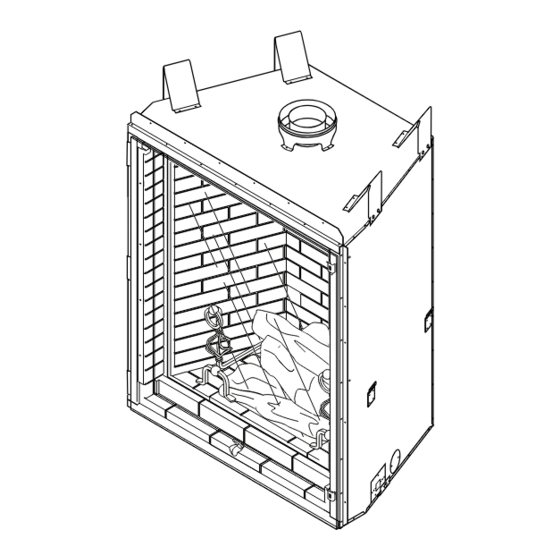

DIRECT VENT FIREPLACE
OWNER'S OPERATION AND
INSTALLATION MANUAL
PFS
C
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance
CONSUMER: Retain this manual for future reference.
For more information, visit www.fmiproducts.com
®
US
STANDARD GLASS MODELS
DVF36NSR-C, DVF-36PSR-C,
DVF-36NHR-C, DVF-36PHR-C,
DVF36NSI-C, DVF-36PSI-C,
DVF-36NHI-C AND DVF-36PHI-C
COOL TOUCH GLASS MODELS
DVF-36NSR-CC, DVF-36PSR-CC,
DVF-36NHR-CC, DVF-36PHR-CC,
DVF-36NSI-CC, DVF-36PSI-CC,
DVF-36NHI-CC AND
DVF-36PHI-CC
Advertisement
Table of Contents
Related Manuals for FMI DVF36NSR-C
Summary of Contents for FMI DVF36NSR-C

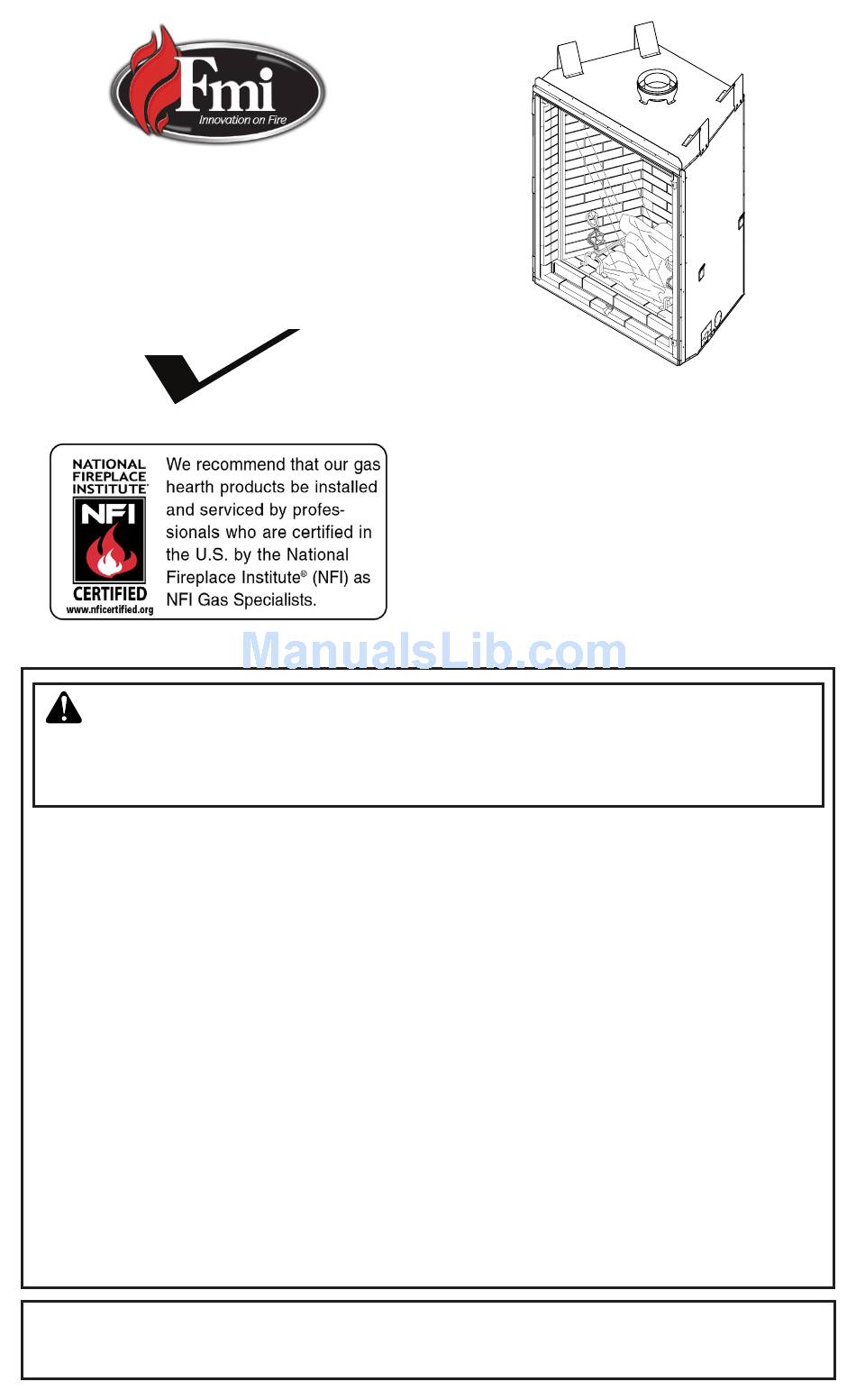

- Page 1 DIRECT VENT FIREPLACE OWNER’S OPERATION AND INSTALLATION MANUAL ® STANDARD GLASS MODELS DVF36NSR-C, DVF-36PSR-C, DVF-36NHR-C, DVF-36PHR-C, DVF36NSI-C, DVF-36PSI-C, DVF-36NHI-C AND DVF-36PHI-C COOL TOUCH GLASS MODELS DVF-36NSR-CC, DVF-36PSR-CC, DVF-36NHR-CC, DVF-36PHR-CC, DVF-36NSI-CC, DVF-36PSI-CC, DVF-36NHI-CC AND DVF-36PHI-CC WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
This fireplace must be installed with other gases, unless a certified FMI PRODUCTS, LLC vent pipe components kit is used. and terminations. Outside airflex installation is... - Page 3 SAFETY Continued flu, with headaches, dizziness or nausea. If you have these signs, the fireplace may not be working properly. Get fresh air at once! Have fireplace serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol and those at high altitudes.
-
Page 4: With Fireplace
SAFETY 8. This appliance, when installed, must be electrically grounded in accordance with Continued local codes or, in the absence of local Carefully supervise young chil- codes, with the National Electrical Code, ANSI/NFPA 70 or Canadian Electrical dren when they are in the room Code, CSA C22.1. -
Page 5: Product Features
PRODUCT FEATURES These are a few facts that can help you un- • Each time you turn on your fireplace, you derstand and enjoy your direct vent fireplace: may notice some amount of condensation on the inside of the fireplace glass. This •... - Page 6 PRE-INSTALLATION Continued bushes, garden sheds, fences, decks or tel piece, refer to Figure 6 for proper instal- utility buildings within 24" from the front of lation height. You can install noncombustible the termination cap and the front of outside mantels at any height above the fireplace. air vent.
-
Page 7: Location Of Termination Cap
LOCATION OF TERMINATION CAP Fixed Openable Fixed Closed Closed Openable TERMINATION CAP GAS METER RESTRICTED AREA AIR SUPPLY INLET (TERMINATION PROHIBITED) A = clearance above grade, veranda, porch, deck, or I = clearance to service regulator vent outlet [*72" (182.9 cm) balcony [*12"... -
Page 8: Requirements For The Commonwealth Of Massachusetts
REQUIREMENTS FOR THE COMMONWEALTH OF MASSACHUSETTS INSPECTION For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or The state or local gas inspector of the side structure used in whole or in part for residential wall horizontally vented gas fueled equipment purposes, including those owned or operated by shall not approve the installation unless, upon... -
Page 9: Venting Installation
These models are tested and approved for use with FMI PRODUCTS, LLC (direct vent) INSTALLATION PRECAUTIONS pipe components and terminations. • Wear gloves and safety glasses for The venting system must terminate on the... - Page 10 VENTING INSTALLATION Continued INSTALLATION PLANNING Center of hole should line up with center line of horizontal vent pipe. Mark wall for There are two basic types of direct vent an 11 " x 11 " square hole. Cut and installation: frame square hole in exterior wall where •...
- Page 11 VENTING INSTALLATION Continued Carefully move fireplace, with vent as- WARNING: Do not recess sembly attached, toward wall and insert vent pipe into horizontal termination. Pipe vent termination into any wall. overlap should be a minimum of 1 " (see This will cause a fire hazard. Figure 13, page 12).
- Page 12 VENTING INSTALLATION Continued GROUND FLOOR INSTALLATION Minimum Siding Recommended Applications: Pipe Standoff Overlap • Installation using cabinet surrounds Direct Screws " • Through the wall using round or square Vent Pipe termination. Wall • NOT FOR CORNER INSTALLATION Firestop 90° Elbow Wall Firestop 2' Min.
- Page 13 VENTING INSTALLATION Continued Vertical Termination Installation Flat Ceiling Installation Note: Vertical restrictor must be installed in 1. Cut a 11 " square hole in ceiling using all vertical installations. locating hole as a center point. Opening should be framed to 11 "...
- Page 14 Flex Using Hi-Temp Duct Tape Figure 19 - Outside Air Flex Duct Installation HIGH ALTITUDE INSTALLATION Your FMI PRODUCTS, LLC direct vent Vertical fireplace has been tested and approved for Venting elevations from 0-2000 feet (USA). V = 40' max.
-
Page 15: Fireplace Installation
VENTING INSTALLATION Continued PARTS LIST FOR VENTING KITS Galvanized Number Description AND COMPONENTS VT-58 Vertical Round Termination, FMI PRODUCTS, LLC (5"/8") Pipe & Vent Galvanized Kits SC-58 Storm Collar, Galvanized Number Description WF-58 Wall Firestop, Galvanized P58-6 6" Section Double Wall Pipe,... - Page 16 FIREPLACE INSTALLATION Continued For propane/LP connection only, the installer Apply pipe joint sealant lightly to male NPT must supply an external regulator. The exter- threads. This will prevent excess sealant from nal regulator will reduce incoming gas pres- going into pipe. Excess sealant in pipe could sure.
- Page 17 FIREPLACE INSTALLATION Continued 1. Route flexible gas line (provided by in- 3. Pressurize supply piping system by either staller) from equipment shutoff valve to opening propane/LP supply tank valve fireplace. Route flexible gas supply line for propane/LP gas fireplace or opening through one of the access holes on side main gas valve located on or near gas of fireplace.
- Page 18 FIREPLACE INSTALLATION Continued REMOVING/REPLACING GLASS Equipment Shutoff Valve DOORS Propane/LP Supply Tank CAUTION: Do not operate Gas Valve this fireplace with a broken glass Figure 24 - Checking Gas Joints for door panel or without the glass Propane/LP Gas Fireplace door panel securely in place.
- Page 19 FIREPLACE INSTALLATION Continued Spring Loaded Pin Pin Located on Middle Door Hook Located on Inner Door Hinge Outer Door Middle Inner Door Door Figure 26 - Removing/Installing Middle Door Installing Outer Door (Cool Touch Glass 3. Follow these instructions in reverse to Models ending in -CC Only) reinstall.
- Page 20 FIREPLACE INSTALLATION Continued Side Bricks Left Screen and Rod Side Bricks Bottom Brick (Non Cool Touch Right Bottom Brick Models Only) Middle Bottom Brick Figure 27 - Removing/Installing Brick, Side Trim and Screen Unlock Lock Inner Door Figure 28 - Removing/Installing Inner Door LAVA ROCK, EMBER FLAKES AND 1.
-
Page 21: Operation
FIREPLACE INSTALLATION Continued 3. Place ember flakes around front and sides of burner and on burner ports (see Figure 30). This will create the glowing ember ap- pearance as the flame touches the ember flakes. Do not block burner ports or pilot ports by overlapping ember flakes in one area. - Page 22 OPERATION Continued C. Do not use this appliance if any part • If lighting appliance for the first time each has been under water. Immediately call season, it may take several attempts a qualified service technician to inspect before supply gas can reach pilot and the appliance and to replace any part of main burners.
-
Page 23: Wiring Diagram
WIRING DIAGRAM Green Orange White HI/LO DC Pilot Motor Drive Control Valve Main Module Power Orange Module Black BATTERY PACK Brown Black SIZE SIZE SIZE SIZE "AA" "AA" "AA" "AA" Black To Ground Brown To Rocker Switch Brown Black Black To J-Box Power Adapter... -
Page 24: Inspecting Burners
GAS CONTROL MODULE SYSTEM Continued 3. When the remote/off is in the REMOTE Learn Button AUX Connection position the burner will operate from the Remote Control transmitter. NOTE: The module must be programmed to the Remote Control transmitter. • To program the module (make sure the system has power), locate the learn button (Figure 34) on the module. -
Page 25: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING: Turn off fireplace WARNING: Only parts sup- and let cool before cleaning. plied by the manufacturer should be used when replacing broken or damaged glass door CAUTION: You must keep panels (see Replacement Parts, control areas, burners and page 26). -
Page 26: Specifications
When Gas Pressure Is Too Low installation, operation, or troubleshooting. • pilot will not stay lit If so, contact FMI PRODUCTS, LLC at • burners will have delayed ignition 1-866-328-4537. When calling please have • fireplace will not produce specified heat your model and serial numbers of your •... -
Page 27: Troubleshooting
TROUBLESHOOTING WARNING: Turn off fireplace and let cool before servicing. Only a qualified service person should service and repair fireplace. CAUTION: Never use a wire, needle or similar object to clean pilot. This can damage pilot unit. Note: All troubleshooting items are listed in order of operation. OBSERVED PROBLEM POSSIBLE CAUSE REMEDY... - Page 28 TROUBLESHOOTING Continued OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Pilot will not stay lit 1. Loose wiring on ignitor wire 1. Confirm the "S" wire and to ignition module and/ the "I" wire are properly or poor ground to ignition connected to the module module in the proper "S"...
-
Page 29: Service Hints
TROUBLESHOOTING Continued WARNING: If you smell gas • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Fol- low the gas supplier’s instructions. -
Page 30: Parts
PARTS MODELS DVF-36NSR-C, DVF-36PSR-C, DVF-36NHR-C, DVF-36PHR-C, DVF-36NSI-C, DVF-36PSI-C, DVF-36NHI-C, DVF-36PHI-C, DVF-36NSR-CC, DVF-36PSR-CC, DVF-36NHR-CC, DVF-36PHR-CC, DVF-36NSI-CC, DVF-36PSI-CC, DVF-36NHI-CC AND DVF-36PHI-CC www.fmiproducts.com 125077-01D... - Page 31 PARTS This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual. PART NO. DESCRIPTION 120150-01 Outer Glass Assembly • • • • 120155-01 Middle Glass Assembly •...
- Page 32 PARTS MODELS DVF-36NSR-C, DVF-36PSR-C, DVF-36NHR-C, DVF-36PHR-C, DVF-36NSI-C, DVF-36PSI-C, DVF-36NHI-C, DVF-36PHI-C, DVF-36NSR-CC, DVF-36PSR-CC, DVF-36NHR-CC, DVF-36PHR-CC, DVF-36NSI-CC, DVF-36PSI-CC, DVF-36NHI-CC AND DVF-36PHI-CC www.fmiproducts.com 125077-01D...
- Page 33 PARTS BURNER ASSEMBLY MODELS This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual. KEY NO. PART NO. DESCRIPTION -01 (NG) -02 (LP) QTY. Bottom Pan Weldment •...
- Page 34 PARTS MODELS DVF-36NSR-C, DVF-36PSR-C, DVF-36NHR-C, DVF-36PHR-C, DVF-36NSI-C, DVF-36PSI-C, DVF-36NHI-C, DVF-36PHI-C, DVF-36NSR-CC, DVF-36PSR-CC, DVF-36NHR-CC, DVF-36PHR-CC, DVF-36NSI-CC, DVF-36PSI-CC, DVF-36NHI-CC AND DVF-36PHI-CC www.fmiproducts.com 125077-01D...
- Page 35 PARTS This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual. DVF-36NSR-C DVF-36NSI-C DVF-36NHR-C DVF-36NHI-C DVF-36PSR-C DVF-36PSI-C DVF-36PHR-C DVF-36PHI-C DVF-36NSR-CC DVF-36NSI-CC DVF-36NHR-CC DVF-36NHI-CC NO. PART NO. DESCRIPTION DVF-36PSR-CC DVF-36PSI-CC DVF-36PHR-CC...
-
Page 36: Warranty
FMI PRODUCTS, LLC’s liability is limited to the purchase price of the product, and FMI PRODUCTS, LLC shall not be liable for any other damages whatsoever under any circumstances including indirect, incidental, or consequential damages.
