SERVICE MANUAL
Ver 1.1 2000. 02
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance
of 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
D-A conversion
1-bit quartz time-axis control
Frequency response
+1
20 - 20,000 Hz
dB (measured by EIAJ CP-
–2
307)
Output (at 4.5 V input level)
Line output (stereo minijack)
Output level 0.7 V rms at 47 kilohms
Recommended load impedance over 10
kilohms
Headphones (stereo minijack)
Approx. 5 mW + Approx. 5 mW at 16 ohms
(Approx. 0.15 mW + Approx. 0.15 mW
at 16 ohms)*
*For the customers in France
Optical digital output (optical output connector)
Output level: –21 - –15 dBm
Wavelength: 630 - 690 nm at peak level
Power requirements
For the area code of the model you
purchased, check the upper left side of the
bar code on the package.
• Two Sony NH-14WM rechargeable batteries:
2.4 V DC
• Two LR6 (size AA) batteries: 3 V DC
D-E990/EJ915

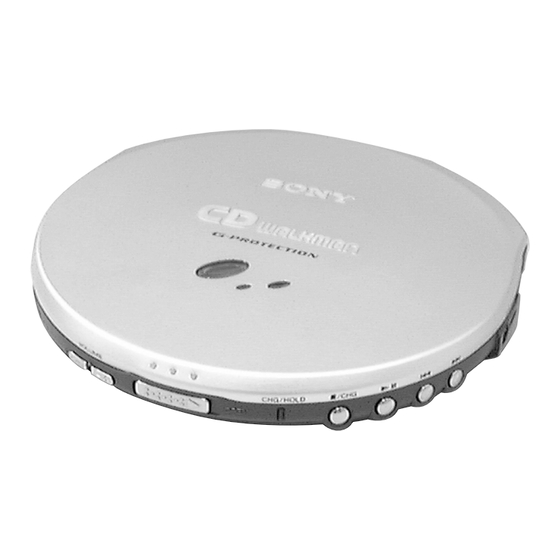

Photo: D-E990
Model Name Using
Similar Mechanism
CD Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
• AC power adaptor (DC IN 4.5 V jack):
US/Canadian model: 120 V, 60 Hz
AEP/E13 model: 220 - 230 V, 50/60 Hz
UK model: 230 - 240 V, 50 Hz
Australian model: 240 V, 50 Hz
Tourist/E33 model: 100 - 240 V, 50/60 Hz
Hong Kong model: 220 V, 50/60 Hz
Korean model: 220 V, 60 Hz
Chinese model: 220 V, 50 Hz
• Sony DCC-E245 car battery cord for use on
car battery: 4.5 V DC
Battery life* (approx hours)
(When you use the CD player on a flat and stable
surface.)
Playing time varies depending on how the CD
player is used.
Two NH-14WM
23 (US/Canadian/AEP/UK model)
25 (E/Australian/Chinese/
(charged for
about 4 hours**)
Tourist model)
Battery case (two
37 (US/Canadian/AEP/UK model)
alkaline batteries)
40 (E/Australian/Chinese/
Tourist model)
Rechargeable batteries 57 (US/Canadian/AEP/UK model)
NH-14WM and battery
case (two alkaline
62 (E/Australian/Chinese/
batteries)
Tourist model)
* Measured value by the standard of EIAJ
(Electronic Industries Association of Japan).
** Charging time varies depending on how the
rechargeable battery is used.
Operating temperature
5°C - 35°C (41°F - 95°F)
US Model
Canadian Model
AEP Model
UK Model
Australian Model
Chinese Model
Tourist Model
NEW
US, Canadian, AEP, UK
: CDM-3022EBG
E, Australian, Chinese, Tourist : CDM-3022EBA
US, Canadian, AEP, UK
: DAX-22EG
E, Australian, Chinese, Tourist : DAX-22E
Dimensions (w/h/d) (excluding
projecting parts and controls)
Approx. 127.2 × 19 × 130.1 mm
×
× 5
1
3
1
(5
in.)
8
4
8
Mass (excluding rechargeable
batteries)
Approx. 167.5 g (6.0 oz)
Supplied accessories
AC power adaptor (1)
Headphones/earphones with remote control (1)
Rechargeable batteries (2)
Battery carrying case (2)
Carrying case (1)
Battery case (1)
AC plug adaptor (1)*
* Supplied with Tourist and E33 models
Design and specifications are subject to change
without notice.
• Abbreviation
E13: 220 - 230 V AC area in E model
E33: 100 - 240 V AC area in E model
PORTABLE CD PLAYER
E Model
D-EJ915
D-E990

Advertisement

Table of Contents
loading

Summary of Contents for Sony D-E990

  • Page 1 Chinese model: 220 V, 50 Hz Supplied accessories of 200 mm from the objective lens surface on • Sony DCC-E245 car battery cord for use on AC power adaptor (1) the optical pick-up block with 7 mm aperture.) car battery: 4.5 V DC...
  • Page 2: Table Of Contents

    OPERATION. REPLACE THESE COMPONENTS WITH DE FONCTIONNEMENT. NE REMPLACER CES COM- SONY PARTS WHOSE PART NUMBERS APPEAR AS POSANTS QUE PAR DES PIÈCES SONY DONT LES SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- NUMÉROS SONT DONNÉS DANS CE MANUEL OU LISHED BY SONY.
  • Page 3: Servicing Notes

    SECTION 1 SERVICING NOTES BEFORE REPLACING THE OPTICAL PICK-UP BLOCK NOTES ON HANDLING THE OPTICAL PICK-UP Please be sure to check thoroughly the parameters as par the “Op- BLOCK OR BASE UNIT tical Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block.
  • Page 4: General

    SECTION 2 This section is extracted from instruction manual. GENERAL Getting started Remote control (Front) Locating the Controls qd HOLDswitch qh Display (page 14) (pages 8, 10 - 14) For details, see pages in parentheses. CD player (front) 1 EXTBATT (external battery)/ 7 AVLS switch (rear) DC IN 4.5 V (external power (page 13)
  • Page 5: Disassembly

    SECTION 3 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. UPPER LID ASSY Note: To remove or install these spacers, you need to do it with force. 1 two spacers tweezers 3 reinforcement 2 upper lid assy CABINET (UPPER) SUB ASSY 3 claw 2 five screws...
  • Page 6 INSTALLATION OF MAIN BOARD When installing MAIN board, adjust the S803, 804 and knobs (AVLS, HOLD) mechanism deck section MAIN board S803 S804 knob (AVLS) knob (HOLD) cabinet (lower) – 6 –...
  • Page 7: Electrical Checking

    SECTION 4 ELECTRICAL CHECKING The CD section adjustments are done automatically in this set. Focus bias Check Condition: Precautions for Check • Hold the set in horizontal state. 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise Connection: oscilloscope indicated.
  • Page 8: Diagrams

    D-E990/EJ915 SECTION 5 DIAGRAMS RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, 5-1. BLOCK DIAGRAM – MAIN Section (1/2) – D-RAM CONTROLLER IC601 DOUT DOUT DETECTOR DIGITAL OUT (Page 11) BCKI WDCK SELECTOR WFCK PCMDI PCMD RFDC LRCKI D-RAM IC602...
  • Page 9: Block Diagram – Main Section (2/2)

    D-E990/EJ915 5-2. BLOCK DIAGRAM – MAIN Section (2/2) – B+ SWITCH VCC 3V Q601 DOUT (Page 10) J301 OPTICAL TRANSCEIVER LINE OUT (OPTICAL) (LINE OUT JACK) MUTING Q301 J302 / REMOTE ANALOG SWITCH HEADPHONE AMP IC302 IC351 IN_L OUT_L LOUT1...
  • Page 10: Block Diagram - Power Supply Section

    D-E990/EJ915 5-3. BLOCK DIAGRAM – POWER SUPPLY Section – • Waveforms 1 IC401 qd CLOCK, IC402 9 CLK IC601 wg CLOK, IC801 q; SCK 6 IC601 o; BCK 2 V/DIV, 2 µs/DIV 1 V/DIV, 200 ns/DIV (Page 9) 2.1 Vp-p (Page 9) 2.1 Vp-p...
  • Page 11: Printed Wiring Board

    D-E990/EJ915 5-4. PRINTED WIRING BOARD • Semiconductor Note on Printed Wiring Board: • MAIN board is multi-layer printed board. However, the patterns • X : parts extracted from the component side. of intermediate-layer have not been included in the diagram.
  • Page 12: Schematic Diagram

    D-E990/EJ915 5-5. SCHEMATIC DIAGRAM • See page 15 for Waveforms. • See page 23 for IC Block Diagrams. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums.
  • Page 13 • IC Block Diagrams IC401 MPC17A52ZFTA IC601 CXD3027R IC802 CXD751-103R IC351 TA2120FN (EL) 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 22 21 20 19 18 17 BEEP...
  • Page 14: 5-6. Ic Pin Function Description

    5-6. IC PIN FUNCTION DESCRIPTION • IC801 TMP88CM22F-1A49 (SYSTEM CONTROLLER) Pin No. Pin Name Description — Ground terminal IRRMC Not used (fixed at “L”) FOKI Focus OK signal input from the CXD3027R (IC601) “L”: NG, “H”: OK AGCCON AGC control pulse signal output terminal XLEDDISP CHG/HOLD LED (D408) control signal output terminal Control signal output terminal for the switching power supply circuit...
  • Page 15 Pin No. Pin Name Description SLVCD Not used (fixed at “H”) AVLS (Automatic Volume Limiter System) switch (S803) input terminal AVLS “L”: normal mode, “H”: limit mode HOLD HOLD switch (S804) input terminal “L”: hold ON, “H”: hold OFF EX BATT External battery detection signal input terminal “H”: external battery DRVRST Control signal output to the spindle motor driver (IC402)
  • Page 16: Exploded Views

    SECTION 6 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they • Items marked “*” are not stocked since they The components identified by mark 0 or dotted line with mark may have some difference from the original are seldom required for routine service.
  • Page 17 (2) CABINET SECTION-2 CDM-3022EBA (EXCEPT US, CND, AEP, UK) CDM-3022EBG (US, CND, AEP, UK) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-224-048-01 FOOT, RUBBER A-3323-345-A MAIN BOARD, COMPLETE 4-224-039-01 CABINET (LOWER) (E990) (E990/EJ915: E13, E33, HK, KR) 4-224-039-11 CABINET (LOWER) A-3323-360-A MAIN BOARD, COMPLETE (EJ915: FR) (EJ915: EXCEPT E13, HK)
  • Page 18 (3) MECHANISM DECK SECTION (CDM-3022EBA EXCEPT US, CND, AEP, UK) (CDM-3022EBG US, CND, AEP, UK) M902 M901 The components identified by Les composants identifiés par une mark 0 or dotted line with marque 0 sont critiques pour la mark 0 are critical for safety. sécurité.
  • Page 19: Electrical Parts List

    SECTION 7 MAIN ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • Items marked “*” are not stocked since they The components identified by mark 0 or dotted line with mark parts list may be different from the parts speci- are seldom required for routine service.
  • Page 20 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C453 1-162-964-11 CERAMIC CHIP 0.001uF < DIODE > C454 1-162-969-11 CERAMIC CHIP 0.0068uF 10% C456 1-115-156-11 CERAMIC CHIP D401 8-719-049-09 DIODE 1SS367-T3SONY D402 8-719-058-24 DIODE RB501V-40TE-17 C457 1-162-964-11 CERAMIC CHIP 0.001uF D403...
  • Page 21 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark IC403 8-759-594-55 IC TC75S57F (TE85R) < TRANSISTOR > IC404 8-759-653-10 IC XC61AN2402MR Q301 8-729-043-90 TRANSISTOR IMX9T110 IC601 8-752-398-18 IC CXD3027R Q302 8-729-930-00 TRANSISTOR UMD2 IC602 8-759-594-56 IC MSM51X17400D-10TFSR1 Q401 8-729-023-89 FET 2SJ305 (TE85L)
  • Page 22 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R305 1-216-821-11 METAL CHIP 1/16W R466 1-216-857-11 METAL CHIP 1/16W R308 1-216-807-11 METAL CHIP 1/16W R467 1-216-821-11 METAL CHIP 1/16W R401 1-216-853-11 METAL CHIP 470K 1/16W R402 1-216-841-11 METAL CHIP 1/16W R469...
  • Page 23 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R813 1-216-833-11 RES, CHIP 1/16W MISCELLANEOUS ************** R814 1-216-833-11 RES, CHIP 1/16W R815 1-216-864-11 METAL CHIP 1/16W 0 101 X-3378-495-1 OPTICAL PICK-UP (DAX-22EG) R816 1-216-864-11 METAL CHIP 1/16W (US, CND, AEP, UK) (EJ915: US, CND, AEP, UK, FR, G, EE)
  • Page 24 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-867-739-31 MANUAL, INSTRUCTION (EJ915: CH) (CHINESE) 3-867-740-11 MANUAL, INSTRUCTION (EJ915: EE) (RUSSIAN) 3-867-740-21 MANUAL, INSTRUCTION (EJ915: EE) (CZECK) 3-867-740-31 MANUAL, INSTRUCTION (EJ915: EE) (HUNGARIAN) 3-867-740-41 MANUAL, INSTRUCTION (EJ915: EE) (POLISH) 3-867-740-51 MANUAL, INSTRUCTION (EJ915: EE) (SLOVAKIAN) 3-867-740-61 MANUAL, INSTRUCTION (EJ915: KR)
  • Page 25 D-E990/EJ915 Sony Corporation 2000B05087-1 9-927-188-12 Personal Audio Division Company Printed in Japan C 2000. 2 – 38 – Published by General Engineering Dept.
