Viking VGCC530-4B Dimension Manual

Professional Custom Series Freestanding Gas 30"/36"W.
Standard Features & Accessories
All models include
• Exclusive VSH™ Pro Sealed Burner
System (VariSimmer™ to High)—
combination of unique patented
burner and top design provide
cleanability plus superior performance
at simmer and high
• Exclusive SureSpark™ Ignition System
for all burners
• Exclusive VariSimmer™ setting for all
burners
• Exclusive one-piece tooled and
porcelainized cooking surface contains
spills for easy cleaning
• Exclusive combination of single
u-shaped bake burners and infrared
broil burner, all with electric spark
ignition
• Six functions—natural airflow bake,
convection bake, infrared broil,
convection infrared broil, convection
dehydrate, and convection defrost
• Standard kickspace height
• Shipped standard with heavy-duty
metal knobs with stainless steel finish

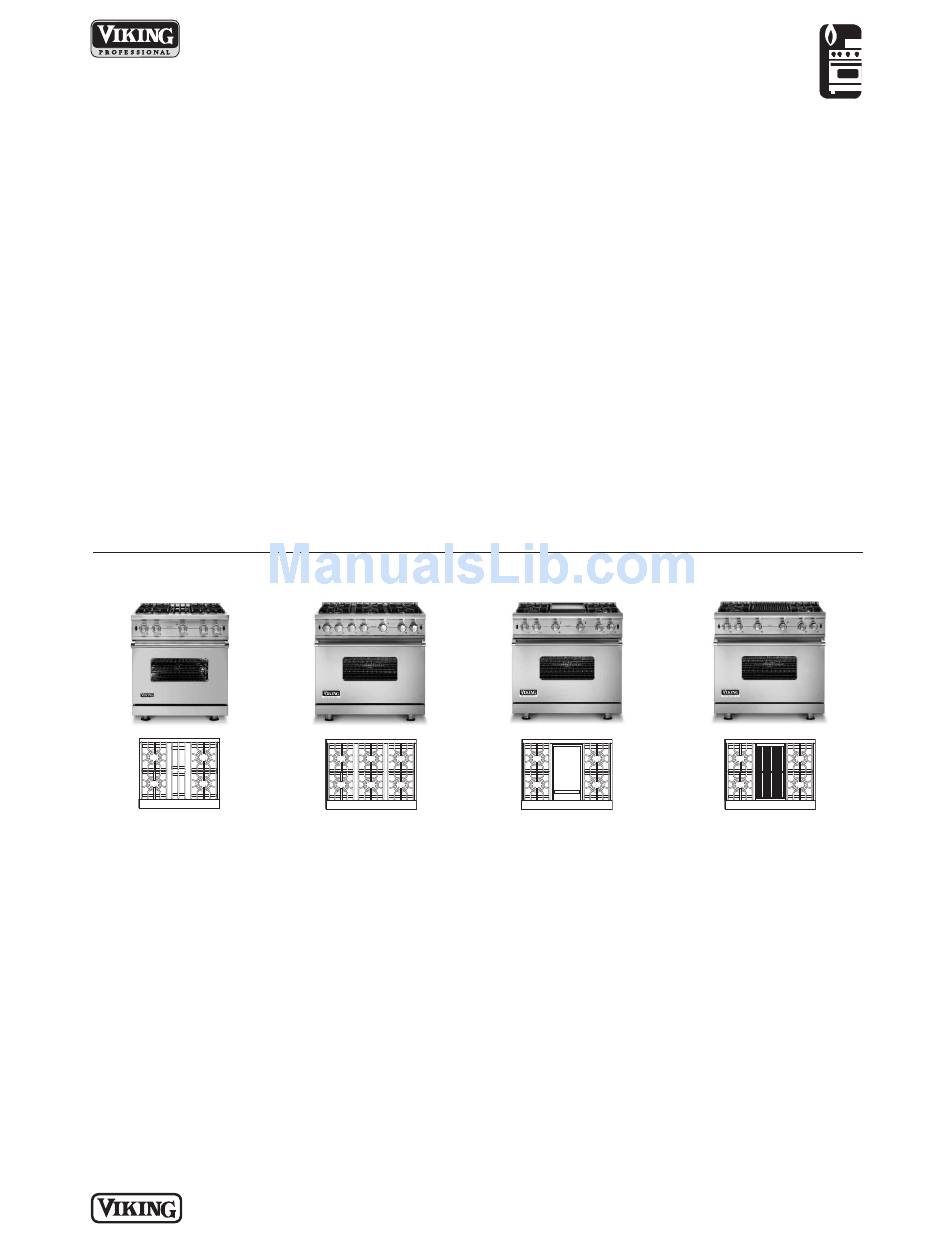

Model Options

VGCC530-4B*
30"W. Four-Burner
Range
FINISH DETAILS FOR ALL MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates door front, lower
front panel, and side panels.
*Shown throughout with island trim. See Installation Notes & Accessories for details.
ORDERING INSTRUCTIONS
First specify model number, and then color code (VGCC530-4BSS). If ordering optional brass accent, specify code at end (VGCC530-
4BSSBR). If ordering optional LP conversion, specify code at end (VGCC530-4BSSBRLP).
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M
• Shipped with stainless steel island
trim*
30"W. 4B models include
• Convection oven capacity:
o Overall capacity—4.0 cu. ft.
(23"W. x 16-1⁄8"H. x 18-3/4"D.)
o AHAM Standard—3.7 cu. ft.
(23"W. x 16-1⁄8"H. x 17"D.)
o Three heavy-duty racks/six positions
o Two halogen lights
• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition
• Center grate allows movement of
cooking vessels across entire top surface
36"W. models include
• Convection oven capacity:
o Overall capacity—5.1 cu. ft.
(29"W. x 16-1⁄8"H.x 18-3⁄4"D.)
o AHAM Standard capacity—4.6 cu.
ft. (29"W. x 16-1⁄8"H.x 17"D.)
o Dual bake burner
36"W. 6B models include
• Exclusive One TruPower Plus™ 18,500
VGCC536-6B*
36"W. Six-Burner
Range
o Has black porcelain grates, black
porcelain burner caps, black
porcelain grate supports, metal
knobs with stainless steel finish and
black switches.
• White (WH)
o Finish designates door front, lower
front panel, side panels, porcelain
grate supports, porcelain center
worktop, and knobs/switches.
o Has black porcelain grates and black
porcelain burner caps.
• 1 - 8 8 8 - V I K I N G 1
Sealed Burner Range
BTU burner (front right burner)
• Five 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition
36"W. 4G models include
• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition
• 12"W. thermostatically controlled steel
griddle/simmer plate
• Cast aluminum removable grease
trough holds 2-1/2 cups of liquid
36"W. 4Q models include
• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition
• 12"W. grill with flavor generator
plates and automatic ignition/re-
ignition
• Exclusive two-piece removable
porcelainized drip pan holds three
quarts of liquid
VGCC536-4G*
36"W. Four-Burner/
Griddle Range
• All finishes have stainless steel
handle/chrome-plated brackets and
stainless steel drip tray pull, control
panel, and landing ledge.
• Brass Accent Option (BR)—nameplate,
handle, end cap, knob bezels. Brass
components have a durable protective
coating for maintenance-free normal use.
© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
COOKING

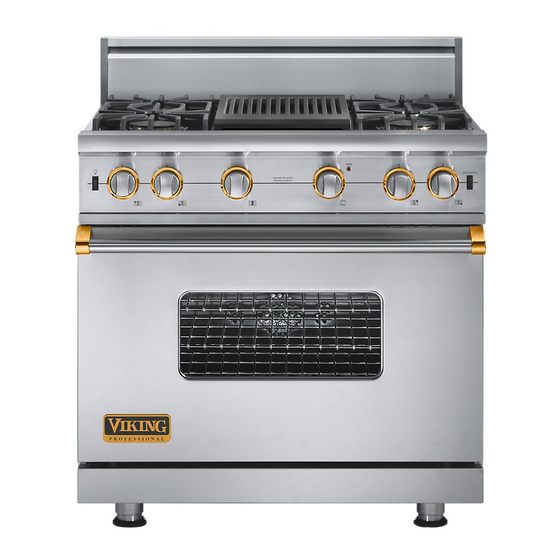

VGCC536-4Q*
36"W. Four-Burner/
Grill Range
R E V I S E D 4 / 2 6 / 1 1
