Operating Instructions

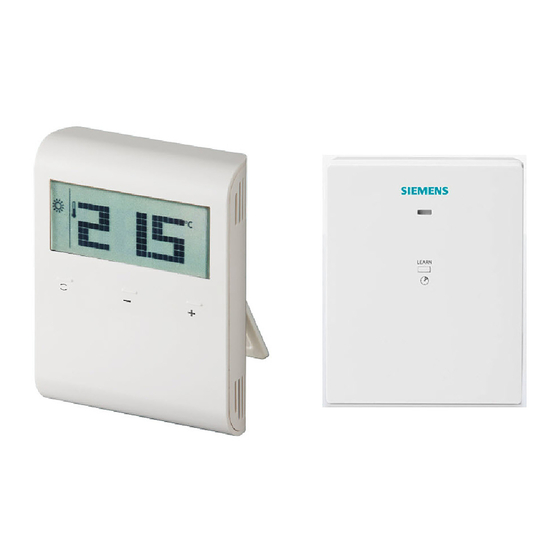

The RDD100.1RFS consists of a wireless room thermostat RDD100.1RF and an RCR100RF receiver.
These units allow you to set the ideal room temperature at the time you want.
RDD100.1RF
RCR100RF

Do you want to lock the buttons?

Press and hold
The unit operates normally when the buttons are locked, but no changes can be made.

Do you want to change the operating mode?

The room thermostat provides Comfort mode
modes can be made manually by pressing
Comfort mode is a permanent (24 h) selection of Comfort. Select this mode when you want to maintain
permanently the Comfort temperature. It is used during occupancy periods, for example.
Economy mode is a permanent (24 h) selection of Economy. Select this mode when you want to maintain
permanently the Economy temperature. It is used during non-occupancy periods, for example at night.
!
Note:
Frost protection is a function always active in the background. As soon the room temperature falls below 5 ºC,
the unit automatically activates heating

Energy saving tips without loss of comfort

• Use Economy mode during longer periods of non-occupancy
1/3 Operating Instructions
for at least 7 seconds to activate a button lock. Repeat to unlock.
and Economy mode
.
.
CB1B1424en_01 / 2013-07-05
1 Display
Indicates that batteries need to be replaced
Comfort mode
Economy mode
Frost protection (heating) active
Room temperature, setpoint, etc.
F
Room temperature in degrees Fahrenheit
C
Room temperature in degrees Celsius
Button lock activated
Display of zone (default = 1)
Heating On
Current room temperature
2 Change operating mode
3 Decrease value
4 Increase value
5 Battery holder
6 Indication of data transmission and operating
state (LED)
7. Initialization of wireless communication with
transmitter (LEARN button)
. Changeover between the operating
