TCL L55P10FHD Operation Manual page 5

HDMI
HDMI
HDMI
VIDEO
L
AV IN
AUDIO
R
Y
COMPONENT
Pb Cb
AUDIO VIDEO IN
Pr Cr
L
AUDIO
R
VIDEO
AV OUT
L
AUDIO
R
SPDIF OUT
SERVICE ONLY
VGA
VGA DVI
AUDIO IN
ANTENNA IN

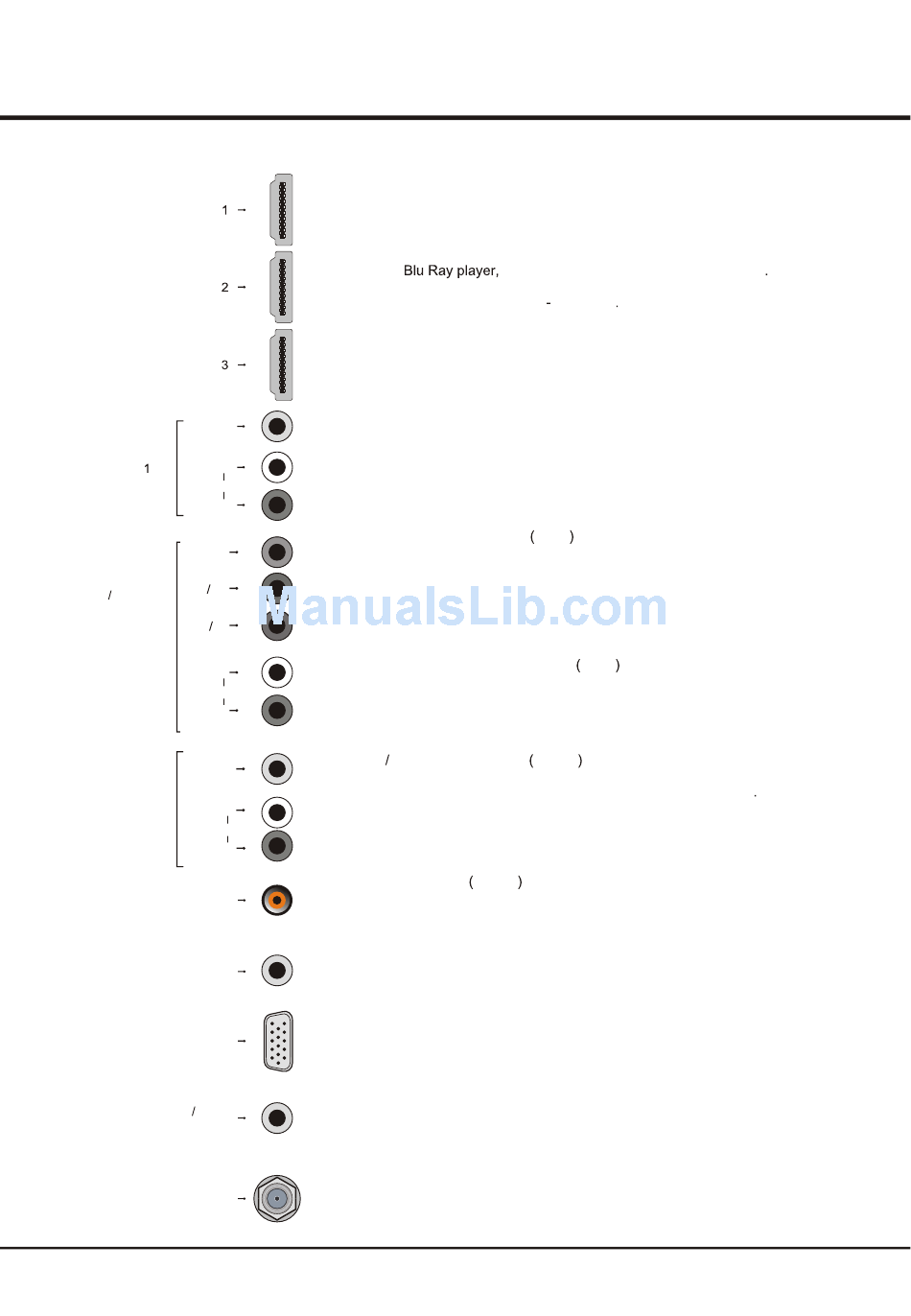

HDMI1 socket (input) at the side and HDMI2/HDMI3 sockets (input) at the back
The HDMI (High-Definition Multimedia Interface) socket lets you connect a device,
such as a with a HDMI output for best picture quality It also
p rovides an uncompressed digital connection that carries both video and audio
data by way of an integrated mini plug cable
AV1 RCA audio + video sockets (input) at the back
These sockets can be used to connect a range of equipment, including video
recorders, camcorders, decoders, satellite receivers, DVD players, or games
consoles. The VIDEO IN1 socket p rovides composite video connection.
YPBPR component sockets input at the back
These can be used to connect a device that has component video sockets, such
as a DVD player. The component sockets can recognize if the device you're
connecting to is Y Pb Pr compatible or Y Cb Cr compatible. The component
sockets provides excellent picture quality because the video is separated into three
separate parts.
YPBPR component audio sockets input at the back
The two sockets can be used to obtain sound when using the YPBPR component
sockets.
AUDIO VIDEO OUT sockets output at the back
These sockets can be used to connect a VCR to record programs You must leave
the TV on the same channel you are recording. The VIDEO OUT socket provides
composite video connection.
SPDIF OUT socket output at the back
Use a digital coaxial cable to connect your TV to a digital amplifier.
SERVICE ONLY socket (input) at the back
This socket can be used to upgrade the software version for the TV.
VGA socket (input) at the back
This socket can be used to connect a computer.
VGA/DVI AUDIO socket (input) at the back
This socket provides audio connection when using the HDMI jack for DVI, or used
to obtain sound when a PC is connected to the VGA INPUT.
ANTENNA IN socket (input) at the back
This socket can be used to connect to an external antenna.
5
Introduction
