Grant's Automation SD series Installation Manual

24v sliding gate operators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

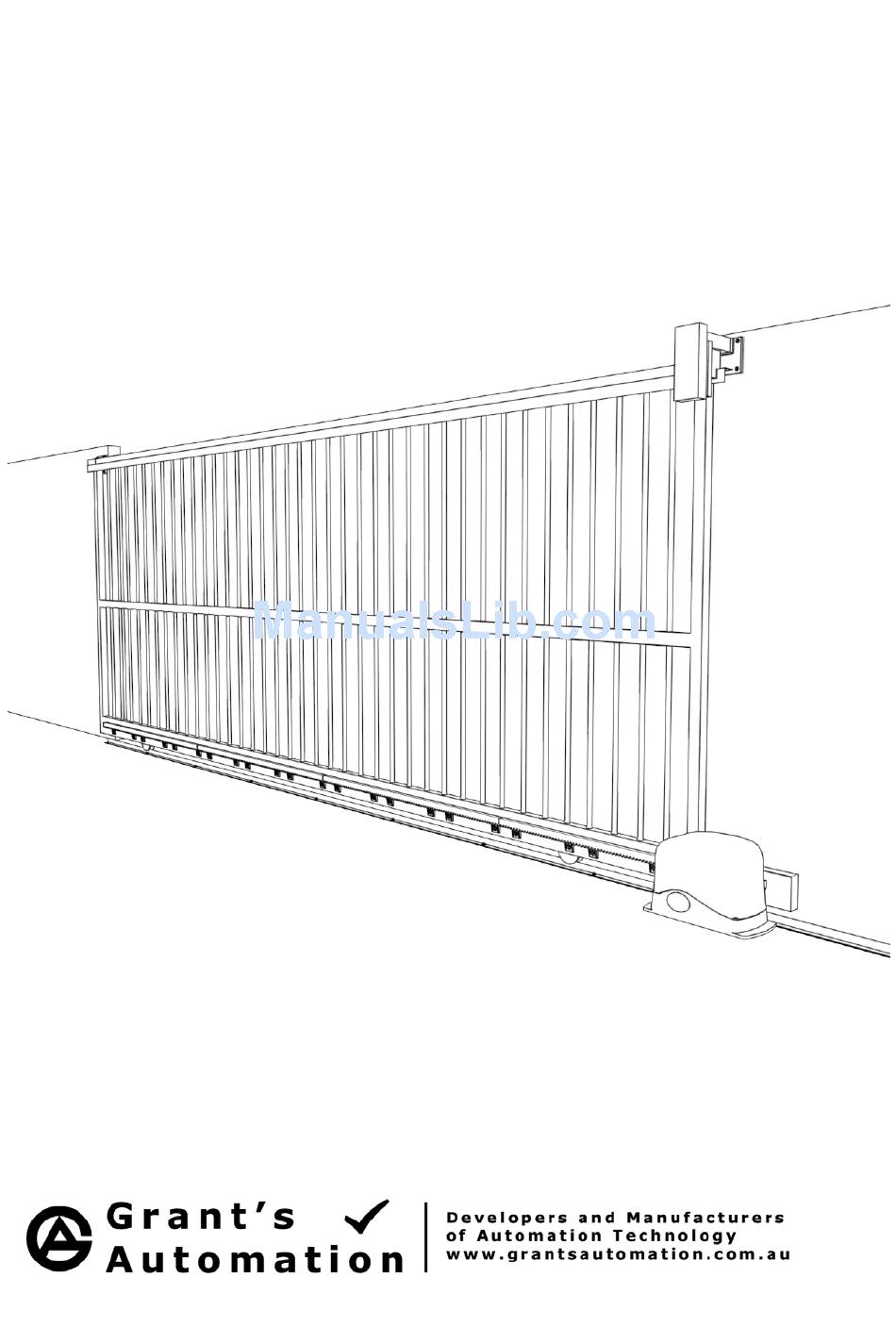

installation manual
FOR
sD series 24V sliding Gate operators

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD series and is the answer not in the manual?

Questions and answers

Related Manuals for Grant's Automation SD series

Summary of Contents for Grant's Automation SD series

  • Page 1 24V sliding Gate operators...

  • Page 2: Table Of Contents

    Contents pre-installation CheCk list ..technical speciFicatiOns ..... . . maximum size OF gate ......gate OpeRatOR FRequency OF use .
  • Page 3 installation ... . step 1 - install cabling ..... . . tips for running low voltage caBle yourself.

  • Page 4: Pre-Installation Check List

    pre-installation CheCk list teChniCal speCifiCations electRical power supply sd-240, sd-lvc, sd-lvh: 240vac 50hz power supply sd-sol: solar panel electronic controller: micro-controller based gate obstruction detection: over current safety Barrier: photocell operating distance of remote controls 50m or more remote control buttons: open, stop, close, ped open open and close limit type: encoder and magnetic sw...

  • Page 5: Maximum Size Of Gate

    maximum size of Gate for the sD-240, sD-lVh anD sD-sol operators for sD-lVC reDuCe this by 40% For Aluminium Gates with vertical bars or Chain Link Gates: to 20m wide 500mm rise 300mm rise to 3m wide to 6m wide For Galvanised Steel Gates with vertical bars, Aluminium Gates with Slats or 16mm thick pine palings: to 10m wide...

  • Page 6: Gate Operator Frequency Of Use

    Gate operator frequenCy of use this gate operator is rated for Residential and light industRial use Only, which is a maximum of five households or ten carpark spaces for a commercial building. any more than this and the life span of the operator can be reduced.

  • Page 7: Important Safety Instructions

    important safety instruCtions! cOnsideRing the geneRal public: when installing an automatic gate that will be entered from a public road way, make sure the Gate is placed far enough from the road to prevent traffic congestion. the gate must be installed in a location that provides adequate clearance between it and adjacent structures when opening and closing to reduce risk of entrapment.
  • Page 8 tools anD harDware requireD the tOOls yOu’ll need include: a basic set of hand tools will be needed including: side cutters, pliers, wire strippers, a range of phillips head screw drivers, a small flat head screw driver for terminal block screws and a socket set. you’ll also need a tape measure, marking pen, an elecric drill with hammer action and variable speed control, a 10mm hammer drill bit and socket bit for 10mm or 3/8”...

  • Page 9: Preparing The Gate

    preparinG the Gate guide must move easily for entire length of gate. power point (if keeper to be used) on free aligned to the standing post in gate correctly front of the gate open hard stop required to set gate gate must be straight open limit not twisted or bowed.
  • Page 10 automatiC operator fittinG requirements extra gate length for automatic driveway operator lawn or garden 300mm guide post if used front fence/wall gate concrete footing and pad 250mm concrete gate lawn or garden 400mm operator conduit for power cable to come out of concrete pad here 200mm if power is hardwired.

  • Page 11: Accessories That Can Be Added

    aCCessories that Can be aDDeD saFety phOtOcell photocells are a safety device that prevent the gate from closing on a vehicle. they are highly recommended if using the auto-close feature, as the gate may close at any time. a photocell consists of an invisible low power infrared point to point Beam transmitted from one side of a gate to the other.

  • Page 12: Digital Keypad And/Or Intercom

    digital keypad and/OR inteRcOm to allow access to visitors or tradesman any brand of digital keypad and/or intercom can be installed (provided the intercom has a door release feature). an intercom allows visitors to call the a digital keypad allows access to house and speak with the occupier.

  • Page 13: Cabling Requirements

    CablinG requirements basic cabling guide open direction gate operator Full cabling guide Right hand gate intercom digital keypad photocell gate operator digital keypad,keyswitch or press Button the gate operator will be on the other side for a left hand gate. if power source is 240vac mains the cable for this should be kept at least 100mm away from any low voltage cabling.

  • Page 14: Type And Size Of Cable

    type and size OF cable 240V mains at gate mains power is best hard wired to the operator. if an outdoor power point is used the can be turned off so is not recommended. you will need a registered electrician to do this for you. low Voltage systems don’t need a register electrican because all power at the gate is 24v.

  • Page 15: How It Works

    operator.
  • Page 16 installation step 1 - install CablinG always get a registered electrician to install any 240v mains voltage cabling for you other wise any cable for voltage lower than 32vac or 50vdc you can do your self without a license. if your gate track is hollow you can run low voltage cabling through this but be carefull that the cable doesn’t doesn’t get pinced anywhere along the track particularly when a vehicle drives over it.
  • Page 17 tips FOR Running lOw VOltage cable yOuRselF. always use conduit if running cable in grass, open ground, gardens or pebbles. grey conduit is best. conduit should be buried deep enough so it is out of harms way. for existing lawns, pebbled areas or if run along side a driveway then buried just below the surface is fine.
  • Page 18 check height OF the OpeRatOR if the mounting holes for the rack are with the operator sitting on it’s concrete below the bottom edge of the gate, pad (not fixed in place yet), place a then the operator will need to be length of rack on the gear wheel and raised up.
  • Page 19 Fix the OpeRatOR in place fix the operator to it’s concrete pad using m10 x 50mm dyna bolts or longer if the operators height had to be raised. use galvanised dyna bolts if you can so they won’t rust. large raw plugs and galvanised screws may also be used if prefered.
  • Page 20 step 3 - fit the raCk to the Gate Before fitting any rack, lay it out in front of the closed gate to see how it lines up. start at the operator end, with the first length sitting on the operators gear wheel, adjusting the position of the rack as you go to make sure the mounting lugs miss the wheels.
  • Page 21 tek screw in centre of slot to fit the rack, start with the gate nearly closed and place the first length of rack on the operators gear wheel, in line with the mark you made earlier and the bottom rail. drill 10mm (or 3/8”) tek screws into two of the mounting lugs for the rack, making sure they are both in the centre of each slot.
  • Page 22 length slotted into the first drill tek screw in on an angle to close gap between lengths of rack now fit the 2 nd length of rack by sliding the gate open a bit further and placing it so one end is slotted into the first length and the other end is sitting on the operators gear wheel, allowing enough room to drill another tek screw in.
  • Page 23 once all lengths are tacked in place and the gate is opened and closed to check the rack contacts the gear wheel at all times then cut off any access rack using an angle grinder or hack saw. the rack may be plastic on the outside but it has a steel rod in the middle.

  • Page 24: Installation

    step 4 - powerinG operator up for the sd version with out a battery simply plug it into a power point and turn on the power switch to power it up. for versions with a battery back up connect the battery first then plug the power in or connect the solar panel. a battery back up can be added to an sd operator that doesn’t have one at any time.
  • Page 25 checking the gate diRectiOn the gate operator is prewired for a right hand gate. open direction right hand gate if you have a left hand gate then you’ll need to change the motor direction open direction left hand gate sd control Board for right hand gates change the motor wires around so the gate will travel in the opposite direction.
  • Page 26 wiRing diagRam FOR batteRy back up sd control Board 24v ac charge black transformer or solar panel 10a Fuse warninG! the Battery cables must be ConneCteD 12V gel battery the riGht way arounD! if not you may damage the control board. 12V gel battery...
  • Page 27 wiRing diagRam FOR a phOtOcell safety photocells are used to prevent the gate from closing on a vehicle. the gate will not close if the photocells light beam is broken. if a photocells light beam is broken while the gate is closing, the gate will reverse back open until the photocell is clear then the gate will close normally.
  • Page 28 wiRing diagRam FOR an inteRcOm intercoms with a lock output can also be used to activate an automatic gate. intercoms will either have a clean contact output that can be used as it is or a 12vac or 12vdc output for an electric lock, which requires an optional adaptor. control and accessories terminal of the sd control Board intercom with 12vac or 12vdc...
  • Page 29 step 5 - motor set up to set up the sd-800 sliding gate motor take the lid off and find the electronic control board where there are four small buttons labelled “f”, “+”, “-” and “enter”. these buttons and a two digital led display are used to set up the motor including: actiVating RemOte cOntROls press and hold the “f”...

  • Page 30: Adjusting Force Setting For Safety Reverse

    OtheR FeatuRes to make changes to other features press and hold the “f” button and the two digit display will light up with a code indicating which feature is selected. use the “+” and “-” buttons to change the selected feature then press the “f” button again to view the setting for that feature as follows: FeatuRe - cOde: autO-clOse delay - c3 and c4...
  • Page 31 pesdestRian gate Opening distance - c5 the distance the gate opens for pedestrian entry can be set too as a percent- age of the full gate opening, maximum 99%. a typical amount is 30%. installinG the solar panel for sd-sol charging the battery is by way of one or more solar panels. it is important to place the solar panel where it gets full sun for as long as possible.
  • Page 32 battery maintenanCe the Battery should last from 3 to 5 years with normal use or less if it is allowed to run flat. you can replace the batteries your self by opening the battery box and unplug them taking note of how they are connected. you can get replacement batteries from battery shops, alarm suppliers, electronics shops and auotmotive acces- sory shops.

  • Page 33: Trouble Shooting

    aCCessories tX-4 extra remote controls for either 433.92mhz (Blue) or 315mhz (white) rX-1 stand alone receiver - to allow a garage door or another brand of gate operator to be operated with the e-gate remote control ether 433.92mhz or 315mhz. rX-mega stand alone receiver for a large number of users allows use of up to 1000 remote controls.

  • Page 34: Warranty

    warranty a 2 year Back to Base warranty is offered by grant’s automation for any defect in a gate operator system manufactured by grant’s automation or any third party component supplier to grant’s automation due to faulty workmanship or materials causing the operator to fail to work as specified in this installation manual.
