Summary of Contents for Grant's Automation e-Gate SLD-24V-D

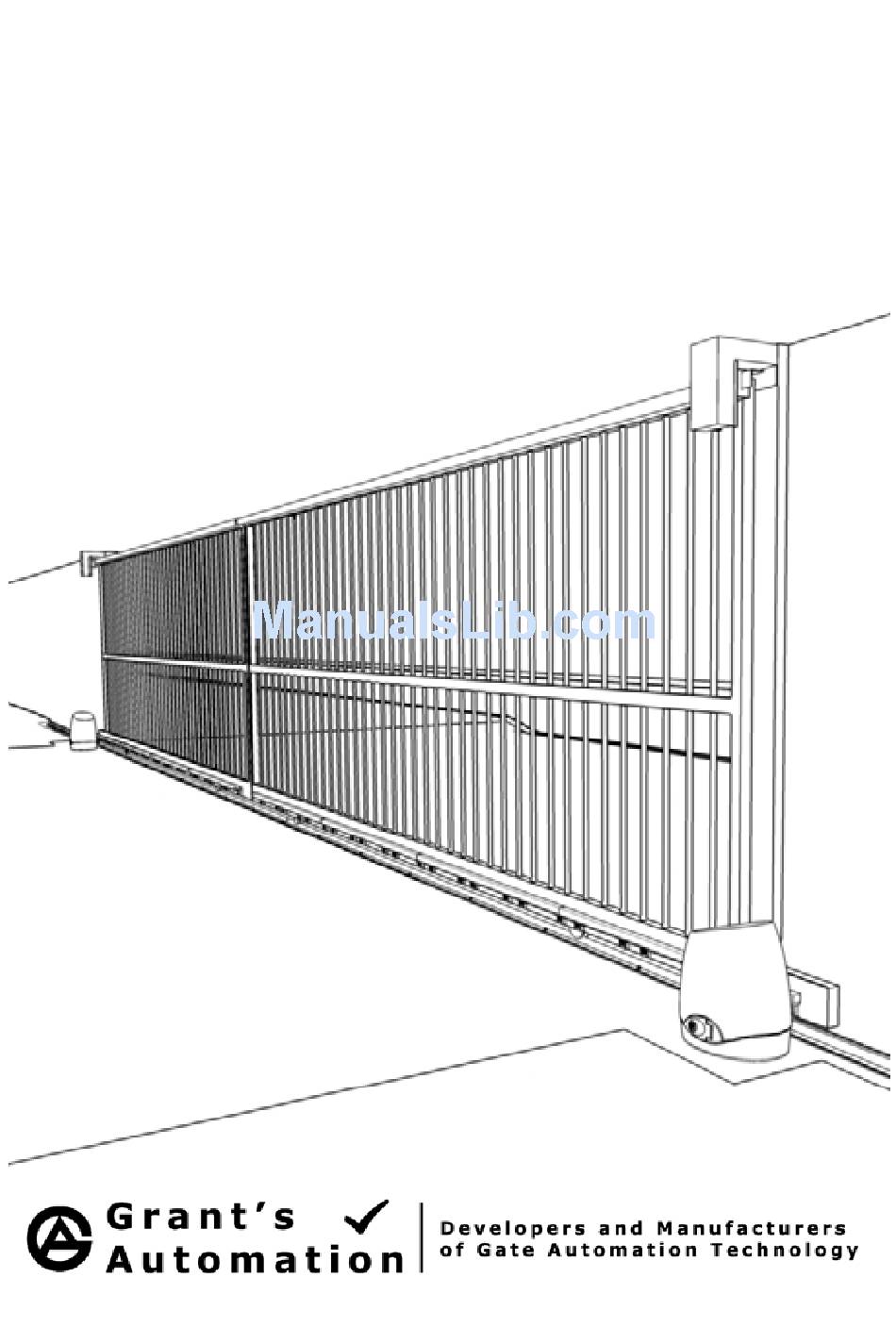

- Page 1 24V Bi-Parting Sliding Gate Operator for Gates to 500kg...
-
Page 2: Table Of Contents
Contents pre-installation CheCk list ..maximum Size OF Gate FOR the SLD-24V-D ....Gate OPeRatOR FRequency OF uSe ....imPORtant SaFety inStRuctiOnS! . - Page 3 9 steps to installinG the slD-24V-D . . SteP 1 - inStaLL caBLinG ..... . . tips for running low voltage caBle yourself. SteP 2 - Fit the OPeRatOR .
-
Page 4: Pre-Installation Check List
pre-installation CheCk list maximum size of Gate per sinGle leaf for the slD-24V-D if this gate operator is installed on a gate that is too heavy it may not work properly. aluminium Gates with Open Bar cladding 200mm rise 8m wide 6m wide aluminium Gates with aluminium or timber Slats or Steel Gates with Open Bars 100mm rise... -
Page 5: Gate Operator Frequency Of Use
Gate operator frequenCy of use this gate operator is rated for ReSiDentiaL anD LiGht cOmmeRciaL OnLy, which maximum five households carpark spaces for a commercial building. any more than this and the life span of the operator can be reduced. the warrantee does not cover wear and tear due to average use of more than 60 operations per day. -
Page 6: Important Safety Instructions
important safety instruCtions! cOnSiDeRinG the GeneRaL PuBLic: when installing an automatic gate that will be entered from a public road way, make sure the Gate is placed far enough from the road to prevent traffic congestion. the gate must be installed in a location that provides adequate clearance between it and adjacent structures when opening and closing to reduce risk of entrapment. -
Page 7: Tools And Hardware Required
tools anD harDware requireD the tOOLS yOu’LL neeD incLuDe: a basic set of hand tools will be needed including: side cutters, pliers, wire strippers, a range of phillips head screw drivers, a small flat head screw driver for terminal block screws and a socket set. you’ll also need a tape measure, marking pen, an elecric drill with hammer action and variable speed control, a 10mm hammer drill bit and socket bit for 10mm or 3/8”... -
Page 8: Preparing The Gate
preparinG the Gate guides must move easily for entire length of gate. keeper between gates to be aligned correctly gates must be straight not twisted or bowed. open hard stops gate track must be straight, required to set gate should nOt run or catch power point (if used) each gates open on the track. - Page 9 automatiC operator fittinG requirements extra gate length for automatic driveway operator lawn or garden 300mm guide post if used front fence/wall gate concrete footing and pad 250mm concrete gate lawn or garden 400mm operator conduit for power cable to come out of concrete pad here 200mm if power is hardwired.
-
Page 10: Accessories That Can Be Added
aCCessories that Can be aDDeD SaFety PhOtOceLL photocells are a safety device that prevent the gate from closing on a vehicle. they are highly recommended if using the auto-close feature, as the gate may close at any time. a photocell consists of an invisible low power infrared point to point Beam transmitted from one side of a gate to the other. -
Page 11: Digital Keypad And/Or Intercom
DiGitaL keyPaD anD/OR inteRcOm to allow access to visitors or tradesman any brand of digital keypad and/or intercom can be installed (provided the intercom has a door release feature). an intercom allows visitors to call the a digital keypad allows access to house and speak with the occupier. -
Page 12: Cabling Requirements
CablinG requirements BaSic caBLinG GuiDe open direction power required on One SiDe OnLy master gate slave gate operator operator FuLL caBLinG GuiDe RiGht hanD Gate intercom power required on One SiDe OnLy digital keypad photocell master gate slave gate operator operator ground loop digital keypad,keyswitch... -
Page 13: Type And Size Of Cable
tyPe anD Size OF caBLe For the non Battery Version Power power is supplied by an outdoor power point fitted on a free standing post in front of the gate near the operator. check with local regulations before installing a mains voltage power point yourself, you may need a registered electrician to do this for you. -
Page 14: How It Works
how it works the sld-24v-d gate operator consists of an electro-mechanical master operator with built in electronic controls and a slave operator for the other side that has no electronics of it’s own as it is controlled by the master gear wheel from operator... -
Page 15: Steps To Installing The Sld-24V-D
9 steps to installinG the slD-24V-s step 1 - install CablinG check with local regulations before installing a mains voltage power point yourself, you may need a registered electrician to do this for you. normally any cable for voltage lower than 32vac or 50vdc you can do your self without a license. -
Page 16: Tips For Running Low Voltage Cable Yourself
tiPS FOR RunninG LOw VOLtaGe caBLe yOuRSeLF. always use conduit if running cable in grass, open ground, gardens or pebbles. conduit should be buried deep enough so it is out of harms way. for existing lawns, pebbled areas or if run along side a driveway then buried just below the surface is fine. -
Page 17: Check Height Of The Operator
check heiGht OF the OPeRatOR if the mounting holes for the rack are with each operator sitting on it’s below the bottom edge of the gate, concrete pad (not fixed in place yet), then the operator will need to be place a length of rack on each gear raised up. -
Page 18: Fix The Operator In Place
Fix each OPeRatOR in PLace fix each operator to it’s concrete pad using m10 x 50mm dyna bolts or longer if the operators height had to be raised. use galvanised dyna bolts if you can so they won’t rust. large raw plugs and galvanised screws may also be used if prefered. -
Page 19: Step 3 - Fit The Rack To The Gate
step 3 - fit the raCk to the Gate Before fitting any rack, lay it out in front of each closed gate to see how it lines up. start at the operator end, with the first length sitting on the operators gear wheel, adjusting the position of the rack as you go to make sure the mounting lugs miss the wheels. - Page 20 tek screw in centre of slot move the gate by hand until each of the tek screws are close to the gear wheel and adjust the height of the rack until it has about 1mm clearance above the gear wheel. tighten the tek screws fully once the height is correct.
- Page 21 length slotted into the first drill tek screw in on an angle to close gap between lengths of rack now fit the 2 nd length of rack by sliding the gate open a bit further and placing it so one end is slotted into the first length and the other end is sitting on the operators gear wheel, allowing enough room to drill another tek screw in.
- Page 22 once all lengths are tacked in place and the gate is opened and closed to check the rack overlaps the gear wheel at all times then cut off any access rack using an angle grinder or hack saw. the rack may be plastic on the outside but it has a steel rod in the middle.
-
Page 23: Step 4 - Terminate Cabling
step 4 - terminate CablinG SLD-24V-D GeneRaL wiRinG DiaGRam these Jumper shunts overide the normally closed inputs, remove n.o. relay antenna only once gate limits are set out from learn p/Bs intercom learn p/Bs for for limits and or press sheild remote controls preferences... -
Page 24: Checking The Gate Direction
checkinG the Gate DiRectiOn the master gate operator is prewired for a left hand gate. open direction left hand gate and the slave operator is prewired for a right hand gate. open direction right hand gate e-gate control Board if the gates are travelling in the wround direction you can easily unplug and swap the terminals around. -
Page 25: Terminating The Battery And Charger (Battery Versions Only)
teRminatinG the BatteRy anD chaRGeR (BatteRy VeRSiOnS OnLy) unplug the Battery and charge terminals and connect the necessary cables. leave them unplugged until such time as you are ready to power up. e-gate control Board 24v ac charge transformer or warninG! solar panel BLack... -
Page 26: Terminating A Photocell
teRminatinG a PhOtOceLL safety photocells use a ‘normally closed’ connection to the control board. if a photocells light beam is broken while the gate is closing, the gate will reverse back open. the gate will not close while the photocells light beam is broken and if the photocell closing control option is activated (dip 3 on), once the photocell is clear the gate will close immediately or can be delayed. -
Page 27: Terminating Digital Keypad, Key Switch Or Press Button
teRminatinG DiGitaL keyPaD, key Switch OR PReSS ButtOn a digital keypad, key switch, press Button or any other clean contact normally open (no) device can be used to activate the gate. if a digtial keypad has two or more relay outputs, then these can be used for different operational functions such as open with manual close, open with auto-close or pedestrian only access with auto-close. -
Page 28: Terminating A 7-Day Timer, Digital Keypad Or Keyswitch
teRminatinG a 7-Day timeR, DiGitaL keyPaD OR keySwitch tO hOLD the Gate OPen. a 7-day timer, digital keypad, key switch or any other clean contact normally closed (nc) device can be used to hold the gate open. Because this is a normally closed connection all devices must be off (contact closed) before the gate will close. -
Page 29: Step 5 - Set The Close Limit With The Magnet
step 5 - set the Close limits with the maGnet with each gate set in the desired closed position, screw the magnet to the rack in line with the reed sensor in the operator and spaced 5mm to 10mm clear of the operator. one only screw fitted to open end magnet open... - Page 30 close to set the close limit you must first power the Gate operator up. make sure the control board input shunts are On. if you have the non Battery version, plug the operator in and turn it on, if you have a Battery version plug in the battery and charge terminals on the control board.
-
Page 31: Step 6 - Tune The Remote Controls In
step 6 - tune the remote Controls in Button a is the main button on the remote control for opening the gate. the other buttons can be used for other options or opening a garage door (e-gate rX-1 receiver required). each remote control transmits a unique digital code. -
Page 32: Remote Controlled Pedestrian Entry
RemOVinG RemOte cOntROLS to remove one remote control button press the osc learn button, a beeper will start beeping, then press the already learned remote control botton you wish to remove, the beeper will beep more rapidly for a second to confirm removal. if you don’t have the remote control then you must remove all remote controls and re-learn the ones you have. -
Page 33: Step 7 - Learn Gate Open Limit
step 7 - learn Gate open limit eaCh Gates open limit must be top rh corner of control board learneD before the operator will learn work properly. the control board has a special function for learning the gate limits automatically. hard stops must be used with any sliding gate just in case the gate is manually released all dip switches... -
Page 34: Step 8 - Activate And Test Accessories
step 8 - aCtiVate anD test aCCessories any intercoms, key switches, press buttons or digital keypads connected to the osc, ped, or close inputs can now be tested. the osc input opens, stops and closes the gate. the ped input opens the gate part way, then will close automatically after the ped-close delay. -
Page 35: Step 9 - Fine Tune Gate Operator Preferences
step 9 - fine tune Gate operator preferenCes the dip switch and learn Button have a secondary purpose, which is to make changes to the control Boards preferences. once the preferences have been set the dip switches should be returned back to the way the were for normal operation. -
Page 36: Changing The Pedestrian-Close Delay
chanGinG the PeDeStRian-cLOSe DeLay with DiP Switch 4 only On, press the LeaRn top rh corner of control board button and a Beeper will start beeping, it is not learn necessary to hold the learn button. now wait for the desired Pedstrian close delay and press the Learn button again. -
Page 37: Changing The Level Of Soft Start And Soft Stop
chanGinG the LeVeL OF SOFt StaRt anD SOFt StOP there are 10 levels of soft start/stop numbered from top rh corner of control board 1 to 10. the factory setting is 5, 1 being least and 10 learn being the most. with DiP Switch 6 only On, press the LeaRn switch button and the control board will beep out the current... -
Page 38: Return To Factory Settings
returninG to the faCtory settinGs top rh corner of control board if you get into trouble and want to return everything back to the way it was before you started you can learn restore the factory settings by turning all dip switches on and pressing the learn Button. -
Page 39: Trouble Shooting
aCCessories tX-4 extra remote controls for either 433.92mhz (Blue) or 315mhz (white) rX-1 stand alone receiver - to allow a garage door or another brand of gate operator to be operated with the e-gate remote control ether 433.92mhz or 315mhz. rX-mega stand alone receiver for a large number of users allows use of up to 1000 remote controls. -
Page 40: Warranty
warranty a 2 year Back to Base warranty is offered by grant’s automation for any defect in a gate operator system manufactured by grant’s automation or any third party component supplier to grant’s automation due to faulty workmanship or materials causing the operator to fail to work as specified in this installation manual.
