SecurityCommand XRSUPER6 User Manual page 8

Clear Touch™ Keypads
32-Character
Display with
Four Touch
Select Areas
F R I I 2 51 A A M :
Logo
Icon
Three Panic Icons

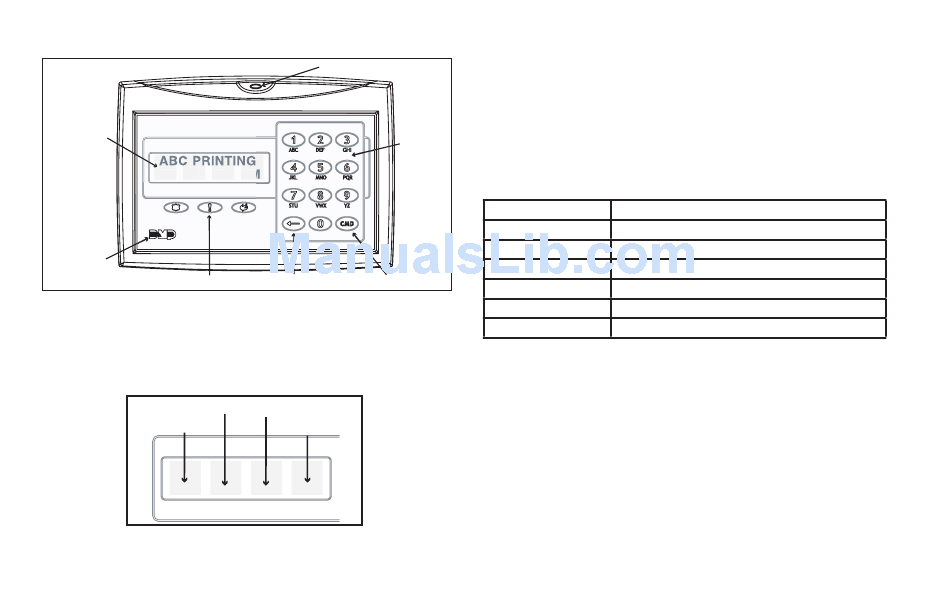

Clear Touch™ Keypad
Clear Touch™ Select Areas — There are four Select Areas
in the display. These Select Areas are one of the features that
make your system so easy to operate. They allow you to make
selections by touching the area to choose the item in the display.
Select Area 2
Select Area 1
32-Character Display
Touch Select Areas
4
AC Power/Armed LED
Data Entry
Digit Keys
Back Arrow Key COMMAND Key
Select Area 3
Select Area 4
www.BevanSecurity.com
XRSuper6 User's Guide
Note: For the purposes of this guide when using Clear Touch™
Keypads, when instructed to press the first Select area, touch
Select Area 1; the second Select area touch Select Area 2; third
Select area touch Select Area 3; and the fourth Select area touch
Select Area 4.
AC Power/Armed LED
The LED indicates the Power and Armed status of the panel.
Depending on the operation, the LED displays in Red or Blue as
listed in the table.
Color and Activity LED Operation
Blue Steady Panel Disarmed, AC Power OK, Battery OK
Blue Blinking Panel Disarmed, AC Power OK, Battery Fault
No Light Panel Disarmed, AC Power Fault, Battery OK
Red Steady Panel Armed, AC Power OK, Battery OK
Red/Blue Alternate Panel Armed, AC Power OK, Battery Fault
Red Blinking Panel Armed, AC Power Fault, Battery OK
Common Keys on All Keypads
Data Entry Digit keys
These keys allow you to enter your user code when arming or
disarming or enter other information into the system.
COMMAND (CMD) key
The COMMAND key allows you to advance through the keypad
displays, User Menu, or complete a data entry function.
(<—
Back Arrow ) key
The Back Arrow (<—) key is used to go back through the keypad
displays while operating your system. You can press the Back Arrow
key to back up through the list of functions in the User Menu or to
erase the last character you entered.
Introduction
