MyGica LDA-9000 Quick Installation Manual

Step 1: Choose input on remote control
Press "Source" button to choose from TV Input Mode/DVD Composite Video Mode/S-Video Mode
/Component Video Mode/PC VGA Mode. Or you can press the "Source" button on the box to choose the
same.
Step 2: Watching TV
a. Choose TV mode and press the "Menu" button
b. Under "Channel" section, highlight the "Cable system" and select "Standard". Press the menu button
again to return to the main menu.
c. Highlight "antenna" , choose <Air> if you use the antenna directly or choose <Cable> if you connect
to cable box.
d. Highlight "Auto Program" and start a full scan of channels.
e. Under the "Video" section, highlight "picture mode" and select "Standard".
Step 3: choose the correct resolution
a. if you use DVI cable to LCD Monitor, Press the "DVI" button on the remote to choose the
480P/720P/1080i resolution;
b. if you use DVI to HDMI adapter and a HDMI cable to LCD Monitor, Press the "HDMI" button on
the remote to choose the 480P/720P/1080i resolution;
c. if you use DVI to VGA adapter and a VGA cable to LCD Monitor, Press the "VGA" button on the
remote to choose the resolution;
Step 4: plug in a 3.5mm speaker plug into the Line-Out jack on the back of the TV box.
Step 5: Connect "VGA in" with provided VGA cable to PC Desktop. (optional)

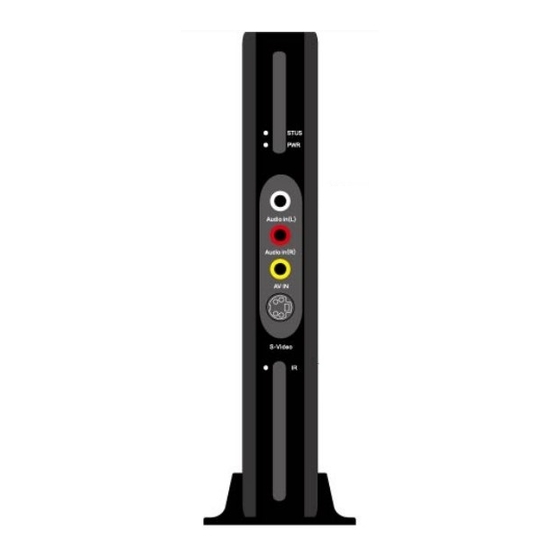

Defining the HDTV TV BOX Hybrid ATSC/QAM LDA-9000
Important Notice: "All channels are subject to coverage and may be changed from time to time. Reception
may depend on the type and condition of your existing aerial. Aerial upgrade may be required. Please
confirm coverage in your area." We strongly recommend that you install an outdoors antenna when you use
the DTV receiver indoors.
Mygica LDA9000 is a ATSC/NTSC/QAM TV box for watching free to air HDTV (ATSC) and over the cable clear
QAM digital TV on your monitor. The compact unit easily turns your monitor plasma display or projector all that has
a VGA input connector devices into a HDTV set with small footprint. You can easily switch the monitor to be a
console between digital TV and your PC. Easy and quick! With its DVI-A to HDMI converter, you can easily hook up
HDTV box to either one of your HDMI display!
Quick Installation Guide on LDA-9000 HDTV Box
