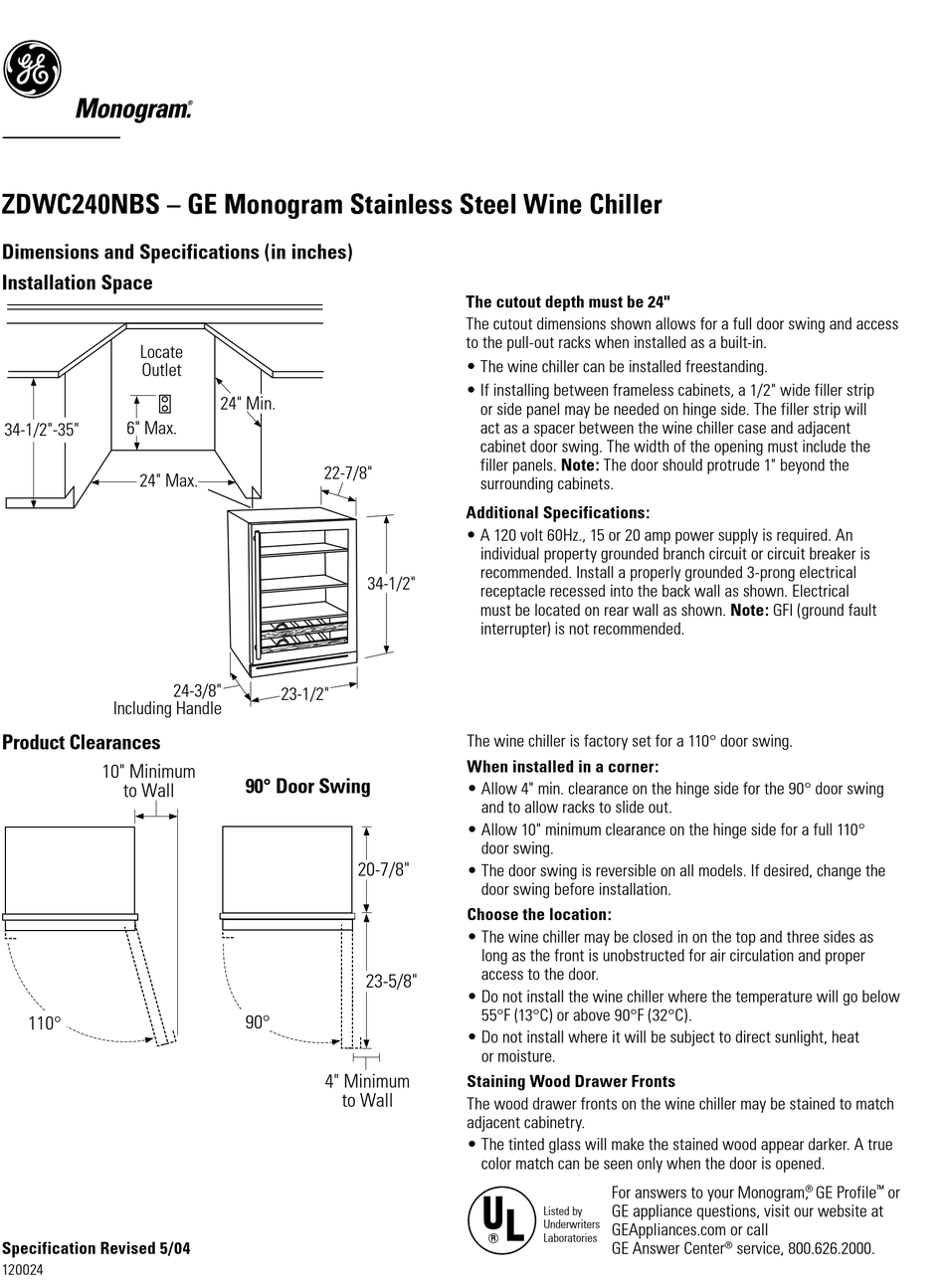

ZDWC240NBS – GE Monogram Stainless Steel Wine Chiller
Dimensions and Specifications (in inches)
Installation Space
6" Max.
34-1/2"-35"
Including Handle
Product Clearances
10" Minimum
to Wall
10" Minimum
to Wall
110°
110°
Specification Revised 5/04
120024
Locate
Outlet
24" Min.
22-7/8"
24" Max.
24-3/8"
23-1/2"
90° Door Swing
90°
4" Minimum
The cutout depth must be 24"
The cutout dimensions shown allows for a full door swing and access
to the pull-out racks when installed as a built-in.
• The wine chiller can be installed freestanding.
• If installing between frameless cabinets, a 1/2" wide filler strip
or side panel may be needed on hinge side. The filler strip will
act as a spacer between the wine chiller case and adjacent
cabinet door swing. The width of the opening must include the
filler panels. Note: The door should protrude 1" beyond the
surrounding cabinets.
Additional Specifications:
• A 120 volt 60Hz., 15 or 20 amp power supply is required. An
individual property grounded branch circuit or circuit breaker is
recommended. Install a properly grounded 3-prong electrical
34-1/2"
receptacle recessed into the back wall as shown. Electrical
must be located on rear wall as shown. Note: GFI (ground fault
interrupter) is not recommended.
The wine chiller is factory set for a 110° door swing.
When installed in a corner:
• Allow 4" min. clearance on the hinge side for the 90° door swing
20-7/8"
and to allow racks to slide out.
• Allow 10" minimum clearance on the hinge side for a full 110°
door swing.
20-7/8"
• The door swing is reversible on all models. If desired, change the
door swing before installation.
23-5/8"
Choose the location:
• The wine chiller may be closed in on the top and three sides as
90°
long as the front is unobstructed for air circulation and proper
access to the door.
23-5/8"
• Do not install the wine chiller where the temperature will go below
4" Minimum
55°F (13°C) or above 90°F (32°C).
to Wall
• Do not install where it will be subject to direct sunlight, heat
or moisture.
Staining Wood Drawer Fronts
to Wall
The wood drawer fronts on the wine chiller may be stained to match
adjacent cabinetry.
• The tinted glass will make the stained wood appear darker. A true
color match can be seen only when the door is opened.
R
For answers to your Monogram,
GE appliance questions, visit our website at
Listed by
Underwriters
GEAppliances.com or call
Laboratories
GE Answer Center
®
GE Profile
or
®
service, 800.626.2000.
