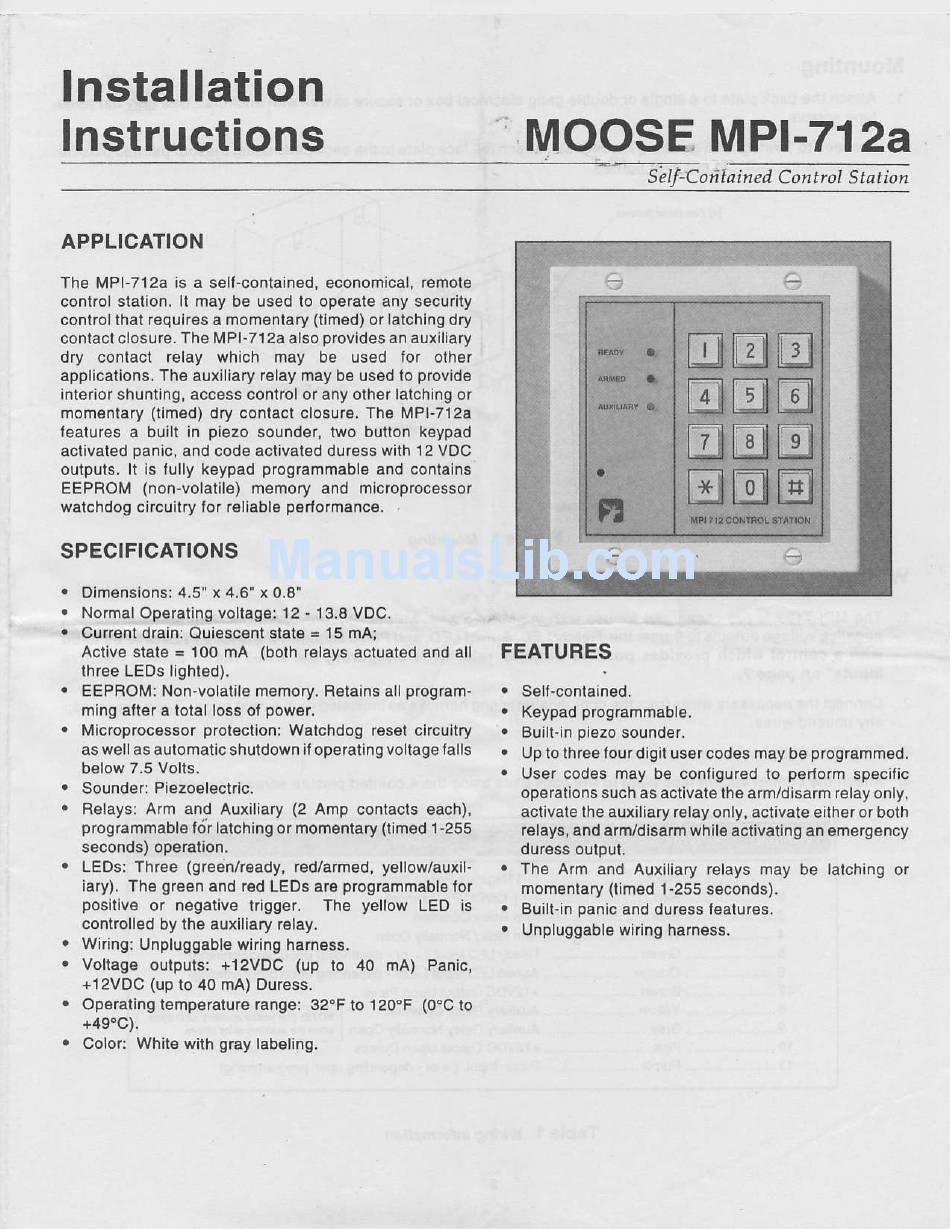

MOOSE MPI-712a Installation Instructions Manual

lnstallation
lnstructions
"'MOOSEMPI-712a
S eU-CoiI ai ned C o n tro I S t a t io n
APPLICATION
The MPF712a is a selFqontain6d, economical, remole
control slalion. lt may be used to operate any security
controlthal requires a momentary (timed) or latching dry
conlact closure. The MPI-712a also provides an auxiliary
dry contact relay which may be used lor other
applications. The auxiliary relay may be used lo provide
interior shunting, access control or any olher latching or
momentary (timed) dry contact closure. The MPI-712a
features a buill in piezo sounder, two bulton keypad
actlvated panic, and code activated duress with 12 VDC
outputs, lt ls fully keypad programmable and conlalns
EEPROM (non-volatile) memory and mlcroprocessor
',vatchdog circuitry f or aeliable poatormance.
SPECIFICATIONS
Oim€nsionsi 4.5" x 4,6" x 0.8'
Normal Operating voltage: 12 . '13,8 VDC.
Current draln: Ouiesc€nl slat6 : 15 rnA:
Actlve stste = '100 mA (both r€lays actuat€d and all
thr6e LEDs lighted).
EEPROM: Non-volatile memory, Botains all program-
mlng att€r a total loss ol power,
Mlcroprocessor protectlon: Watchdog res€t clrcultry
a6 wellas aulomatic shuldown itopgrating voltage falls
below 7.5 Volls.
Sounder: PlEzoeleclrlc.
Relays: Arm an_d Auxiliary (2 Amp contact6 each),
programmable lor lalching or mom€niary (tim6d 1 -255
s6conds) op€rallon.
LEDs: Thr€e (gre.jn/roady, redlarmed, yellow/auxil-
iary). The green and r6d LEDS ar6 prcgrammable lor
positive or negative trigger. The yellow LED is
controlled by the auxiliary relay.
Wiring: Unpluggable wiring harnes6.
Voltage oulputs: +12VDC (up to 40 lnA) Panic,
+l2VDC (up to 40 mA) Duress.
Operating temperature range: 32"F to 120.F (0.C to
+49"C).
Color: Whit€ with gray labeling.
FEATURES
. Sell-contained.
. Keypad programmable.
. Built-in piezo sound€r,
. Up lo thr€e lour digit usor codes may be programmed.
. User codes may be configured to perlorm specilic
op6rations such as actlvate the arm/disarm relay only,
activate the auxiliary relay only, activate eitheror both
relays, and ar[Vdisarmwhile activating an emergency
dur6sa outout.
. Tho Arm and Auxiliary relays may be latching or
momentary (timed l -255 seconds).
. Buill-in panic and duress featurcs.
. Unpluggable
wiring harness.
