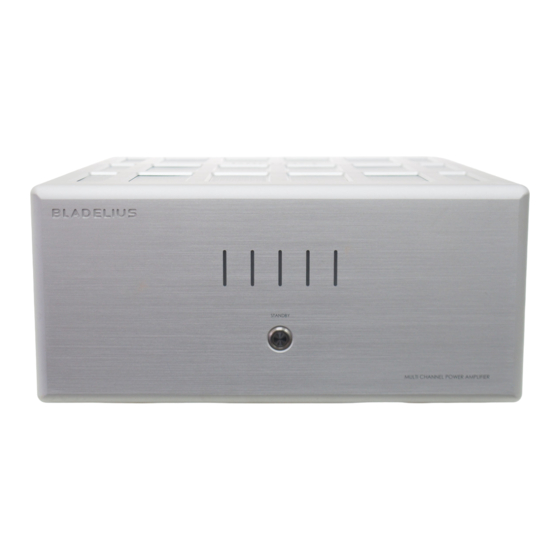

- Page 1 BLADELIUS GRENDEL Multi Channel Amplifier Instruction & Installation Manual...
-
Page 2: Safety Instructions
Safety Instructions (standard set of safety instructions “boiler-plate” goes here) Attention: Installation Personnel Due to the high-power capability of the Grendel amplifier, the power supplies are heavy and may require more than one installation person to rack-mount the amplifier. NOTE: The amplifier’s weight must always rest on its bottom feet when placed on to a surface. - Page 3 “mono” or “stereo” performance modules. There are five available locations (slots) for power modules in your Grendel amplifier. It’s possible for Grendel to accommodate any combination from 1 to 10 channels. The mono module produces 400 watts. The stereo module provides 2 channels {left/right}, rated at 140 watts /channel.
- Page 4 If the Grendel stays in protection mode you might need to replace a fuse or have the amplifier checked by a qualified service technician. If you have any questions about the operation of the amplifier we recommend that you consult your dealer.
- Page 5 The Grendel is equipped with 2 trigger jacks (3.5mm monotype miniature phone jack). The TRIGGER allows you to control other products with a sensor, by the Grendel amplifier. The centre pin of each jack is the signal- sense and signal-drive. We recommend that you use a good quality cable...
- Page 6 Thus we recommend one should allow at least a one- rack-space below and above the amplifier as clearance, and that you allow more than 2 to 3 inches (5 to 7.5 cm) of space on all six sides of the Grendel amplifier.
- Page 7 Leave at least 2 to 3 inches (5 to 7.5 cm) on all sides of the amplifier so that the Grendel amplifier achieves adequate airflow. We strongly recommend that you do not block the side, top, back and front, airflow vents.
- Page 8 PHASING: Stereo speakers must operate “in phase” with each other to produce a focused stereo blend and to reinforce rather than cancel each other’s output at low frequencies. An in-phase connection is assured if the red (positive) terminal on the amplifier is connected to the red (positive) terminal on the loudspeaker in each channel.
- Page 9 The Protection mode is engaged. Switch amplifier off. Make sure • • ventilation slots on top, side, and back of the amplifier are not blocked. After amplifier has cooled down, switch the amplifier on. External fuse blown. Replace fuse. • •...
