Vestax TR-1 Service Manual

Vestax TR-1 Service Manual

Dm & ex
Hide thumbs Also See for TR-1:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Features:
> Selectable deck control (Max 4 channels)
> Can control up to more than 160 parameters of compatible software
> New SHIFT switch feature to customize deck control functions
> Smooth 60mm slide input faders for high-precision mixing
> module divided system compatible with any DJ style
MINIMUM SYSTEM REQUIREMENTS (Operating System)
Windows
• Windows XP (SP2, 32Bit) or Window Vista (SP1, 32Bit, 64Bit)
• CPU: Pentium 4 or Athlon 1.4GHz(SSE1) or better
•
RAM : 1GB or better
Macintosh
• Mac OS X 10.4 or higher
• CPU: Intel Core™ Duo 1.66GHz or better
• RAM: 1GB or better
POWER SUPPLY • OTHERS
POWER ADAPTOR :
VOLTAGE :
POWER CONSUMPTION :
DIMENSIONS :
WEIGHT :
SERVICE MANUAL
SPECIFICATION
DC 9V 500mA (option)
5V (USB POWER)
300mA
359(D) x 198(D) x 35(H)[45(H) with knobs]
2.6 Kg
MODEL:TR-1 (DM & EX)

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vestax TR-1

Summary of Contents for Vestax TR-1

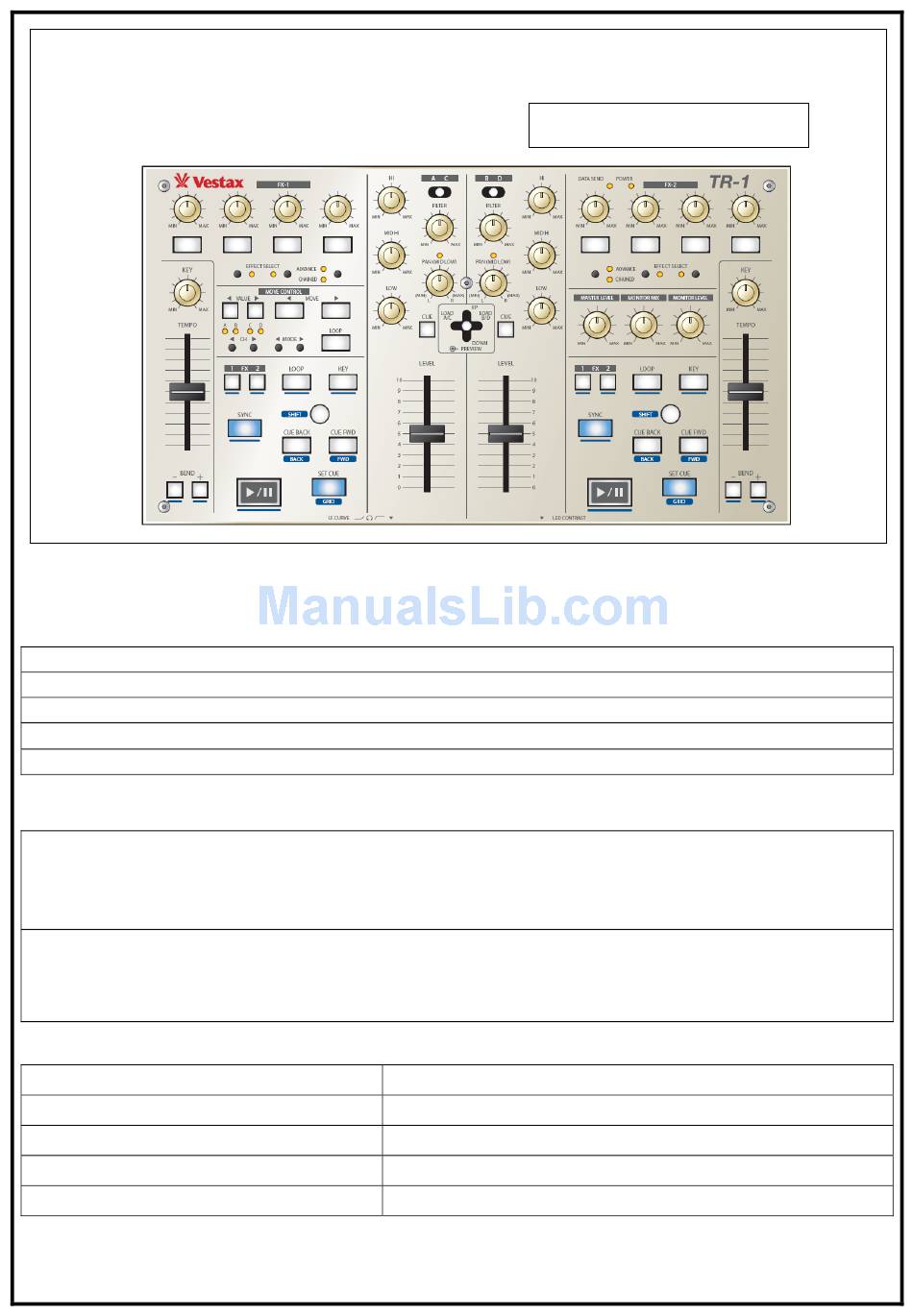

  • Page 1 SERVICE MANUAL MODEL:TR-1 (DM & EX) SPECIFICATION Features: > Selectable deck control (Max 4 channels) > Can control up to more than 160 parameters of compatible software > New SHIFT switch feature to customize deck control functions > Smooth 60mm slide input faders for high-precision mixing >...
  • Page 2 TR-1 TEST PROCEDURE (LED) Description Example Please prepare equipment as below: i. USB cable X 1 pcs ii. PC (with Midi-OX) X 1 pcs iii.SNC06 X 1 set Connect the equipement according to the figure 1 Cable SNC06 Figure 1 LED Test 1.
  • Page 3 TR-1 TEST PROCEDURE (VR) Description Example VR Test Press the 2 button as high ligthed on the figure 6. After turn on the power by swtich to USB like Figure 7. Figure 6 While pressing the button, both button that pressing will become red.
  • Page 4 TR-1 TEST PROCEDURE (VR) Description Example Move the (Figure 10) switch to UP. The above Pan LED will lights ON Figure 10 Move the (Figure 11) switch to DOWN. The CUE LED will lights ON Figure 11 Move the (Figure 12) switch to LEFT.
  • Page 5 TR-1 TEST PROCEDURE (USB) Description Example USB Test Power On the set and click on the MIDI-OX programe. The software will prompt out. Start to turn the VR, VR from Min Data2 from Screen will show 00 turn to Max will turn to 7F.
  • Page 12 TR-1 (DM & EX) BOM Item # Specs P.Location 1 BAYV-201010 FADER CAP (B)/BLACK/WHITE 1 CGSNC06313SNL01 INNER CARTON (SNC06) 1 CTSNC06513SNL01 MASTER CARTON (SNC06) 0.25 1 GE39TMV01 GUARANTEE CARD For DM Only 1 GE39TMV02 CUSTOMER INSTRUCTION CARD For DM Only...
  • Page 13 Item # Specs P.Location 4 PT111040105 HOLDER LED 10.5MM LD100, 101, 164~177 4 R10216T5 RESISTOR 1K 1/16W R100, 101, 106~111 4 R10316T5 RESISTOR 10K 1/16W R138~145 4 R12116T5 RESISTOR 120 OHM 1/6W R103, 122 4 R56116T5 RESISTOR 560 OHM 1/6W R102, 113 4 R68016T5 RESISTOR 68 OHM 1/6W...
  • Page 14 Item # Specs P.Location 3 RS05K610F03 CHIP RES. 5.6K Ω 1% SMD 0603 3 SWSV68010F-0203 ON/OFF SLIDE SWITCH DOUBLE LINE 3T 3 TE682000621 S6B-PH-SM4 3 TE682000721 S7B-PH-SM4 3 TE682001021 S10B-PH-SM4 3 TE682001121 S11B-PH-SM4 3 XTM16000X6 CRYSTAL 16MHZ 49U SMD ROHS...
  • Page 15 A/ C B/ D IC110 SW_DATA_READ_A1 SW_DATA_A0 SW_DATA_A1 SW_DATA_A2 SW_DATA_A3 SW_DATA_A4 SW_DATA_A5 SW_DATA_A6 SW_DATA_A7 SW_DATA_A0 SW_DATA_A1 SW_DATA_A2 SW_DATA_A3 SW_DATA_A4 SW_DATA_A5 SW_DATA_A6 SW_DATA_A7 TC74HC573AP R138 R139 R140 R141 R142 R143 R144 R145 Model TR-1 Panel Sheet Vestax Corporation YANO CIRCUIT LABO 28-Nov-2008...
  • Page 16 R105 R134 R135 R136 R137 R102 DATA_SEND LD10 Q120 Q102 Q121 Q122 Q123 Q103 Q104 Q124 Q125 Q126 Q127 DTC114YSA DTC114YSA DTC114YSA DTC114YSA DTC114YSA DTC114YSA DTC114YSA DTC114YSA DTC114YSA DTC114YSA DTC114YSA Model TR-1 Panel Sheet Vestax Corporation YANO CIRCUIT LABO 28-Nov-2008...
  • Page 17 AN3_06 RKJXK122400Y AN3_00 AN3_01 AN3_02 VREF VREF VREF AN3_03 SEL_A AN3_04 SEL_B AN3_05 VR149 VR152 VR155 SEL_C AN3_06 AN0_07 RK09D1130C1B AN1_07 RK09D1130C3W AN2_07 RA60D1F-220-15C1-B10K-0056 MONITOR_LEVEL B-KEY B-TEMPO TC4051BP SW_SCAN6 SW_DATA_A3 Model TR-1 Panel Sheet Vestax Corporation YANO CIRCUIT LABO 28-Nov-2008...
  • Page 19 \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R...
  • Page 20 \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R \R...
  • Page 21 i i i...
  • Page 29 r r r r...
