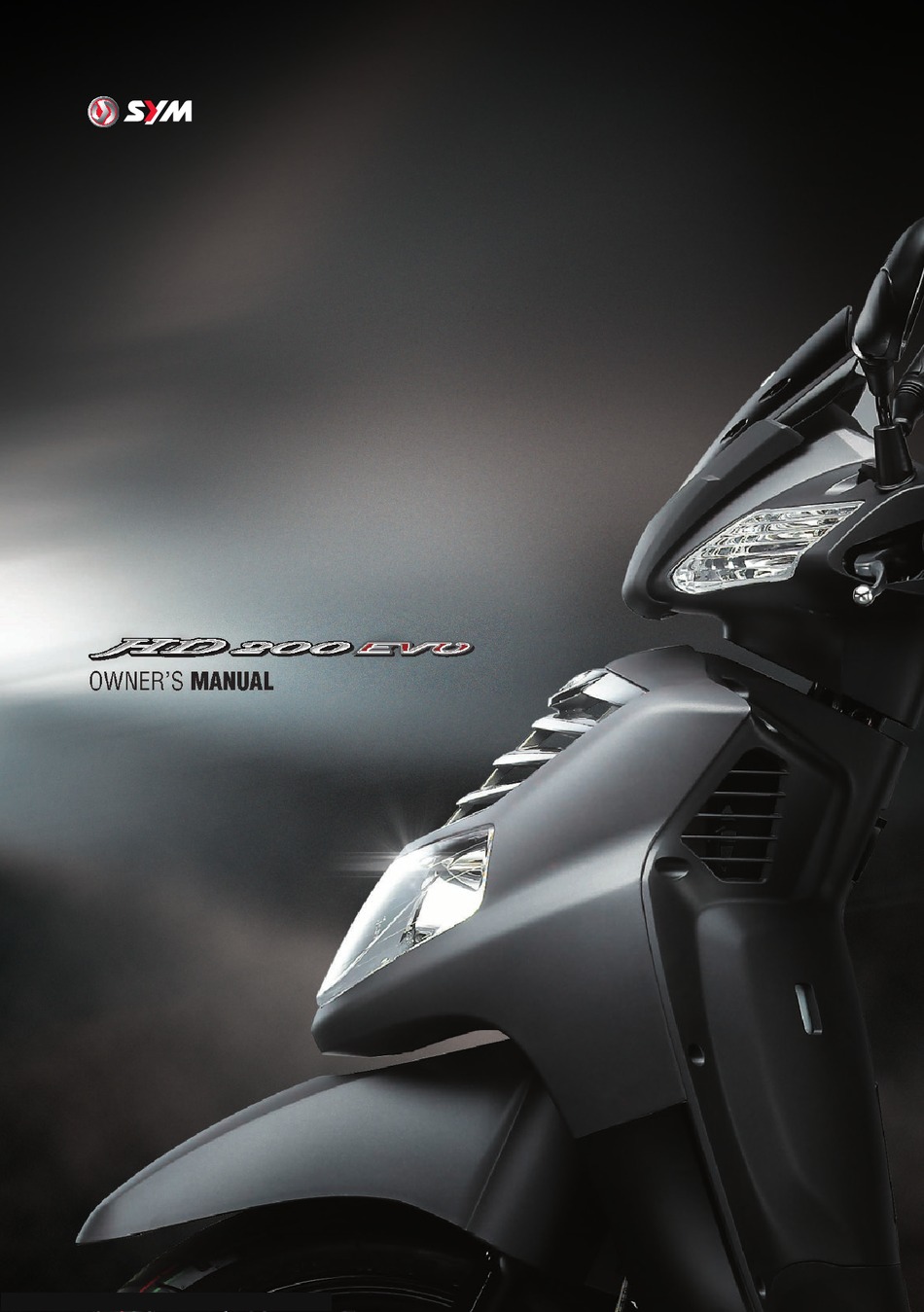

- Page 1 OWNER’S MANUAL...
-
Page 2: Safety Information
Ÿ The safety, stability and handling of this motorcycle may be adversely affected by the addition of accessories or luggage. Ÿ Do not install accessory or replacement parts not approved by sym. Ÿ Failure to follow these warnings could lead to an accident, serious injuries or death. - Page 3 4. SAFETY DEFECT REPORT SANYANG INDUSTRY CO., Ltd. NO. 3,chung-Hua Road Hukou Shiang Hsin-Chu County, 303 Taiwan, R.O.C Reporting Safety Defects If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Sanyang Industry Co., Ltd.
-
Page 4: Table Of Contents
1. Contents ......................... 1 2. Control Location ....................... 3 3. Before Riding ........................4 4. Safe Riding ........................5 5. Riding ..........................6 6. Use Genuine Spare Parts ....................6 7. Use of Each Component ....................7 ..........................7 Gauges .................... - Page 5 ................22 Checking the Turn Signal Lights and Horn ................22 Checking the Headlight and Tail Lights ....................23 Checking the Brake Light ....................Checking the Spark Plug ... 23 A reference table for anti-freeze concentration percentages under different temperatures ....................
-
Page 6: Control Location
Light / Starter switch Fuses box Storage box Headlight C.D.I. / Battery Passing / High & Low beam / Turn signal / Horn switch Turn signal light Helmet hook Fuel tank cap Frame number Tail light/ Turn signal light Air cleaner Engine number Side stand Main stand... -
Page 7: Before Riding
This manual describes the correct usage of this scooter including safety precautions to ensure your personal safety while operating this scooter. Please read this manual carefully and completely before operating this scooter. Familiar yourself with these precautionary measures before you start riding. Do not attempt to operate this scooter until you have attained adequate knowledge of its controls and operating features and have received adequate training in safety and proper riding techniques. -
Page 8: Safe Riding
It is very important to be alert and wear proper clothing when operating this scooter. Observe all traffic regulations and signs, do not rush, and always ride carefully and obey all traffic signs and signals. Usually, most people would ride their newly bought scooter very carefully, but after they became familiar with their scooter, they tended to become reckless which may result in an accident. -
Page 9: Riding
Also, it may result in unexpected troubles and lower the scooter's performance. Ÿ Always use SYM Genuine Spare Parts to keep your scooter pure blood and to ensure its long service life. 5. Riding... -
Page 10: Use Of Each Component
Gauges Turn Signal Indicator Turn Signal Indicator Water temperature gauge Speedometer Fuel Gauge High Beam Indicator EFi Indicator Oil change indicator Clock / Voltage Odometer CAUTION: Ÿ Do not wipe plastic components, such as the instrument panel, the headlight, body covers, etc. with solvents, such as gasoline, etc. - Page 11 If the battery voltage is below 10.0V when the main switch is on, the light system is off and the engine is not started, check the battery at SYM dealer. Ÿ If the battery voltage is below 10.0V or over 16.0V when the vehicle is moving, check the battery at SYM dealer. 7. Use of Each Component...
-
Page 12: Operation Of Ignition Switch
Ÿ OPERATION OF IGNITION SWITCH “ON” position: Ÿ Engine can be started in this position. Ÿ Ignition switch key can not be removed. “OFF” position: Ÿ Engine is shut off and can not be started in this position. Ÿ Ignition switch key can be removed. position Ÿ... -
Page 13: Use Of Buttons
USE OF BUTTONS High/Low Beam Switch Passing switch Light Switches Turn Signal Switch Electrical Starter Button Horn Switch Ÿ Light Switches When the switch is turned to this position as the engine is being started, headlight, rear light, instrument panel light, and position light will come on. -
Page 14: Safety Helmet Hook
• High/Low Beam Switch This is the high and low beam of headlight switching switch. Press this switch to switch between high and low beams. This is for high beam. This is for low beam. (Please turn to low beam when riding in city) •... -
Page 15: Luggage Box
LUGGAGE BOX Ÿ This box is located under the seat. Ÿ Maximum load capacity: 10kg. Ÿ Do not store valuables in the box. Ÿ Please make sure that seat cushion had been locked completely after it was down. Ÿ Take out valuables before washing to avoid wetting these objects. Ÿ... -
Page 16: Important Points And Cautions For Starting Engine
CAUTION: Ÿ Check that the engine and fuel volumes are at adequate levels before starting the engine. Ÿ When starting the engine the main stand must be firmly on the ground and the rear brake must be engaged. This will prevent the scooter from suddenly jerking forward. Turn ignition switch key to the “ON”... -
Page 17: The Best Way To Ride Off
• Turn on the turn signal light before moving, and make sure no vehicle is coming from behind. Then, ride off. THE CONTROL OF THROTTLE VALVE HANDLE Acceleration : To increase speed. When riding Deceleration on an inclined road, turn the throttle Acceleration valve handle slowly to allow the engine to output its power. -
Page 18: Inspection And Maintenance Before Riding
Otherwise, damage will not be covered by Lower limit warranty. ※ Recommended Oil: SYM Genuine EXTRA 4X OIL. Ÿ Oil Capacity : 1.0 Liter (0.8 liters for routine change), oil filter change: 0.8 liters. 10. Inspection and Maintenance before Riding... -
Page 19: Inspection Of Fuel Level
Ÿ Install the drain bolt and tighten it. Fill new transmission oil (90~100 c.c.), and install the infusion bolt and tighten it. (make sure that bolts are tightened and check that there’s no leakage.) ※ Recommend Oil: Genuine SYM HYPOID GEAR OIL (SAE 85W-140). Ÿ Use SAE85-90 when outside temperature is below 0℃. -
Page 20: Inspection And Adjustment Of Brake Free Play
INSPECTION AND ADJUSTMENT OF BRAKE FREE PLAY INSPECTION: (Brake lever free play must be checked with the engine shut off.) Ÿ Brake lever free play for front and rear wheels. Ÿ When checking the hand-braking lever for front and rear wheels, its free play (the stroke of hand-braking lever from no braking to initial braking) should be 10~20mm. -
Page 21: Disk Brake Inspection
(Leak, damaged, looseness of brake line) Ÿ Visual Inspection for leakage or damage. If there is any, take your scooter to SYM Authorized Dealer or Franchised Dealer for a check or repair. Do not operate the scooter in this condition until the problem has been resolved. -
Page 22: Throttle Valve Handle Clearance Adjustment
THROTTLE VALVE HANDLE CLEARANCE ADJUSTMENT 2~6 mm Ÿ Correct clearance allows throttle vale handle to rotate 2~6mm. Ÿ To adjust, first loosen the fixing nut, then turn the adjusting nut to the proper position and securely tighten the fixing nut. Throttle Valve Check Items: Ÿ... -
Page 23: Steering Handle Front Shock Absorbers Inspection
Ÿ Check steering handle if it is being pulled too tight by the brake cables. Ÿ Take your scooter to SYM Authorized Dealer or Franchised Dealer for a check or adjustment if any abnormal conditions are found. 【Figures on the right are for operation checks only】... -
Page 24: Inspection And Maintenance Of Battery
INSPECTION AND MAINTENANCE OF BATTERY This scooter is equipped with a maintenance-free type battery, so it is unnecessary to check or Ÿ electrolyte. Have your scooter checked by SYM Authorized Dealer or Franchised Dealer should any abnormality be found. Ÿ... -
Page 25: Checking And Changing Fuses
CHECKING AND CHANGING FUSES Fuse box is on the frame body, remove the luggage box then you can see the fuse box is on the frame body right side. Turn off ignition switch, and check fuses if they are intact. Replace the blown fuse with a new one having the same specified amperage rating (20A or 15A or 10A). -
Page 26: Checking The Brake Light
(Refer to specifications.) A reference table for anti-freeze concentration percentages under different temperatures 1. Radiator anti-freeze specification for this scooter is H68. (SYM Bramax radiator agent) 2. Proper anti-freeze percentages for different frozen temperatures are as follows: Anti-freeze percentage... -
Page 27: Cooling System Inspection
Ÿ To avoid radiator getting rusty, do not use coolants other than those recommended. Coolant recommended: SYM Bramax radiator agent Concentration: 50% Radiator capacity: Main radiator : 780 c.c. Reserved tank : 420 c.c. -
Page 28: Checking The Air Cleaner
CHECKING THE AIR CLEANER 《DISASSEMBLE PRCEDURE》 1. Remove mounting screws from air cleaner cover. 2. Remove the air cleaner cover, then remove filter element. 3. Take the element out and clean it. (Refer to maintenance schedule.) 《ASSEMBLE PRCEDURE》 • Assemble the air cleaner in reverse order of disassemble. Element screws Cover screws CAUTION:... -
Page 29: When There Is An Abnormal Condition Or A Trouble
【Have your scooter checked by SYM authorized dealer or franchised dealer immediately if there are no problems with the above items and engine still can not be started.】... -
Page 30: Electrical Ignition System
Ÿ If the scooter is operated in high attitude (where the atmosphere pressure is lower), it is suggested that the air/fuel ratio should be readjusted to maximize the engine performance. 14. TRANSMISSION OIL Ÿ Recommended Oil: Genuine SYM HYPOID GEAR OIL (SAE 85W-140) Ÿ Use SAE85-90 when outside temperature is below 0℃ 15.Cautions for Riding Motorcycle 1. -
Page 31: Periodical Maintenance Schedule
☆The above maintenance schedule is established by taking the monthly 1000 kilometers as a reference which ever comes first. ※Have your motorcycle checked and adjusted periodically by your SYM Authorized Dealer or Franchised Dealer to maintain the motorcycle at the optimum condition. -
Page 32: Specification
Model Item LC12W1-6 LC12W2-6 LC18W1-6 LC18W2-6 Specification length 2,070 mm width 760mm Height 1,240 mm Wheel base 1,380 mm 145 kg Net Weight maximum load 296 Kg Type 4- stroke 4V single cylinder engine UNLEADED(OCTANE 90 OR HIGHER) Fuel Cooling type Water-cooled Displacement 124.5cc...
