THUNDER TIGER sukhoi 31 Assembly Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Enlarged version
MEMO
THUNDER TIGER CORP.
www.thundertiger.com
12

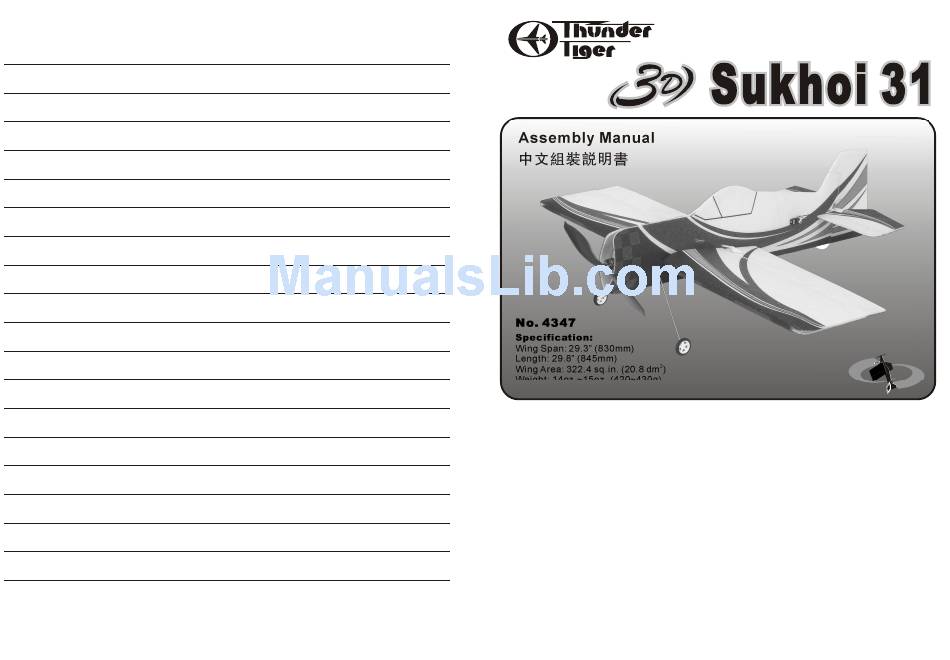

Assembly Manual
No. 4347
Specification:
Wing Span: 29.3" (830mm)
Length: 29.8" (845mm)
2
Wing Area: 322.4 sq.in. (20.8 dm )
Weight: 14oz.~15oz. (420~430g)
This kit is guaranteed to be free from defects in material and workmanship at the date of purchase.
It does not cover any damage caused by use or modification. The warranty does not extend beyond
the product itself and is limited only to the original cost of the kit. By the act of building this user-
assembled kit, the user accepts all resulting in liability for damage caused by the final product. If the
buyer is not prepared to accept this liability, it can be returned new and unused to the place of
purchase for a refund. Neither your dealer nor Thunder Tiger Distributors, can accept kits for return if
construction has begun.
Notice: Adult Super Vision Required
This is not a toy. Assembly and flying of this product requires adult supervision.
Read through this book completely and become familiar with the assembly and flight of this airplane.
Inspect all parts for completeness and damage. Browse www. thundertiger. com for customer service
if you encounter any problems.
