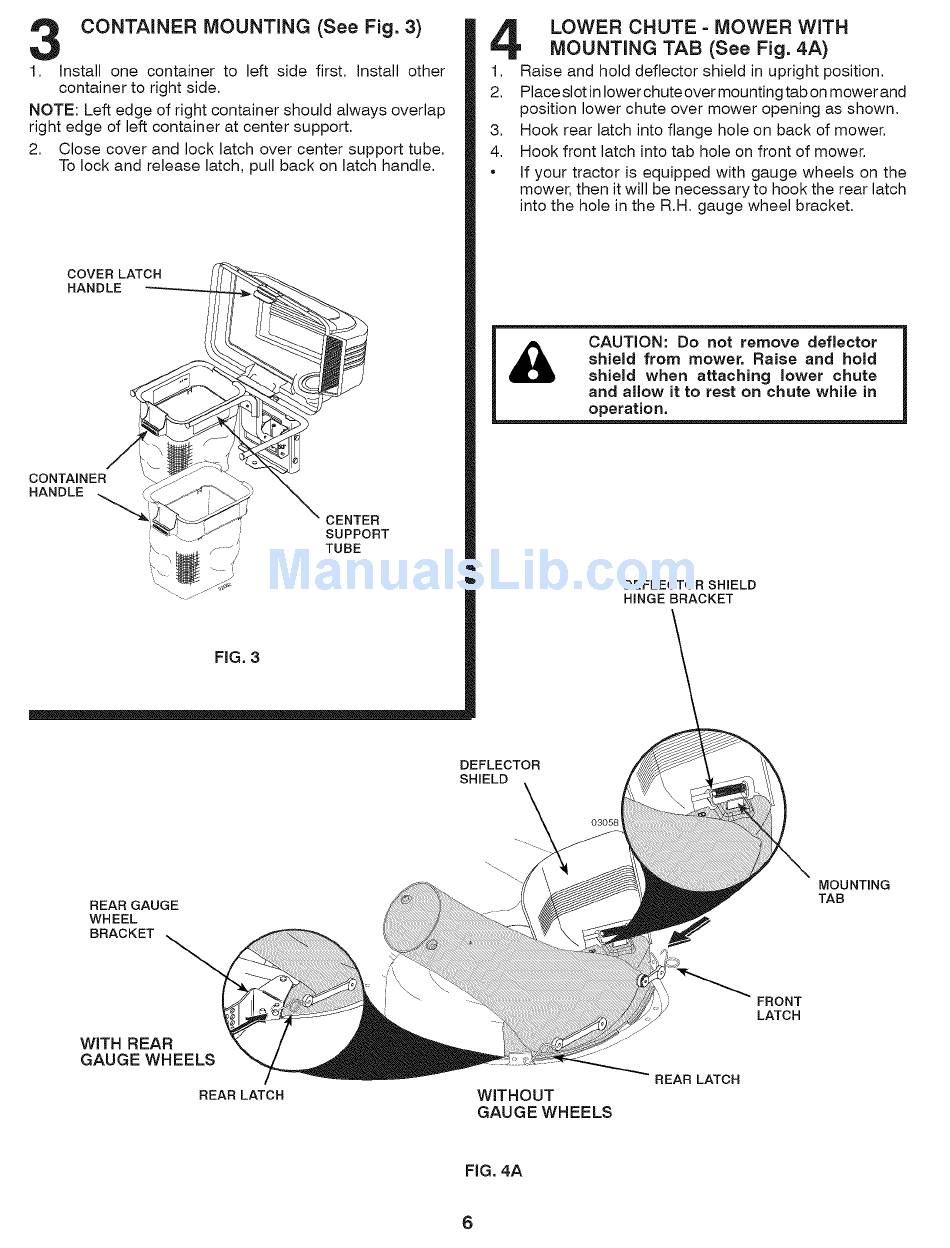

CONTAINER MOUNTING
(See
Fig, 3)
1, Install one container to left side first, Install other
container to right side,
NOTE: Left edge of right container should always overlap
right edge of left container at center support,
2, Close cover and lock latch over center support tube,
To lock and release latch, pull back on latch handle,
COVER LATCH
HANDLE
CONTAINER
HANDLE
CENTER
SUPPORT
TUBE
LOWER CHUTE - MOWER WITH
MOUNTING TAB (See Fig. 4A)
1. Raise and hold deflector shield in upright position.
2. Place slot in lower chuteover mounting tab on mower and
position lower chute over mower opening as shown.
3. Hook rear latch into flange hole on back of mower.
4. Hook front latch into tab hole on front of mower.
• If your tractor is equipped with gauge wheels on the
mower, then it will be necessary to hook the rear latch
into the hole in the R.H, gauge wheel bracket.
CAUTION: Do not remove deflector
shield from mower. Raise and hold
shield when attaching lower chute
and allow it to rest on chute while in
operation.
DEFLECTOR SHIELD
HINGE BRACKET
DEFLECTOR
SHIELD
REAR GAUGE
WHEEL
BRACKET
WiTH REAR
GAUGE WHEELS
REAR LATCH
WITHOUT
GAUGE WHEELS
REAR LATCH
MOUNTING
TAB
FRONT
LATCH
FiG. 4A
6
