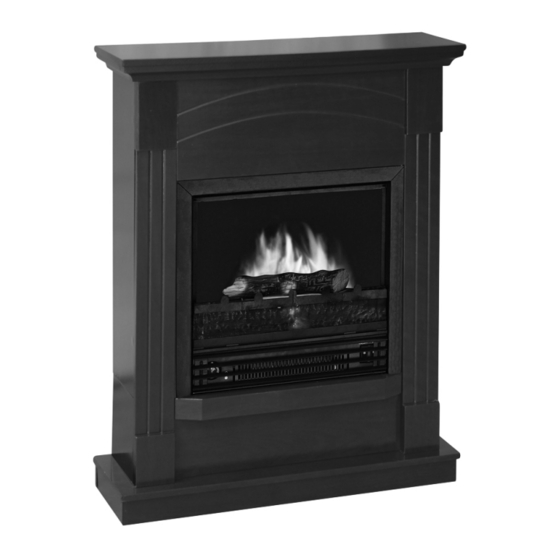

ELECTRIC FIREPLACE HEATER
Model: SOM995P-26FDC
IMPORTANT:
PLEASE NOTE, WHEN YOU OPEN THE CARTON CAREFULLY CHECK
THE UNIT AND MAKE SURE THERE IS NO DAMAGE. IF YOU HAVE ANY
PROBLEMS WITH ASSEMBLING THE UNIT, WITH HOW THE VARIOUS
FUNCTIONS WORK OR WITH DAMAGE OR MISSING PARTS PLEASE CALL
1-800-459-4409 (9:00AM - 5:00PM EST) IMMEDIATELY FOR SERVICE.
NOTE: DO NOT RETURN UNIT TO THE STORE BEFORE CALLING THE TOLL
FREE NUMBER. DO NOT DISPOSE OF YOUR PACKAGING CARTONS UNTIL
YOU ARE COMPLETELY SATISFIED WITH YOUR NEW ELECTRIC FIREPLACE
HEATER. READ ALL INSTRUCTIONS THOROUGHLY BEFORE OPERATING
YOUR NEW ELECTRIC FIREPLACE HEATER.
NOTE: Light bulbs may become loose during shipping. If the flame effect is dim or
does not work, please check that light bulb or bulbs are finger tight in socket. See
instructions for replacing bulb or bulbs.
INSTRUCTION MANUAL
ATTENTION:
1. Find a location for the electric fireplace heater that is protected from direct
sunlight.
2. Do not plug the unit into the power outlet before reading all instructions.
IMPORTANT SAFETY INSTRUCTIONS
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD
ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
AND INJURY TO PERSONS, INCLUDING THE FOLLOWING:
1) Read all instructions before using this electric fireplace heater.
2) This electric fireplace heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. The grill directly in front of the heater outlet
becomes hot during heater operation. Keep combustible materials, such
as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet
(0.9 m) away from the front of the unit and keep them away from the sides
and rear.
3) Extreme caution is necessary when any heater is used by or near children
or individuals with disabilities and whenever the fireplace is left operating
and unattended.
4) Always unplug electric fireplace heater when not in use.
5) Do not operate any electric fireplace heater with a damaged cord or plug or
after the heater malfunctions, has been dropped or damaged in any manner.
6) Do not use outdoors.
7) This electric fireplace heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate heater where it may fall
into a bathtub or other water container.
8) Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Arrange cord away from traffic area and
where it will not be tripped over.
9) To disconnect electric fireplace heater, turn controls to off, then remove
plug from outlet.
10) Connect to properly grounded outlets only.
11) Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage the heater.
12) To prevent a possible fire, do not block air intakes or exhaust in any
manner. Do not use on soft surfaces, like a bed, where openings may
become blocked.
13) A heater has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint, or flammable liquids are used or stored.
14) Use this electric fireplace heater only as described in this manual. Any
other use not recommended by the manufacturer may cause fire, electric
shock, or injury to persons.
15) Avoid the use of an extension cord because the extension cord may
overheat and cause a risk of fire. However, if you have to use an extension
cord, the cord shall be No.16AWG minimum size and rated not less than
1875 watts.
16) Caution: Do not plug this product into a receptacle controlled by a wall
switch or dimmer.
17) When storing or transporting the unit and cord, keep in a dry place, free
from excessive vibration and store so as to avoid damage.
SAVE THESE INSTRUCTIONS FOR FUTURE USE.
CAUTION:
IF YOU USE THIS HEATER IN CONJUNCTION WITH A THERMAL CONTROL, A
PROGRAM CONTROLLER, A TIMER OR ANY OTHER DEVICE THAT SWITCHES
THE HEATER ON AUTOMATICALLY, REMEMBER TO OBSERVE ALL SAFETY
WARNINGS AT ALL TIMES. THE FIREPLACE HEATER HAS SAFETY OVERHEAT
PROTECTION. IF THE OVERHEAT PROTECTION TRIPS, SWITCH OFF ALL
SWITCH BUTTONS AND WAIT APPROXIMATELY 5 -10 MINUTES. IT SHOULD
RESET AUTOMATICALLY ONCE THE UNIT COOLS DOWN.
WARNING:
Procedures and techniques if not carefully followed will result in damage to the
equipment and will expose the user to the risk of serious injury, illness or death.
This electric fireplace heater is for use on 120 volts. The cord has a plug as shown
at A in illustration below. An adapter as shown at C is available for connecting
three-blade grounding-type plugs to two-slot receptacles. The green grounding
plug extending from the adapter must be connected to a permanent ground such
as a properly grounded outlet box. The adapter should not be used if a three-slot
grounded receptacle is available.
A 15 AMP circuit is required to operate this heater. If the breaker trips when the
heater is used then you may need to move the heater to another location or unplug
other appliances that are on the same circuit. If you require an extension cord use
one that is rated at 1875 watts.
1
