Summary of Contents for World Tech Toys Sonic

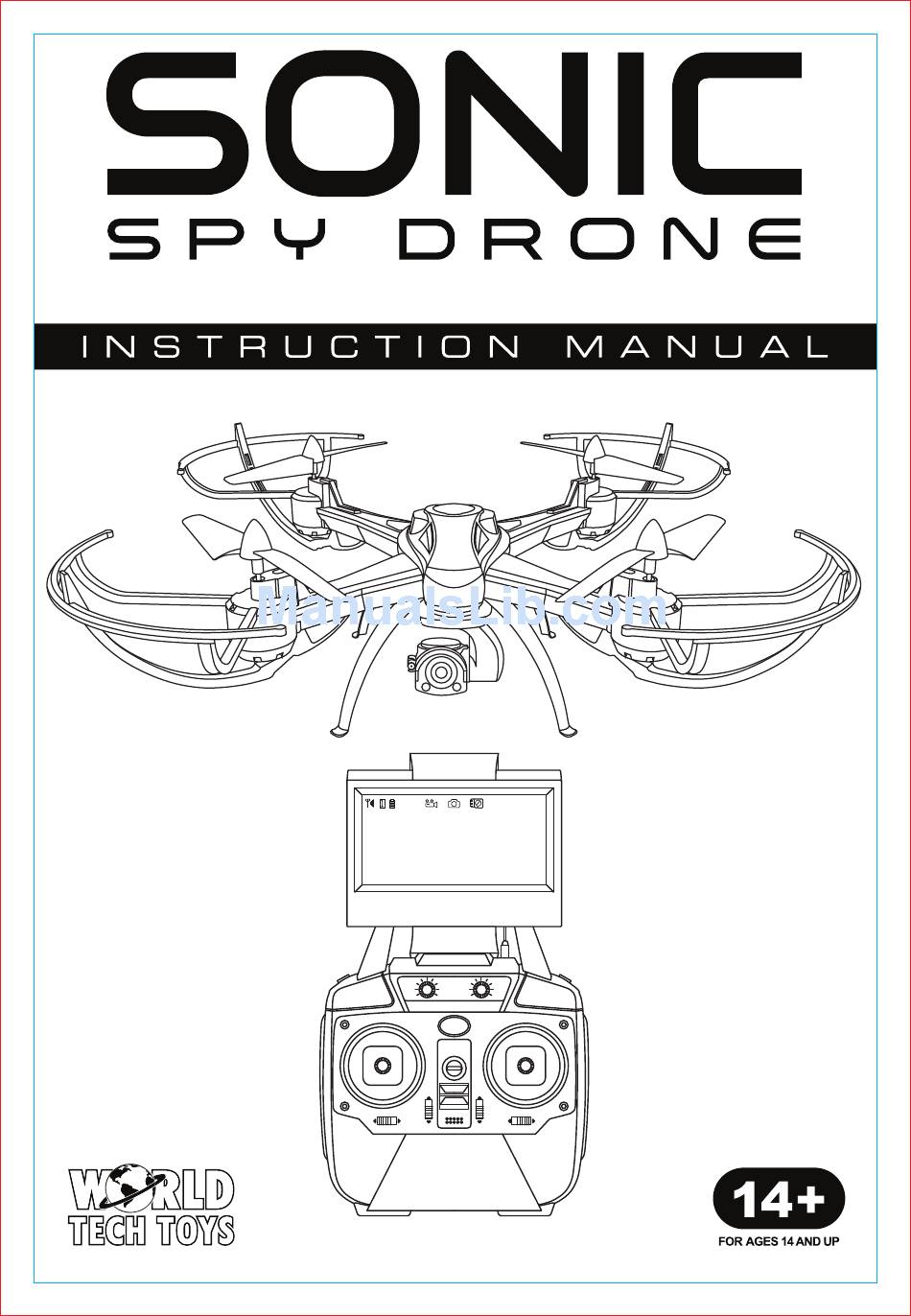

  • Page 1 2.4GHz 4.5CH LIVE FEED VIDEO CAMERA RC DRONE...
  • Page 2 INTRODUCTION Thank you for purchasing this amazing World Tech Toys product. This drone is suitable for outdoor flight. Please carefully read the entire manual before operating this drone and keep it for reference in the future. PRECAUTIONS OUTDOOR FLIGHT PRECAUTIONS This drone is designed for outdoor flight.
  • Page 3: General Specifications

    GENERAL SPECIFICATIONS CONTENTS: 1x Sonic Spy Drone 1x Wall Charger 1x 8GB Memory Card 1x Transmitter with Live Feed Video Screen 1x Instruction Manual 1x Screwdriver 1x Memory Card Reader 4x Spare Rotors Length: 20.86 inches Drone Battery: Width: 20.86 inches 7.4V 1300mAh LiPo...
  • Page 4: Installing Transmitter Batteries

    INSTALLING TRANSMITTER BATTERIES Remove the screw on battery cover and use the top tab to pull open. Install 4 AA Batteries. Please note the polarity. Replace the battery cover and screw once the batteries are properly installed. LIVE FEED VIDEO SCREEN OVERVIEW 1.) Transmission signal strength.
  • Page 5: Drone Diagram

    DRONE DIAGRAM ROTOR GUARDS BATTERY COMPARTMENT ROTOR BLADES LED LIGHTS FRONT - GREEN LEDs REAR - BLUE LEDs GIMBAL LANDING SKIDS VIDEO/PICTURE CAMERA MEMORY CARD SLOT LANDING SKIDS INSTALLATION 1.) Place drone upside down and take the landing skid placing it into the slot on frame.
  • Page 6 CHARGING THE DRONE BATTERY PACK 7.4V 1300mAh LiPo Wall Charger Rechargeable Battery Pack The drone battery pack can be recharged with the included wall charger. The battery needs to be charged when the drones lights begin flashing or you notice a decrease in performance. 1.) Remove the battery pack from drone.
  • Page 7: Flying The Drone

    FLYING THE DRONE Before flying the drone for the first time please read the instructions carefully and make sure you fully understand how to control your drone. BASIC FLYING CONTROLS Throttle Move Forward / Backward Move Right / Move Left Left Spin / Right Spin...
  • Page 8: Adjusting The Trim

    ADJUSTING THE TRIM When drone moves while hovering with no directional transmitter input, adjust the trim controls until hovering is stable. If the drone is spinning to the left, push the RIGHT TURNING TRIM button until the drone stops spinning. If the drone is spinning to the right, push the LEFT TURNING TRIM button until...
  • Page 9: Altitude Lock

    FLIP STUNT MODE Have the drone hover at least 10 feet off the ground. Press the Flip Stunt Button and push the right joystick in the direction you want the drone to perform a single flip. IMP ORTANT: Make sure the drone is hovering at least 10 feet off the ground before performing the flip stunt.
  • Page 10: Post Flight

    POST FLIGHT After you are done flying the Drone make sure the battery pack on the drone is disconnected and the transmitter power is turned off. If you are not going to use the drone for a long period of time, please remove the AA batteries to prevent the batteries from draining or leaking.
