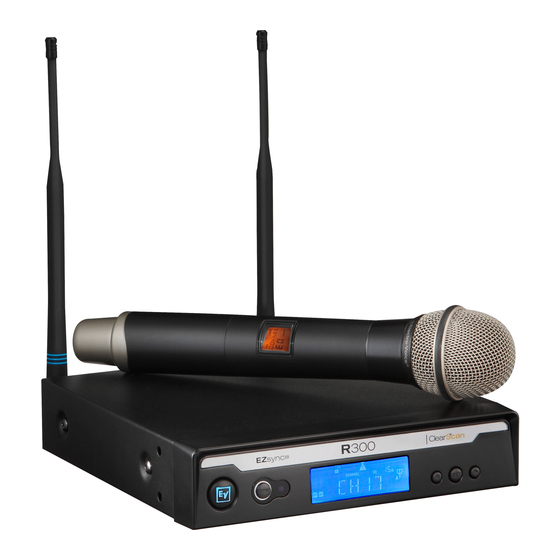

Electro-Voice R300 User Manual

Uhf wireless microphone
Hide thumbs Also See for R300:
Table of Contents

Advertisement

Quick Links

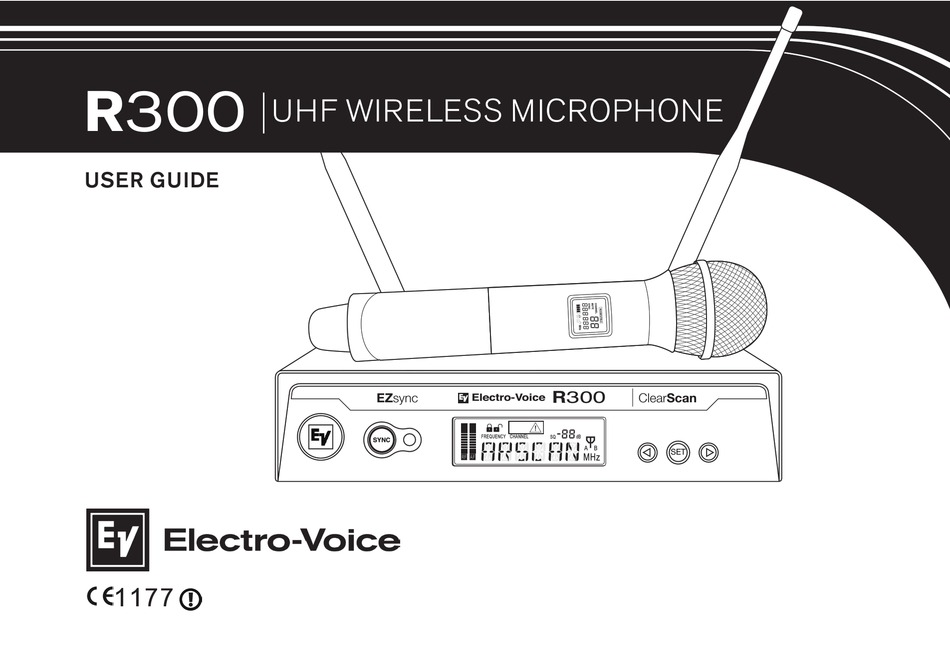

R300
USER GUIDE
1177
UHF WIRELESS MICROPHONE
EZsync
EZsync
SYNC
R300
R300
Electro-Voice
ClearScan
Clear
SET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R300 and is the answer not in the manual?

Questions and answers

Related Manuals for Electro-Voice R300

Summary of Contents for Electro-Voice R300

  • Page 1 R300 UHF WIRELESS MICROPHONE USER GUIDE R300 R300 EZsync EZsync Electro-Voice Clear ClearScan SYNC 1177...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Quick Set–up • Receiver ....................... . . • Transmitter .

  • Page 4: Quick Set-Up

    QUICK SET-UP: RECEIVER Do not connect the receiver to any other equipment yet! Connect the two Antennas to the receiver. Install the blades into the power supply, plug it into the back of the receiver, and into an outlet. Press the POWER switch. Display will light up. Press and hold the button until CLEARSCAN scrolls across the screen. When CLEARSCAN stops, the receiver will be set to the clearest channel. M ute the Audio Mixer channel where the receiver will be plugged in, or set it to minimum. Leave the receiver ON and connect it to the audio system using either the XLR connector or ¼-inch line level jack. Receiver “Quick Set-up” is complete.

  • Page 5: Transmitter

    QUICK SET-UP: TRANSMITTER With the Power switch on the transmitter OFF, install two fresh AA batteries into the transmitter. Press the transmitter Power Switch until the display comes on. Loosen the transmitter battery cover to expose the EZsync Port, as shown. EZsync R300 ClearScan SYNC R300 EZsync Clear SYNC Hold the transmitter with the EZsync Port facing the receiver, about a foot (30 cm) away. * Press the SYNC Button on the receiver, SYNC will show in the display. O nce the channel is set in the transmitter, the display will switch to the main display and show RF and Audio Levels. *Note: When performing EZsync, make sure lighting conditions are not too bright. Extremely bright lighting can interfere with EZsync. Transmitter “Quick Set-up” is complete.

  • Page 6: Systems Operation

    QUICK SET-UP: SYSTEMS OPERATION Set the mixer/amp gain. Talk or sing into the microphone or play the guitar at a normal volume. You should hear audio coming out of the system. Y ou may have to adjust the gain (via the control next to the connector on the receiver back panel) to provide the best input volume for your mixer/amp. Notes: • See page 10 of this manual for more information. • See Image 11 of the Quick Start Guide for gain control location. “Quick Set-up” is now complete. Please enjoy your R300 system.

  • Page 7: Detailed Component Descriptions

    DETAILED COMPONENT DESCRIPTIONS 2.1 | R300 Receiver RECEIVER CONTROLS, CONNECTORS Scroll Down and Up ( and ) Control Buttons Power ON/OFF SET Control Button SYNC Data Transfer Button ClearScan Control (press and hold button) Infrared EZsync Window TNC Antenna Input Connectors (2) Graphical Display Audio Output Volume Control a. Channel or Frequency Display 10. XLR Balanced Output Connector b. Diversity Indicator 11. ¼ Inch Unbalanced Line Level Audio Output Connector c. RF Strength Meter 12. Unbalanced Output Level Switch (-10dB or 0dB) d. Audio Level Meter 13. DC Power Connector (12V DC, 500mA) e. Lock Indicator 14. Power Cord Retainer f. Squelch Level Indicator...
  • Page 8 DETAILED COMPONENT DESCRIPTIONS 2.1 | Receiver Setup & Operation Place the receiver and antennas where there is a clear line of sight to the area where the transmitter will be used. Rotate the antennas to separate them by 90 degrees. Install the appropriate power connection blades into the power supply and con- nect the power supply cord to the receiver. Plug the power supply into an AC outlet. Push the power button to turn the receiver on and confirm that it is on by checking the main display screen. -10dB LEVEL VOLUME ANTENNA B BALANCED OUT UNBALANCED OUT .500mA ANTENNA A Manual Channel Change a. T he and buttons allow you to scroll through the Channels. When the Channel you desire is displayed, stop scrolling.
  • Page 9 EZsync SYNC R300 R300 EZsync Clear ClearScan SYNC e. Press the SYNC button on the receiver to transfer the channel information. f. The receiver will display SYNC until the data is transferred, then return to the main screen. g. The transmitter display screen will now show the new channel and frequency. NOTE: 1. I f the channel data was not transferred to the transmitter after 5 seconds, the receiver will display ERROR. Be certain that the transmitter is On and the EZsync port is facing the receiver and try again. 2. I f the data still does not transfer, try new batteries, or move the unit to a shaded area away from direct sunlight or bright lights before trying again. continued on next page...
  • Page 10 DETAILED COMPONENT DESCRIPTIONS ClearScan: This feature automates the process of finding a clear channel. a. T o scan for the clearest channel in a group, press and hold until CLEARSCAN appears in the display, then release the button. b. When the scan is complete, the display will show the clearest available channel. c. Use the SYNC button to transfer the new channel as in step 3. During set up make sure the mixer or amplifier input used for the R300 is muted or turned down to a minimum level. Plug an audio cable (not supplied) into the 3 pin XLR or ¼-inch TRS output of the R300. Note: The XLR connector is the preferred connection since the output is balanced and will be more immune to noise for longer runs of cable although either can be used with good results. Set the balanced output level on the back panel to 12 o’clock (midway in the range) to start and adjust later if necessary. If the ¼-inch unbalanced output is used, start with adjustment switch in the -10dB setting. continued on next page...
  • Page 11 With the transmitter on, speak into the microphone or play the guitar. Turn up the level on the mixer or amplifier until you are able to hear the desired signal. If no audio is present, repeat setup and refer to the troubleshooting section. Note: It may be necessary to adjust the receiver output until the volume level from the wireless system approximates the level of an equivalent wired microphone/instrument. DISPLAY The main display can be adjusted to display the Channel number or the Frequency. Note: At any time the item not selected for the main display can be shown for 5 seconds by pushing the SET button once. a. Press and hold the SET button until DISPLY shows in the display. b. Press SET and FREQUENCY or CHANNEL will flash in the display. c. Press for FREQUENCY or for CHANNEL and press SET. d. Display will return to the main screen and the selected item will be displayed. e. A t any time the item not selected for the main display can be shown for 5 seconds by pushing the SET button once. continued on next page...
  • Page 12 DETAILED COMPONENT DESCRIPTIONS Change Lock-Out This feature can be useful when the receiver is in a location where unauthorized personnel have access to the receiver. With the LOCK ON, the channel cannot be changed and the word LOCK is displayed when the or button is pushed. a. Press and hold the SET button until DISPLY shows in the display. b. Press to display LOCK. c. Press SET and ON or OFF will be displayed to show the status of the lock-out. d. Press to turn the LOCK ON or to turn the LOCK OFF and press SET. e. D isplay will return to the main screen and padlock symbol in the upper left of the display will show the lock status. continued on next page...
  • Page 13 10. Squelch Adjustment – The squelch setting can be used to maximize range or immunity to noise. a. Turn the transmitter off. b. On the receiver, press and hold the SET button until DISPLY shows in the display. c. On the receiver, press two times to display SQELCH. d. On the receiver, press SET and the squelch setting in the middle right of the screen (SQ 10dB) will flash. e. On the receiver, press to decrease the squelch setting or to increase it. f. On the receiver, press SET to enter the new setting and return to the main screen. g. T urn on the transmitter and walk test the unit. Maximum squelch (50dB) maximizes noise immu- nity but limits the range. Minimum squelch (5dB) will maximize the range but allow more noise to break through the squelch. Never leave the squelch set to 0dB except for testing, white noise will be constantly present on the audio outputs. h. Repeat to fine tune receiver squelch to the desired setting.

  • Page 14: Receiver

    DETAILED COMPONENT DESCRIPTIONS 2.1.2 | Receiver Main Operating Screen Display: RF Signal Meter Audio Meter Lock Indicator No Signal Indicator Channel Number (01 to 32) or Frequency Squelch Setting Antenna Diversity Status A or B antenna Controls: Press or to change channels Press and hold for 3 seconds starts ClearScan, CLEARSCAN scrolls across the display Press SET once to display FREQUENCY or CHANNEL, whichever is not showing Press and hold SET for 3 seconds to access settings menu...

  • Page 15: Handheld Transmitter

    2.2 | Handheld Transmitter HT-300 CONTROLS, CONNECTORS AND INDICATORS Microphone Element Backlit LCD Display a. Channel b. Frequency c. Battery Level d. Mute Indicator EZSync Infrared Port Battery Cover – Screw type Battery Compartment – Two AA Batteries On/Off/Mute button...

  • Page 16: Handheld Transmitter

    DETAILED COMPONENT DESCRIPTIONS 2.2 | Handheld Transmitter Setup & Operation Insert Batteries. a. Remove the battery compartment cover by unscrewing it completely. b. I nsert two AA batteries as shown, sliding one up into the housing to make room for the other making sure to follow polarity, as marked. Turn the unit on by pressing and holding the on/off button for 3 seconds, and the display will light up. If a new channel is desired, use EZsync as in Section 2.1 and close battery compartment. Verify reception. a . W ith the transmitter and receiver on a matching Channel, the main receiver display should be indicating a RF signal on the bar graph. b. S peak into the microphone and the Audio Meter bar graph should indicate audio signal presence. c. I f the level meters do not show reception, make sure the channels are matching and refer to the troubleshooting section.

  • Page 17: Bodypack Transmitter

    Mute Function – press and hold on/off button for 2 seconds until MUTE appears in the LCD display and sound mutes. Repeat to turn mute off. 2.3 | Bodypack Transmitter BP-300 CONTROLS, CONNECTORS AND INDICATORS Antenna – Flexible ¼ wave antenna Power On/Off/Mute Button TA4 Microphone Connector On/Mute LED – Green when transmitter is on, Red when muted continued on next page...
  • Page 18 DETAILED COMPONENT DESCRIPTIONS 2.3 | Bodypack Transmitter continued LCD Display a. Channel b. Frequency c. Battery Level d. Mute Indicator EZsync infrared window Battery Compartment Latch – push down latch and slide cover as shown Two AA Battery Compartment – follow polarity as marked LAV/INS Gain Switch...

  • Page 19: Bodypack Transmitter

    2.3.1 | Bodypack Transmitter Setup & Operation Insert Batteries a. O pen the battery compartment by pressing in on the latch and sliding the door down. b. Insert two AA batteries with + and – as indicated. c. Close the battery door by pushing up. T urn the unit on by pressing and holding the on/off button for 3 seconds, and the LCD display will light up. If channel has not been set, set channel according to 2.1. Microphone/Guitar Operation. a. For Lapel the gain switch should be in the LAV position. b. For Headworn Microphones the gain switch should be in the INS position. c. If lapel microphones are too sensitive and the audio meter on the receiver is reaching the peak, put the gain switch in INS to lower the gain. d. For guitar operation using the optional R300GTRCBL cable, the gain switch should be in the LAV position for passive pickups, and in the INS position for active pickups. Should the output of the passive pickups be too high in the LAV position, switch to the INS position for reduced transmitter input gain. Mute Function – press and hold on/off button for 2 seconds until MUTE appears in the LCD display, On LED turns red, and sound mutes. Repeat to turn mute off.

  • Page 20: Guidelines And Recommendations For Best Performance

    GUIDELINES AND RECOMMENDATIONS For Best Performance Compatibility The transmitter and receiver must be of the same frequency band and set to the same channel in order to work together. The R300 is available in four frequency bands, A, B, C and E (Europe only). The band information is available in the serial number label on the receiver, the serial number label on the handheld transmitter, and on the back panel label on the bodypack. Using Multiple Wireless Systems If three or more R300 systems and/or other UHF/VHF wireless systems are being used in the same location, proper frequency coordination is necessary to avoid interference. Some channels in the R300 are designed to work together, see the channel groups in the back of this guide for more information. Contact your dealer or Electro-Voice for assistance if you are planning more systems or using the R300 with other wireless equipment. Multiple Systems and R300 The ClearScan function can be used to set up any two R300 systems. Just scan with the first unit receiver, set the transmitter to that clear channel and leave it on. Then scan the second unit receiver for another clear channel. If 3 or more systems in the same frequency band are used in the same room, put all of the channels in the same group as indicated by the channel groups on page 28-31. Potential Sources of Interference There are many potential sources of interference for your wireless system. Any electronic product that contains digital circuitry including digital signal processors (reverb/multi-effects units), electronic keyboards, digital lighting controllers, CD and DVD players, and computers, all emit RF energy that can...
  • Page 21 Analog and Digital Television stations can also interfere with your wireless system. The R300 is designed to operate over 16MHz of RF bandwidth, which covers 3 US TV stations. If two of the three stations are used in your area, it will severely limit the number of systems that will operate together and you should be using a different band. Battery Recommendations Fresh AA alkaline batteries from a quality manufacturer will yield the best performance from your R300 transmitters. If sound quality degrades during use, it may be the result of a weakening battery. Receiver and Antenna Placement Do not place the receiver near a large metal object or surface. Locate the receiver as close as possible to the area where the transmitter will be used. Ideally, position the receiver/antennas within sight of the transmitter. When using multiple systems, do not allow antennas to cross or touch each other. Transmitter and Antenna Distance Keep all transmitters at least 3 meters (10ft) away from the receivers and antennas for best operation. If possible, mount the receiver antennas 3 meters (10ft) above the stage so transmitters can not come too close.

  • Page 22: Troubleshooting Guide

    No (or dead) battery in transmitter Insert fresh batteries in transmitter. Faulty battery contacts Clean and or bend contacts to improve connection. Check the TA4F connector on the bodypack or the Microphone not connected detachable microphone element connection on the No Audio with good RF handheld. If possible, try another microphone. signal indicator Transmitter Mute On Press and hold On/Off button to stop Mute. Receiver audio output cable is damaged Connect, repair or replace audio output cable. or disconnected No (or low) Audio with good RF signal and Audio Gain not sufficient on mixer/preamp/amp Increase gain on mixer or un-mute the input. indicators on receiver display input or it is muted Receiver output too low Increase the audio output setting. Receiver output too high Decrease the receiver output setting. Distorted audio signal Loud instrument or audio source Change the bodypack gain switch to INS. Battery level low in transmitter Insert fresh batteries in transmitter. Another R300 system in the installation Make certain all units are on different channels. See Interference is on the same channel or signals Frequently Asked Questions section for more helpful are mixing. information.
  • Page 23 Problem Possible Causes Solutions Another wireless product in the area is on the same frequency or the signals Use ClearScan to change the operating frequency. are mixing Receiver is too close to digital signal Move the receiver to a different location. processor or similar device Interference Strong electromagnetic field from stage lighting or other source near Use ClearScan to change the operating frequency. the transmitter or receiver, which may Repair or remove the source of interference. Move be producing RF noise at or near the the receiver to a different location. operating frequency RF reflective metal obstacles between Move the obstacles, or reposition the the transmitter and receiver receiver/antennas. Check the antenna connection and reorient the Poorly oriented beltpack antenna bodypack so the antenna is vertical (up and down) and facing the receiver, if possible. Short range or drop-outs Check squelch setting, higher numerical settings Squelch set too high mean shorter range (see page 13). Check all antenna connections and reposition to be Faulty receiving antenna system in line-of-sight with the transmitter. Disable lockout by pressing SET for 3 seconds, press Can't change settings Lockout feature is enabled to display LOCK, press SET, press to on receiver turn lock off, press SET.

  • Page 24: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS Frequently Asked Questions Q: How can I make sure my R300 system’s frequency band will work in my location? A: If you will be using your system in the USA, you can check R300 compatibility in your location by using the frequency band selector located at http://www.electrovoice.com/frequencyselector. If you are outside of the USA, please contact your local Electro-Voice dealer or technical support center. Q: Are there any web-based materials or how-to’s available which will help me understand my R300 system? A: R300 how-to videos are posted at http://www.electrovoice.com/evtv.php?category=knowledge Q: How many R300 systems can I operate at the same time? A: The number of R300 systems you can operate simultaneously is completely dependent on your local RF (radio frequency) conditions. Under ideal RF conditions (meaning there are no other sources of RF operating within or near your system’s bandwidth), the maximum number of simultaneous R300 system within one tuning bandwidth is limited to 8 channels within ONE channel group. However, local television broadcasts or other wireless systems operating within your system’s tuning bandwidth will reduce that number. Q: Can I mix frequencies from different groups? A: No. Multi-channel R300 systems in the same bandwidth (A, B, C, or E) must operate within the same channel group. Only frequencies within the same group are inter-modulation free. Frequencies from different groups may interfere with one another. Q: Can I use R300 systems from different bands at the same time? A: Yes. Mixing systems from different bands is possible as long as you follow the group coordination guidelines of each band.
  • Page 25 Frequently Asked Questions Q: Why did I suddenly begin getting interference? During sound check, everything was fine – but after the show began, I started getting interference. A: Another radio system that wasn’t on during sound check began transmitting on, or near your system’s frequency. If this happens, ClearScan you system again to find a new, clear frequency. Q: I’ve hear the term line-or-sight. What does that mean? A: In a wireless microphone system, line-of-sight means that optimal performance occurs within one room, with no walls or structural barriers between the transmitter and receiver antennas. Any wall or enclosure the transmitted signal must pass through will diminish the transmitted signal strength at the receiver. Your receiver antennas should be in the room your transmitter is operating within and out in the open, unobstructed by walls or enclosures. Q: Can I move the receiver antennas that came with my R300 system to another location? A: Only with the appropriate hardware. And only to the appropriate location. The flexible ½-wave dipole antennas which came with your system only function when connected directly to your receiver’s antenna jacks, or when front-mounted in a 19-inch audio rack with the R300 antenna mounting hardware listed in the system accessories table in this guide. Moving these antennas anywhere outside of the rack (such as on a stand or mounted to a wall) will not work. If your needs include the remote mounting of receiver antennas, you must use antennas designed for that application, such as the LPA500 log periodic antenna.

  • Page 26: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS Frequently Asked Questions Q: Where is the EZsync port on the R300 handheld transmitter? A: The EZsync port is located under the handheld transmitter’s removable battery cover. Just as you would do in order to change the batteries, you must loosen the battery cover to expose the EZsync port and aim the port directly at the receiver’s EZsync port during the syncing operation. Q: Sometimes I can’t get EZsync to work properly. Am I doing something wrong? A: EZsync uses an infrared beam of light to sync transmitter to receiver. Extremely bright or fluorescent light can interfere with the sync signal. If you experience difficulties with EZsync, shade the ports from extremely bright light sources during the syncing operation.

  • Page 27: Components And Accessories

    COMPONENTS AND ACCESSORIES Accessories and Parts Model # Order # R300-L System Uni Lapel ULM18 F.01U.168.803 R300-E System Headworn Microphone F.01U.168.804 Windscreen for ULM18 WS-18 F.01U.168.802 Windscreen for HM3 WS-H3 F.01U.170.778 Beltclip for BP-300 BC-300 F.01U.168.797 Guitar Cord R300GTRCBL F.01U.289.662 PL22 Dyanmic Mic Head RCC-PL22 F.01U.170.777 Foam Windscreen for Handheld 379-1 F.01U.117.911 ½ Wave Receiver Antenna A Band CRA-A F.01U.168.794 ½ Wave Receiver Antenna B Band CRA-B F.01U.168.795 ½ Wave Receiver Antenna C Band CRA-C F.01U.310.181 ½ Wave Receiver Antenna E Band...

  • Page 28: Compatible Channel Frequency Groups

    COMPATIBLE CHANNEL FREQUENCY GROUPS (Use only channels within the same group when using more than two R300 units in one room. If you need additional help call 1-800-392-3497 (US and Canada only). US/EURO Band A 618-634 MHz Group 1 Group 2 Group 3 Group 4 Channel Freq Channel Freq Channel Freq Channel Freq 618.500 618.900 619.300 619.700 622.700 620.100 620.500 620.900 624.400 621.500 621.900 622.300 628.300 623.100 623.500 623.900 628.800...
  • Page 29 COMPATIBLE CHANNEL FREQUENCY GROUPS US/EURO Band B 678-694 MHz Group 1 Group 2 Group 3 Group 4 Channel Freq Channel Freq Channel Freq Channel Freq 678.500 678.900 679.300 679.700 682.700 680.100 680.500 680.900 684.400 681.500 681.900 682.300 688.300 683.100 683.500 683.900 688.800 684.900 685.300 685.700 690.700...
  • Page 30 COMPATIBLE CHANNEL FREQUENCY GROUPS US/EURO Band C 516-532 MHz Group 1 Group 2 Group 3 Group 4 Channel Freq Channel Freq Channel Freq Channel Freq 516.500 516.900 517.300 517.700 520.700 518.100 518.500 518.900 522.400 519.500 519.900 520.300 526.300 521.100 521.500 521.900 526.800 522.900 523.300 523.700 528.700...

  • Page 31: Compatible Channel Frequency Groups

    COMPATIBLE CHANNEL FREQUENCY GROUPS EURO Band E 850-665 MHz Group 1 Group 2 Group 3 Group 4 Channel Freq Channel Freq Channel Freq Channel Freq 850.400 850.800 851.200 850.000 851.600 852.000 852.400 854.200 853.000 853.400 853.800 855.900 854.600 855.000 855.400 859.800 856.400 856.800 857.200 860.300 858.425...

  • Page 32: Specifications

    SPECIFICATIONS R300 Receiver Receiver Type Synthesized PLL A Band 618 – 634 MHz B Band 678 – 694 MHz Frequency Range (RF) C Band 516 – 532 MHz E Band 850 – 865 MHz Number of Channels Modulation +/- 40 kHz Diversity Antenna RF Sensitivity < 1.0 μV for 12 dB SINAD Image Rejection > 55dB Squelch Tone Code plus Amplitude FCC Certification Approved under Part 15 Power Requirements 12 - 16 VDC, 500mA max Operating Temperature 5º to 45º C (41º to 113º F) 1.72 in H x 7.8 in W x 8.0 in D Dimensions (43 mm H x 206 mm W x 210 mm D)
  • Page 33 Audio Parameters Frequency Response 80 – 18kHz +/- 2dB Balanced Output 20 dBV (max @ 40 kHz deviation) Unbalanced Output Adjustable 8 mV to 0.755V RMS Distortion < 1.0%, 0.4% typical (ref 1kHz, 40kHz deviation) Signal-to-Noise Ratio > 100dB A Weighted Dynamic Range > 95dB Transmitters BP-300 and HT-300 Radiated Output 8 mW typical Microphone Head ElectroVoice PL22 Dynamic Power Requirements Two AA Batteries EV ULM18 Standard Lavalier Microphone Uni-Directional Condenser TA4F Connector Wiring Pin 1: Ground; Pin 2 Mic Input; Pin 3: +5V bias; Pin 4: N/C Power Requirements Two AA Batteries Battery Life (Typical) > 14 hours with AA Alkaline Typical Bodypack Antenna Flexible external ¼ wave Handheld Antenna Internal Dimensions (Handheld) 10.57 in (26.7 cm) Long 3.3 in H x 2.6 in W x 0.89 in D Dimensions (Bodypack) (84 mm H x 66 mm W x 23 mm D)

  • Page 34: Certifications

    CERTIFICATIONS (Depending on frequency selected and country of operation) R300 receiver, HT-300 and BP-300 transmitters: Certified to ETSI EN 300 422-2 and ETSI EN 301 489-9, Conforms to European Union directives, eligible to bear CE marking as per the R&TTE directive. R300 receiver: Certified for use in Canada under RSS 210 Issue 5. HT-300 and BP-300 transmitters: Certified for use in Canada under RSS 123 Issue 1. R300 receiver: Authorized under U.S. Federal communications Commission Part 15. HT-300 and BP-300 transmitters: Certified under U.S. Federal Communications Commission Part 74. These devices comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Licensing of this equipment is the user’s responsibility and is determined by the user’s classification, the user’s application, and frequency selected. The user should contact the appropriate telecommunications authority for any desired clarification. Any changes or modifications made to the aforementioned equipment, by the user, could void the user’s authority to operate the equipment. This equipment is intended for use in wireless microphone applications. Equipment intended for sale in (ISO 3166-1, 2 letter country code): AT, BE, BG, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, GB. This equipment is in compliance with the following directives: 2002/95/EC RoHS Directive and 2002/96/EC WEEE Directive Please dispose of the base station and transmitters at the end of its operational life, by taking it to you closest collection point or recycling center.

  • Page 35: Factory Service

    FACTORY SERVICE Factory Service (North America) If factory service is required, call service center for RMA# and shipping instructions: EV Audio Service c/o Bosch Security Systems, Inc. 8601 East Cornhusker Highway Lincoln, NE 68507-9702 U.S.A. Tel: 402-467-5321 or 800-553-5992 Fax: 402-467-3279 Enclose a note describing the problem along with any other pertinent information and how to contact you. Factory Service (Europe) If factory service is required, ship the unit prepaid in its original carton to: Telex EVI Audio GmbH Hirschberger Ring 45 D-94315 Straubing Telephone: +49 (0) 9421 706 0 Fax: +49 (0) 9421 706 350 Enclose a note describing the problem along with any other pertinent information and how to contact you. For more information about service in your local area go to www.electrovoice.com . Warranty (Limited) Please go to www.electrovoice.com for all current warranty information.
  • Page 36 Bosch Communications Systems Americas: France: Japan: EVI Audio France S.A., EVI Audio Japan, Ltd Headquarter Americas Parc de Courcerin, 5-3-8 Funabashi, Setagaya-ku, Bosch Security Systems, Inc. Allée Lech Walesa, Tokyo 156-0055 12000 Portland Ave South, F 77185 Lognes, France Tel: +81 (3) 5316-5021 Burnsville, MN 55337, USA Phone: +33 1-6480-0090 Fax: +81 (3) 5316-5031 USA–Ph: 1-800-392-3497 Fax: +33 1-6006-5103 Fax: 1-800-955-6831 Hong Kong: Telex EVI Audio (Hong Kong) Ltd. Shuttlesound, Room 508-509, 5/F, Canada: 4 The Willows Centre, Topsail Plaza Ph: 1-866-505-5551...
