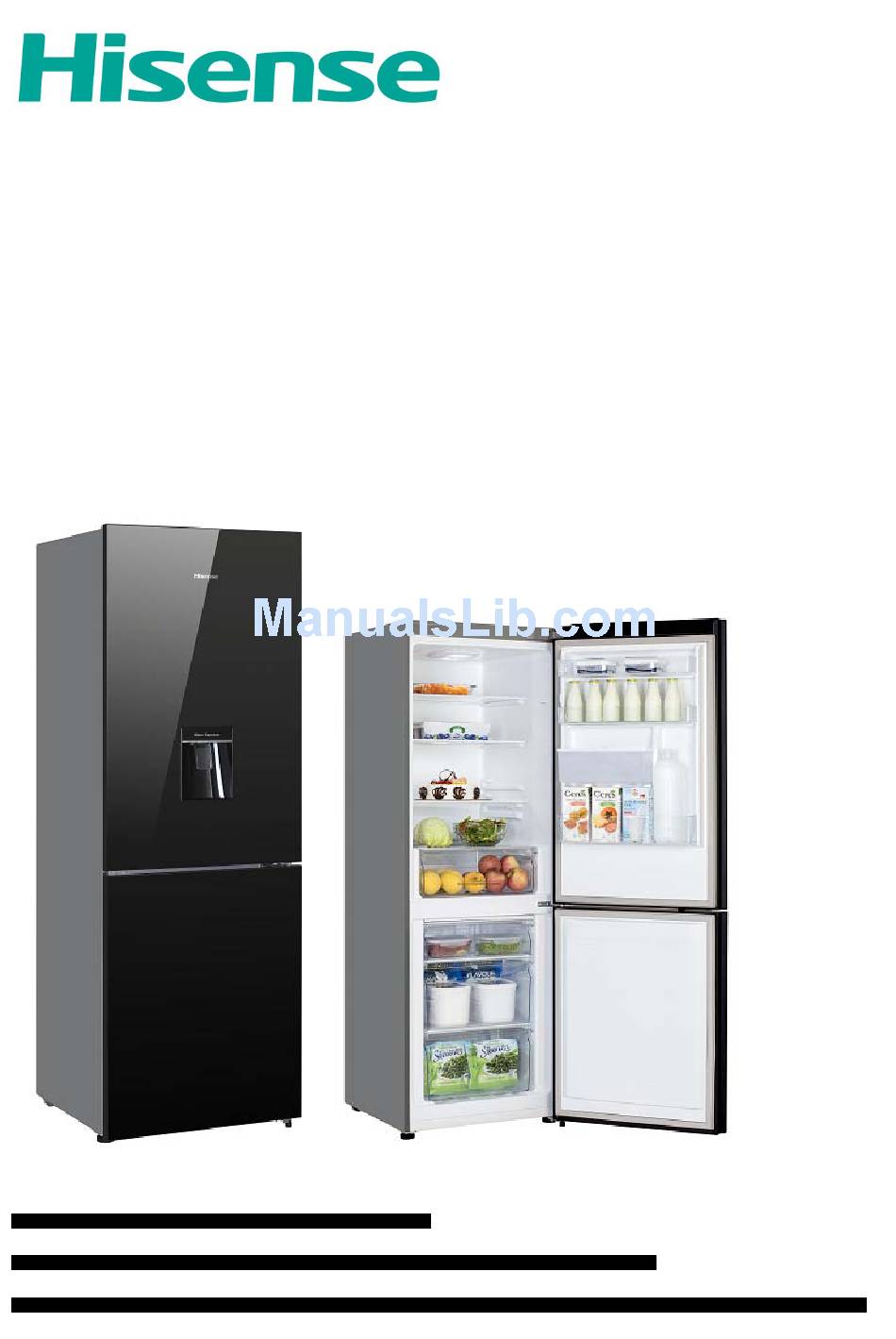

- Page 1 Refrigerator Service manual NO FROST MODEL:RD-31WC4S* (BCD-228W) NOTE: product specifications are subject to change.
-
Page 2: Table Of Contents
Contents Warnings and precautions for safety ..........................2 Parts Description ................................3 Cooling diagram ................................5 Checking the Compressor ............................7 Checking the Heater ..............................8 Checking the timer ............................... 8 Checking the defrost fuse ............................10 Checking the defrost thermostat ..........................10 ◆The instruction of replacing the thermostat. -
Page 3: Warnings And Precautions For Safety
Warnings and precautions for safety Please observe the following safety precautions in order to use safely and correctly the refrigerator and to prevent accident and danger during repair. 1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than three minutes before replacing PCB parts. -
Page 4: Parts Description
Parts Description Circuit diagrams and Basic parameters... - Page 5 Basic parameters Voltage / frequency 220-240V~ 50HZ Net capacity 228L Net capacity fridge compartmen (Fridge/Chill) 147L Net capacity freezer compartment Energy efficiency class Climate class (SN=10~32°C, N=16~32°C, ST=16~38°C, T=16~43°C) N、ST、T Freezer compartment star rating 4 Star Energy consumption / year kWh/year Energy consumption (ISIRI 4853-2) per 24 h kWh/24 h...
-
Page 6: Cooling Diagram
Cooling diagram Checking the Thermostat Use a multi-meter to test the resistance between L & C when the thermostat is at normal position... - Page 7 such as: “ 1, 2, .. 7” : If there shows “000”then the thermostat is OK If there shows anything but “000”then the thermostat is always at OFF Position and compressor will not start ever. Use a multi-meter to test the resistance between L & H and C&H when the thermostat is at shut position such a s “0”: If there shows no response then the thermostat is OK If there shows anything (have response) then the thermostat is always at ON Position and the...
-
Page 8: Checking The Compressor
Checking the Compressor Use a multi-meter to test the resistance between C & S, M&S and M&C : Normal range of C&M : About 10-30Ω Normal range of C&S : About 10-32Ω Normal range of S&M : About 20-60Ω If the test result is not in this range then it means the inner coil has some problem and the compressor can not work properly. -
Page 9: Checking The Heater
If there show 000 or no response then it is broken. Checking the Heater If defrost system failure，check the heater and the temperature fuse as well as wires. Measuring temperature fuse and heater resistance about 361Ω then it is OK.( Blue and Yellow) Checking the timer Timer is an importance control component for air defrost refrigerator’s defrost system. - Page 10 1 means power port 2 means defrost port 3 m eans c ommon por t 4 m eans c ompressor po rt 1、1-3 is the timer coil running connect wire port. 2、3-4 is compressor running connect wire port 3、3-2 is defrost heater working connect wire port Checking method as following picture: As picture, set the timer to the compressor running, use the multimeter measure the foots of 3 and 4, if the value of resistance is 0000, it means normal.
-
Page 11: Checking The Defrost Fuse
As picture 1, adjusting knob as the picture it mean into the defrost, other area is compressor working. As picture 2, adjusting the timer to defrost working, then use the multimeter measure the foots of 3 and 2, if the value of resistance is 0000, it means normal. Checking the defrost fuse Fuse is a high temperature protector of defrost system, when defrosting, if it feel the temperature is more than 73℃, it will cut off the defrost heater, stopping defrost, so that it can protect the parts. -
Page 12: The Instruction Of Replacing The Thermostat
Picture 1 Picture 2 The picture 1 is defrost thermostat As picture 2, using the multimeter measure two foots of defrost temperature sensor, it should be open circuited. If you want to judge the defrost temperature sensor is good or bad, you can put the defrost temperature sensor into a refrigerator’s freezer (The temperature is below -18℃... -
Page 13: The Instruction Of Replacing Refrigerator Light Bulb
4. Remove the thermostat fixing nut 5. Take out the thermostat. ◆ The instruction of replacing refrigerator Light bulb. Unplug the mains plug Light bulb data: 220-240 V,max.15W. -
Page 14: The Instruction Of Replacing The Timer
1.To change the light bulb, undo the screw. 2.Press the light bulb cover and slide it backwards. 3.Change the defective light bulb. 4.Refit the light bulb cover and the screw. 5.Put the refrigerator back into operation. ◆The instruction of replacing the timer 1. - Page 15 1. Remove the air duct cover plate screw 2. Remove the screw cover 3. Unscrew two screws of the wind channel part in freezer chamber. 4. Removing wires. 5. Remove the wind channel part in freezer chamber.
-
Page 16: The Instruction Of Replacing Evaporator Temperature Temperature Fuse And Heater
6. Take out the fan motor. ◆The instruction of replacing evaporator temperature temperature fuse and heater 1. Take out the evaporator temperature fuse 2. Take out the defrost temperature sensor 3. Take out the replacing heater ◆ The instruction of replacing Door switch. 1. -
Page 17: The Instruction Of Replacing Ptc Starting Relay And Overload Protector
2. Take out of the door switch. ◆ The instruction of replacing PTC Starting relay and Overload protector. 1. The location of the PTC Starting relay and Overload protector. 2. Take down Spring Tap and Cover. 3. Disconnect the connecting wire of the PTC Starting relay and Overload protector. -
Page 18: Water Dispenser
Water Dispenser... -
Page 20: Troubleshooting
Troubleshooting ◆The common problem judgement method Problem Cause 1.1 Is the power cord connecting well？ 1.2 Is the power voltage too low？ 1.3 Is the sensor irrational setting? 1.4 Is the ambient temperature too low? Refrigerator can’t start 1.5 Is the circuit on power? 1.6 Is there some default in compressor 1.7 Is the refrigeration system blocked by ice or dirty, please stop the unit and restart after 10 minutes to see if the compressor can start. -
Page 21: The Solution For The Common Problem
contracting or expanding, this sound will be made, which is normal. 5.8 The motor operation sound in the compressor is appears to be louder at night or begin starting. which is a normal phenomenon; also the uneven placing would lead to too much running noise. - Page 22 b, higher temperature of discharging tube. C, much noise General when a compressor works for many years, some parts of compressor were wear, so that compressor discharge less gas out, unit does not work strongly. Phenomenon of failure: 4)Low working a, lower pressure of discharging, check the efficiency Change a new compressor.
-
Page 23: Note
The phenomenon above will appear again and again. The way to check ice blocking: Warm the capillary with a hot towel, after a while the ice in the capillary melt, you can hear a sound of gas flow comes from the capillary abruptly.
