DMP Electronics V-4010B-1 Installation Manual

V-4010B-1 Indoor/Outdoor HD Video Camera
Description
The DMP V-4010B-1 is an indoor/outdoor wired/wireless video
camera that allows live view and recorded clips through the
Virtual Keypad App, as well as email motion-triggered video clip
notification. To install and activate the camera, you need an
active dealer account at vk.securecomwireless.com.
Compatibility
• Any DMP system with an active Virtual Keypad App
What is Included:
• V-4010B-1 Camera
• Camera Mounting Base
• 12V Power Transformer
• Mounting Screws
• Hex Key

Mounting the Camera

The DMP V-4010B-1 Camera is suitable for both wall and ceiling
mounting applications. Ceiling mounting will be covered as
an example in this section, however, the same steps may be
referenced for wall mounting.
1. Using the included template, mark and drill the screw holes
for the mounting base.
2. Route and connect the power and network cables as
necessary.
3. Secure the camera with the screws.
4. Adjust the Lens (Figure 2).
a. Loosen the adjustable nut.
b. Adjust the pan (P) direction [0°~360°].
c. Adjust the tilt (T) direction [0°~90°].
d. Rotate (R) the camera [0~360°] to adjust the lens to the surveillance angle.
e. Tighten the adjustable nut to complete the installation.
Camera Configuration Options
The V-4010B-1 can be configured to communicate to the SecureCom Video server in four ways:
Option #1 - DMP WAP Auto Pair connection
Option #2 - Wired connection
Option #3 - Wireless connection using DMP V-IP1006RR Wireless Access Point (WAP) with WiFi Protected Setup (WPS)
Option #4 - Wireless connection using a WPS enabled WAP
Option #5 - Wired connection using PoE
Option #1 Configuration - DMP V-IP1006RR WAP Auto Pair:
1. Plug in the power adapter to the WAP
and to a power outlet.
2. Plug in the power adapter to the camera
and to a power outlet.
3. Repeat step 2 for each camera you will
be connecting at this site.
The camera is now ready to be activated
through vk.securecomwireless.com.
Inst alla tIon GuIde
Mounting Base
Adjustment Nut
Hex Key
Network Interface

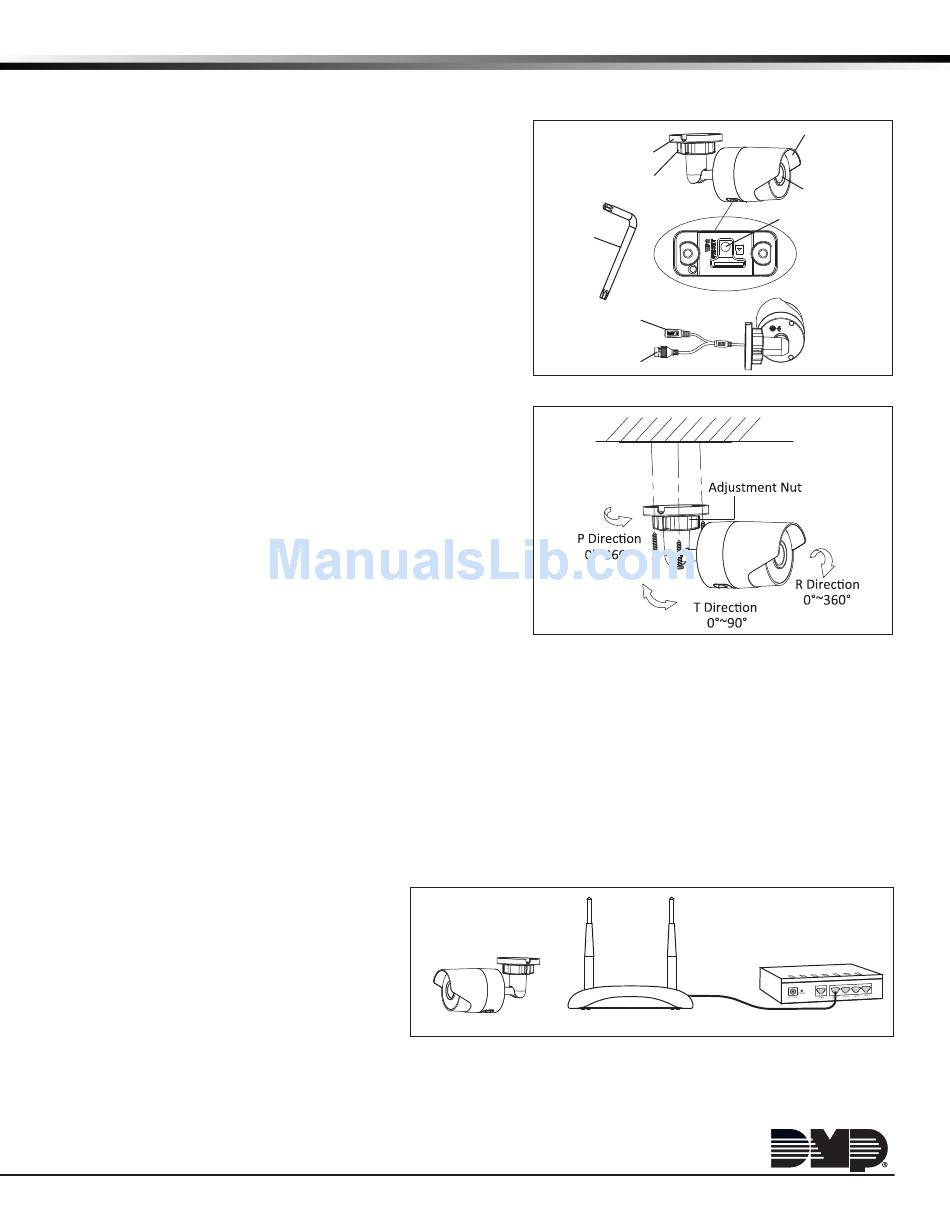

Figure 1: Indoor/Outdoor HD Video Camera
